Laserworld PL-70

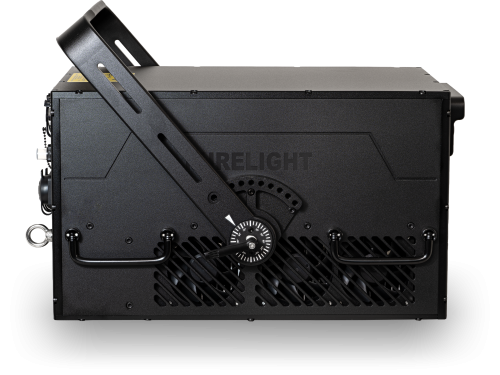

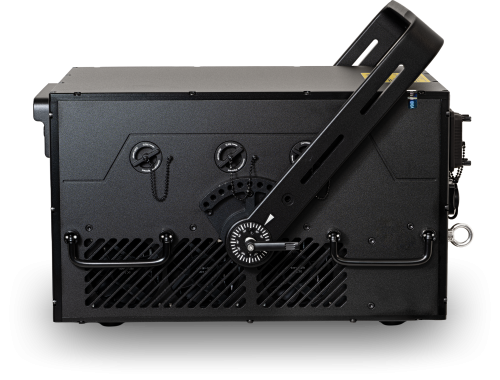

The Laserworld PL-70 laser systems is equipped with the RSL2 module technology, which was initially developed by LaserAnimation Sollinger. This leads to an extremely small and lightweight housing with improved beam quality at the same time. With its 70'000 mW of power, an IP65 rating and 30 kpps @ 8° scanners, the Laserworld PL-70 is a great choice for large club installations, touring and production, and largest outdoor shows as well as more complex graphic projections. These RSL2 based full color diode laser system offers an analog modulated, linear color fading combined with great visibility.

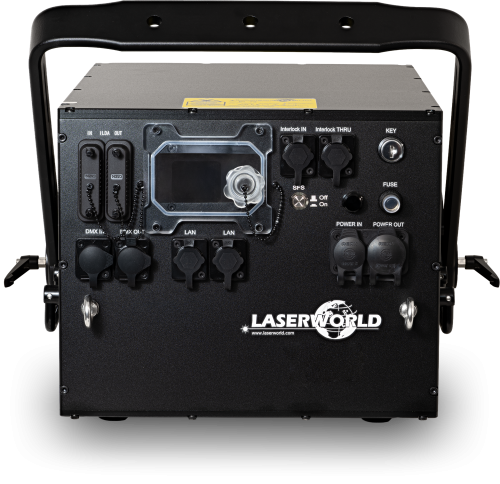

Laserworld PL-70 lasers include the ShowNET intelligent mainboard, which also has the digital-to-analog converter (DAC) feature, allowing them to be controlled directly via software like Showcontroller, Showeditor, TouchDesigner, MadLaser, ILD-Render, or any ILDA laser control software when using an external ILDA interface such as LaserGraph DSP. Additionally, the units come standard with built-in memory containing preset patterns that are easily accessible via DMX or Art-Net. It is also possible to create custom content in the ILDA file format and upload it to the mainboard. The Showeditor software license, that is included in delivery, can be used for the content creation. Besides that, the Laserworld PL-70 can also operate in automatic mode, which is helpful for advertising, corporate productions or simply for automated laser shows.

The Laserworld PL-70 has a beam diameter and divergence of ca. 10 mm / 1.1 mrad. The guaranteed output power is 70'000 mW, with individual RGB values of 23'000 mW / 638 nm, 28'000 mW / 520 nm, and 28'000 mW / 450 nm. It offers a scan speed of 30 kpps @ 8° and a maximum scan angle of 50°. Thanks to its IP65 rating, the laser is not only perfectly suited for outdoor use but also reduces maintenance requirements to an absolute minimum.
