Laserworld FB4 MAX²

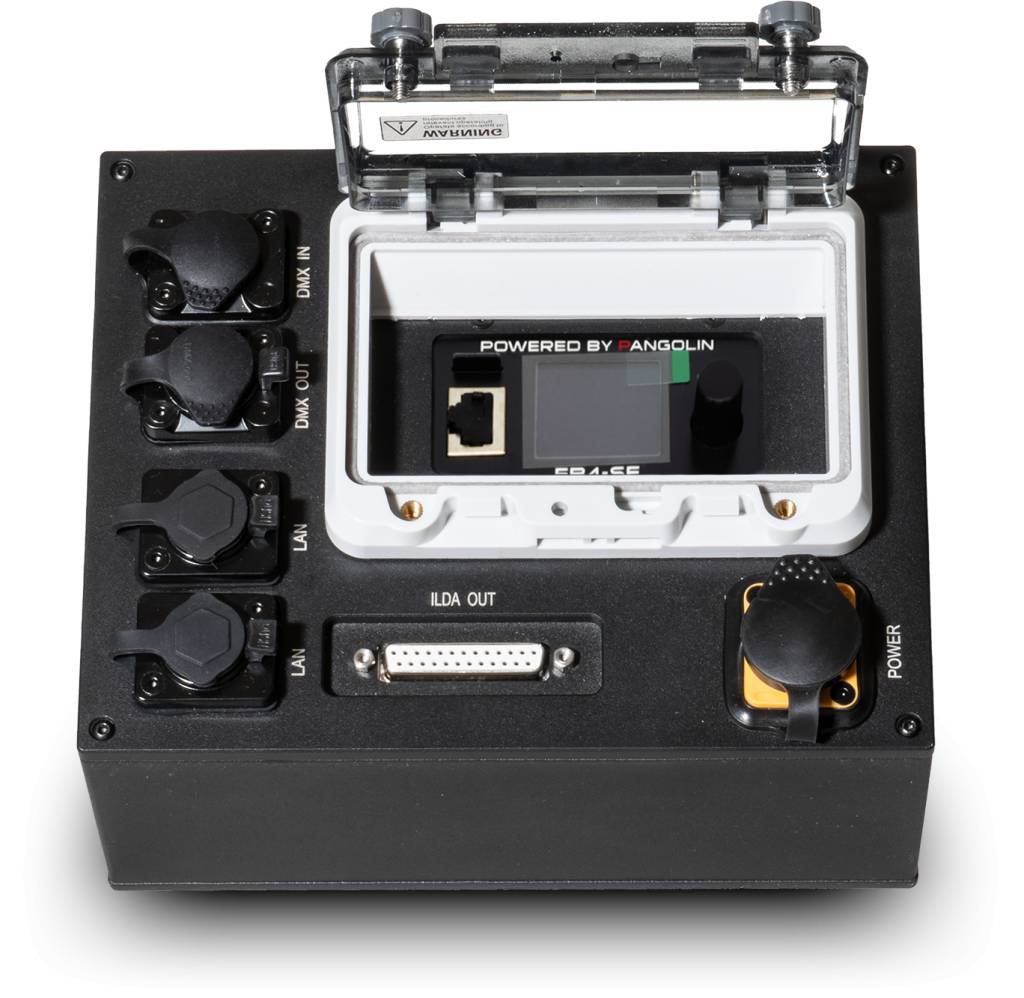

Laserworld FB4 MAX² main image
The Laserworld FB4 MAX² is a External Pangolin Flashback 4 FB4 MAX interface with Quickshow software license. It comes in a rugged and rainproof aluminium housing and thus its suitable for indoor and outdoor use. The Laserworld FB4 MAX² comes with an build in power supply, M10 thread for attaching a clamp
  • DMX IN/OUT
  • ILDA
  • Internal power supply
  • M10 thread to attach a clamp
  • Rugged aluminium housing
  • Pangolin Quickshow software license included
  • Can be upgraded to Pangolin Beyond
  • IP64 rated housing
  • Internal switch
  • Safety eyelet
  • 5-Pin DMX in/out
  • ILDA out

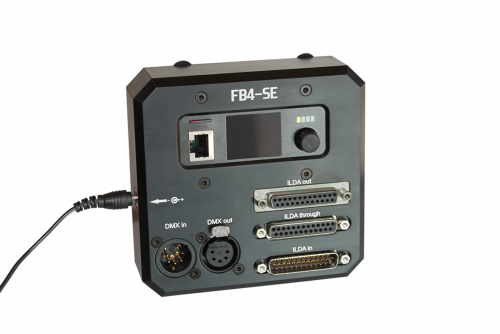

Laserworld FB4 MAX² additional image 1
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
ArtNET modeArtNET Control mode
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
LAN connectionLAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA connectionILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
Pangolin FB4 integratedFB4 INTEGRATED:
The laser can be controlled through the integrated Pangolin FB4 board

General

The Laserworld FB4 MAX² is a network interface, which runs with Pangolin Quickshow or Pangolin BEYOND. Pangolin Quickshow is included. It has an SD memory to store content on that can be triggered by DMX or ArtNET or be run in Stand-Alone mode.
The Laserworld FB4 MAX² can be used with every show laser system, providing one of the features mentioned above, independent of the brand.

Features of Laserworld FB4 MAX² are:

  • Full Ethernet control
  • Stand-alone SD memory card
  • Full color OLED display
  • Support for DMX and/or ILDA
  • Support scan speed of up to 120kpps
  • Support for 6-color channels
  • Improved laser output with interpolation

The integrated full color OLED display provides various setting options:

  • Projector settings
  • Network settings
  • Color palette settings
  • Geometric corrections
  • Safety settings
  • Clock
  • etc.



Laserworld FB4 MAX²

Laserworld FB4 MAX² runs the laser control software of Pangolin Quickshow and offers the possibility to control the show laser system through ILDA or DMX or by the onboard SD-memory. Furthermore it is possible to connect additional laser projectors via ILDA through and ILDA in.

For ILDA or DMX control:
Just connect a network cable (CAT5) from your computer, running Pangolin Quickshow (software is included in this package), to the network port of the Laserworld FB4 MAX². Then connect an ILDA or DMX cable from this network interface to the laser system.

With SD-memory:
Lighting Console Mode: Create content in Pangolin software and then export this content to the onboard SD-memory (included in delivery). A computer is obsolete for this type of laser control setup, as control happens through a lighting console. This option is ideal for lighting designers.

Auto Mode:
Create content in Pangolin software and then export this content to the onboard SD-memory (included in delivery). It is possible to playback the content from the SD-memory automatically, without the need for a computer. The Laserworld FB4 MAX² features an internal clock, which allows setting a given time for playback (additional battery required).



> More details

Accessories
microSD card, Power Cable, manual
IP rating
64
Dimensions
200 x 115 x 160 (L x W x H)
Weight
2,04 kg
EAN / MPN
7640144999292
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
