Laserworld PL-10
The latest generation of Purelight IP65 laser systems features innovative RSL2 technology, which combines an extremely compact and lightweight design with outstanding beam quality. Delivering 9'800 mW of power and featuring an IP65 rating, the Laserworld PL-10 is a great choice for large-scale club installations, touring, production, and medium-sized outdoor shows. Its 45 kpps @ 8° scanning system ensures it is capable of professional-level graphics projections.
Each device features an integrated ShowNET mainboard and a built-in color display for easy operation mode configuration. This powerful hardware allows the Purelight Series to be controlled directly via LAN connection using various laser software or integrated into professional lighting setups via DMX and ArtNet.
Each device features an integrated ShowNET mainboard and a built-in color display for easy operation mode configuration. This powerful hardware allows the Purelight Series to be controlled directly via LAN connection using various laser software or integrated into professional lighting setups via DMX and ArtNet.
- Innovative RSL2 module technology for optimized optical performance and a compact housing
- Minimum power at aperture: 9'800 mW
- Professional graphics capable – 45 kpps @ 8°
- Maximum scan angle: 50°
- Sharp, intense beams – ca. 5.5 mm
- IP65 waterproof housing – ideal for outdoor use
- Save safety settings directly to the ShowNET mainboard
- Link multiple units with Power, DMX, and ILDA linking
- Free computer control software (Showeditor) included – upgradable to Showcontroller
- Multiple control modes: Auto, DMX, ArtNet, and ILDA
- Built-in display for easy selection of operating modes

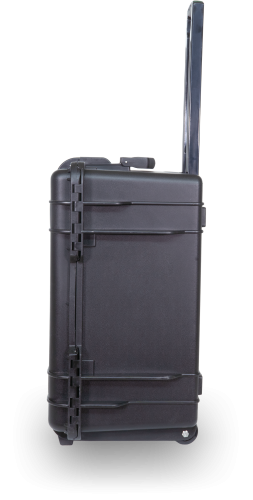

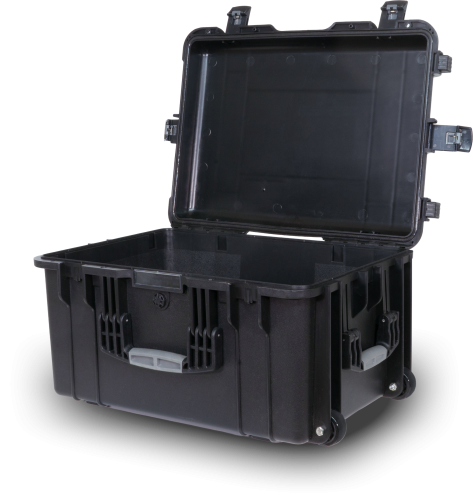

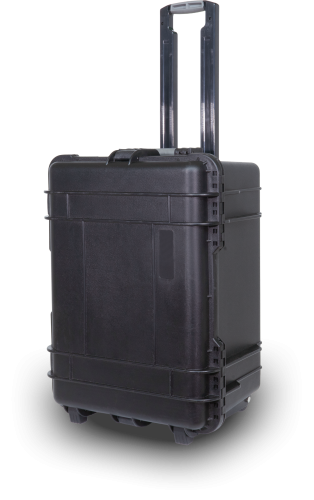

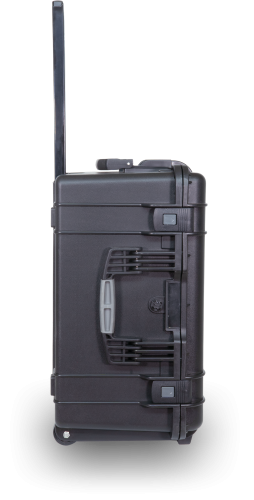

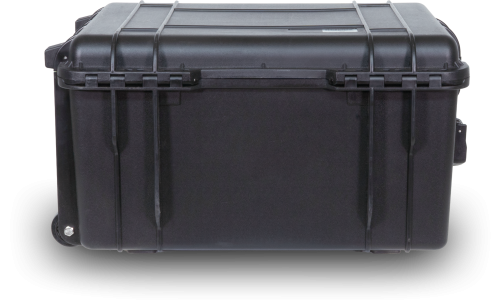

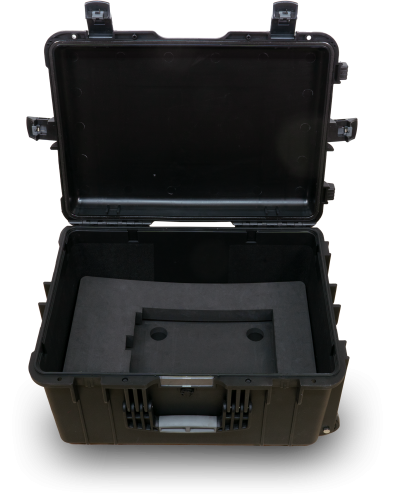

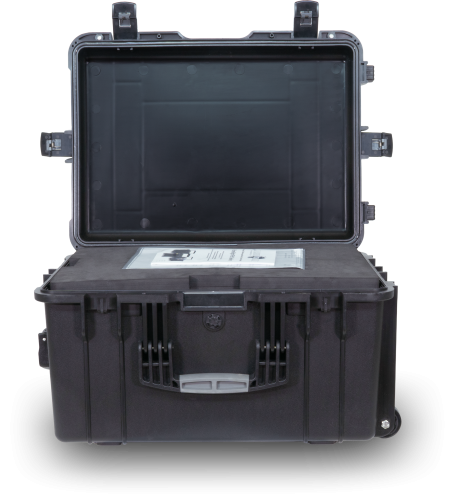

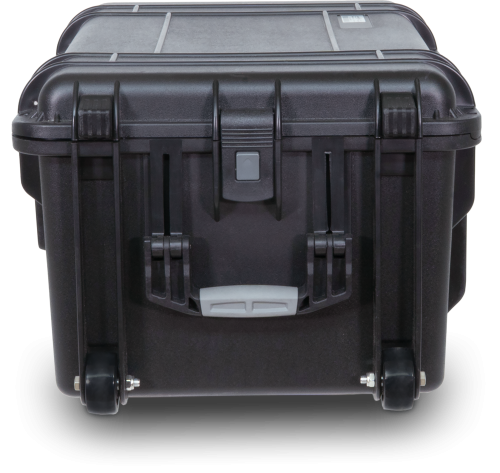

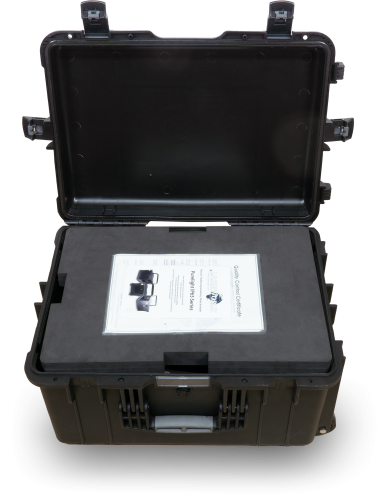

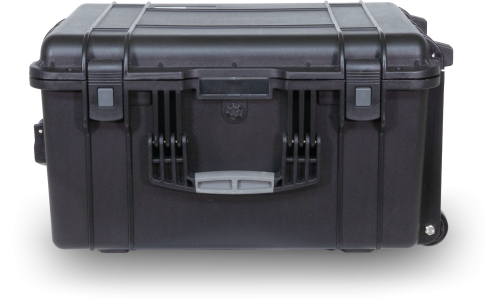

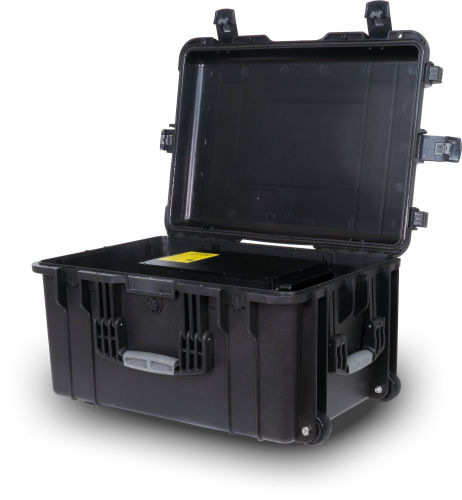

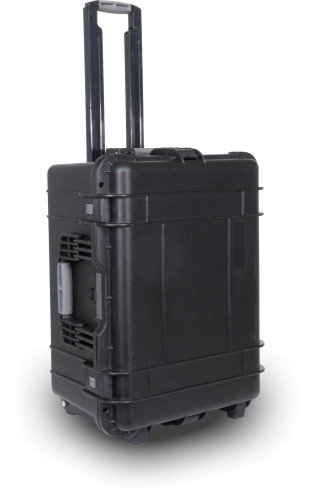

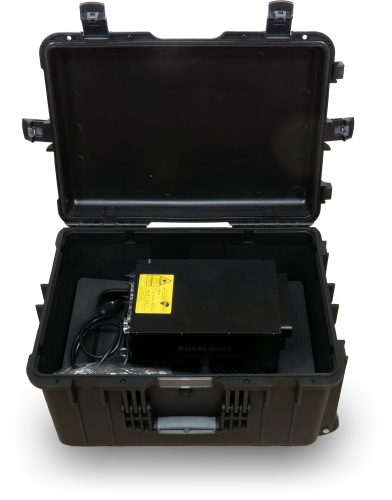

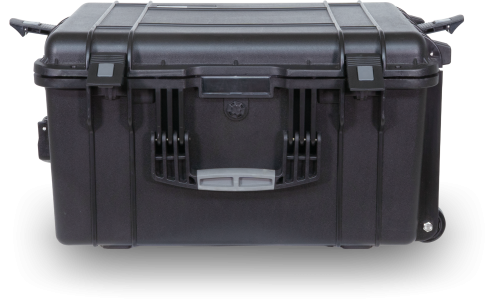

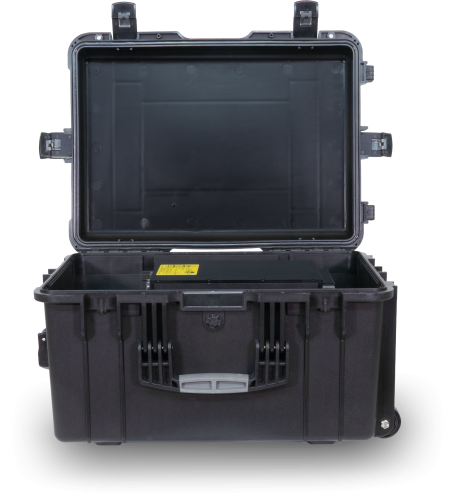

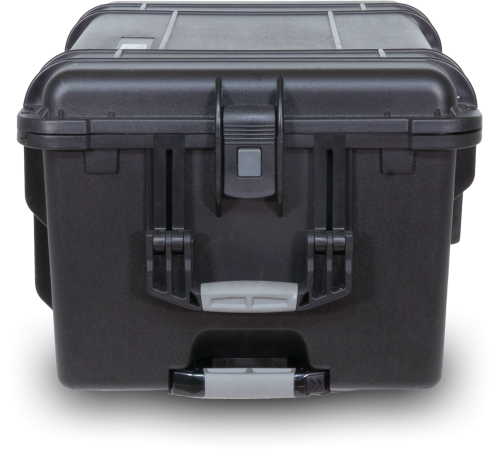

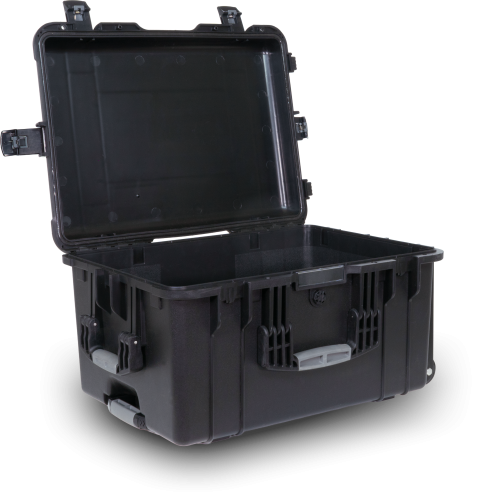

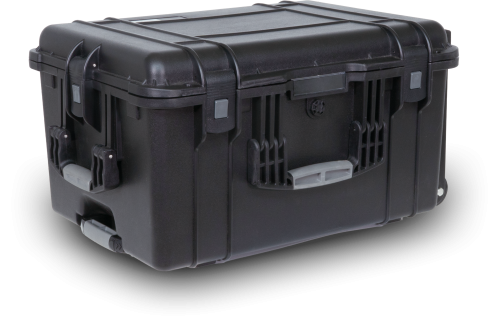

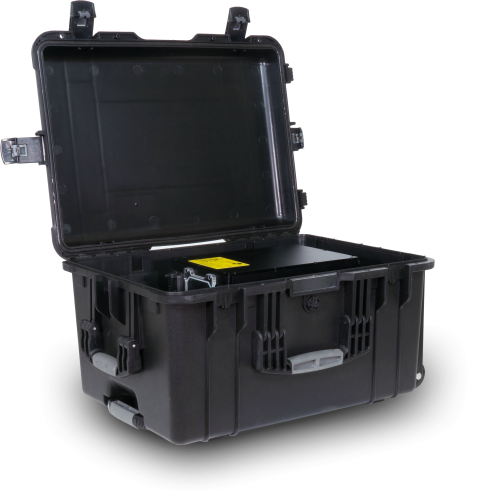

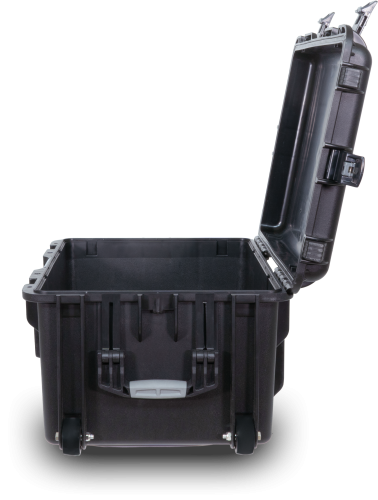

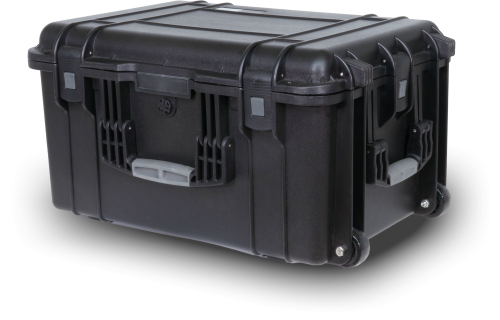

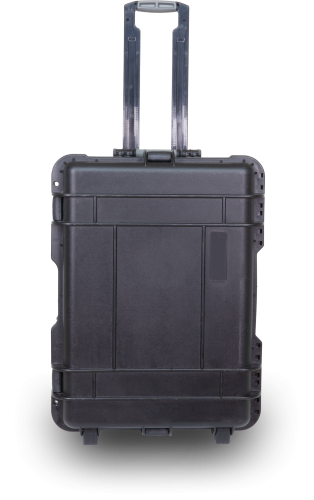

- Including waterproof flightcase
ShowNET mainboard as standard:
- Various control options: ILDA, Professional DMX (two modes), LAN (Computer control, integrated DAC)
- Create custom content, store it inside the laser and play it back in different modes
- Free laser show control software included
DMX MODE:The laser can be controlled with a standard DMX controller or DMX software.
LAN MODE:The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA MODE:The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
SHOWNET INSIDE:The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
SHOWEDITOR INCLUDED:The full version of the laser show control software Showeditor is included in delivery.
The Laserworld PL-10 laser system is equipped with RSL2 module technology, originally developed by LaserAnimation Sollinger. This technology enables an extremely small and lightweight housing while simultaneously improving beam quality. With its 9'800 mW of power, an IP65 rating and 45 kpps @ 8° scanners, the Laserworld PL-10 is a great choice for large-scale club installations, touring and production, as well as medium-sized outdoor shows and professional graphics projections. This RSL2-based full color diode laser system provides analog modulation for linear color fading combined with great visibility.
The Laserworld PL-10 laser features the ShowNET intelligent mainboard with an integrated digital-to-analog converter (DAC), allowing for direct control via software such as Showcontroller, Showeditor, TouchDesigner, MadLaser, or ILD-Render. It can also be used with any ILDA laser control software when using an external interface like LaserGraph DSP. Additionally, the unit comes standard with built-in memory containing preset patterns accessible via DMX or ArtNet. It is also possible to upload custom ILDA files to the mainboard using the included Showeditor software license. Besides that, the Laserworld PL-10 can operate in automatic mode, which is ideal for advertising, corporate productions, or automated laser shows.
The Laserworld PL-10 has a beam diameter and divergence of ca. 5.5 mm / 0.9 mrad. The guaranteed output power is 9'800 mW, with individual RGB values of 3'000 mW / 638 nm, 2'800 mW / 520 nm, and 5'000 mW / 450 nm. It offers a scan speed of 45 kpps @ 8° and a maximum scan angle of 50°. Thanks to its IP65 rating, the laser is perfectly suited for outdoor use and reduces maintenance requirements to an absolute minimum.
The Laserworld PL-10 laser features the ShowNET intelligent mainboard with an integrated digital-to-analog converter (DAC), allowing for direct control via software such as Showcontroller, Showeditor, TouchDesigner, MadLaser, or ILD-Render. It can also be used with any ILDA laser control software when using an external interface like LaserGraph DSP. Additionally, the unit comes standard with built-in memory containing preset patterns accessible via DMX or ArtNet. It is also possible to upload custom ILDA files to the mainboard using the included Showeditor software license. Besides that, the Laserworld PL-10 can operate in automatic mode, which is ideal for advertising, corporate productions, or automated laser shows.
The Laserworld PL-10 has a beam diameter and divergence of ca. 5.5 mm / 0.9 mrad. The guaranteed output power is 9'800 mW, with individual RGB values of 3'000 mW / 638 nm, 2'800 mW / 520 nm, and 5'000 mW / 450 nm. It offers a scan speed of 45 kpps @ 8° and a maximum scan angle of 50°. Thanks to its IP65 rating, the laser is perfectly suited for outdoor use and reduces maintenance requirements to an absolute minimum.
> More details
ShowNET Internal Control:
DMX Control
ArtNet Control
Automatic / Stand Alone
Master-Slave
ILDA Streaming
External ILDA Standard Control:
Analog ILDA
> More details
Download Technical Datasheet
