Remaining Stock Item

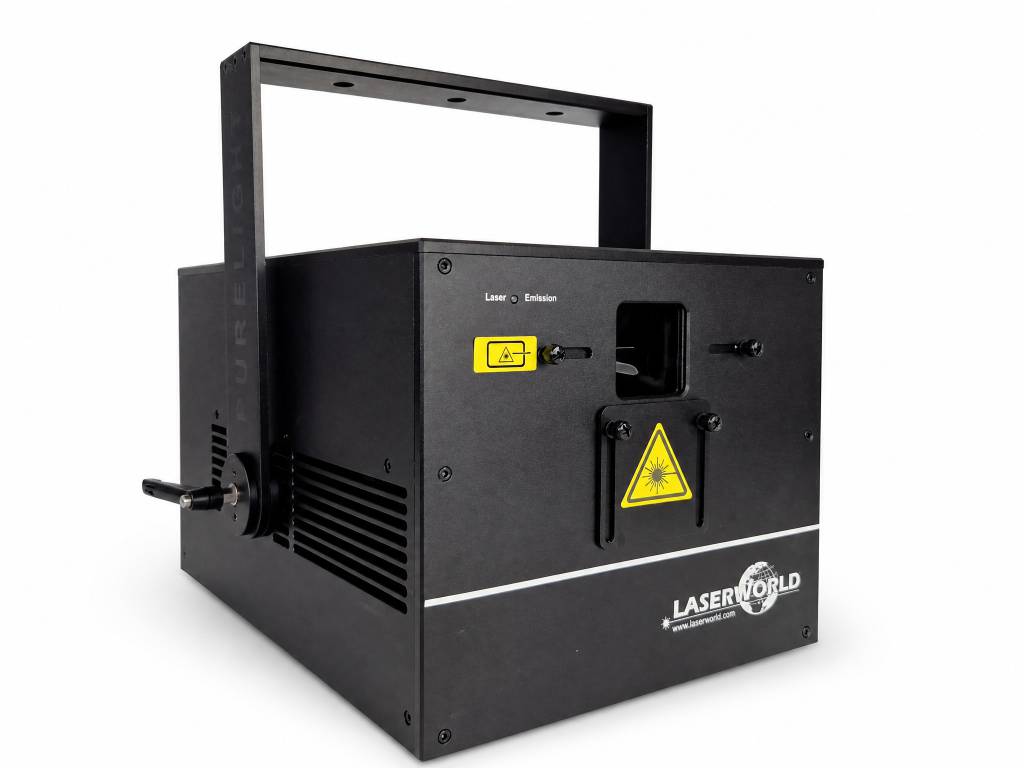

Laserworld PL-4000RGB (1 pc)
Remaining Stock Item - only as long as stock lasts!Remaining Stock Item - Only as long as Stock lasts!
A high power, full colour laser with built in multi-control mainboard. Amazing DMX / Art-Net control with internal safety settings making it simple to control multiple units along with the rest of your DMX lighting. Full feature laser show software license included! Sealed optics section for low maintenance Perfect for nightclub installs, indoor events and looks amazing on large productions in numbers running DMX chases.
Incl. durable plastic case with small signs of usage.
- 4'000 mW guaranteed power
- Graphics capable - 40kpps@8°
- Max scan angle 50°
- Full colour mixing - analog modulation
- Sharp intense beams – ca. 5.0 mm beam diameter and low divergence of 0.9 mrad(full angle)
- IP54
- Save safety settings direct to the ShowNET mainboard

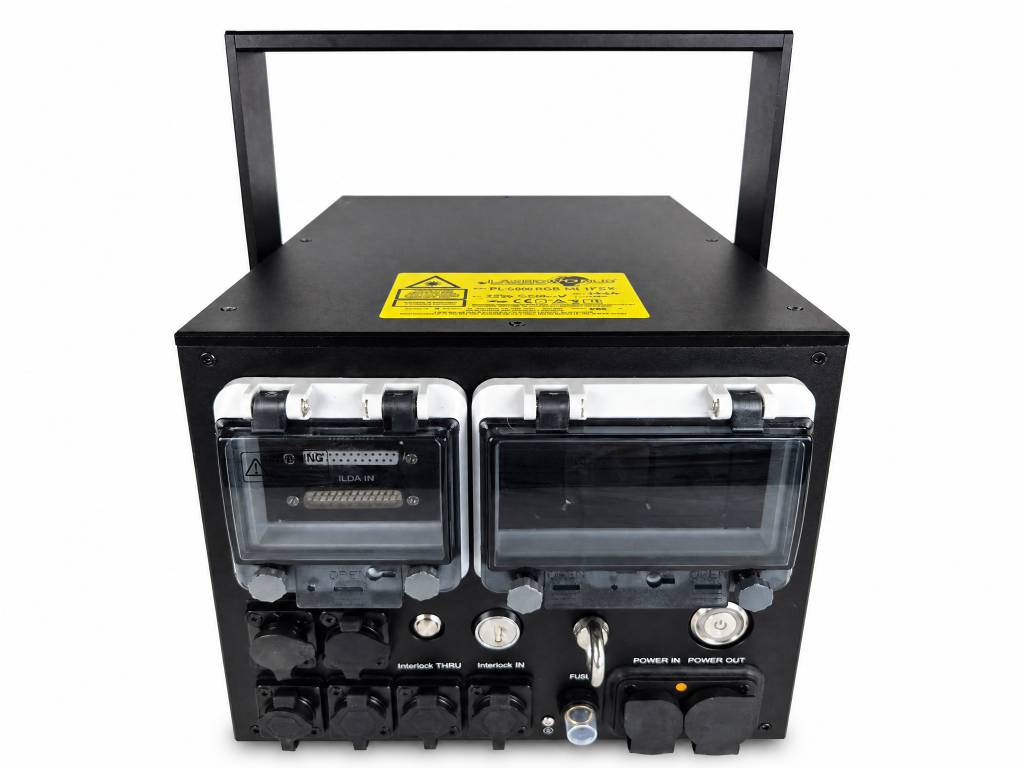

- Link multiple units with linking Power, DMX and ILDA
- Free computer control software – Showeditor - upgradable to Showcontroller
- Multiple control modes - Auto, DMX, Art-Net and ILDA
- Display for easy selection of operating modes
- Incl. durable plastic case
ShowNET mainboard as standard:
- Various control options: ILDA, Professional DMX (two modes), Professional Art-Net (two modes), Stand-Alone Operation, Master-Slave, ILDA Streaming Receiver, LAN (Computer control, integrated DAC)
- Create custom content, store it inside the laser and play it back in different modes
- Free laser show control software included
price per unit
STAND-ALONE MODE:The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX MODE:The laser can be controlled with a standard DMX controller or DMX software.
ArtNET Control mode
MASTER-SLAVE MODE:One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
LAN MODE:The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA MODE:The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
ILDA Streaming
SHOWNET INSIDE:The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
SHOWEDITOR INCLUDED:The full version of the laser show control software Showeditor is included in delivery.
The Laserworld PL-4000RGB (1 pc) systems have an integrated digital-to-analog converter (DAC) for Showcontroller, Showeditor, Touchdesigner, MadLaser, ILD Render, etc., but can also be controlled withany ILDA laser control softwarevia an external ILDA interface (e.g. Lasergraph DSP or others). The devices also have anintegrated memory with preset patternsas standard, which can be easily recalled viaDMX /Art-Net. The free Showeditor software can also be used to create and save your own animations and effects, which can then be stored on the internal SD card. Operation inautomatic modeis also possible.
The Laserworld PL-4000RGB (1 pc) laser comes with anintegrated ShowNET network interfaceandfree laser show software. Details in the box below.
The advantages of the Laserworld PL-4000RGB (1 pc) show laser include:
- a powerful yet affordable solution for demanding laser applications
- best suited for discotheques, indoor events, and small outdoor events
- brilliant colors with beautiful color gradient
- ideal for beam shows over long distances and simple graphic projections
The Laserworld PL-4000RGB (1 pc) has a beam diameter of ca. 5.0 mm and abeam divergence of only approx. 0.9 mrad(full angle).
The guaranteed output power is 4'000 mW and individual outputs are:865mW / 638nm (red), 1´460mW / 520nm (green), 1´670mW / 450nm (blue).
The scanning speed is 40kpps@8° and the maximum scanning angle is 50°.
+ Integrated ShowNET incl. free laser show software
The Laserworld PL-4000RGB (1 pc) features an integrated ShowNET network interface with free laser control software included!
Start with your own professional laser show thanks to the intuitive Showeditor laser show software which comes with every new Laserworld PL-4000RGB (1 pc) for free. The Showcontroller software is supported as well and can be purchased additionally.
The integrated ShowNET allows for direct input through ILDA and LAN. Besides DMX, it is possible to trigger single frames via Art-Net. You can play custom frames and shows from an integrated SD card (included in delivery) – even in stand-alone and sound-to-light mode!
There are two different DMX modes:
(1) DJ Mode with the most used features for beginners. Only a few DMX channels are used for a quick and easy access to the most important adjustments directly at the laser system.
(2) Professional Mode with all DMX features especially for users with a DMX console. All adjustments can be triggered and allow for full control of the professional laser show.
The integrated ShowNET works as DAC (digital to analog converter) and enables ILDA streaming
> More details
ShowNET Internal Control:
DMX Control
ArtNet Control
Automatic / Stand Alone
Master-Slave
ILDA Streaming
External ILDA Standard Control:
Analog ILDA
