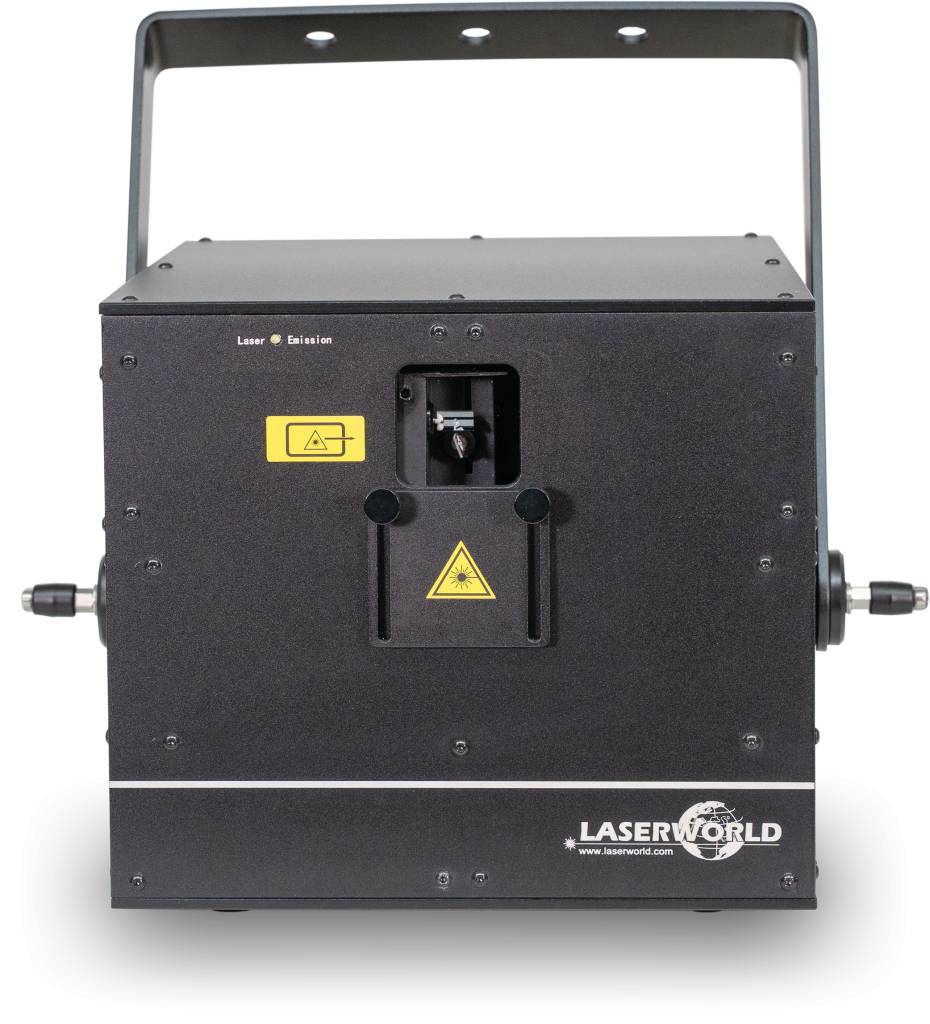

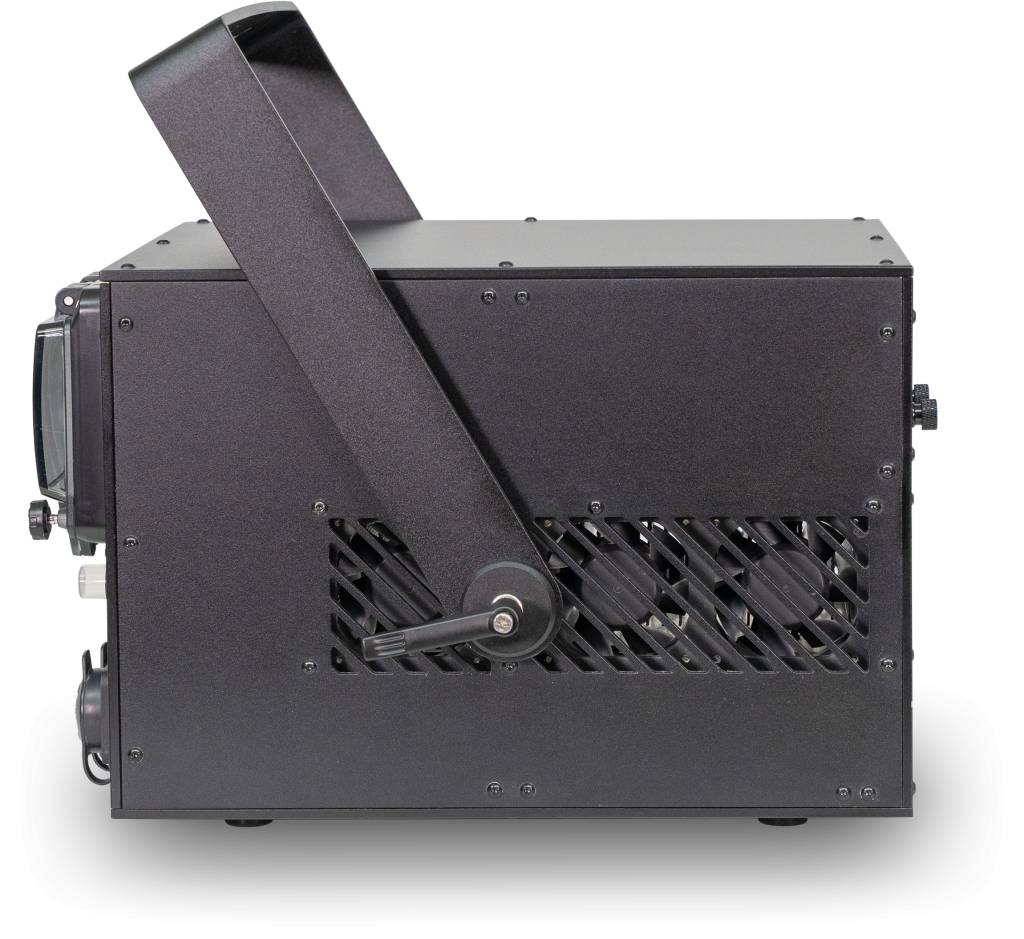

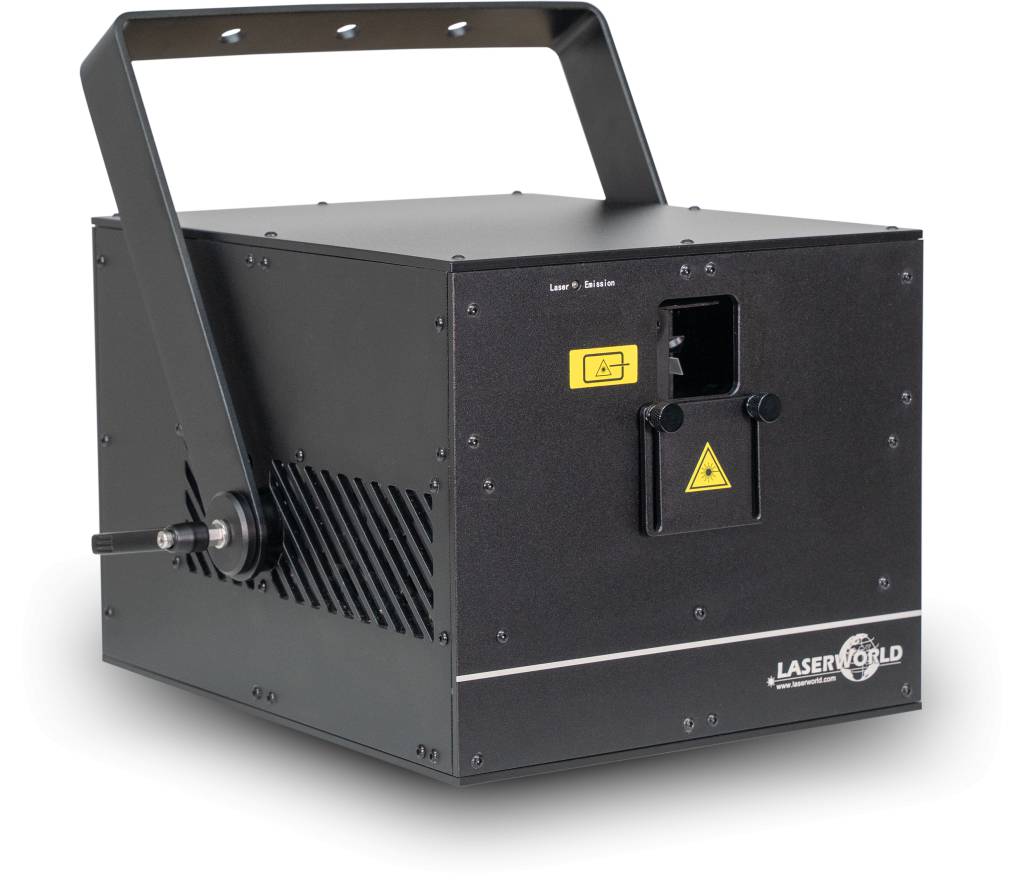

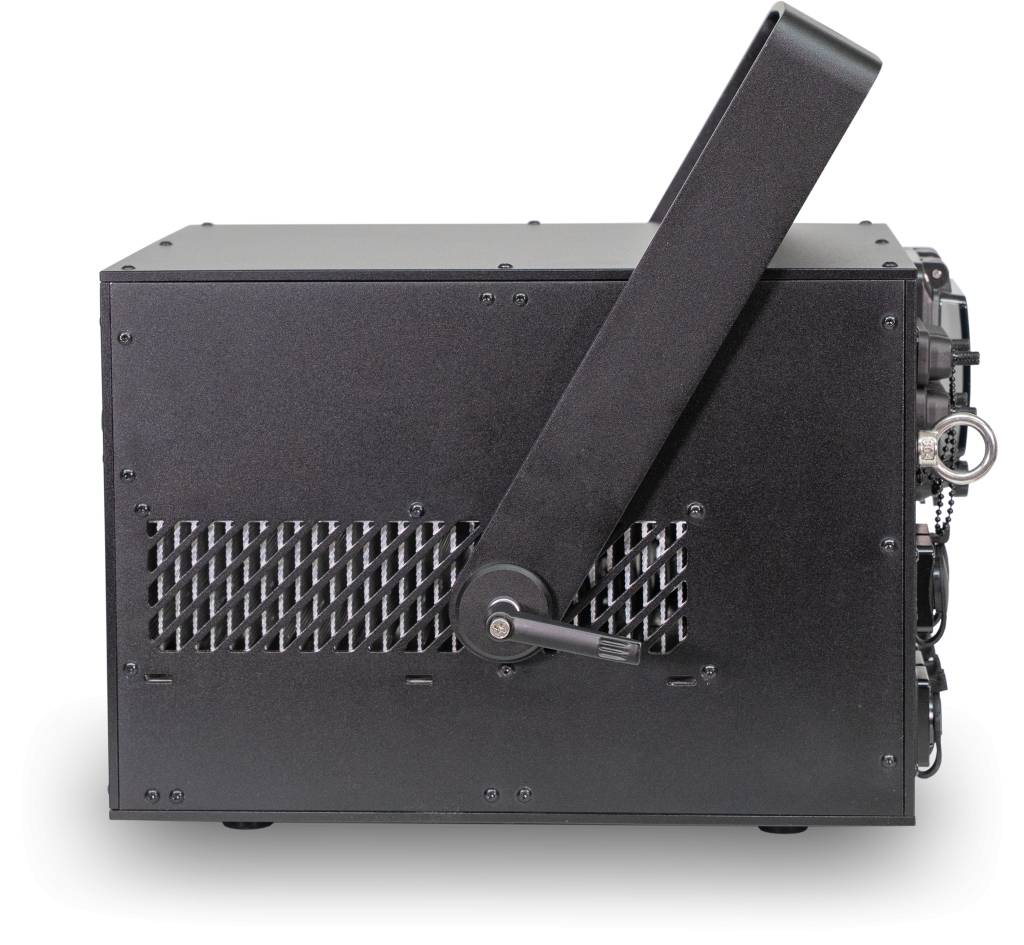

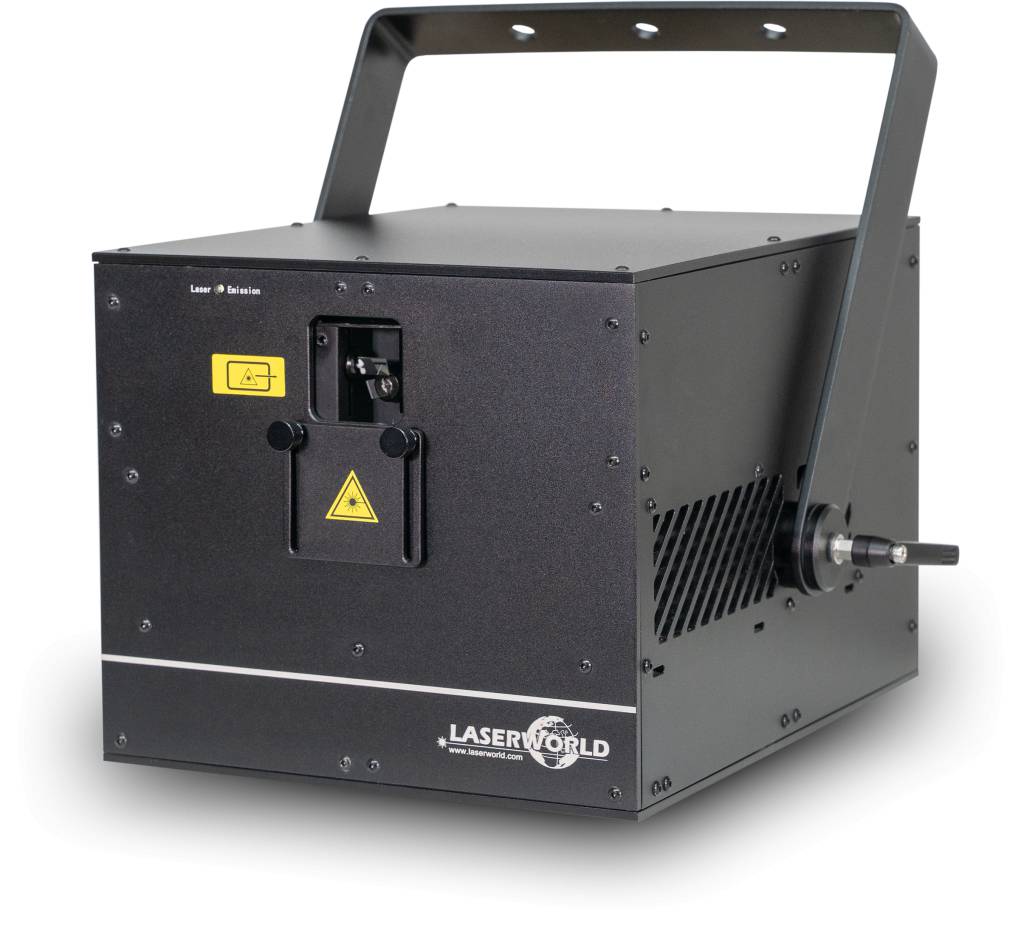

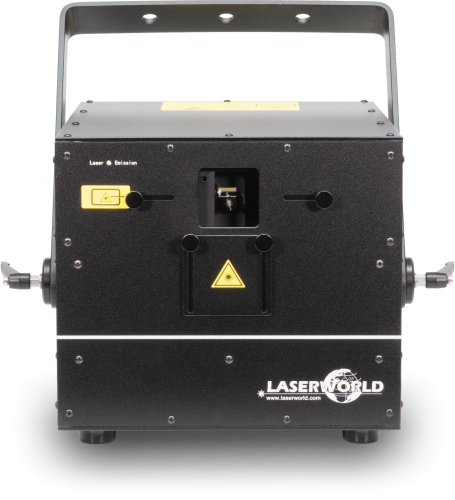

Laserworld DS-15.000 IP65

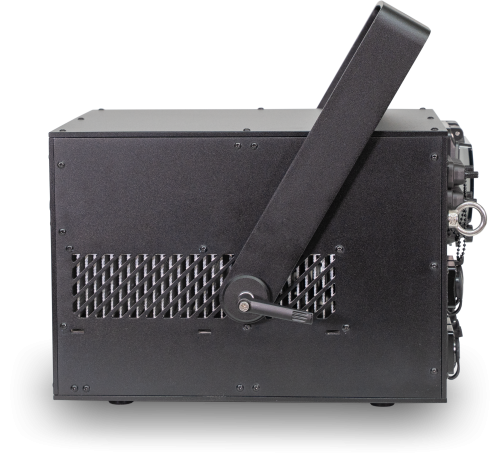

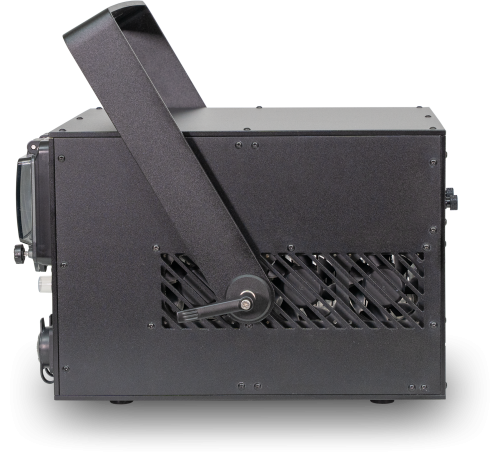

The Laserworld DS-15.000 IP65 laser system features a new IP65-rated housing. This full-color diode laser offers linear color fading combined with high visibility, thanks to analog modulation and intense color saturation.

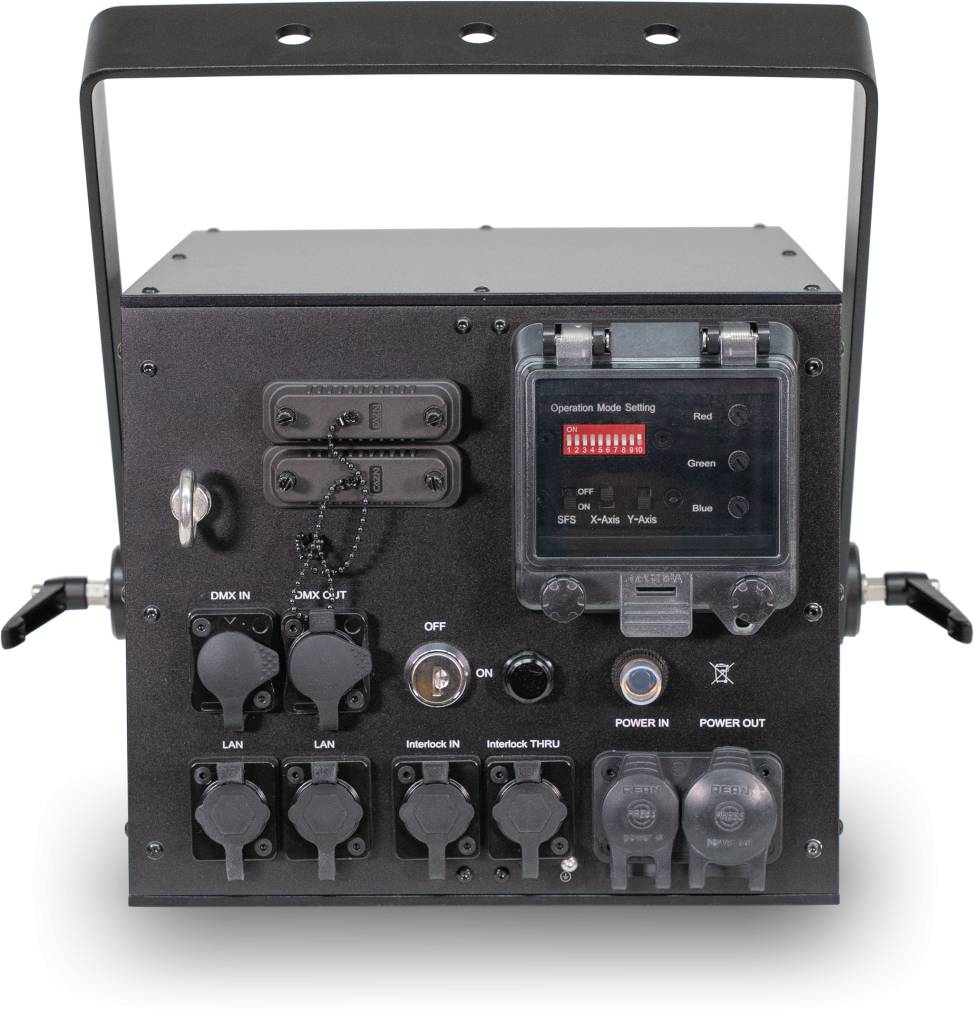

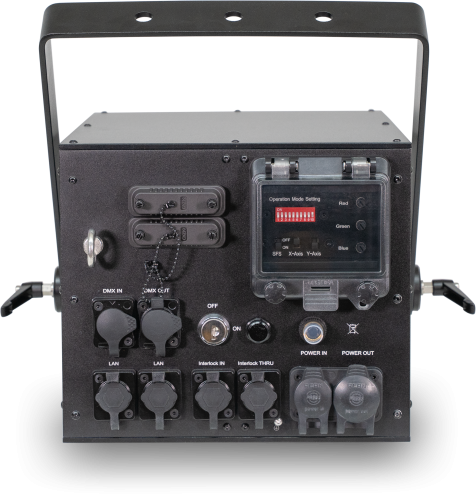

The integrated, intelligent ShowNET mainboard includes a built-in digital-to-analog converter (DAC). This allows the unit to be controlled directly via software systems such as Showcontroller, Showeditor, TouchDesigner, MadLaser, ILD-Render, and more. While any ILDA laser control software can be used with an external interface (e.g., LaserGraph DSP), the integrated ShowNET also provides free laser show software (see details below). Additionally, the unit comes standard with built-in memory containing preset patterns that are easily accessible via DMX or Art-Net, or can be played back automatically. Users can also create and store their own custom content on the mainboard using the ShowNET Admin Tool.

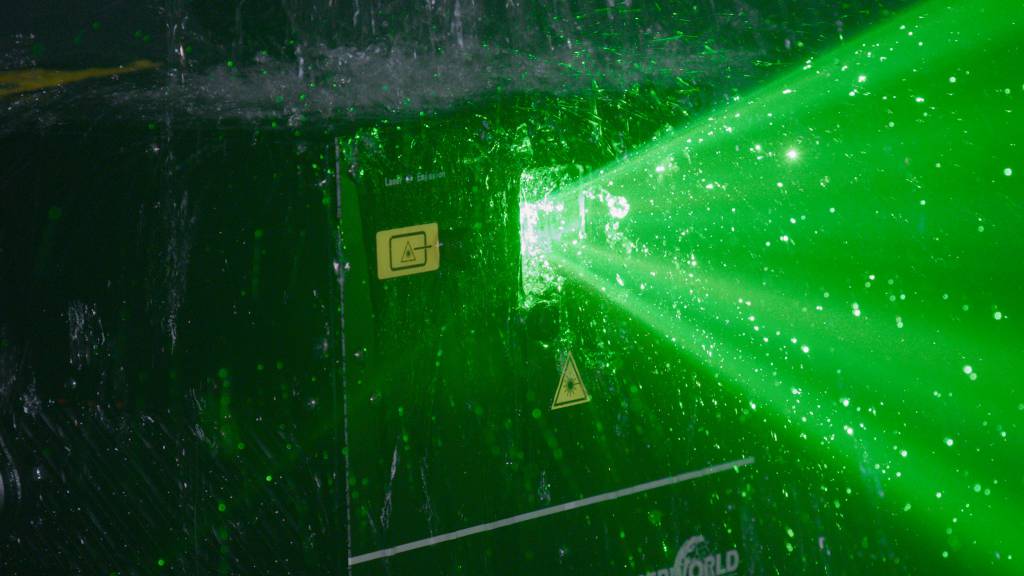

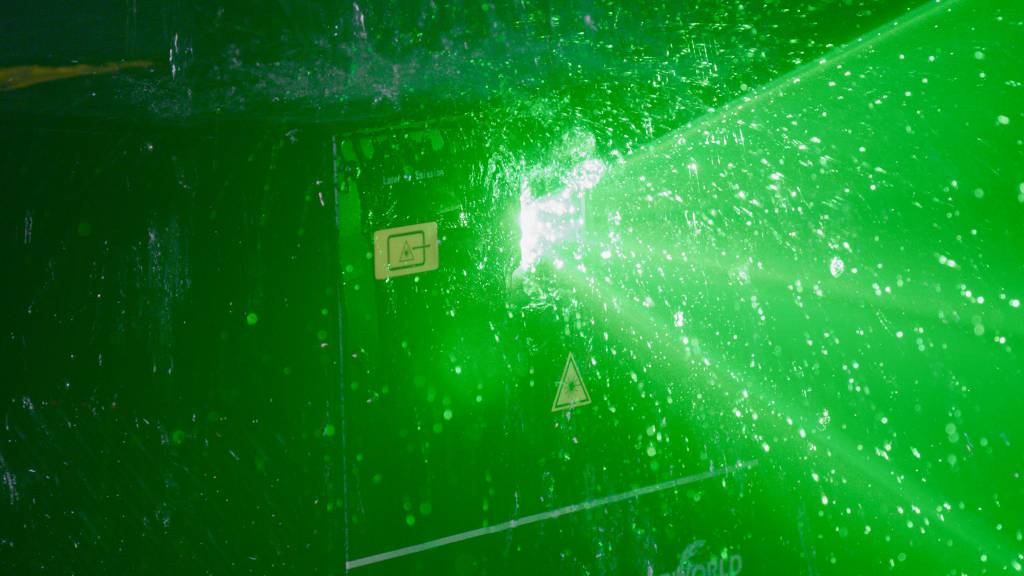

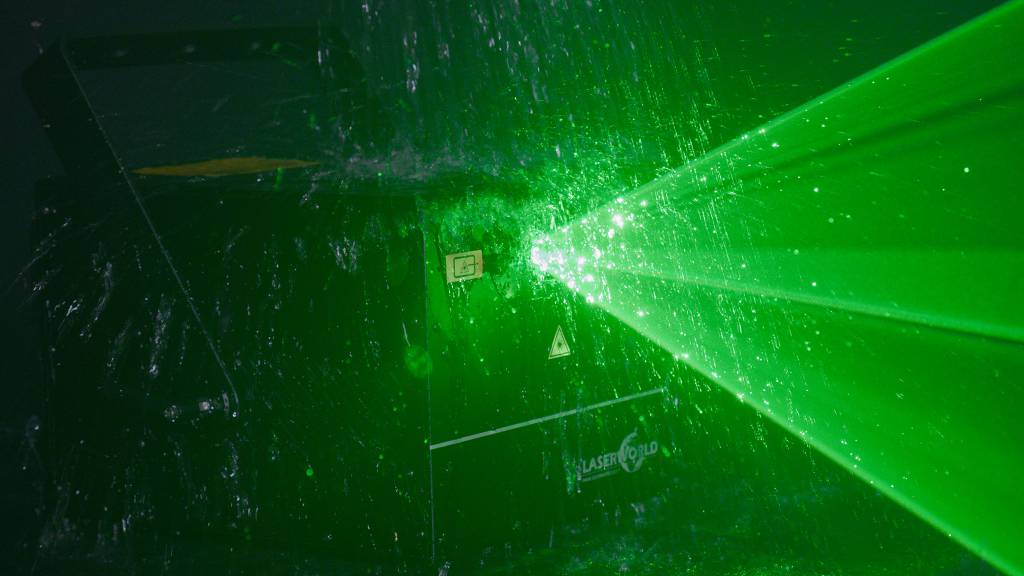

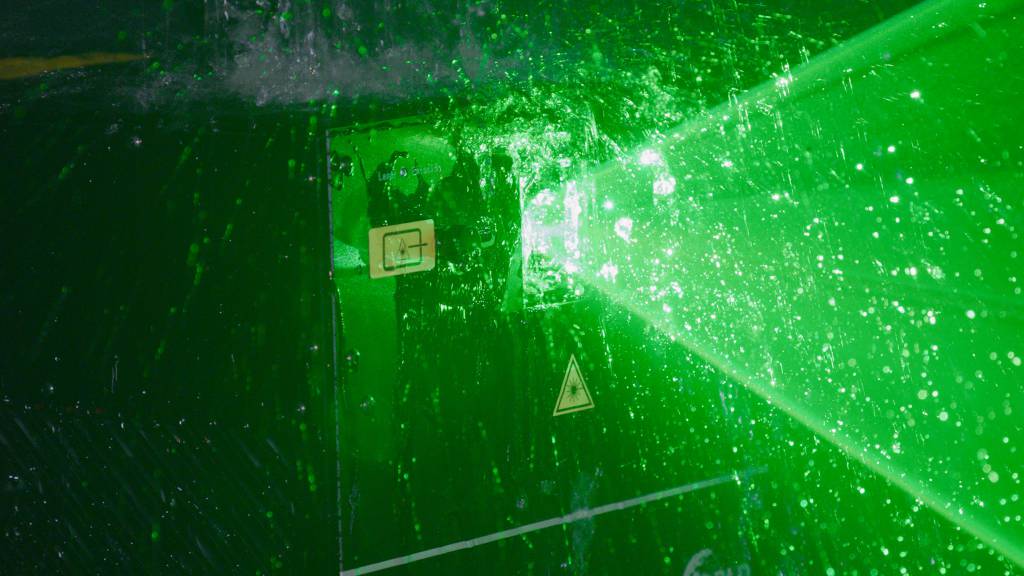

With a beam of approximately ca. 5.5 mm / 1.1 mrad, the system offers a guaranteed output power of 15'000 mW, with individual RGB values of 4'000 mW / 638 nm red, 4'500 mW / 520 nm green, and 8`000 mW / 450 nm blue. It has a scanning speed of 30 kpps @ 8° and a maximum scan angle of 50°. Thanks to its IP65 rating, the laser is not only perfectly suited for outdoor use but also reduces maintenance requirements to an absolute minimum.
