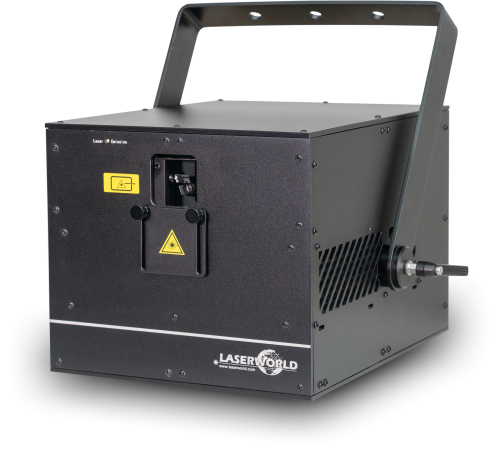

Laserworld DS-15.000 FB4 IP65
From outdoor use to club installs: The Laserworld DS-15.000 FB4 IP65 is a graphics-ready, 15'000 mW full-color laser with IP65 rating built for medium-sized events. This semi-professional system pairs high-power output with a tight beam and low divergence as an affordable laser system for its performance class. Operation is seamless via the integrated mainboard, as well as ILDA, automatic operation, and DMX/ArtNET.
DMX MODUS:Der Laser kann mit einem Standard-DMX-Controller oder einer DMX-Software gesteuert werden.
NETZWERK-MODUS:Der Laser kann über LAN gesteuert werden - dies kann entweder eine direkte Softwaresteuerung sein, oder ArtNET oder ähnliches (abhängig vom Mainboard)
ILDA-MODUS:Der Laser kann über Standard-ILDA, das analoge Steuersignal für die Lasersteuerung, gesteuert werden. Es können externe Digital-Analog-Wandler (DACs) verwendet werden.
FB4 INTEGRIERT:Der Laser kann über die integrierte Pangolin FB4-Karte gesteuert werden
The Laserworld DS-15.000 FB4 IP65 laser systems feature a new IP65-rated housing. These full-color diode lasers offer linear color fading combined with high visibility, due to analog modulation, and intense color saturation.
Via the internal FB4 interface , the laser system has various control options, including DMX, ArtNet as well as direct computer control via network (QuickShow or BEYOND software). Custom effects and animations can be uploaded from the software and the be triggered by DMX/ArtNet and adjusted live in color, position or with additional effects.
The Laserworld DS-15.000 FB4 IP65 also offers direct computer control via Pangolin QuickShow (included) or BEYOND. This allows the display of custom or pre-programmed laser shows, logos, texts or customized graphics and animations.
Beam specifications are at great ca. 5.5 mm / 1.1 mrad. Guaranteed output power is 15'000 mW, with individual RGB values of 4'000 mW / 638 nm (638 nm) red, 4'500 mW / 520 nm (520 nm) green, and 8'000 mW / 450 nm (450 nm) blue. It has a scanning speed of 30kpps @ 8°.
Thanks to its IP65 rating, the laser is not only perfectly suited for outdoor use but also reduces maintenance requirements to an absolute minimum.
Via the internal FB4 interface , the laser system has various control options, including DMX, ArtNet as well as direct computer control via network (QuickShow or BEYOND software). Custom effects and animations can be uploaded from the software and the be triggered by DMX/ArtNet and adjusted live in color, position or with additional effects.
The Laserworld DS-15.000 FB4 IP65 also offers direct computer control via Pangolin QuickShow (included) or BEYOND. This allows the display of custom or pre-programmed laser shows, logos, texts or customized graphics and animations.
Beam specifications are at great ca. 5.5 mm / 1.1 mrad. Guaranteed output power is 15'000 mW, with individual RGB values of 4'000 mW / 638 nm (638 nm) red, 4'500 mW / 520 nm (520 nm) green, and 8'000 mW / 450 nm (450 nm) blue. It has a scanning speed of 30kpps @ 8°.
Thanks to its IP65 rating, the laser is not only perfectly suited for outdoor use but also reduces maintenance requirements to an absolute minimum.
> Mehr Details
Technisches Datenblatt herunterladen
