ShowNET OEM Set with Display

ShowNET OEM Set with Display main image
ShowNET Integration kit for laser manufacturers or custom builders. ShowNET is a full feature laser mainboard
network interface, including control display, ILDA switch board, ethernet connector and Showeditor laser control software full license
Showeditor software license included for free; also compatible to the Showcontroller laser control software as well as others for direct output, like MadLaser, Touchdesigner, Millumin, ILD Render, etc. .
  • Laser DAC for OEM integration
  • DMX/ArtNET, Stand-Alone, Sound-to-light (optional), Master-Slave, direct software control
  • integrated SD-Card for custom content
  • including full Showeditor software license
  • future firmware updates with new features and improvements
  • ILDA-Streaming capable
  • compatible to various software via API (API available for custom developments)

ShowNET mainboard as standard:
  • Various control options: ILDA, Professional DMX (two modes), Professional Art-Net (two modes), Stand-Alone Operation, Master-Slave, ILDA Streaming Receiver, LAN (Computer control, integrated DAC)
  • Create custom content, store it inside the laser and play it back in different modes
  • Free laser show control software included
ShowNET OEM Set with Display additional image 1
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
ArtNET modeArtNET Control mode
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
LAN connectionLAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA connectionILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
ILDA StreamingILDA Streaming
ShowNET insideSHOWNET INSIDE:
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
Free Showeditor laser software includedSHOWEDITOR INCLUDED:
The full version of the laser show control software Showeditor is included in delivery.

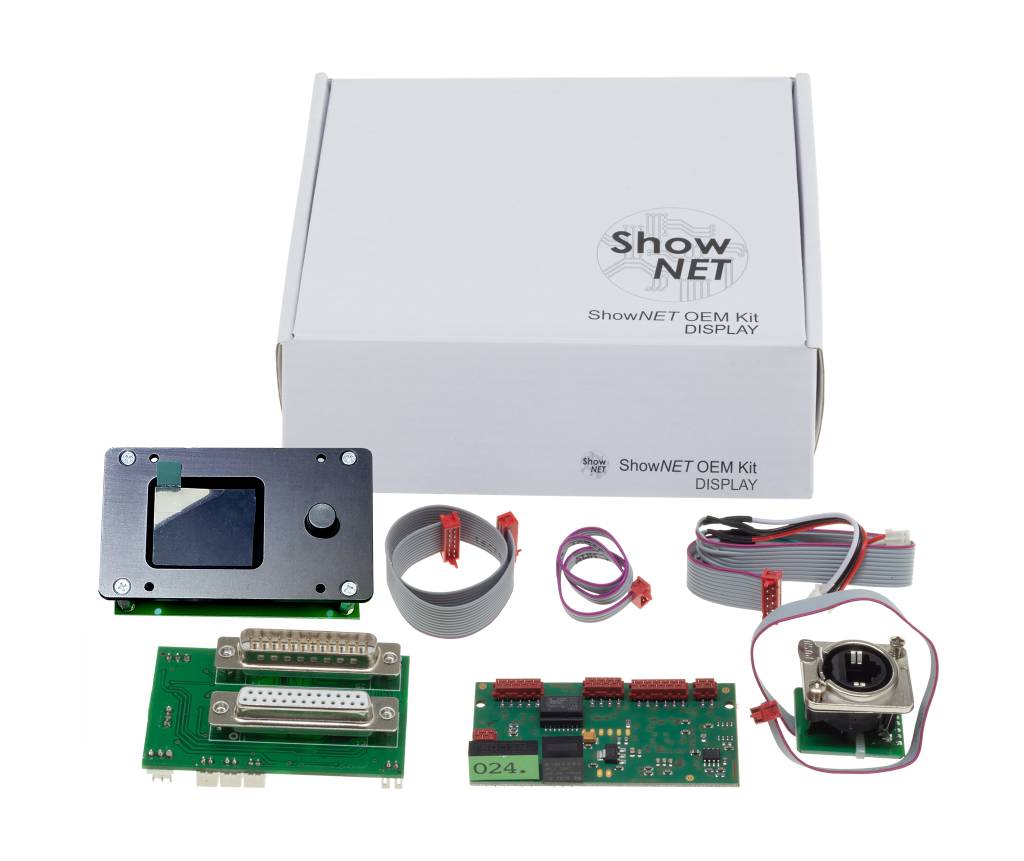

The ShowNET OEM Set with Display is a special set for the integration of the laser mainboard to laser systems. It is designed for laser manufacturers to easily add a multitude of features to their devices.

Volume discounts available, please contact Laserworld.


- full Showeditor laser show software license included
- fully supported by the Showcontroller laser software
- Software API available to use with any software (contact Laserworld for information)
- can be controlled by any professional lighting desk, like GrandMA, Avolites, Chamsys, etc. either via professional DMX or ArtNET

The integration can easily be done by experienced laser technicians. The kit comes with detailed integration instructions. The ShowNET OEM Set with Display can be powered with 10-25V DC and it usually does not need an additional/separate PSU but can use the same as for the laser sources and/or the scanners.

The ShowNET OEM Set with Display includes an ILDA Switch-board, so the laser can still be used with standard ILDA control signal.


Some hardware features of ShowNET:

X/Y scanner outputs with 12 bit resolution (4096 different positions on each axis)
Color outputs with 8 bit resolution (256 different intensity values per color channel): red, green, blue, intensity linked to green
DMX512 input and output (non-isolated)
100 Mbit Ethernet port
Flexible IP address setting: static address, DHCP or AutoIP
Internal MicroSD card for ILDA file playback (ILDA format code 4/5 RGB), can be accessed via LAN
Maximum scan speed ~100.000 points per second
Up to 16 devices can be used in parallel for multiprojector laser shows
Built-in ArtNet-to-DMX converter

See https://www.laser-interface.com for more details and a feature overview


This is the user manual describing all the possibilities in detail: ShowNET Laser Mainboard User Manual



> More details

> More details

Operation Modes
ILDA, DMX, LAN, ArtNet, ILDA streaming, integrated SD card, stand-alone, sound-to-light (optional), master-slave
Accessories
manual, integration instructions
Weight
0,25 kg
EAN / MPN
SHOWNET-DOEM
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
