LASERWORLD
Laserworld PL-20.000RGB IP65
- 20'000 mW guaranteed power
- Graphics capable - 35kpps @ 8°
- Max scan angle 50°
- Full colour mixing - analog modulation
- Sharp intense beams – ca. 6.5 mm beam diameter and low divergence of 0.9 mrad
- IP65 waterproof housing
- Save safety settings direct to the ShowNET mainboard

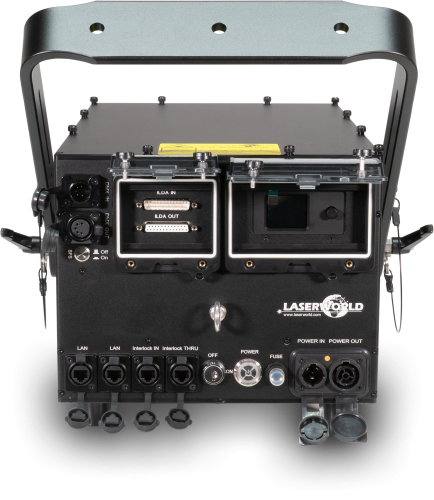

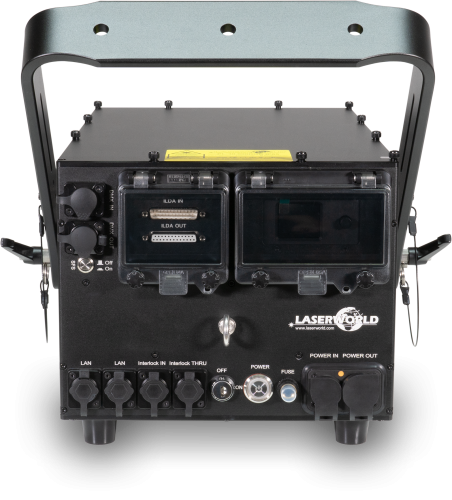

- Link multiple units with linking Power, DMX and ILDA
- Free computer control software – Showeditor - upgradable to Showcontroller
- Multiple control modes - Auto, DMX, Art-Net and ILDA
- Display for easy selection of operating modes
- Incl. waterproof flightcase
- 20'000 mW guaranteed power
- Graphics capable - 35kpps @ 8°
- Max scan angle 50°
- Full colour mixing - analog modulation
Bestens geeignet für
LASERWORLD
Laserworld PL-20.000RGB IP65
The Laserworld PL-20.000RGB IP65 systems have an integrated digital-to-analog converter (DAC) for Showcontroller, Showeditor, Touchdesigner, MadLaser, ILD Render, etc., but can also be controlled with any ILDA laser control software via an external ILDA interface (e.g. Lasergraph DSP or others). The devices also have an integrated memory with preset patterns as standard, which can be easily recalled via DMX /Art-Net. The free Showeditor software can also be used to create and save your own animations and effects, which can then be stored on the internal SD card. Operation in automatic mode is also possible.
The Laserworld PL-20.000RGB IP65 laser comes with an integrated ShowNET network interface and free laser show software. Details in the box below.
The advantages of the Laserworld PL-20.000RGB IP65 show laser include:
- a powerful yet affordable solution for demanding laser applications

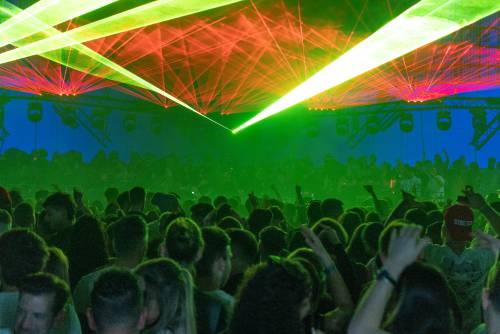

- best suited for large discotheques and medium/large outdoor stages
- brilliant colors with beautiful color gradient

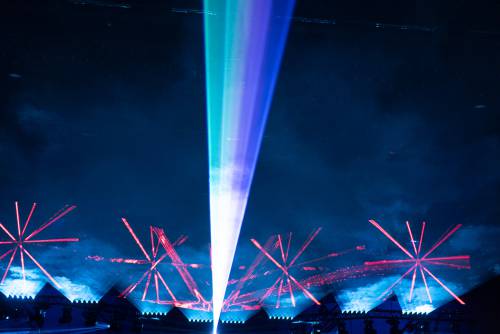

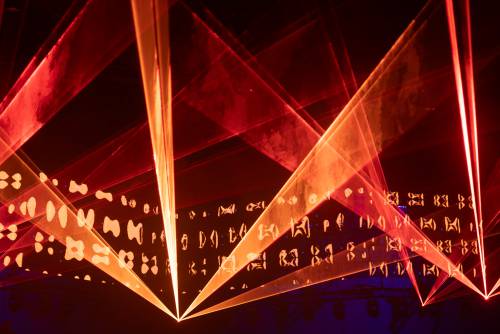

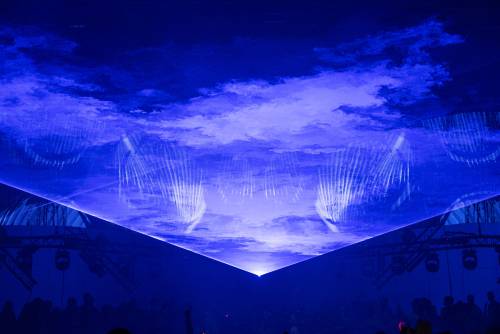

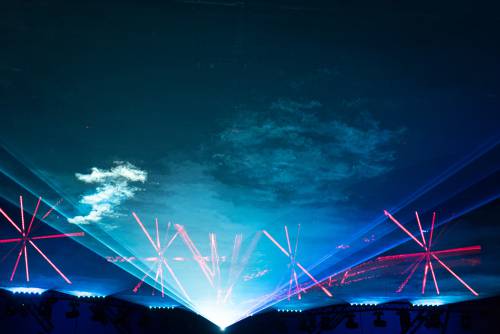

- ideal for beam shows over long distances and simple graphic projections
- best suited for permanent outdoor installations thanks to IP65 housing
The Laserworld PL-20.000RGB IP65 has a beam diameter of ca. 6.5 mm and a beam divergence of only approx. 0.9 mrad.
The guaranteed output power is 20'000 mW and individual outputs are: 6'000 mW / 638 nm (red), 8'000 mW / 520 nm (green), 8'000 mW / 450 nm (blue).
The scanning speed is 35kpps @ 8° and the maximum scanning angle is 50°.

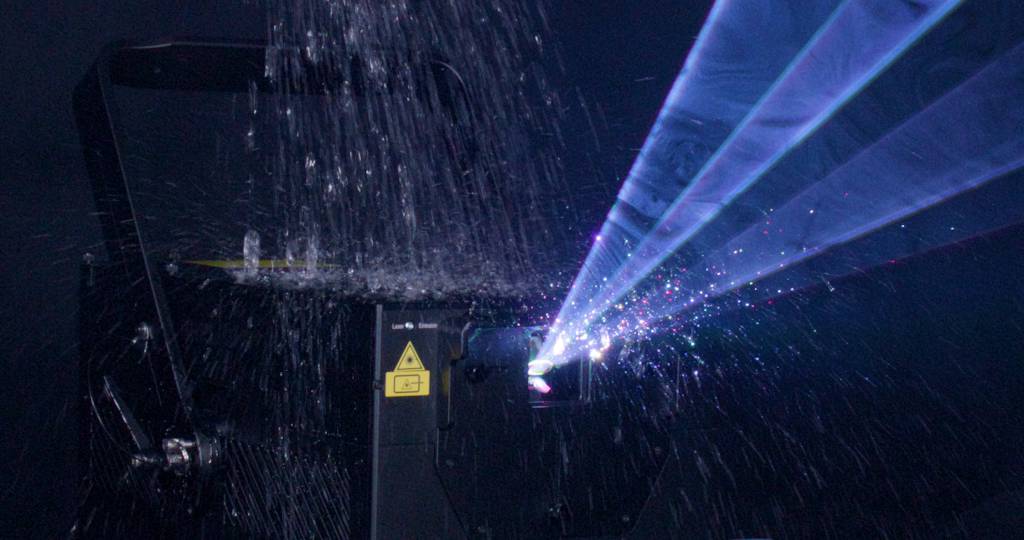

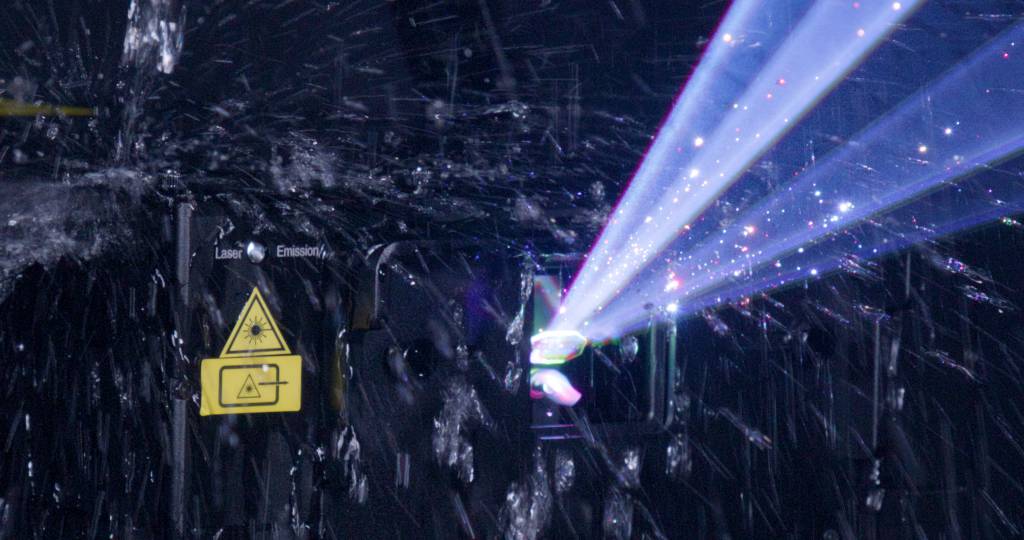

The entire device is built in accordance with IP65, making it perfect for outdoor use and reducing maintenance costs to a minimum.
+ Integrated ShowNET incl. free laser show software
The Laserworld PL-20.000RGB IP65 features an integrated ShowNET network interface with free laser control software included!
Start with your own professional laser show thanks to the intuitive Showeditor laser show software which comes with every new Laserworld PL-20.000RGB IP65 for free. The Showcontroller software is supported as well and can be purchased additionally.
The integrated ShowNET allows for direct input through ILDA and LAN. Besides DMX, it is possible to trigger single frames via Art-Net. You can play custom frames and shows from an integrated SD card (included in delivery) – even in stand-alone and sound-to-light mode!
There are two different DMX modes:
(1) DJ Mode with the most used features for beginners. Only a few DMX channels are used for a quick and easy access to the most important adjustments directly at the laser system.
(2) Professional Mode with all DMX features especially for users with a DMX console. All adjustments can be triggered and allow for full control of the professional laser show.
The integrated ShowNET works as DAC (digital to analog converter) and enables ILDA streaming
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
The laser can be controlled with a standard DMX controller or DMX software.
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
The full version of the laser show control software Showeditor is included in delivery.
For Dealers and Distribution Partners
See all prices and availability.
Subscribe to newsletter
Stay up to date with the latest news.
Compatible Control
Software Laser Control
ShowNET Internal Control
External ILDA Standard Control
Technical Details
| Guaranteed Power at aperture | 20'000 mW |
| Power Red | 6'000 mW / 638 nm |
| Power Green | 8'000 mW / 520 nm |
| Power Blue | 8'000 mW / 450 nm |
| Beam Specifications | ca. 6.5 mm / 0.9 mrad |
| Scanner | 35kpps @ 8° |
| Max. Scan Angle | 50° |
| Laser Source | Diode |
| Laser Class | 4 |
| Operation Modes | ILDA, DMX, Art-Net, LAN, ILDA streaming, integrated SD card, stand-alone |
| Basic Patterns | over 120 (level, tunnel, grid, waves, etc.) - more can be updated by the user |
| Accessories | Incl. waterproof flightcase, power cable, manual, interlock, key, full version Showeditor software license included |
| IP rating | IP65 |
| Power Supply | 85 V - 250 V AC, 50/60 Hz |
| Power Consumption | 750 W |
| Dimensions | 427 x 280 x 220 mm (L x W x H) |
| Weight | 26 kg |
| EAN / MPN | 7640144997922 |
| Delivery Scope | Incl. waterproof flightcase, power cable, manual, interlock, key, full version Showeditor software license included |
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
Download Technical DatasheetSuitable Accessories
