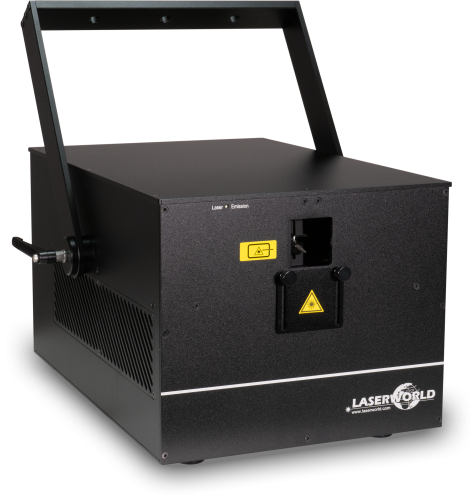

Laserworld CS-24.000RGB ShowNET
Remaining Stock Item - only as long as stock lasts!Remaining Stock Item - Only as long as Stock lasts!
A powerful semi-professional pure diode laser, capable of intense standard laser effects like beams, waves and tunnels. This laser has ShowNET inside. A high power, full colour laser with built in ShowNET multi-control mainboard. DMX control, so it can be controlled with the rest of the lighting, but also has an ILDA port for computer control. Perfect for large nightclub installs, large indoor as well as festivals or outdoor events.
- 24'000 mW RGB pure diode laser system
- ShowNET inside
- DMX / Art-Net controllable
- Stand-alone mode
- Computer controllable via ShowNET interface
- Basic graphics capability - 30 kpps @ 8° scanners
- Analog modulation

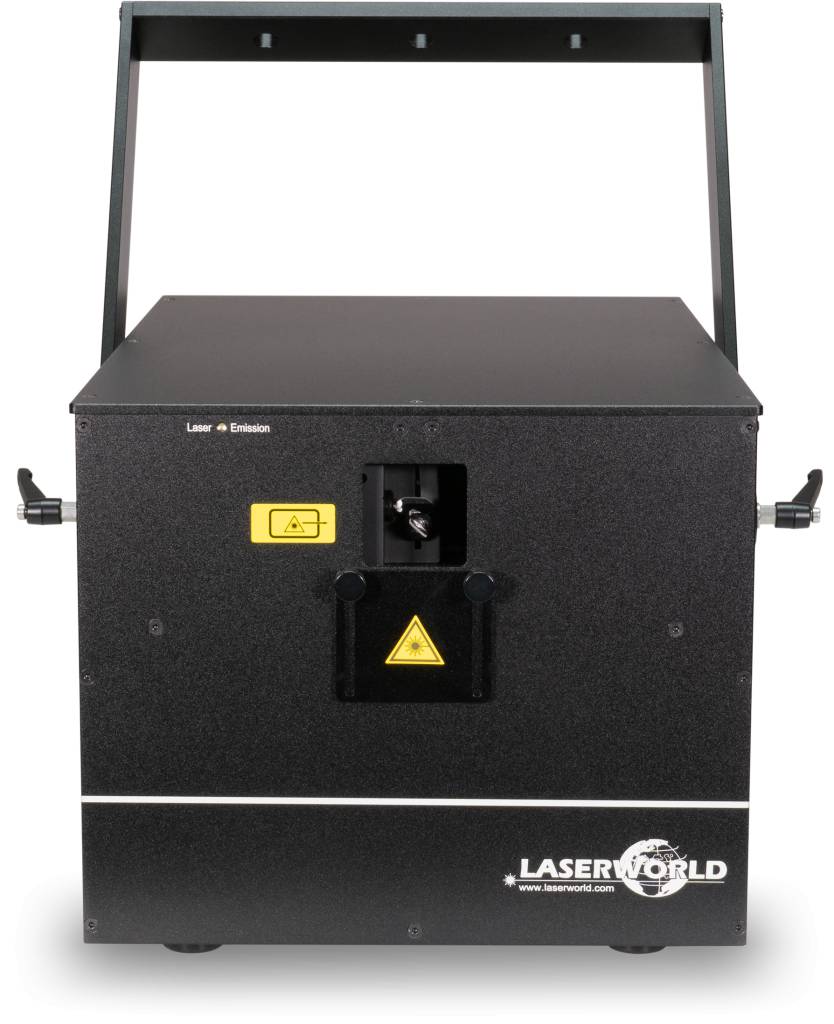

- Laser beam masking plate on front panel
- 360° mounting bracket
- IP54 enclosure
ShowNET mainboard as standard:

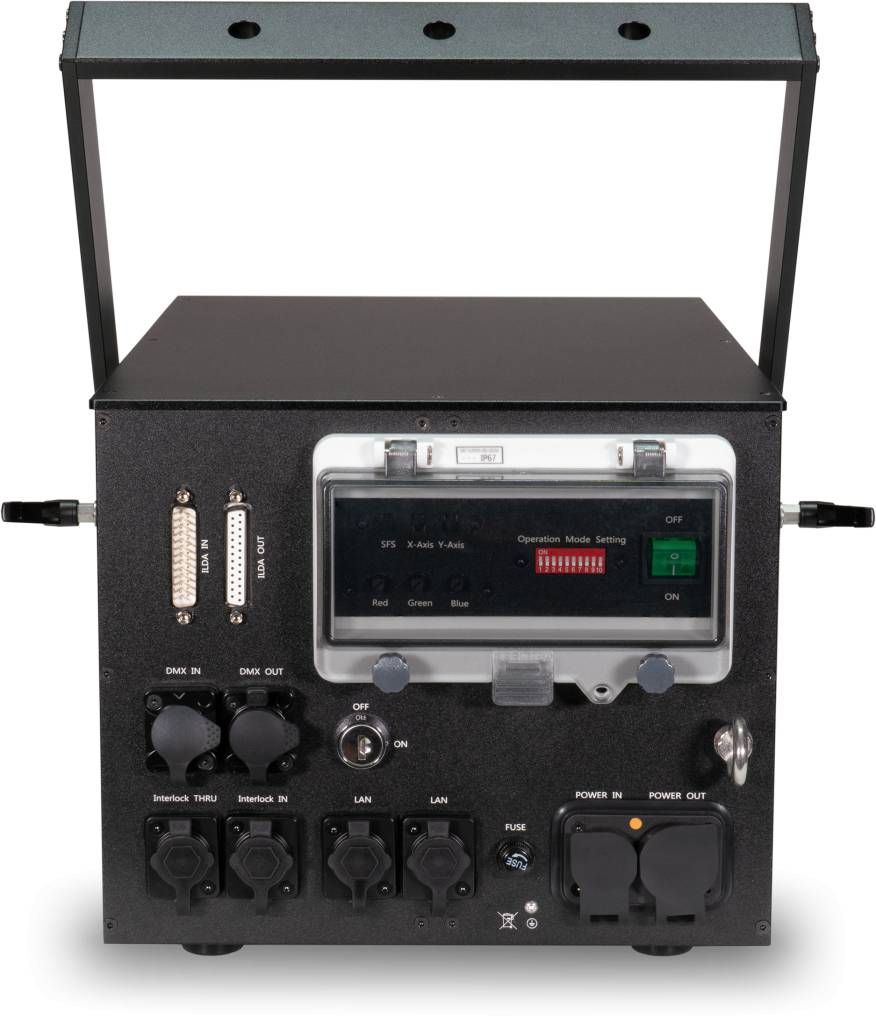

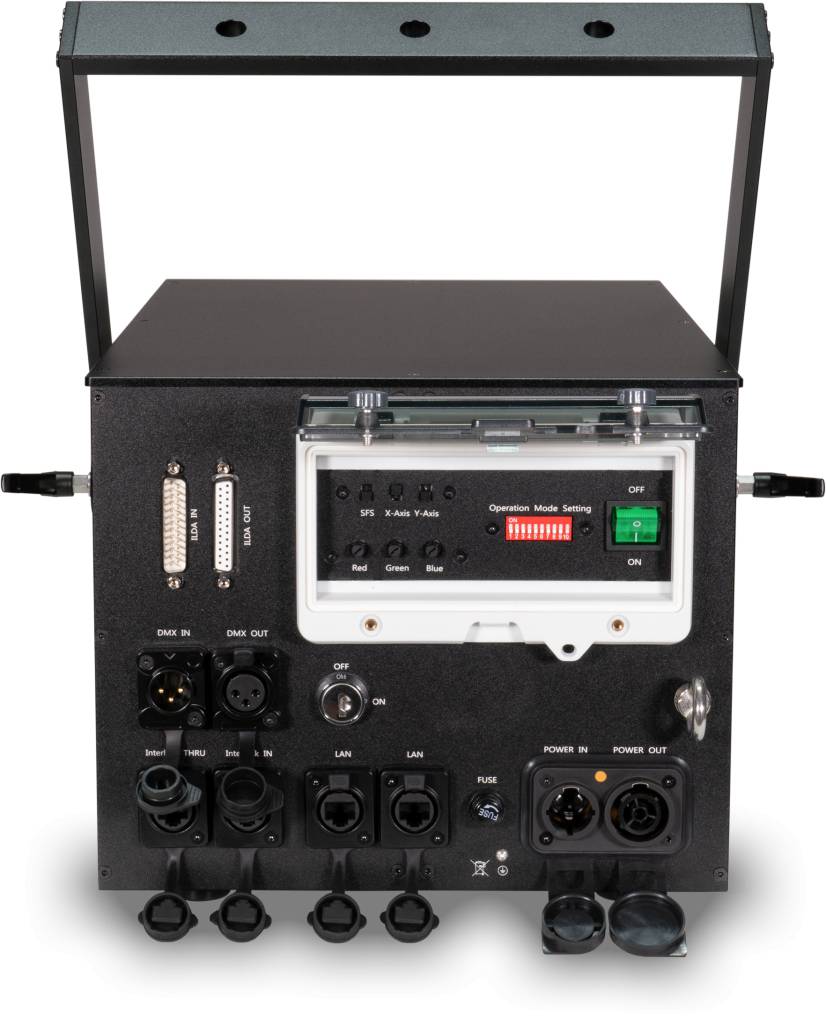

- Various control options: ILDA, Professional DMX (two modes), Professional Art-Net (two modes), Stand-Alone Operation, Master-Slave, ILDA Streaming Receiver, LAN (Computer control, integrated DAC)
- Create custom content, store it inside the laser and play it back in different modes
- Free laser show control software included
price per unit
STAND-ALONE MODE:The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX MODE:The laser can be controlled with a standard DMX controller or DMX software.
ArtNET Control mode
MASTER-SLAVE MODE:One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
LAN MODE:The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA MODE:The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
ILDA Streaming
SHOWNET INSIDE:The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
SHOWEDITOR INCLUDED:The full version of the laser show control software Showeditor is included in delivery.
Via the internal ShowNET laser mainboard, the Laserworld CS-24.000RGB ShowNET offers various control options, including DMX, Art-Net as well as direct computer control via network.
But the Laserworld CS-24.000RGB ShowNET has more to offer:
The Laserworld CS-24.000RGB ShowNET is an analog modulated, full-color RGB diode laser system with a guaranteed output power of 24'000 mW. The red laser source has an output power of 5'500 mW / 638 nm, the green of 6'500 mW / 520 nm and the royal-blue laser source has an output power of 12'000 mW / 450 nm. The diode laser sources provide strong laser beams. The projector has good beam specifications with a beam diameter of approximately ca. 6 mm and a beam divergence of 1.3 mrad. The galvo system has a scan speed of up to 30 kpps @ 8°.

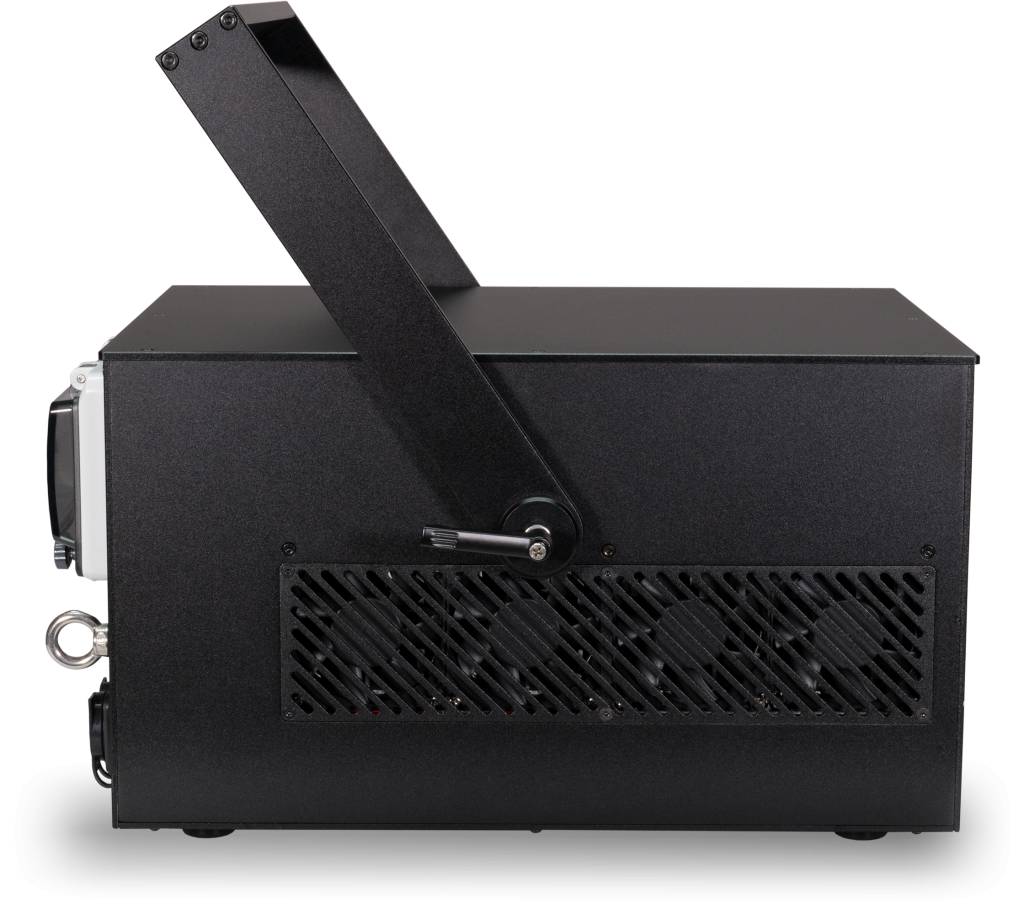

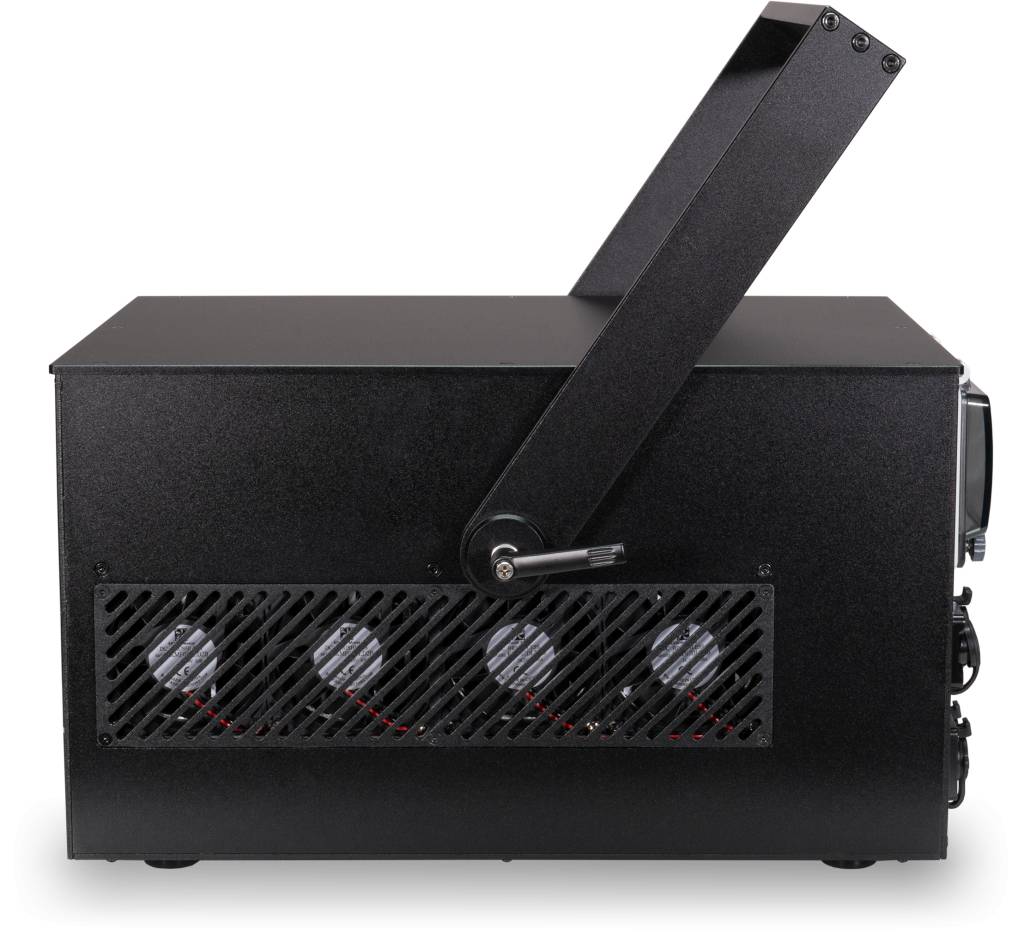

There is no air circulation in the optical area, the temperature is regulated via the separate heat sink section. This reduces maintenance and cleaning work to a minimum.
The pre-stored effects and animations (from Showeditor - Showcontroller) can be called up via DMX / Art-Net and adjusted live in color, position or with additional effects.
The Laserworld CS-24.000RGB ShowNET also offers direct computer control via Showeditor or Showcontroller. This allows you to project your own or pre-programmed laser shows, logos, texts or your own graphics and animations.

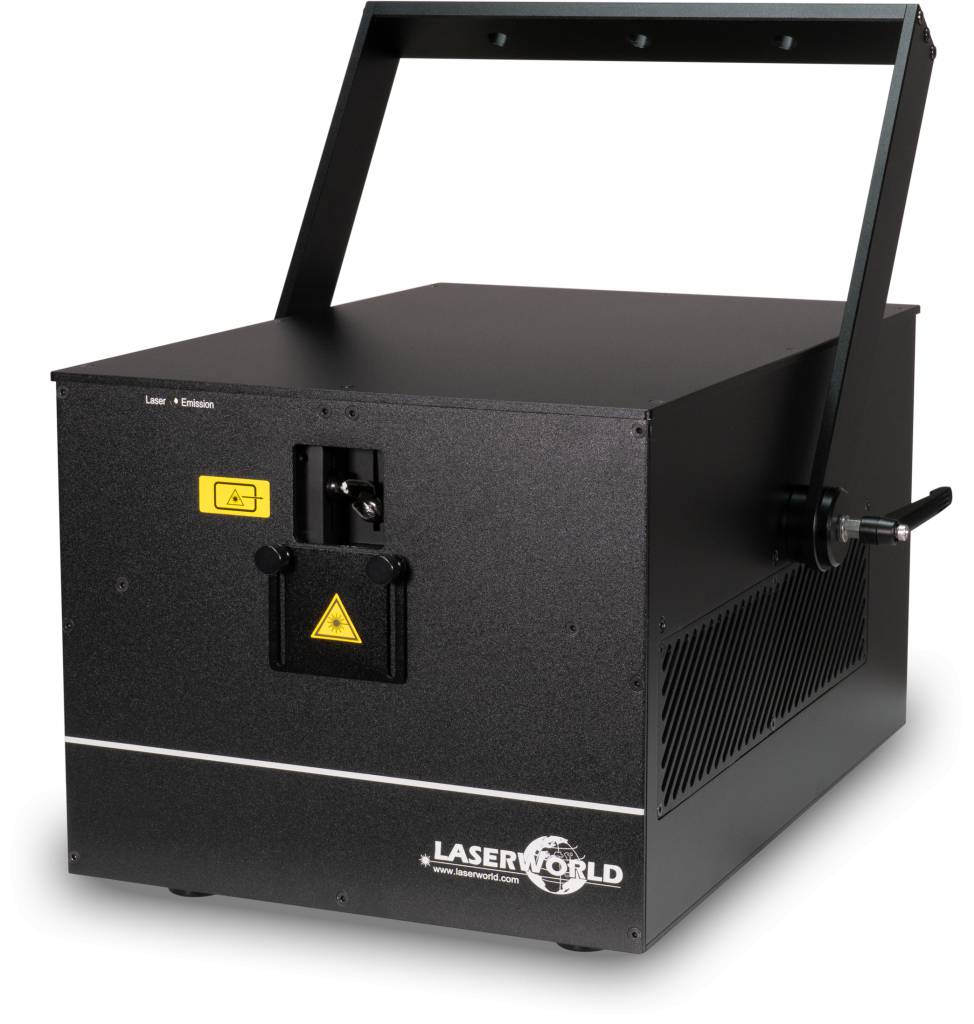

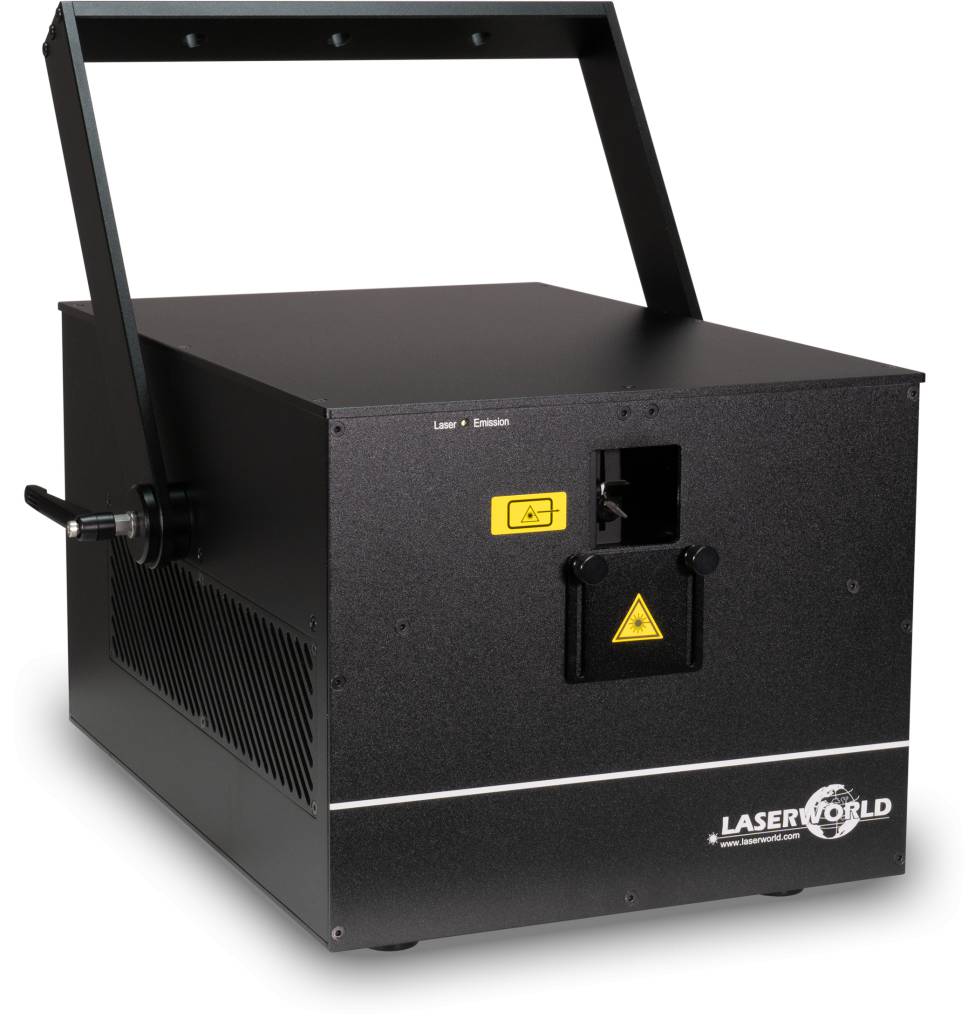

The Laserworld CS-24.000RGB ShowNET show laser projector comes with a compact housing that is lightweight and has a stable 360° bracket. The bracket allows various mounting positions: both hanging and standing installations are possible - ideal for mobile DJs and temporary laser shows, but also for fixed installations on a truss or on the ceiling.
The Laserworld CS-24.000RGB ShowNET is ideal for semi-professional applications and is perfect for medium to large clubs and discotheques as well as for smaller festivals or stages and in any other party location.
> More details
ShowNET Internal Control:
DMX Control
ArtNet Control
Automatic / Stand Alone
Master-Slave
ILDA Streaming
External ILDA Standard Control:
Analog ILDA
