LASERWORLD
Laserworld CS-12.000RGB FB4
- 12'000 mWRGB pure diode laser system
- Pangolin FB4 interface
- DMX / ArtNet controllable
- Stand-alone mode
- Computer controllable via FB4 interface (requires QuickShow or BEYOND software)
- Basic graphics capability - 30 kpps @ 8° scanners
- Analog modulation

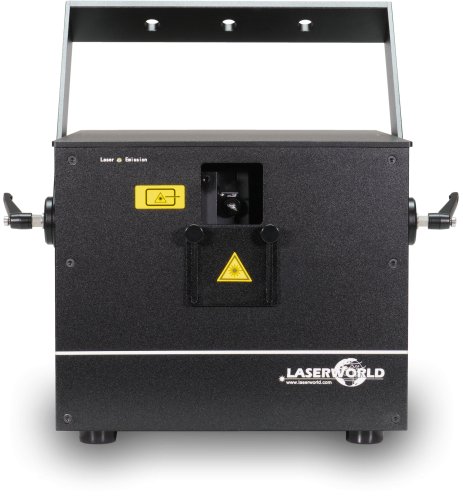

- Laser beam masking plate on front panel
- 360° mounting bracket
- IP54 enclosure
- 12'000 mWRGB pure diode laser system
- Pangolin FB4 interface
- DMX / ArtNet controllable
- Stand-alone mode
Bestens geeignet für
LASERWORLD
Laserworld CS-12.000RGB FB4
Via the internal FB4 interface, the Laserworld CS-12.000RGB FB4 offers various control options, including DMX, ArtNet as well as direct computer control via network (QuickShow software or BEYOND software required).
But that's not all the Laserworld CS-12.000RGB FB4 has to offer:
The Laserworld CS-12.000RGB FB4 is an analog modulated, full-color RGB diode laser system with a guaranteed output power of 12'000 mW. The red laser source has an output power of 3'000 mW / 638 nm, the green of 3'000 mW / 520 nm and the royal-blue laser source has an output power of 6'000 mW / 450 nm. The diode laser sources provide strong laser beams. The projector has good beam specifications with a beam diameter of approximately 5 mm and a beam divergence of 1.2 mrad. The galvo system has a scan speed of up to 30 kpps @ 8°.
There is no air circulation in the optical area, the temperature is regulated via the separate heat sink section. This reduces maintenance and cleaning work to a minimum.
The pre-stored effects and animations (from QuickShow - BEYOND) can be called up via DMX / ArtNet and adjusted live in color, position or with additional effects.
The Laserworld CS-12.000RGB FB4 also offers direct computer control via Pangolin QuickShow or BEYOND. This allows you to project your own or pre-programmed laser shows, logos, texts or your own graphics and animations.

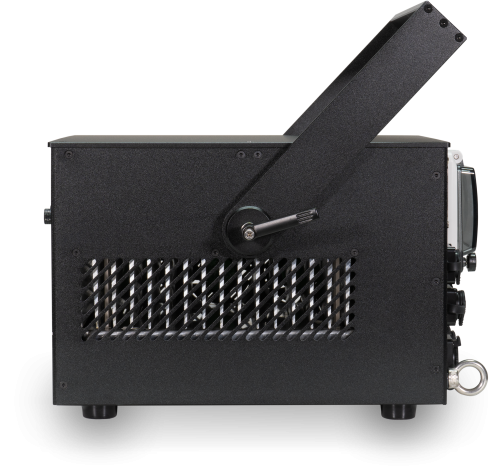

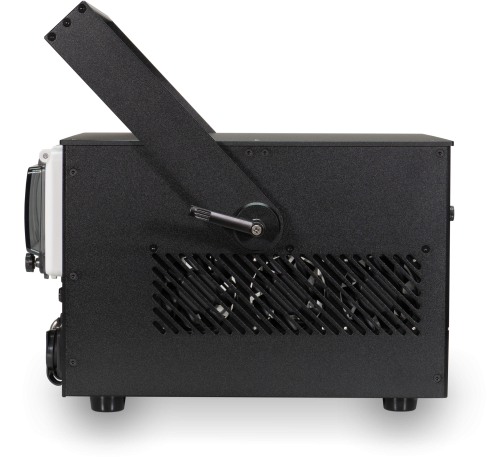

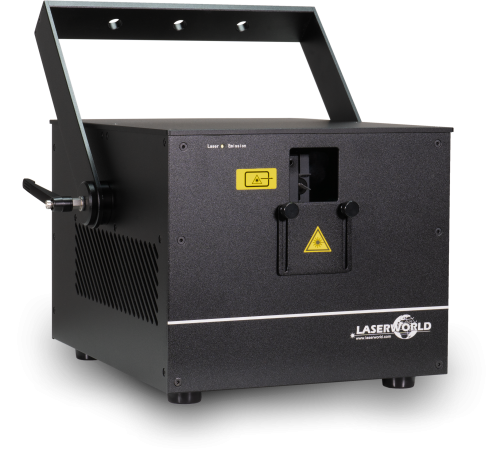

The Laserworld CS-12.000RGB FB4 show laser projector comes with a compact housing that is lightweight and has a stable 360° bracket. The bracket allows various mounting positions: both hanging and standing installations are possible - ideal for mobile DJs and temporary laser shows, but also for fixed installations on a truss or on the ceiling.
The Laserworld CS-12.000RGB FB4 is ideal for semi-professional applications and is perfect for medium to large clubs and discotheques as well as for smaller festivals or stages and in any other party location.
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
The laser can be controlled with a standard DMX controller or DMX software.
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.

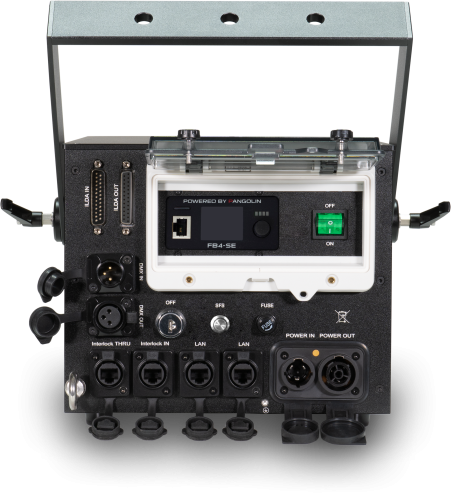

The laser can be controlled through the integrated Pangolin FB4 board
For Dealers and Distribution Partners
See all prices and availability.
Subscribe to newsletter
Stay up to date with the latest news.
Compatible Control
External ILDA Standard Control
Technical Details
| Guaranteed Power | 12'000 mW |
| Power Red | 3'000 mW / 638 nm |
| Power Green | 3'000 mW / 520 nm |
| Power Blue | 6'000 mW / 450 nm |
| Beam Specifications | 5 mm / 1.2 mrad |
| Scanner | 30 kpps @ 8° |
| Max. Scan Angle | 40° |
| Laser Source | Diode |
| Laser Class | 4 |
| Operation Modes | FB4, ILDA, DMX; Artnet |
| Basic Patterns | Available for download |
| Accessories | power cable, manual, interlock, key |
| IP rating | IP54 |
| Power Supply | 85 V - 250 V AC, 50/60 Hz |
| Power Consumption | 150 W |
| Dimensions | 285 x 180 x 190 mm |
| Weight | 7.7 kg |
| EAN / MPN | 7640144996062FB4 |
| Delivery Scope | power cable, manual, interlock, key |
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
Download Technical DatasheetSuitable Accessories
