tarm 6

tarm 6 main image
The tarm 6 is the perfect all-rounder for professional users and lighting designers. With built-in multi-control mainboard for DMX, ArtNET, LAN, ILDA, ILDA streaming, stand-alone operation, etc.. Fast scanners for professional graphics projections, mappings and other installation projects. The tarm 6 has a rugged, compact chassis, making it ideal for professional shows and rental companies..
  • 6 W guaranteed power
  • Quality graphics capable - 45kpps @ 8° ILDA scanners - upgradable to 60kpps
  • Extremely sharp intense beams - low divergence of <0.6 mrad
  • Full color mixing
  • Integrated powerful mainboard with advanced configuration features (geo-correction, zone setup, color balancing, etc.) and DAC feature
  • Integrated network switch for linking the control signal
  • Control screen for convenient mode selection
  • Rugged tour grade compact housing
  • Laser Artists' choice
  • Lighting Designers' choice
  • incl. waterproof flightcase

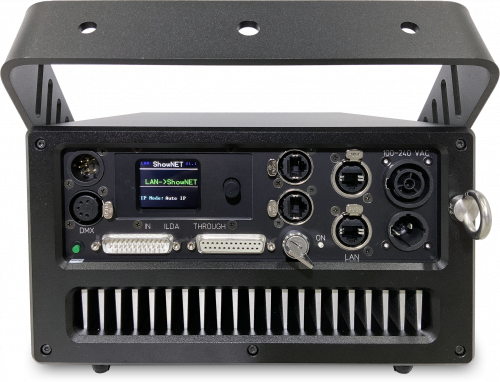

ShowNET mainboard as standard:
  • Various control options: ILDA, Professional DMX (two modes), Professional Art-Net (two modes), Stand-Alone Operation, Master-Slave, ILDA Streaming Receiver, LAN (Computer control, integrated DAC)
  • Create custom content, store it inside the laser and play it back in different modes
  • Free laser show control software included
tarm 6 additional image 1
tarm 6 additional image 2
tarm 6 additional image 3
tarm 6 additional image 4
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
ArtNET modeArtNET Control mode
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
LAN connectionLAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA connectionILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
ILDA StreamingILDA Streaming
ShowNET insideSHOWNET INSIDE:
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
Free Showeditor laser software includedSHOWEDITOR INCLUDED:
The full version of the laser show control software Showeditor is included in delivery.
The tarm 6 show laser projector is a pure diode solution with analog color modulation and a guaranteed output power of 6'000 mW.

The tarm 6 units have a built-in network DAC for Showcontroller and Showeditor, but also can be controlled with any ILDA laser control software such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface (e.g. FB3). They also have a built-in memory with pre-set patterns, that can be easily triggered through DMX, automatic mode.
The tarm 6 comes with integrated ShowNET network interface and free laser show software. Details in the box below.

The benefits include:

  • 6'000 mW guaranteed output power
  • a very fast maximum scan speed of 45kpps @ 8° ILDA for graphics projection
  • high-precision diode arrays provide an excellent beam divergence of less than <0.6 mrad for a low beam diameter
  • pure diode laser
  • novel method for increasing the beam precision of the single-mode diodes
  • beautiful colors and great color fading
  • the tarm 6 impresses with a very bright 637 nm single mode red
  • MANUFACTURED IN GERMANY, with high precision diodes array modules

The tarm 6 has good specifications with a beam diameter of ca. 4.5 mm and a beam divergence of less than <0.6 mrad.
It is equipped with a red (2'000 mW / 637 nm), a green (2'000 mW / 520 nm), and a blue (2'500 mW / 450 nm) diode laser source.

The tarm 6 devices have very fast scanners, running at 45kpps @ 8° ILDA and scanning a maximum scan angle of 50°, upgrades to CT-6210 scanners with 60 kpps@8° ILDA and a deflection angle of up to 60° are available on request. These specifications definitely make the units perfectly suitable for professional applications and ideal for graphics projections.

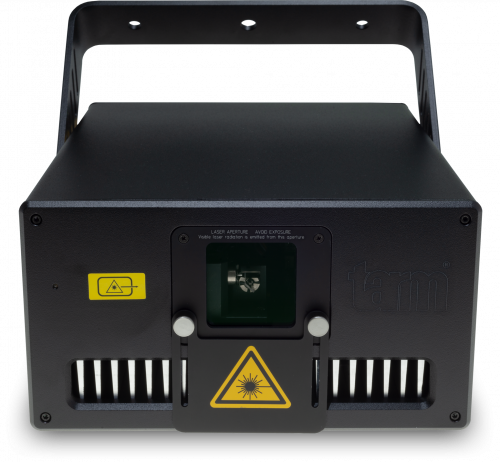

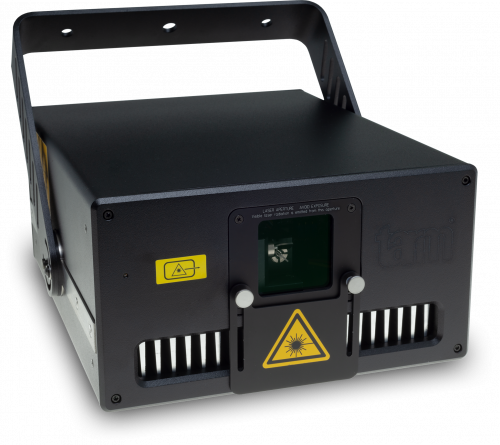

The housing of the tarm 6 is built very rugged and in a dust-proof way, so there is no air circulation inside the enclosure. This reduces maintenance efforts to a minimum. The mounting bracket allows for hanging and for upright mounting of the laser system.

The tarm 6 is suitable for demanding show laser applications and graphics projections in clubs, bars and on small stages and can be used by beginners as well as professionals.

+ Integrated ShowNET incl. free laser show software

The tarm 6 features an integrated ShowNET network interface with free laser control software included!
Start with your own professional laser show thanks to the intuitive Showeditor laser show software which comes with every new tarm 6 for free. The Showcontroller software is supported as well and can be purchased additionally.
The integrated ShowNET allows for direct input through ILDA and LAN. Besides DMX, it is possible to trigger single frames via ArtNet. Custom frames and shows can be played back from an integrated SD card (included in delivery) – even in stand-alone mode!
There are two different DMX modes:
(1) DJ Mode with the most used features for beginners. Only a few DMX channels are used for a quick and easy access to the most important adjustments directly at the laser system.
(2) Professional Mode with all DMX features especially for users with a DMX console. All adjustments can be triggered and allow for full control of the professional laser show.
The integrated ShowNET works as DAC (digital to analog converter) and enables ILDA streaming.



> More details

External ILDA Standard Control:

ILDA connector
Analog ILDA

Optional control options (modification required!):

Optional control options require modifications to the general laser setup. Other operation modes or compatibilities may get lost.
Pangolin Software
Quickshow
Pangolin Software
Beyond



> More details

tarm 6 laser beam and explanatory image 6
tarm 6 laser beam and explanatory image 7
tarm 6 laser beam and explanatory image 8
tarm 6 laser beam and explanatory image 9
tarm 6 laser beam and explanatory image 10
tarm 6 laser beam and explanatory image 11
tarm 6 laser beam and explanatory image 12
tarm 6 laser beam and explanatory image 13
tarm 6 laser beam and explanatory image 14
tarm 6 laser beam and explanatory image 15
tarm 6 laser beam and explanatory image 16
tarm 6 laser beam and explanatory image 17



> More details

Guaranteed Power at aperture
6'000 mW
Power Red
2'000 mW / 637 nm
Power Green
2'000 mW / 520 nm
Power Blue
2'500 mW / 450 nm
Beam Specifications*
ca. 4.5 mm / <0.6 mrad
Scanner
45kpps @ 8° ILDA; optional CT-6210 with LAS Turboscan: 60kpps@8° ILDA, max. 60°
Max. Scan Angle
50°
Laser Source
Diode
Laser Class
4
Operation Modes
ILDA, DMX, LAN, ArtNet, integrated SD card, stand-alone, master-slave; integrated intelligent ShowNET laser mainboard with display
Basic Patterns
over 120 (layers, tunnels, fences, waves, etc.)
Accessories
Incl. waterproof flightcase, raincover power cable, manual, key, interlock connector, full version Showeditor software license included
Power Supply
85 V - 250 V / AC
Power Consumption
230 W
Dimensions
320/260/140 mm
Weight
13 kg
EAN / MPN
7640144996635
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.



> More details
