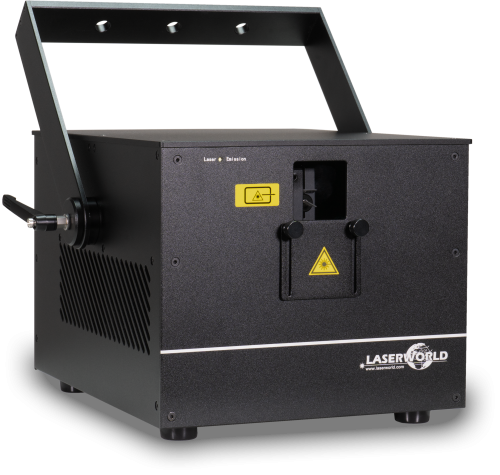

Laserworld CS-12.000RGB FB4 (2 pcs)
Remaining Stock Item - only as long as stock lasts!Remaining Stock Item - Only as long as Stock lasts!
Sample Unit. Like NEW. Only 2 pcs.
A powerful semi-professional pure diode laser, capable of producing intense standard laser effects such as beams, waves and tunnels, as well as basic graphics. This laser is equipped with an FB4 interface, enabling DMX and stand-alone control, as well as computer control from QuickShow or BEYOND. Perfect for medium to large-scale nightclub installations, indoors or out.
- 12'000 mWRGB pure diode laser system
- Pangolin FB4 interface
- DMX / ArtNet controllable
- Stand-alone mode
- Computer controllable via FB4 interface (requires QuickShow or BEYOND software)
- Basic graphics capability - 30 kpps @ 8° scanners
- Analog modulation

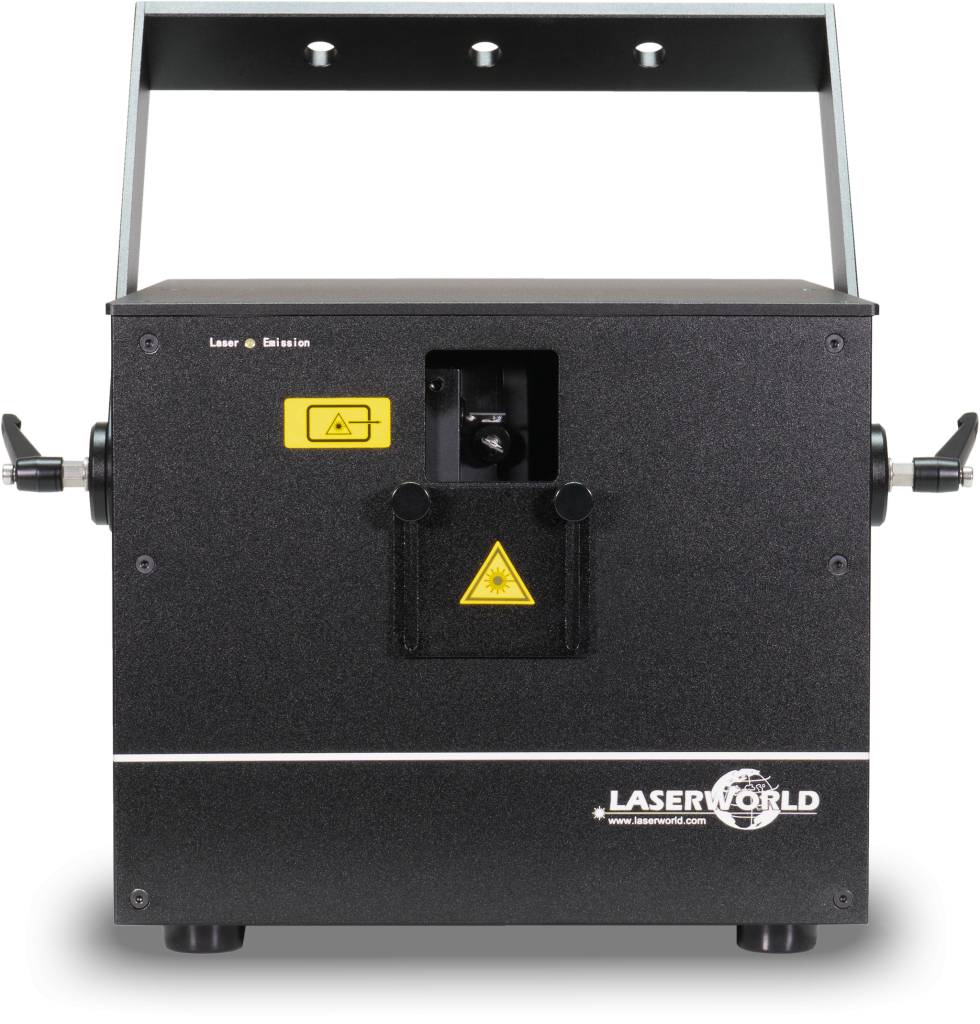

- Laser beam masking plate on front panel
- 360° mounting bracket
- IP54 enclosureSpecial Remaining Stock Price:1,499.00 €excl. VAT, excl. shipping
price per unit
STAND-ALONE MODE:The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX MODE:The laser can be controlled with a standard DMX controller or DMX software.
ArtNET Control mode
LAN MODE:The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA MODE:The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
FB4 INTEGRATED:The laser can be controlled through the integrated Pangolin FB4 board

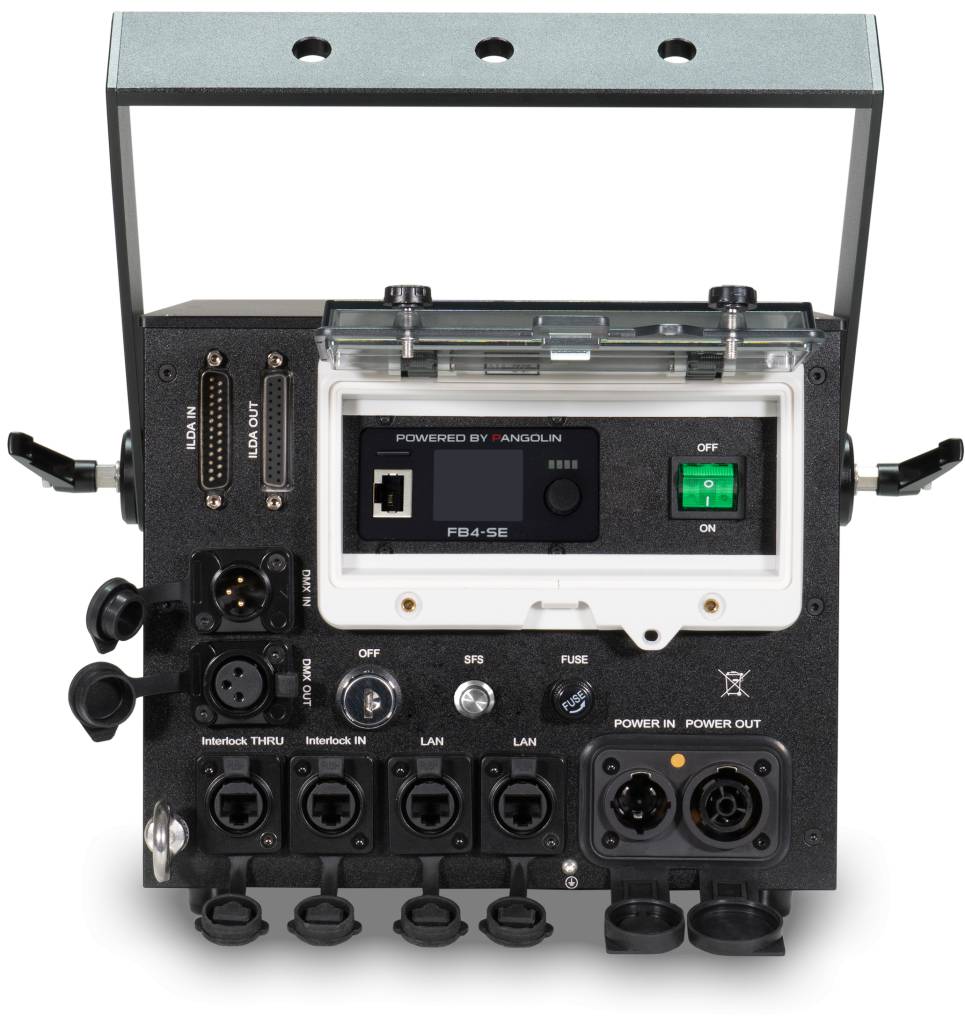

Via the internal FB4 interface, the Laserworld CS-12.000RGB FB4 (2 pcs) offers various control options, including DMX, ArtNet as well as direct computer control via network (QuickShow software or BEYOND software required).
But that's not all the Laserworld CS-12.000RGB FB4 (2 pcs) offers:
The Laserworld CS-12.000RGB FB4 (2 pcs) is an analog modulated, full-color RGB diode laser system with a guaranteed output power of 12'000 mW. The red laser source has an output power of 3'000 mW / 638 nm, the green of 3'000 mW / 520 nm and the royal-blue laser source has an output power of 6'000 mW / 450 nm. The diode laser sources provide strong laser beams. The projector has good beam specifications with a beam diameter of approximately 5 mm and a beam divergence of 1.2 mrad. The galvo system has a scan speed of up to 30 kpps @ 8°.
There is no air circulation in the optical area, the temperature is regulated via the separate heat sink section. This reduces maintenance and cleaning work to a minimum.
The pre-stored effects and animations (from QuickShow - BEYOND) can be called up via DMX / ArtNet and adjusted live in color, position or with additional effects.
The Laserworld CS-12.000RGB FB4 (2 pcs) also offers direct computer control via Pangolin QuickShow or BEYOND. This allows you to project your own or pre-programmed laser shows, logos, texts or your own graphics and animations.

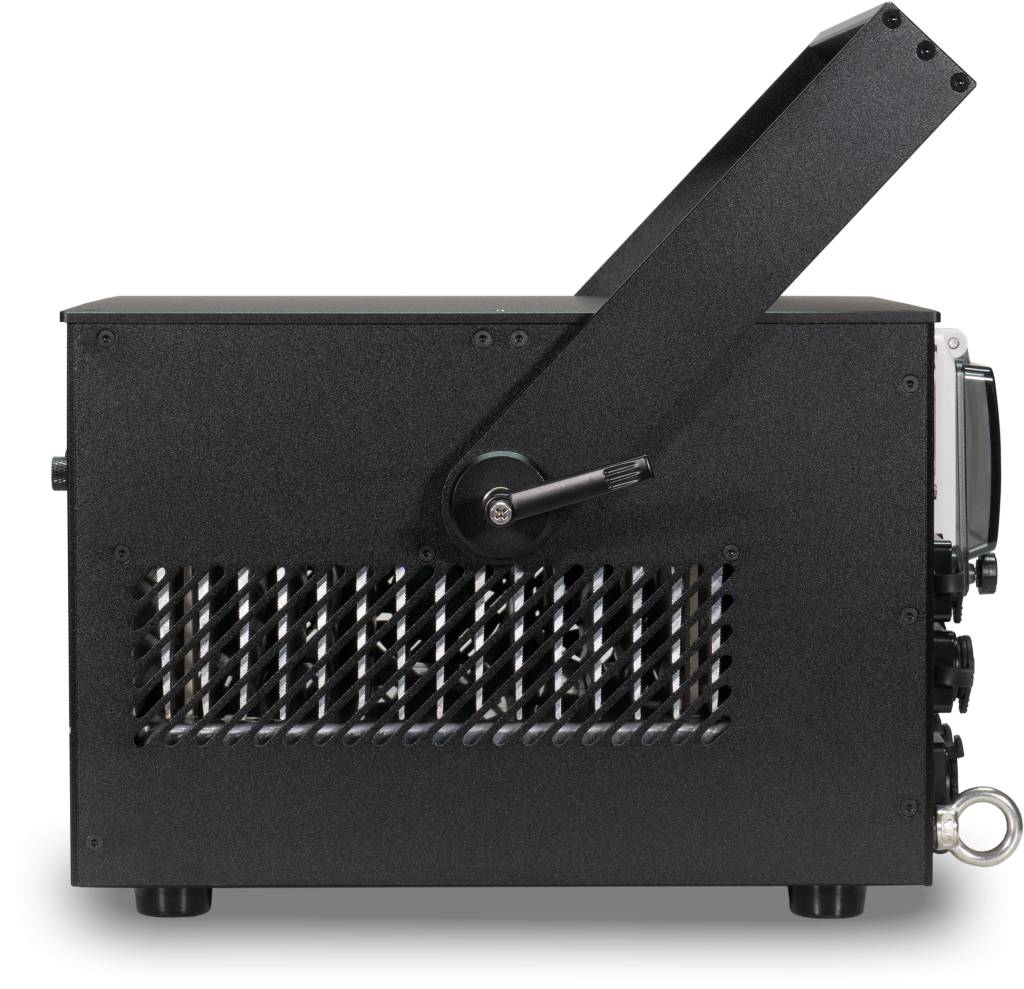

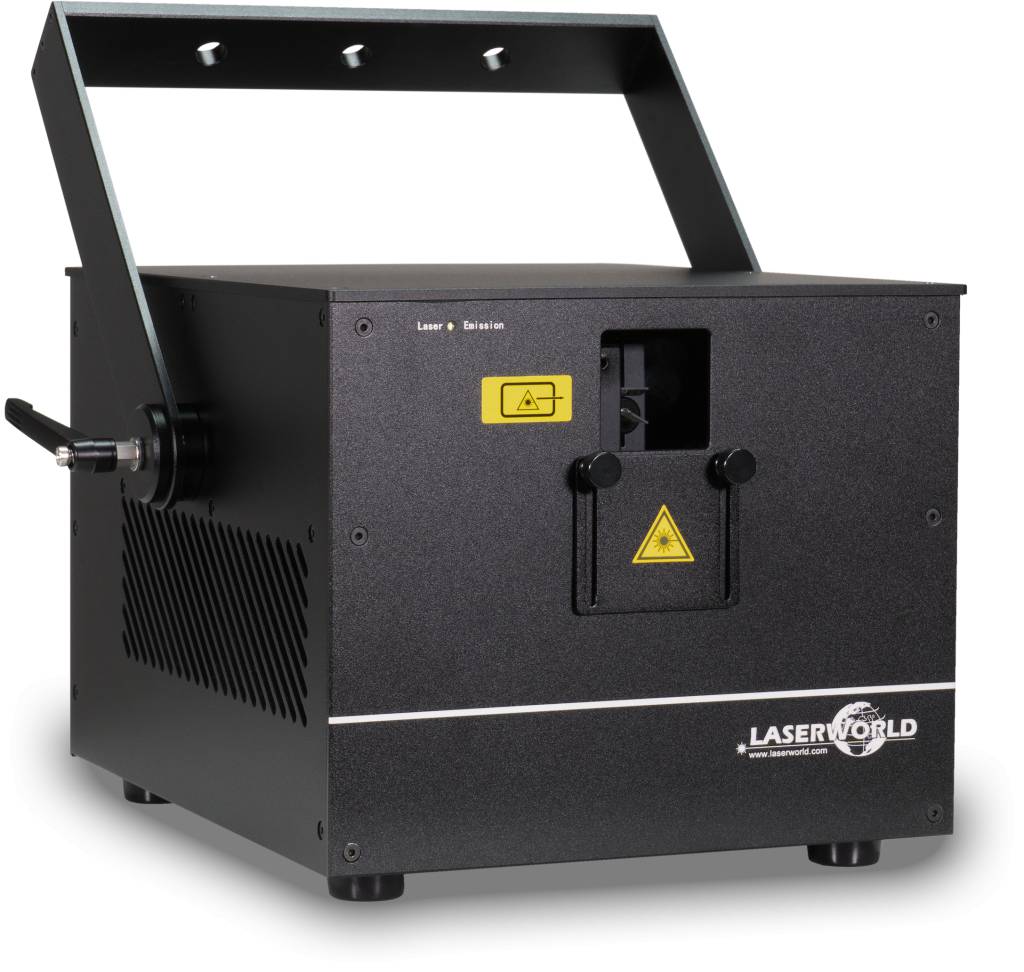

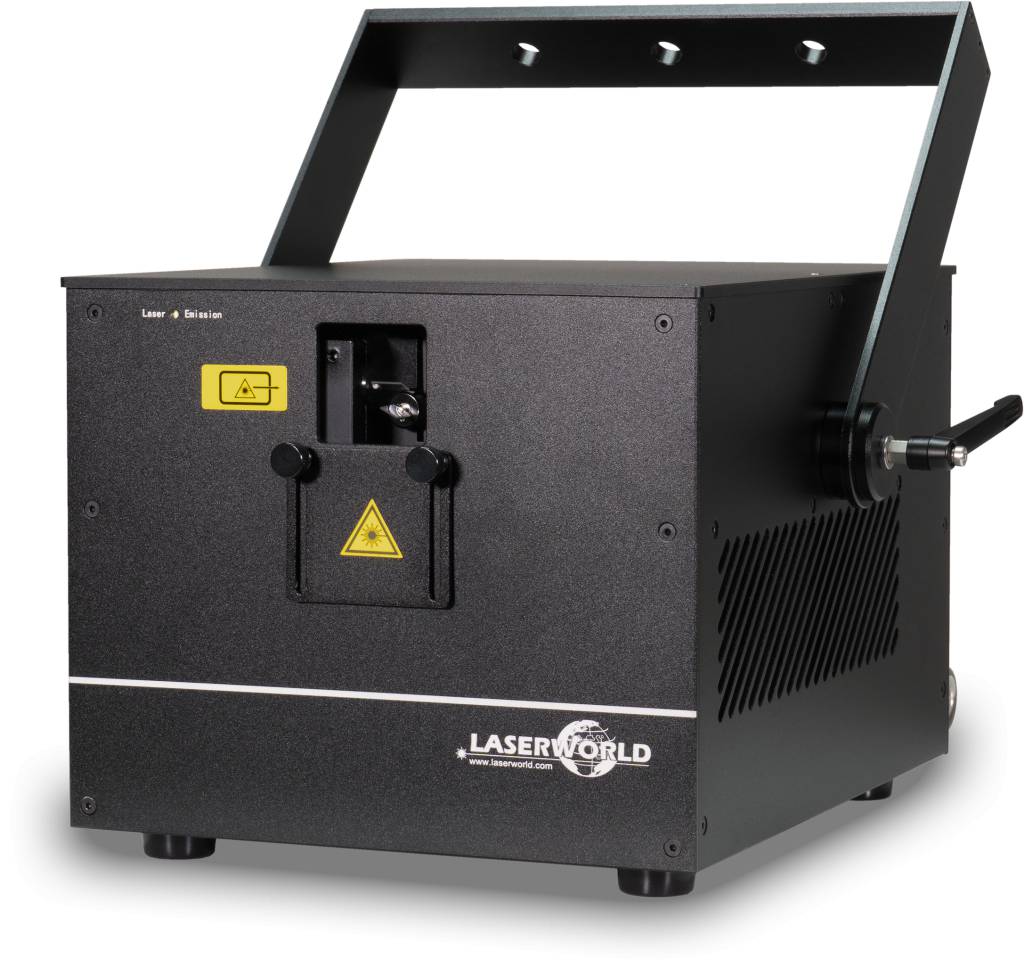

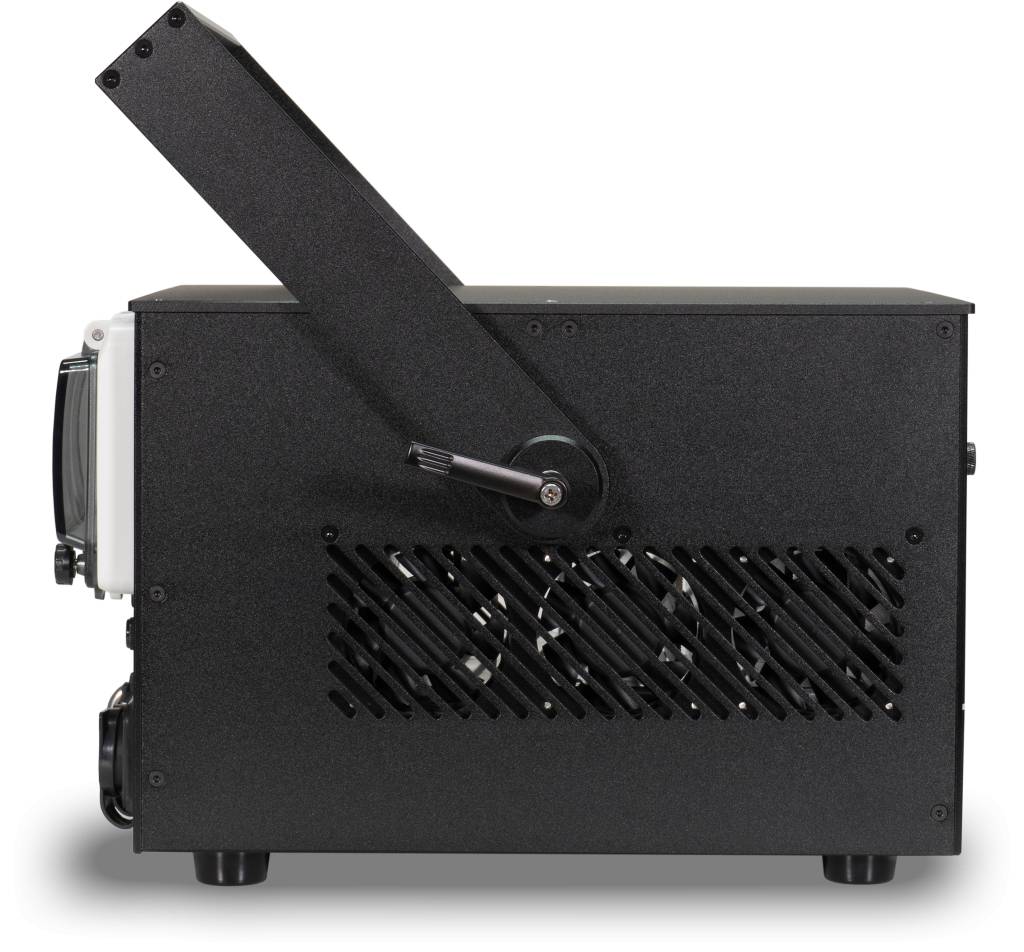

The Laserworld CS-12.000RGB FB4 (2 pcs) show laser projector comes with a compact housing that is lightweight and has a stable 360° bracket. The bracket allows various mounting positions: both hanging and standing installations are possible - ideal for mobile DJs and temporary laser shows, but also for fixed installations on a truss or on the ceiling.
The Laserworld CS-12.000RGB FB4 (2 pcs) is ideal for semi-professional applications and is perfect for medium to large clubs and discotheques as well as for smaller festivals or stages and in any other party location.
Model 2024/25
