Remaining Stock Item
Laserworld PL-5500RGB Outdoor - FB4 (1 pc)
Remaining Stock Item - only as long as stock lasts!Remaining Stock Item - Only as long as Stock lasts!
DEMO UNIT - SIGNS OF USAGE
- guaranteed power
- Graphics capable - 35 kpps @ 8°
- Max scan angle 50° max.
- Full colour mixing - analog modulation
- Sharp intense beams – ca. 5.0 mm beam diameter and low divergence of 1.1 mrad
- Model 2018Special Remaining Stock Price:1,499.00 €excl. VAT, excl. shipping
price per unit
LAN MODE:The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
FB4 INTEGRATED:The laser can be controlled through the integrated Pangolin FB4 board
The Laserworld PL-5500RGB Outdoor - FB4 (1 pc) is especially designed for the use as projection laser in an ourdoor environment for fixed installations. It is equipped with reliable diode laser technology and fast scanners for clear logo and pattern projections.
The housing of the Laserworld PL-5500RGB Outdoor - FB4 (1 pc) is rain proof and makes this laser well suitable for architecture projections, laser mappings or logo displays.
The Laserworld PL-5500RGB Outdoor - FB4 (1 pc) comes with. Details in the box below.
The show laser light system is completely equipped with diode laser sources and has a good white balance, with linear color fading behaviour and high visibility.
The housing of the Laserworld PL-5500RGB Outdoor - FB4 (1 pc) is rain proof and makes this laser well suitable for architecture projections, laser mappings or logo displays.
The Laserworld PL-5500RGB Outdoor - FB4 (1 pc) comes with. Details in the box below.
The show laser light system is completely equipped with diode laser sources and has a good white balance, with linear color fading behaviour and high visibility.
Advantages of the Laserworld PL-5500RGB Outdoor - FB4 (1 pc) are:
- great for logo projections or use for architectural illumination
- can be used as stand-alone device or with direct control
- brilliant colors with great linear color fading behavior
- including Safety Unit
The Laserworld PL-5500RGB Outdoor - FB4 (1 pc) has a beam diameter of about ca. 5.0 mm and beam divergence of ca. 1.1 mrad.
Guaranteed output power at aperture is . 1'100 mW / 638 nm (red), 1'600 mW / 520 nm (green), 3'000 mW / 450 nm (blue).
Fast scanners work at a speed of 35 kpps @ 8° and can do a max. scan angle of 50° max..

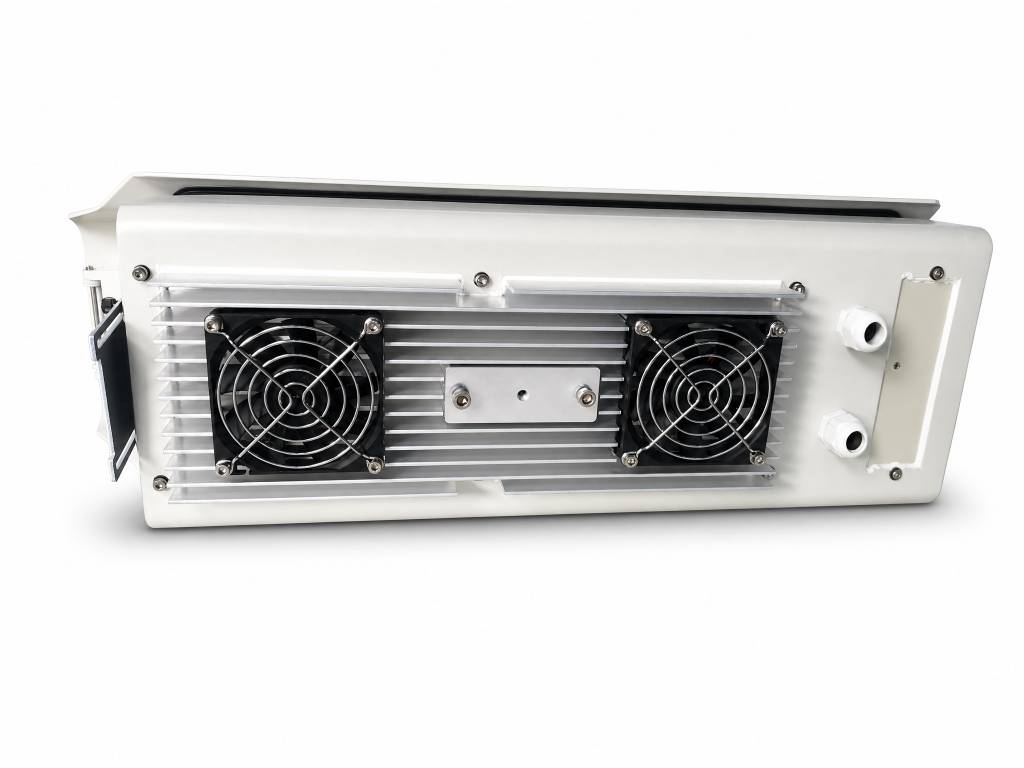

The complete projector is built rain proof and is cooled through the external cooling fins (bottom part). Thus the maintenance effort is kept very low.
The show laser has an internal PSU for easy handling.
A Safety Unit is included in delivery.
Operating temperature: -5°C to +40°C
> More details
Power Red
1'100 mW / 638 nm
Power Green
1'600 mW / 520 nm
Power Blue
3'000 mW / 450 nm
Beam Specifications*
ca. 5.0 mm / 1.1 mrad
Scanner
35 kpps @ 8° ILDA
Max. Scan Angle
50° max.
Laser Source
Diode
Laser Class
4
Operation Modes
Pangolin FB4
Accessories

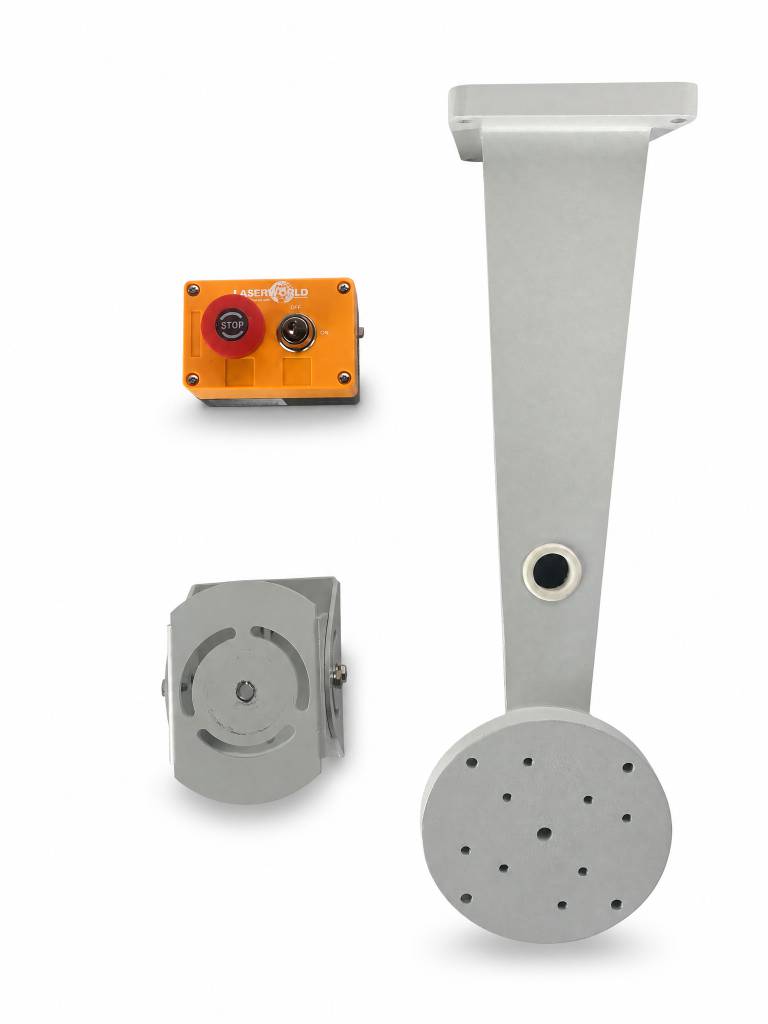

Wall-mount, Safety Unit, manual
Power Supply
85 V - 250 V AC, 50/60 Hz
Power Consumption
100 W
Dimensions
550 x 200 x 180 mm (L x W x H)
Weight
9.1 kg
EAN / MPN
R93786
Download Technical Datasheet
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
