FAQ and Info

Advantages of OPSL Technology and SwissLas diode arrays

Comparing a well-shaped, well divergent OPSL beam with a SwissLas and a competing diode array module

(see our explanation of good and bad diode array modules here!)

Below are three units that are to be compared:

The left unit
is a competing product with 34W RGB and CT-6215 scanners. It uses diode array solutions for red and blue color and a green OPSL.

The right unit
is a RTI NANO4 RYGB 22 system (up to 22W) with only OPSL sources and CT-6210HP SE scanners. The unit is IP65 waterproof.

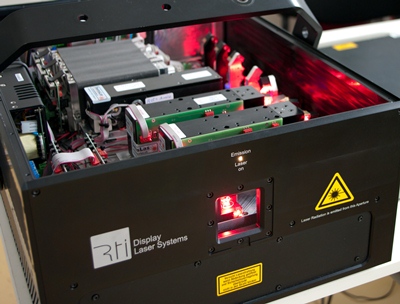

The unit below
is a RTI NANO Rainbow 36 system (up to 36W) with yellow, green and cyan OPSL and red and blue SwissLas diode array module

shootout small
rti nano rainbow 36 open medium

When initially projecting a test picture (testing distance: 12m), some deviances are visible:

Red laser source:
The red laser source of the competing product seems to be bigger and has a not-so-nice blur.
When looking at the NANO system with OPSL sources, this problem is not visible. The results with SwissLas diode modules is very similar (see below)
You can already see some scanner issues of the competing product on this picture, but this is discussed further below.

rgb-testpicture-closeup small
IMGP5164 <-- NANO Rainbow with SwissLas red and blue
IMGP5166 <-- Sharp and precise red beam at same size as all other colors: SwissLas diode array module

As it can be seen at the competing product, the red diode module seems to be fatter than the green source. So let's see the front window of the competing diode array module:
fat-red small
It's obvious that the array outlet window shows three layers of diodes that are combined by knife edge combination. If compared to the size of the screws around the outlet window it becomes clear that the general beam size is quite large. This is also due to the fact that there is a lot of space between the single diodes - it can even be seen very clearly. By the way: The combination in SwissLas diode modules works differently and thus achieves much closer rays of the single diodes.

See details on diode array modules here - and why SwissLas diode array modules look much more precise than this one .

Here we have a look at the SwissLas Diode Array Module results:

Extremely precise and very narrow aligned, they fit on the very small mirrors.

So let's have a look at the red-only test picture:

red-testpicture-closeup small

Projection size is rather small for 12m distance, but the text/numbers can still be read in the NANO projection, whereas the competing product shows more of a general blur.

This is the result with the SwissLas red diode array module:

red testpicture2 swisslas
Very precise and accurate

What does it mean if the beam is as blurry as the one in the competing unit?

The testing is done on a 12m projection distance. If the distance is increased - for such strong units it is normally 100m and more - it is obvious what happens to the beam: It widens up even more and thus looses power much quicker than if the beam was more accurate. This results in less power at the projection area.

Please check our calculator to compare different beam specifications: >> Divergence calculator >>
Does this also apply for the second diode module in the system, the blue one?
blue-beamsize small
Picture 1

It is slightly different, as not so many single diodes need to be combined, but it's similar:

Picture 1 shows the dichroic filter that deflects the blue diode source to the scanner block of the competing laser system.

See details on diode array modules here - and why SwissLas diode array modules look much more precise than this one .
By the way: Can you imagine how large the scanner mirrors need to be to handle such fat beams?

See picture 2:

The beam is even bigger than the scanner mirrors so quite some power gets lost at the scanning optics.

See details on diode array modules here - and why SwissLas diode array modules look much more precise than this one .
red-not-on-scanner small
                                                                                                                     Picture 2

How does this affect the scanning quality?

Scanners - CT-6215 vs CT-6210HP SE
Another quite obvious thing is, that the scanning results of the compared unit with the CT-6215 is much worse than the results of the NANO unit - even though the general technology of the CT-6215 is superior to the CT-6210.

Two factors mainly influence the scanning quality:
The scanner driver:
The difference is the driver used: Whereas the competing product relies on own standard drivers, RTI uses special advanced driver solutions, that were explicitly designed for the CT-6210HP SE.
The size and weight of the scanner mirrors:
The larger the scanner mirrors that are used, the higher the inertia. This heavily affects the actual scanner accuracy and the scan speed, as higher inertia delays the actual scanner movement. That's why RTI relies on small mirros - which they can use due to the great beam quality.

blue-testpicture-shootout small

This is how RTI solves the scanning with the very small CT-6210HP SE scanner mirrors in their NANO devices:

rti nano scanning small

See details on diode array modules here- and why SwissLas diode array modules are so precise.
