RTI ANGO 600

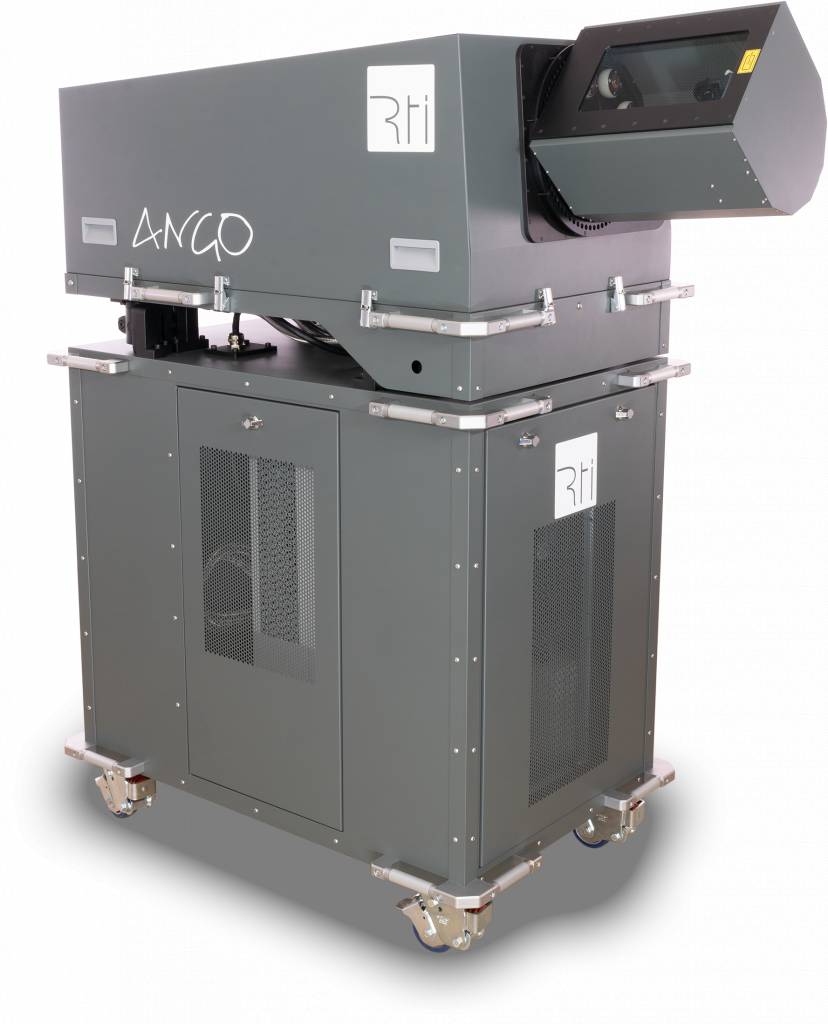

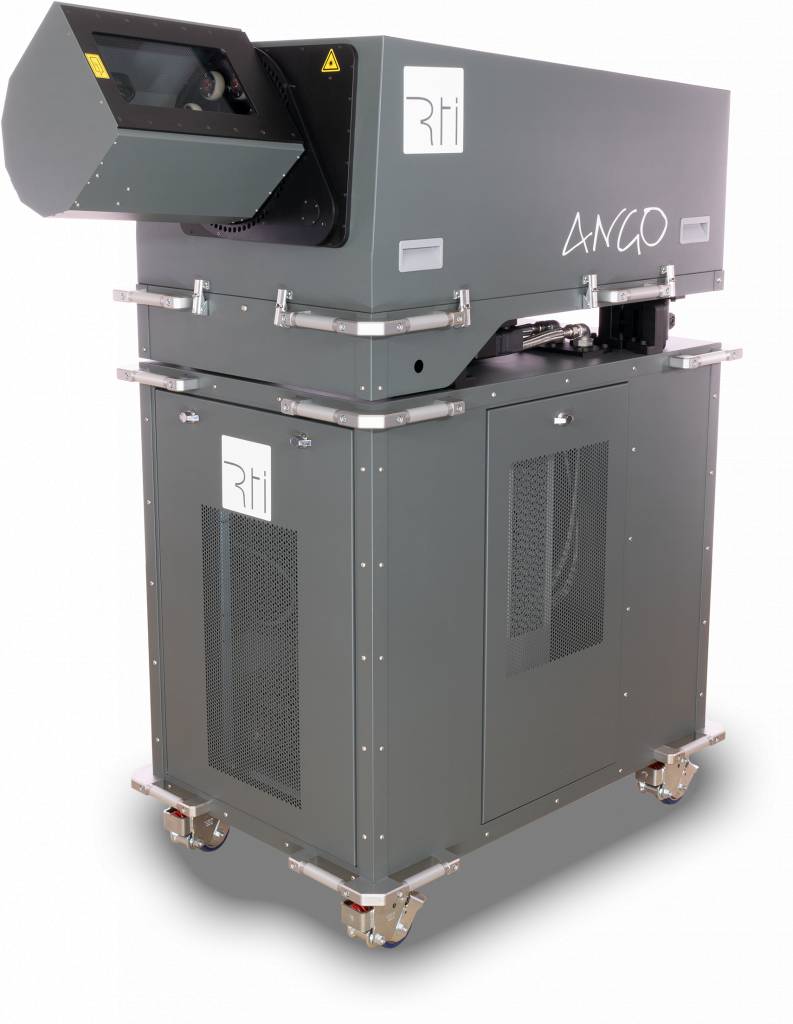

RTI ANGO 600 main image
Extreme power 600 W RGB laser beam projector with xy moving mirror and analog color mixture (full color, including white). Especially designed for outdoor use on buildings, on mountains, as sky laser or landmark laser, or as sky-cannon-effect.

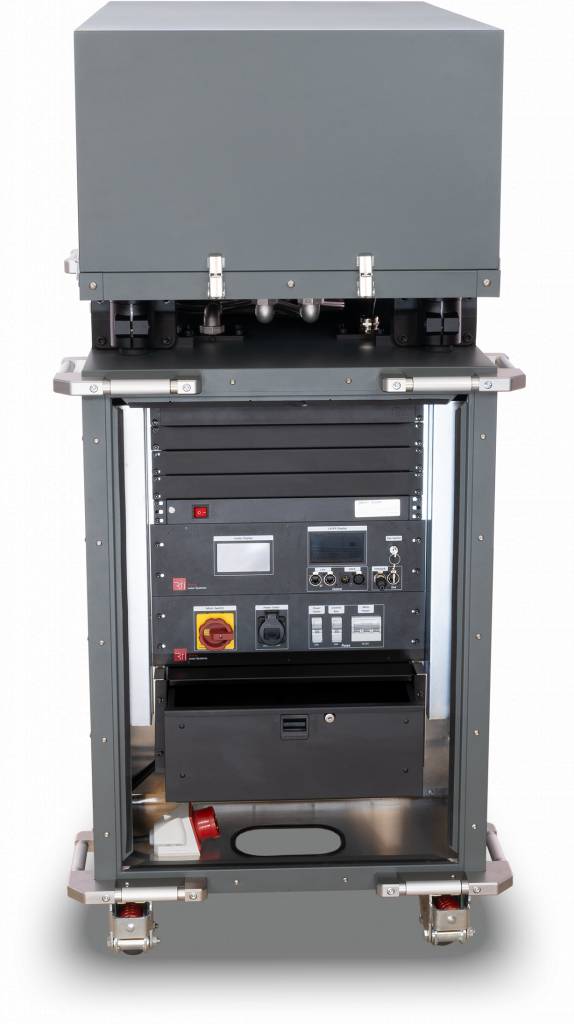

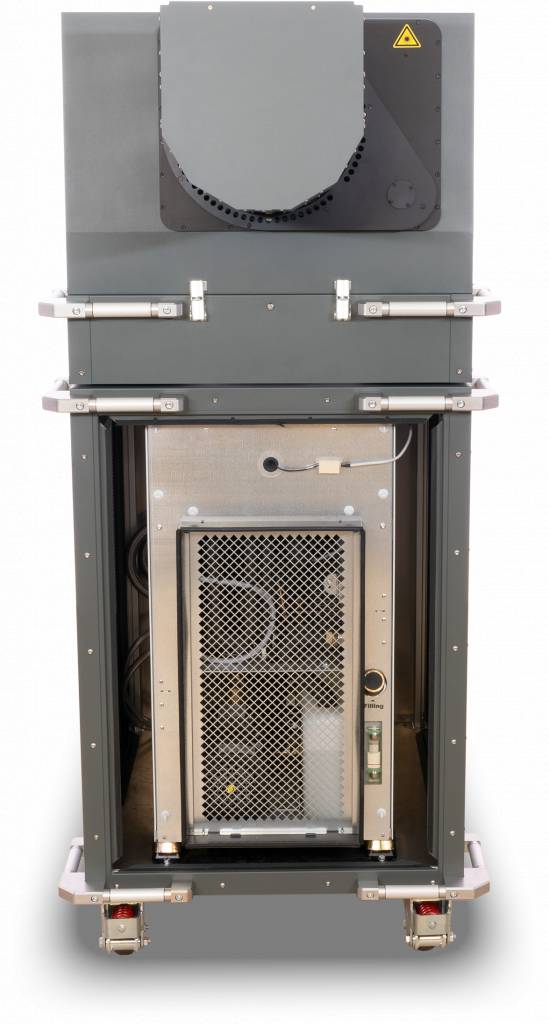

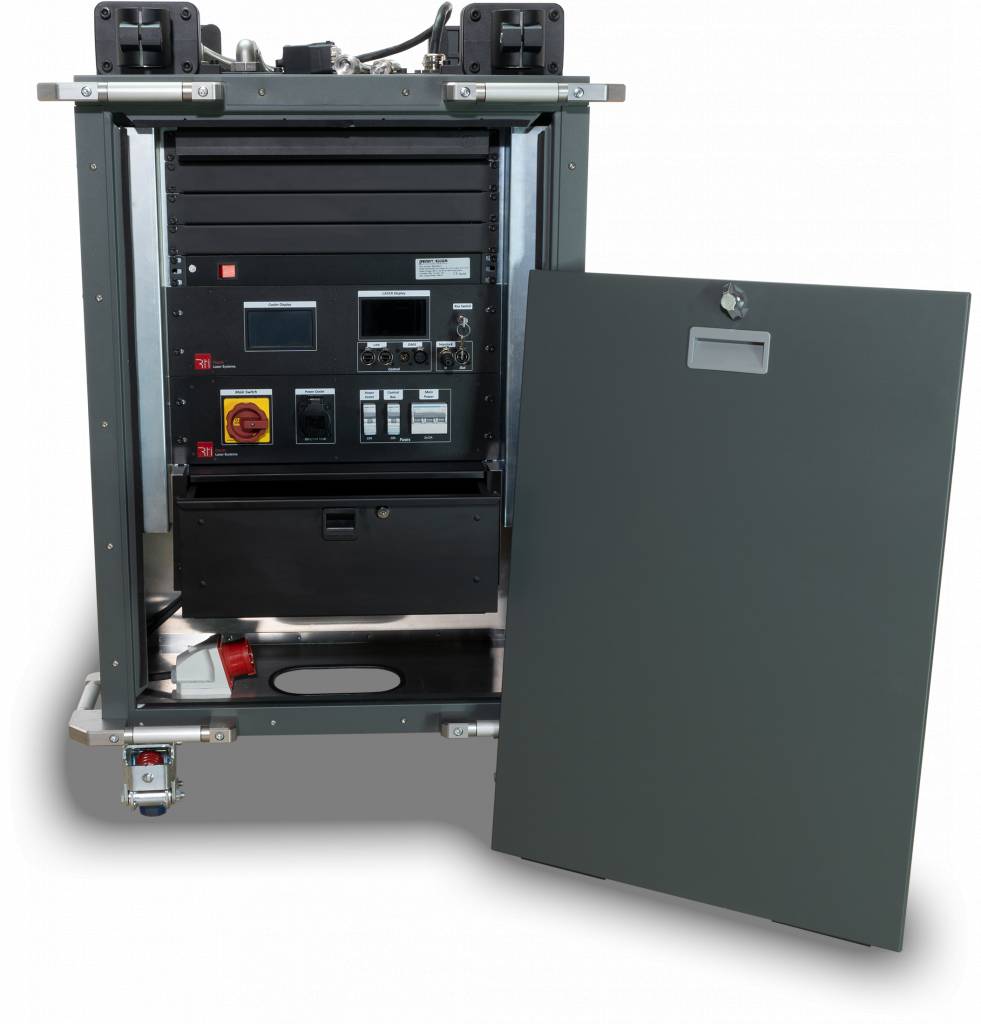

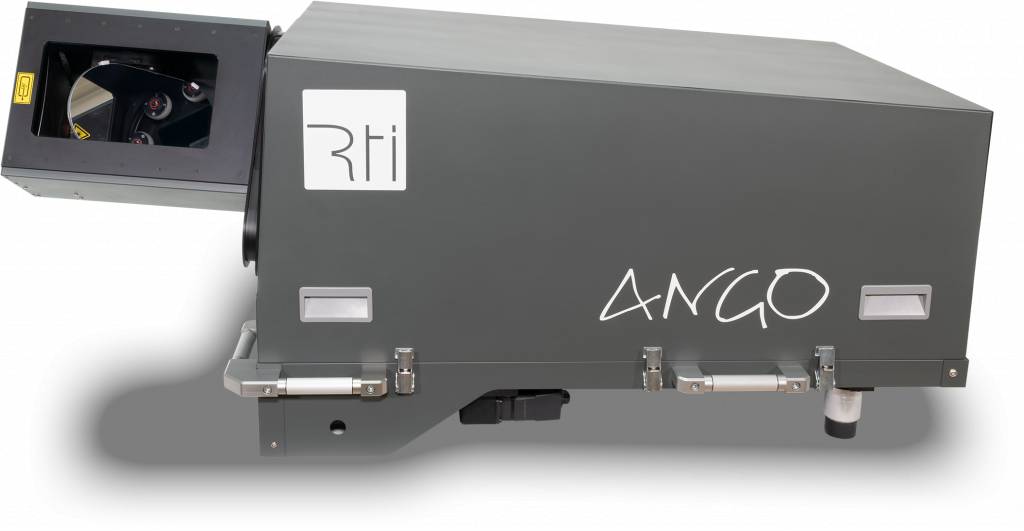

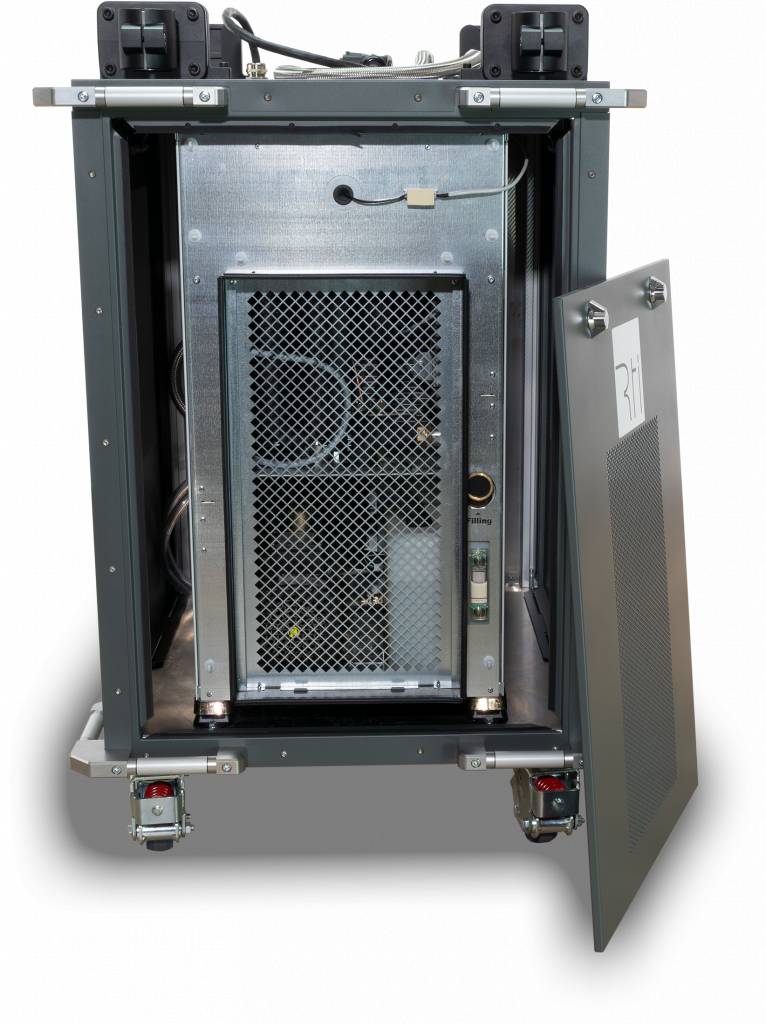

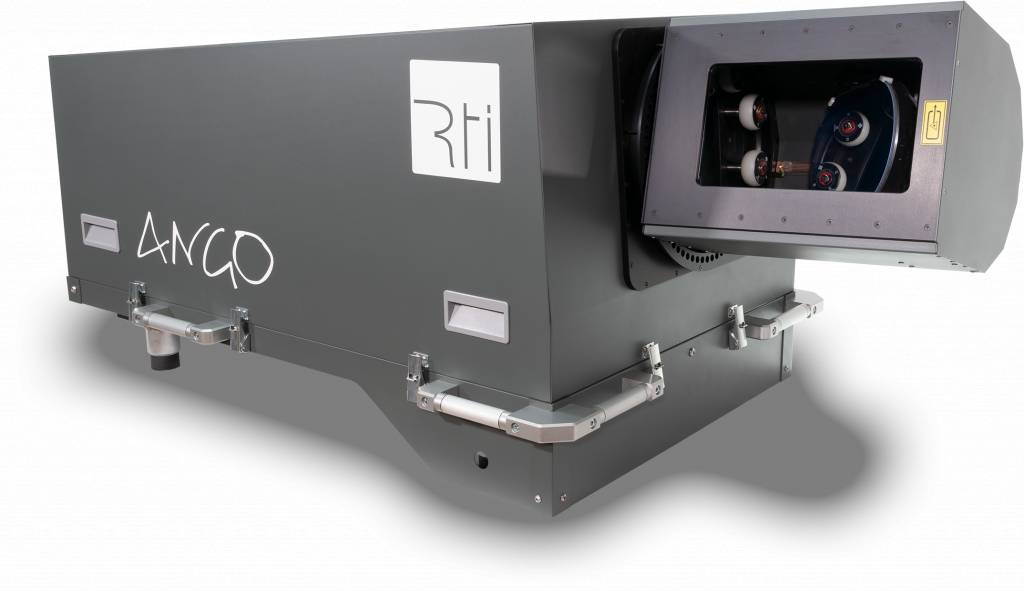

The RTI ANGO 600 can be split into chiller and laser head, so they can be mounted up to 10m apart from each other.
  • extreme laser power of 600 W
  • analog modulated multi-color system, including white
  • movable beam with xy mirror
  • 360° projection angle setting for tilt
  • weatherproof housing, IP65
  • with active built-in AC
RTI ANGO 600 additional image 1
RTI ANGO 600 additional image 2
RTI ANGO 600 additional image 3
RTI ANGO 600 additional image 4
RTI ANGO 600 additional image 5
RTI ANGO 600 additional image 6
RTI ANGO 600 additional image 7
RTI ANGO 600 additional image 8
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
ArtNET modeArtNET Control mode
The RTI ANGO 600 is an ultra high power laser system that is designed for long distance laser visibility. The ANGO laser systems are full color, analog modulated laser systems with an extremely thin and low divergent beam for the power. They are equipped with the latest high precision laser module technology of RTI.

With continuous wave output power of 600 W RGB, the RTI ANGO 600 is extreme in many ways - it‘s not only the power, but also the capability to move the beam!
The individual powers per source color are well balanced, so the color mixture is well and homogenous over long distances.

The divergence of only 1.0 mrad with a beam diameter at aperture of only 100 mm make the beam travel over extremely long distances, as power does not get lost in close proximity to the laser and the beam does not widen up much with increasing distance - so the power is preserved.

The RTI ANGO 600 is equipped with a mirror to deflect and position the beam on the x and y axis. The movement of the beam can be precisely controlled via DMX. The mirror can even be aligned 360° on the Tilt movement (y axis). A special, adjustable mechanism can physically limit the output angle to a certain range for safety reasons, so even glitches in the control signal cannot let the beam deviate out of the set projection area.

To make the ANGO laser systems withstand adverse weather conditions, they are equipped with an active air conditioning system for precise temperature control as well as with a durable, rainproof housing. Having the active AC, the specified operation temperature range for the RTI ANGO 600 is specified from -5 to +50°C.

To make sure the aperture does not get dirty or gets too much water in case of rain, a specially designed, moving output chamber is attached to the device to reduce maintenance to a minimum.

Due to the powerful built-in AC, the RTI ANGO 600 requires a 16A CEE 3-phase connection, but only consumes 7500W.


KEY FEATURES

  • 600 W total RGB power
  • extremely low divergence of only 1.0 mrad to preserve brightness over distance
  • Low maintenance of the device - laser compartment is maintenance free


The RTI ANGO 600 was especially designed for outdoor use on top of buildings or mountains or any similar for exposing a certain attraction or landmark. It is perfect as skylaser or landmark-laser or can be used as sky-cannon-effect.



> More details

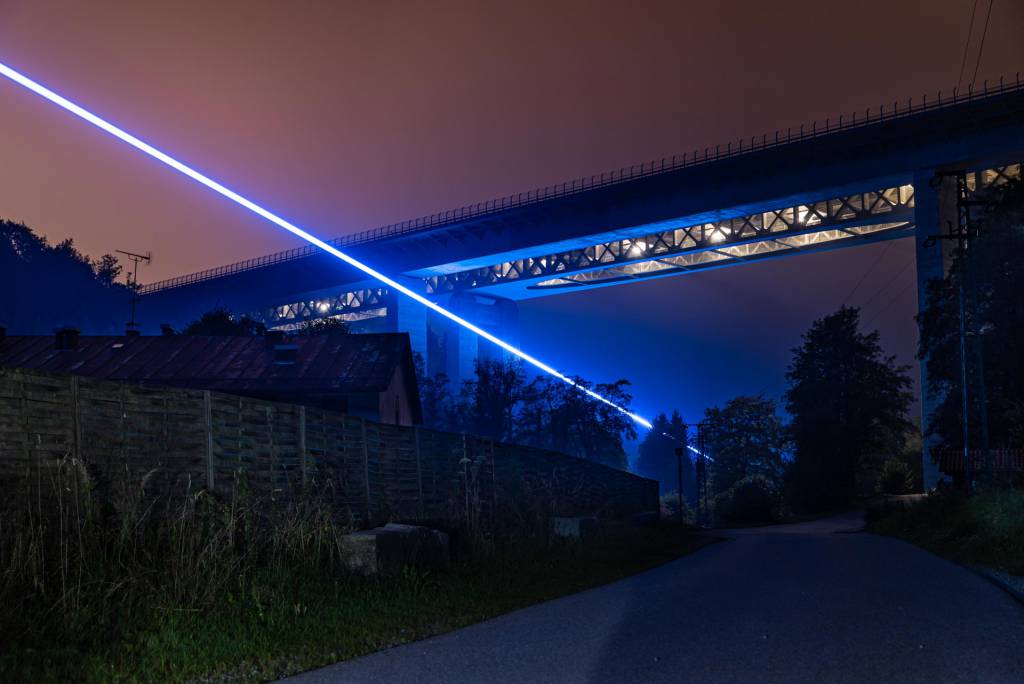

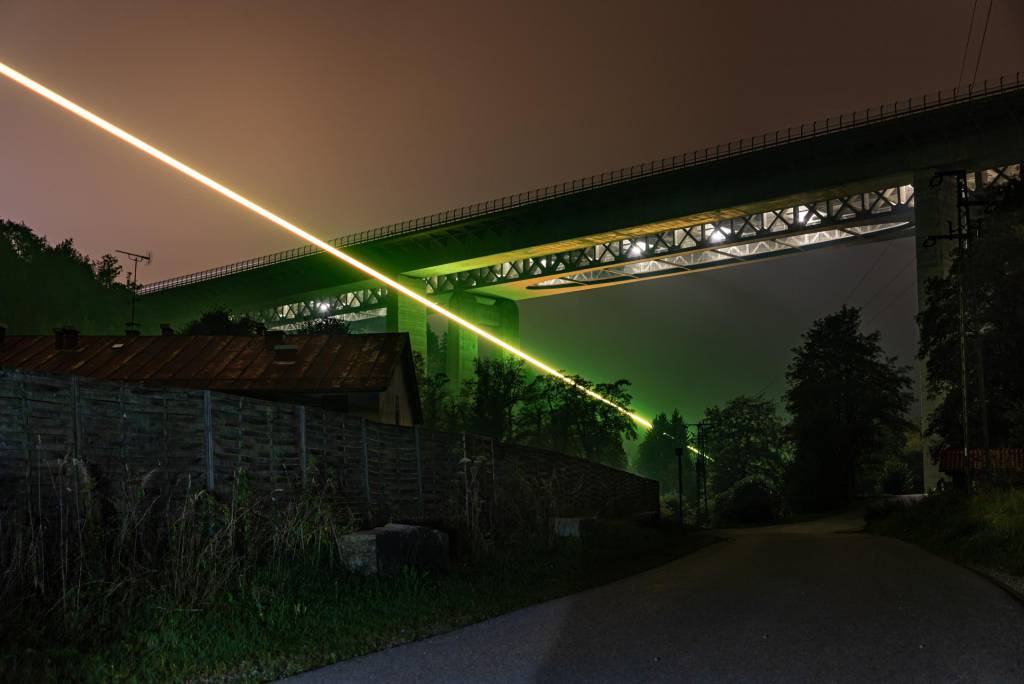

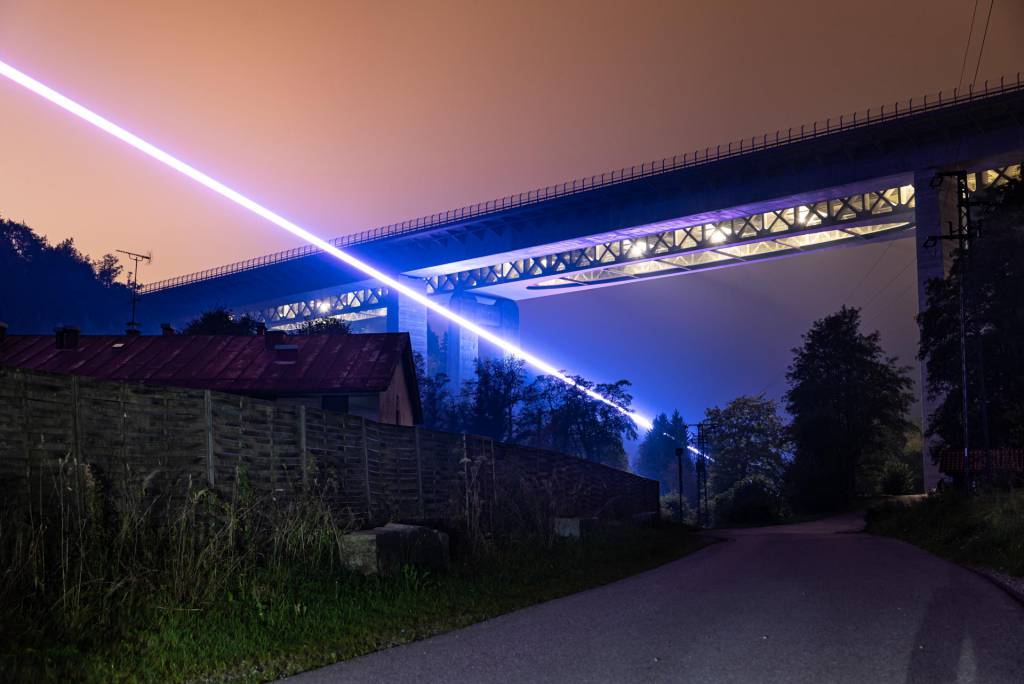

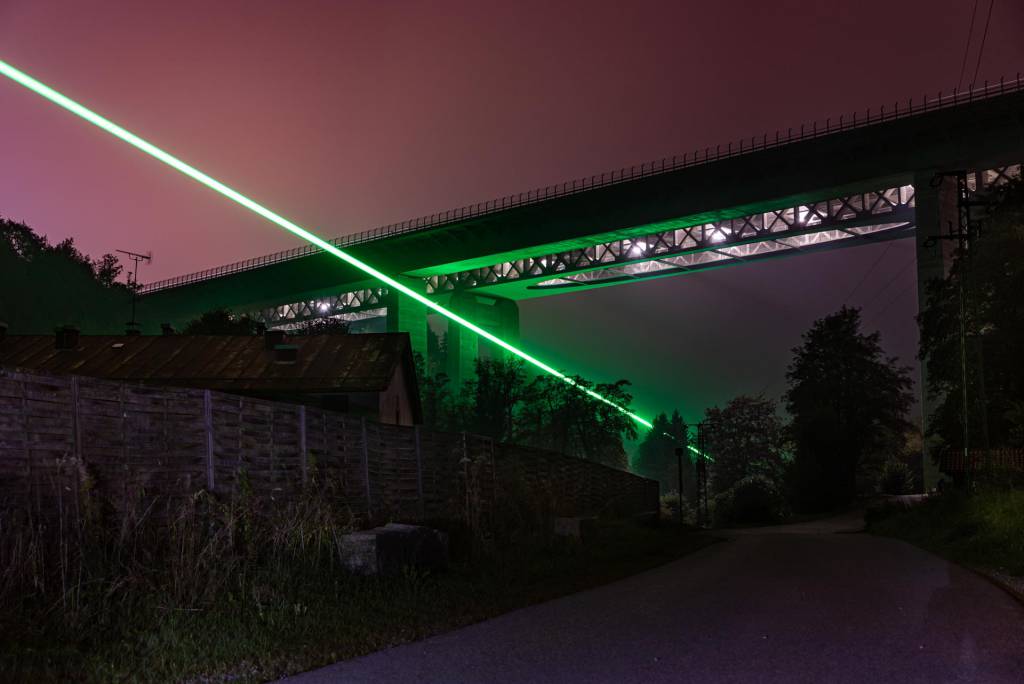

RTI ANGO 600 laser beam and explanatory image 9
RTI ANGO 600 laser beam and explanatory image 10
RTI ANGO 600 laser beam and explanatory image 11
RTI ANGO 600 laser beam and explanatory image 12
RTI ANGO 600 laser beam and explanatory image 13
RTI ANGO 600 laser beam and explanatory image 14
RTI ANGO 600 laser beam and explanatory image 15



> More details

Guaranteed Power at aperture
600'000 mW
Power Red
200 W / 637 nm
Power Green
170 W / 525 nm
Power Blue
280 W / 455 nm
Beam Specifications*
100 mm / 1.0 mrad
Scanner
Moving xy Scanner mirror, 16 bit resolution
Max. Scan Angle
360° y axis (tilt), 60° x axis (pan)
Laser Source
RTI Semiconductor
Laser Class
4
Operation Modes
DMX, ArtNET, stand-alone
Accessories
Manual, keys, interlock connector
IP rating
IP65
Power Supply
16A CEE, 3 phase
Power Consumption
7500 W
Dimensions
1542 x 712 x 1670 mm
Weight
380 kg (155kg Head; 228kg Base)
EAN / MPN
7640144999964
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
