Laserworld PL-70 FB4
- Innovative RSL2 module technology for optimized optical performance and a compact housing
- Professional graphics capable – 30 kpps @ 8°
- Maximum scan angle: 50°
- Full color mixing – analog modulation
- Sharp, intense beams – ca. 10 mm
- IP65 waterproof housing – ideal for heavy-duty outdoor use
- Save safety settings directly to the laser (applies in all modes)

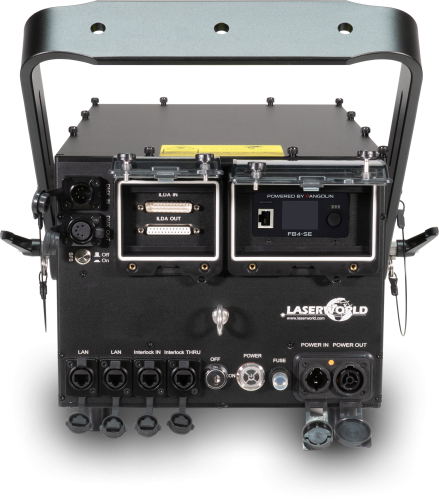

- Link multiple units with Power, DMX, and ILDA linking
- Multiple control modes: Auto, DMX, Art-Net, and ILDA
- Including waterproof flightcase
- Integrated Pangolin FB4 interface
- Innovative RSL2 module technology for optimized optical performance and a compact housing
- Professional graphics capable – 30 kpps @ 8°
- Maximum scan angle: 50°
- Full color mixing – analog modulation
Bestens geeignet für
Architektur, Werbung
Kunst und Illumination
Mobile DJs, Hochzeiten
LASERWORLD
Laserworld PL-70 FB4
The Laserworld PL-70 FB4 laser system is equipped with RSL2 module technology, which was originally developed by LaserAnimation Sollinger. This technology enables an extremely small and lightweight housing while simultaneously achieving superior beam quality. With its massive 70'000 mW of power, an IP65 rating and 30 kpps @ 8° scanners, the Laserworld PL-70 FB4 is the ultimate choice for the most demanding large-scale club installations, touring and production, and even the largest outdoor shows as well as complex graphics projections. This RSL2-based full color diode laser system provides analog modulation for linear color fading combined with exceptional visibility.
Laserworld PL-70 FB4 lasers include the FB4 mainboard, allowing for various control options including DMX and Art-Net, as well as direct computer control via network (QuickShow or BEYOND software). Custom effects and animations can be uploaded from the software to be triggered by DMX/Art-Net and adjusted live in color, position, or with additional effects.
The Laserworld PL-70 FB4 has a beam diameter and divergence of ca. 10 mm / 1.1 mrad. The guaranteed output power is 70'000 mW, with individual RGB values of 23'000 mW / 638 nm, 28'000 mW / 520 nm, and 28'000 mW / 450 nm. It offers a scan speed of 30 kpps @ 8° and a maximum scan angle of 50°. Thanks to its IP65 rating, the laser is perfectly suited for heavy-duty outdoor use and reduces maintenance requirements to an absolute minimum.
Laserworld PL-70 FB4 lasers include the FB4 mainboard, allowing for various control options including DMX and Art-Net, as well as direct computer control via network (QuickShow or BEYOND software). Custom effects and animations can be uploaded from the software to be triggered by DMX/Art-Net and adjusted live in color, position, or with additional effects.
The Laserworld PL-70 FB4 has a beam diameter and divergence of ca. 10 mm / 1.1 mrad. The guaranteed output power is 70'000 mW, with individual RGB values of 23'000 mW / 638 nm, 28'000 mW / 520 nm, and 28'000 mW / 450 nm. It offers a scan speed of 30 kpps @ 8° and a maximum scan angle of 50°. Thanks to its IP65 rating, the laser is perfectly suited for heavy-duty outdoor use and reduces maintenance requirements to an absolute minimum.
STAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
The laser can be controlled with a standard DMX controller or DMX software.
ArtNET Control mode
LAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
FB4 INTEGRATED:
The laser can be controlled through the integrated Pangolin FB4 board
The laser can be controlled through the integrated Pangolin FB4 board
For Dealers and Distribution Partners
See all prices and availability.
Subscribe to newsletter
Stay up to date with the latest news.
Compatible Control
External ILDA Standard Control
Technical Details
| Guaranteed Power at aperture | 70'000 mW |
| Power Red | 23'000 mW / 638 nm |
| Power Green | 28'000 mW / 520 nm |
| Power Blue | 28'000 mW / 450 nm |
| Beam Specifications | ca. 10 mm / 1.1 mrad |
| Scanner | 30 kpps @ 8° |
| Max. Scan Angle | 50° |
| Laser Source | Diode |
| Laser Class | 4 |
| Operation Modes | FB4, ILDA, DMX |
| Basic Patterns | Available for download |
| Accessories | Incl. waterproof flightcase, power cable, manual, interlock, key |
| Power Supply | 85 V - 250 V / AC, 50/60 Hz |
| Power Consumption | 800 W |
| Dimensions | 480 x 360 x 290 mm (L x W x H) |
| Weight | 29 kg |
| EAN / MPN | 7640144998547FB4 |
| Delivery Scope | Incl. waterproof flightcase, power cable, manual, interlock, key |
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
