Laserworld DS-30.000 FB4 IP65

From outdoor use to club installs: The Laserworld DS-30.000 FB4 IP65 is a graphics-ready, 30'000 mW full-color laser with IP65 rating. It is perfect for medium to large-sized nightclub installs or indoor events and looks amazing on large productions. This semi-professional system pairs high-power output with a tight beam and low divergence, due to its advanced diode setup, making it an affordable laser system for its performance class. Operation is seamless via the integrated FB4 mainboard, as well as ILDA, automatic operation, and DMX/ArtNet.

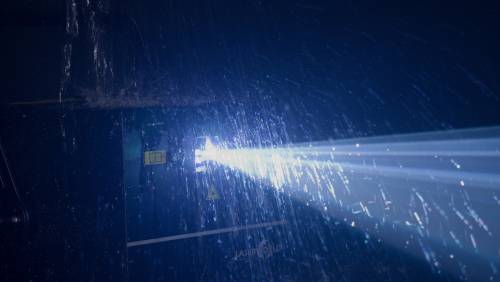

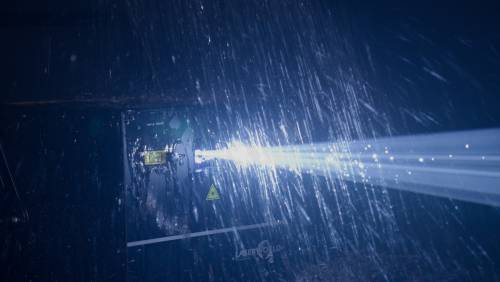

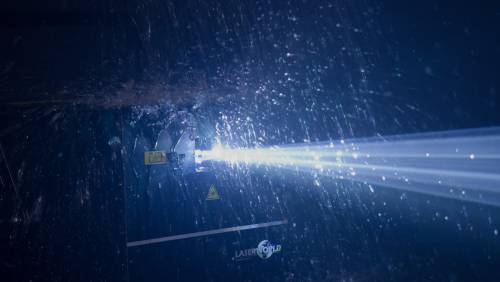

IP65 waterproof housing
Pure RGB diode laser system with 30'000 mW power
Integrated Pangolin FB4 interface
DMX and ArtNet controllable
Stand-alone operation capability
Computer controllable via FB4 (QuickShow software included, BEYOND-ready)
Graphics capable – 30 kpps @ 8°
Full color mixing due to analog modulation

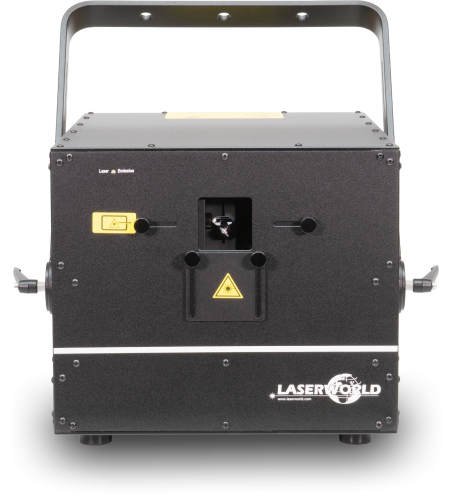

Laser beam masking plate on the front panel

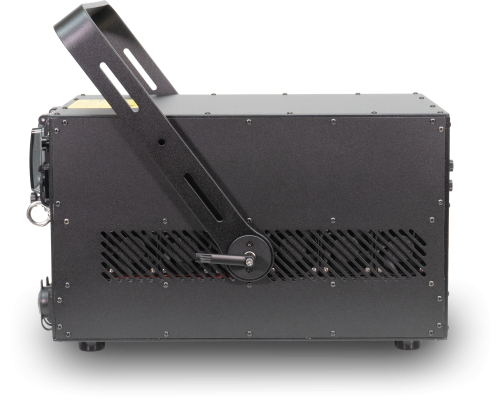

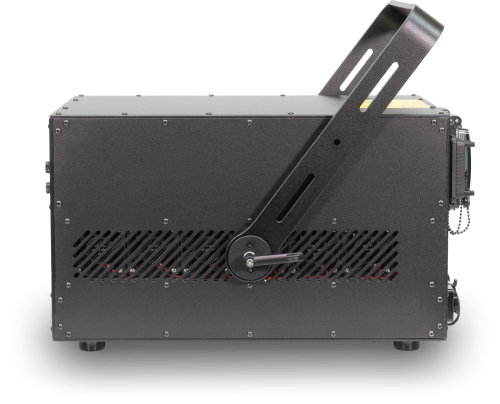

360° mounting bracket

DMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.

LAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)

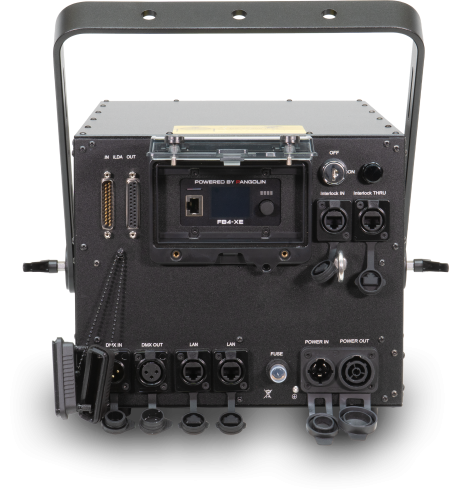

ILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.

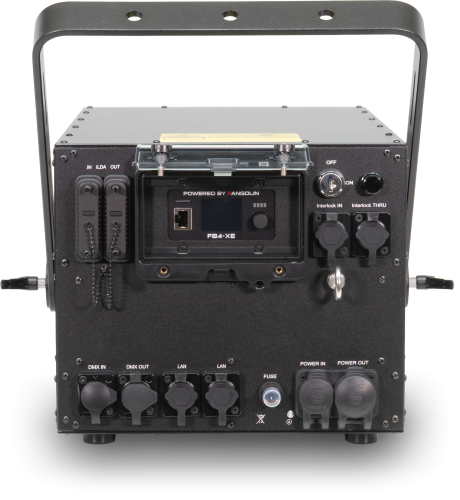

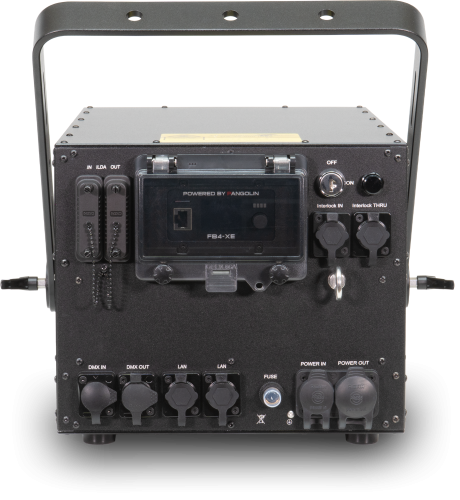

FB4 INTEGRATED:
The laser can be controlled through the integrated Pangolin FB4 board

The Laserworld DS-30.000 FB4 IP65 laser systems feature a new IP65-rated housing. These full-color diode lasers offer linear color fading combined with high visibility, due to analog modulation, and intense color saturation.

Via the internal FB4 interface, the laser system offers versatile control options, including DMX and ArtNet, as well as direct computer control via network. Custom effects and animations can be uploaded from the software to the internal memory and then be triggered via DMX/ArtNet, allowing for live adjustments in color, position, or additional effects. The Laserworld DS-30.000 FB4 IP65 includes the professional QuickShow software (BEYOND-Software), enabling the display of custom or pre-programmed laser shows, logos, texts, and high-end graphics.

The Laserworld DS-30.000 FB4 IP65 features a beam of approximately ca. 5.5 mm / 1.1 mrad. Guaranteed output power is 30'000 mW, with individual RGB values of 6'000 mW / 638 nm red, 8'500 mW / 520 nm green, and 16'000 mW / 450 nm blue. It has a scanning speed of 30 kpps @ 8° and a maximum scan angle of 50°. Thanks to its IP65 rating, the laser is not only perfectly suited for outdoor use but also reduces maintenance requirements to an absolute minimum.

> More details

Guaranteed Power at aperture

30'000 mW

Power Red

6'000 mW / 638 nm

Power Green

8'500 mW / 520 nm

Power Blue

16'000 mW / 450 nm

Beam Specifications*

ca. 5.5 mm / 1.1 mrad

Scanner

30 kpps @ 8°

Max. Scan Angle

50°

Laser Source

Diode

Laser Class

Operation Modes

FB4, ILDA, DMX

Basic Patterns

Available for download

Accessories

Key, Interlock dongle, power cable, manual

IP rating

Power Supply

85 V - 250 V / AC, 50/60 Hz

Power Consumption

350 W

Dimensions

378 x 260 x 218 mm (L x W x H)

Weight

17.3 kg

EAN / MPN

7640144996178FB4

Download Technical Datasheet

*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
