Remaining Stock Item

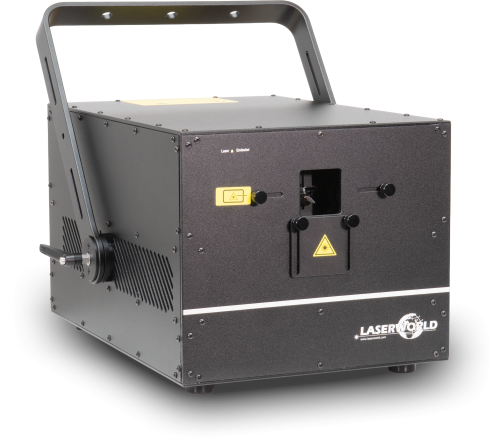

Laserworld DS-30.000 (1 pc)
Remaining Stock Item - only as long as stock lasts!Remaining Stock Item - Only as long as Stock lasts!
Pre-Production model. DEMO Unit. With small signs of usage.
The Laserworld DS-30.000 (1 pc) is a graphics-ready, 30'000 mW full-color laser built for big sized events. This semi-professional system pairs high-power output with a tight beam and low divergence as an affordable laser system for its performance class. Operation is seamless via its intelligent ShowNET mainboard, as well as ILDA, automatic operation, and DMX/Art-Net.
Note: This DEMO Unit is a pre-production model and has NO full IP65 protection!
The Laserworld DS-30.000 (1 pc) is a graphics-ready, 30'000 mW full-color laser built for big sized events. This semi-professional system pairs high-power output with a tight beam and low divergence as an affordable laser system for its performance class. Operation is seamless via its intelligent ShowNET mainboard, as well as ILDA, automatic operation, and DMX/Art-Net.
Note: This DEMO Unit is a pre-production model and has NO full IP65 protection!
- 30'000 mW guaranteed power
- Graphics capable – 35 kpps @ 8°
- Maximum scanning angle 50°
- Full color mixing due to analog modulation
- Extremely sharp, intense beams – ca. 5.5 mm / 1.1 mrad
- Save safety settings directly to the laser; these apply in all modes
- Easy daisy-chaining of multiple units with power, DMX, and ILDA linking
- Free computer control software – Showeditor – upgradable to Showcontroller
- Multiple control modes – Auto, DMX, Art-Net, and ILDA
ShowNET mainboard as standard:
- Various control options: ILDA, Professional DMX (two modes), Professional Art-Net (two modes), Stand-Alone Operation, LAN (Computer control, integrated DAC)
- Create custom content, store it inside the laser and play it back in different modes
- Free laser show control software included
Special Remaining Stock Price:
2,399.00 €
excl. VAT, excl. shipping
price per unit
price per unit
STAND-ALONE MODE:The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX MODE:The laser can be controlled with a standard DMX controller or DMX software.
ArtNET Control mode
LAN MODE:The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA MODE:The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
SHOWNET INSIDE:The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
SHOWEDITOR INCLUDED:The full version of the laser show control software Showeditor is included in delivery.
The Laserworld DS-30.000 (1 pc) laser system features full-color diode lasers, linear color fading combined with high visibility, due to analog modulation, and intense color saturation.
Laserworld DS-30.000 (1 pc) laser includes an integrated, intelligent ShowNET mainboard with a built-in digital-to-analog converter (DAC). This allows the unit to be controlled directly via software systems such as Showcontroller, Showeditor, TouchDesigner, MadLaser, ILD-Render, and more. While any ILDA laser control software can be used with an external interface (e.g., LaserGraph DSP), the integrated ShowNET also provides free laser show software (see details below). Additionally, the unit comes standard with built-in memory containing preset patterns that are easily accessible via DMX or Art-Net, or can be played back automatically. Users can also create and store their own custom content on the mainboard using the ShowNET Admin Tool
The Laserworld DS-30.000 (1 pc) features a beam of approximately ca. 5.5 mm / 1.1 mrad. Guaranteed output power is 30'000 mW, with individual RGB values of 6'000 mW / 638 nm red, 8'500 mW / 520 nm green, and 16'000 mW / 450 nm blue. It has a scanning speed of 35 kpps @ 8° and a maximum scan angle of 50°.
Laserworld DS-30.000 (1 pc) laser includes an integrated, intelligent ShowNET mainboard with a built-in digital-to-analog converter (DAC). This allows the unit to be controlled directly via software systems such as Showcontroller, Showeditor, TouchDesigner, MadLaser, ILD-Render, and more. While any ILDA laser control software can be used with an external interface (e.g., LaserGraph DSP), the integrated ShowNET also provides free laser show software (see details below). Additionally, the unit comes standard with built-in memory containing preset patterns that are easily accessible via DMX or Art-Net, or can be played back automatically. Users can also create and store their own custom content on the mainboard using the ShowNET Admin Tool
The Laserworld DS-30.000 (1 pc) features a beam of approximately ca. 5.5 mm / 1.1 mrad. Guaranteed output power is 30'000 mW, with individual RGB values of 6'000 mW / 638 nm red, 8'500 mW / 520 nm green, and 16'000 mW / 450 nm blue. It has a scanning speed of 35 kpps @ 8° and a maximum scan angle of 50°.
> More details
ShowNET Internal Control:
DMX Control
ArtNet Control
Automatic / Stand Alone
Master-Slave
ILDA Streaming
External ILDA Standard Control:
Analog ILDA
> More details
> More details
Guaranteed Power at aperture
30'000 mW
Power Red
6'000 mW / 638 nm
Power Green
8'500 mW / 520 nm
Power Blue
16'000 mW / 450 nm
Beam Specifications*
ca. 5.5 mm / 1.1 mrad
Scanner
35 kpps @ 8°
Max. Scan Angle
50°
Laser Source
Diode
Laser Class
4
Operation Modes
ILDA, DMX, Art-Net, LAN, ILDA-Streaming, integrierte SD-Karte, Automatikmodus
Basic Patterns
over 120 (level, tunnel, grid, waves, etc.) - more can be updated by the user
Accessories
PowerCON True1 cable, LAN cable, manual, interlock, key, full version Showeditor software license included
Power Supply
85 V - 250 V / AC, 50/60 Hz
Power Consumption
350 W
Dimensions
378 x 260 x 218 mm (L x W x H)
Weight
17.3 kg
EAN / MPN
R898638
Download Technical Datasheet
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
