RTI PIKO 50 G

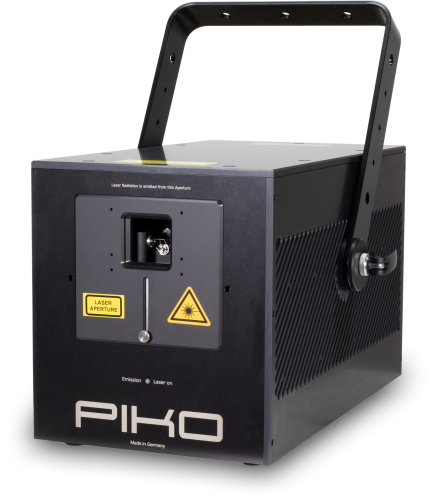

RTI PIKO 50 G main image
The powerful but compact RTI PIKO 50 G is suitable for outdoor laser show applications at concerts, festivals, and other huge events with easy operation due to the built-in software and DMX control. The PIKO is equipped with the RSL Semiconductor modules (RSL) making it an amazing laser for beam shows and demanding graphic projections such as laser mapping or projections over long distances. The high-end performance is part of the PIKO's DNA and makes this possible due to the perfectly matched beam profilesand great divergence on both the x and y axis.
Incl. waterproof flightcase
  • 50 W guaranteed power
  • Advanced RTI Semiconductor laser modules (RSL) produce a perfect shaped beam profile.
  • Equal divergence on x and y axis
  • Maintenance free laser system
  • RSL Modules with no misalignment
  • New advanced sealed optical section with no misalignment
  • Complex graphics capable - 38kpps ILDA 8° scanners
  • Extremely sharp intense beams - low divergence
  • Multi-control mainboard for DMX, ArtNET, LAN, ILDA, ILDA streaming and stand-alone operation
  • Digital display for easy mode selection
  • Integrated network switch for linking the control signal
  • FB4-QS MAX optional integration
  • Rugged tour-grade compact housing
  • Laser Artists' choice
  • Lighting Designers' choice
  • Incl. waterproof flightcase

ShowNET mainboard as standard:
  • Various control options: ILDA, Professional DMX (two modes), Professional Art-Net (two modes), Stand-Alone Operation, Master-Slave, ILDA Streaming Receiver, LAN (Computer control, integrated DAC)
  • Create custom content, store it inside the laser and play it back in different modes
  • Free laser show control software included

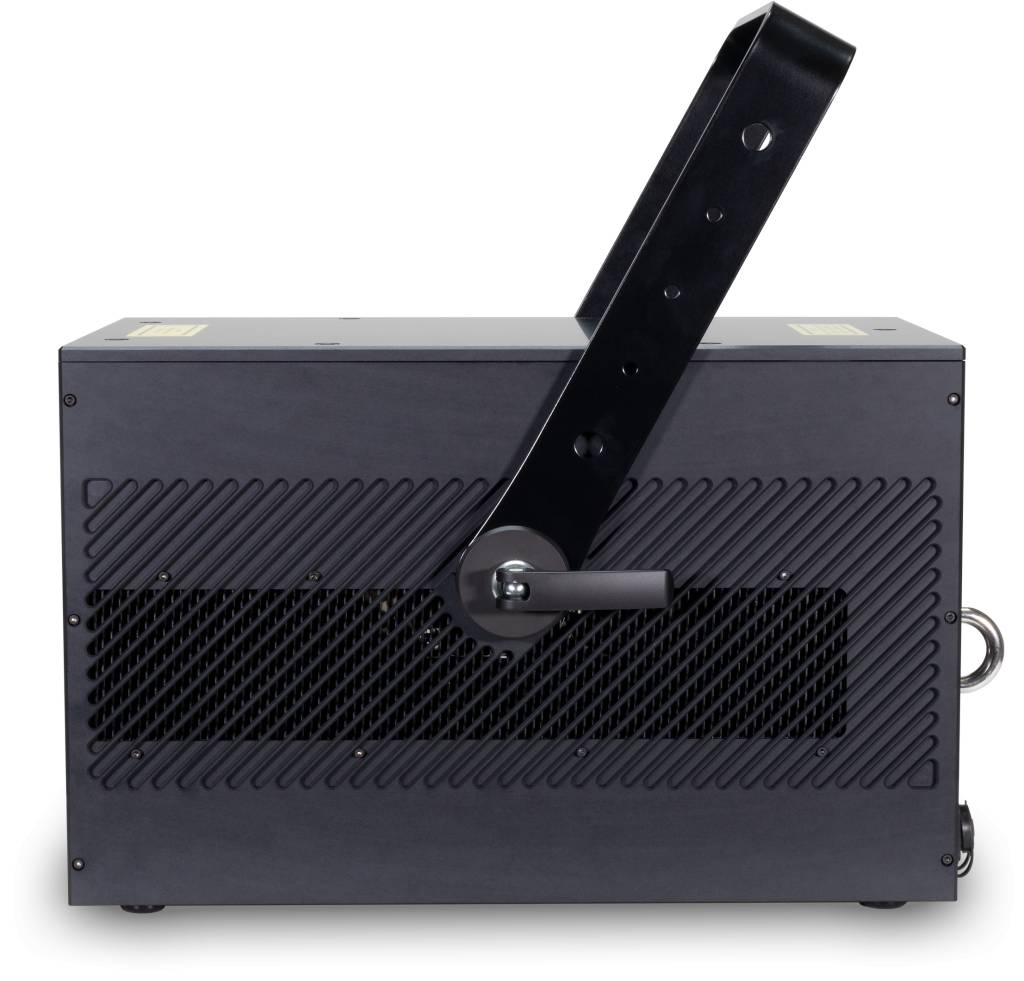

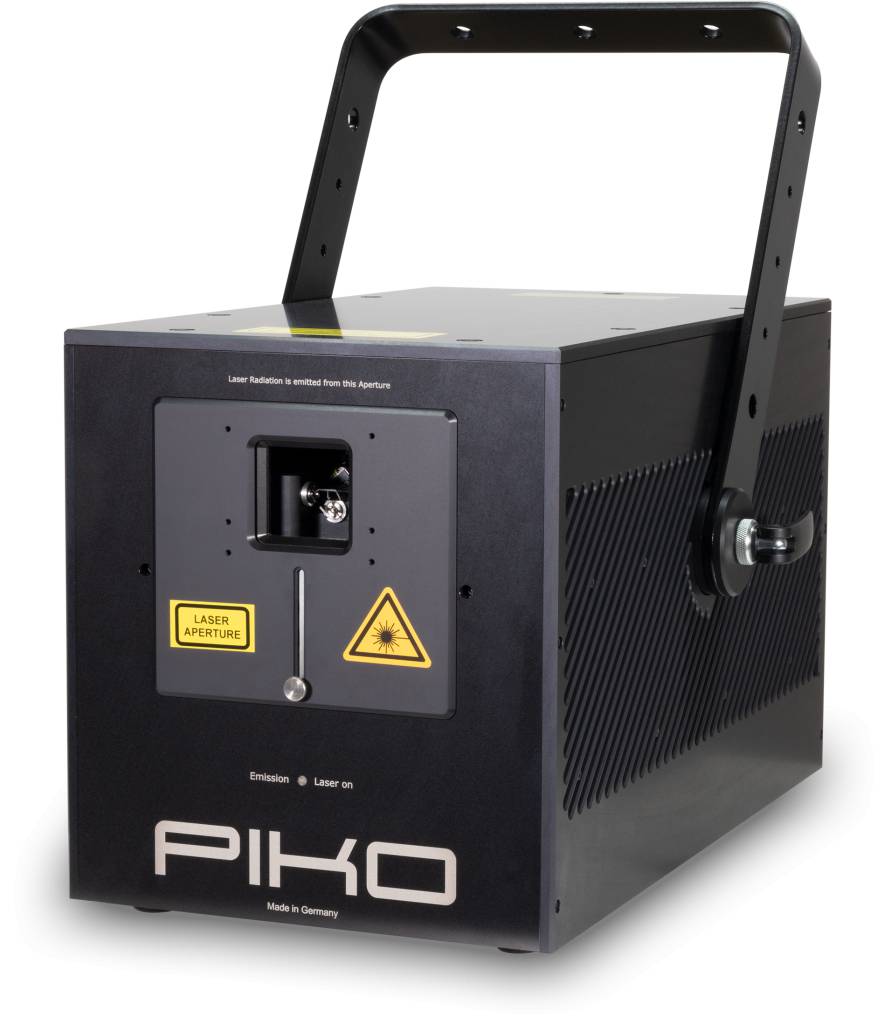

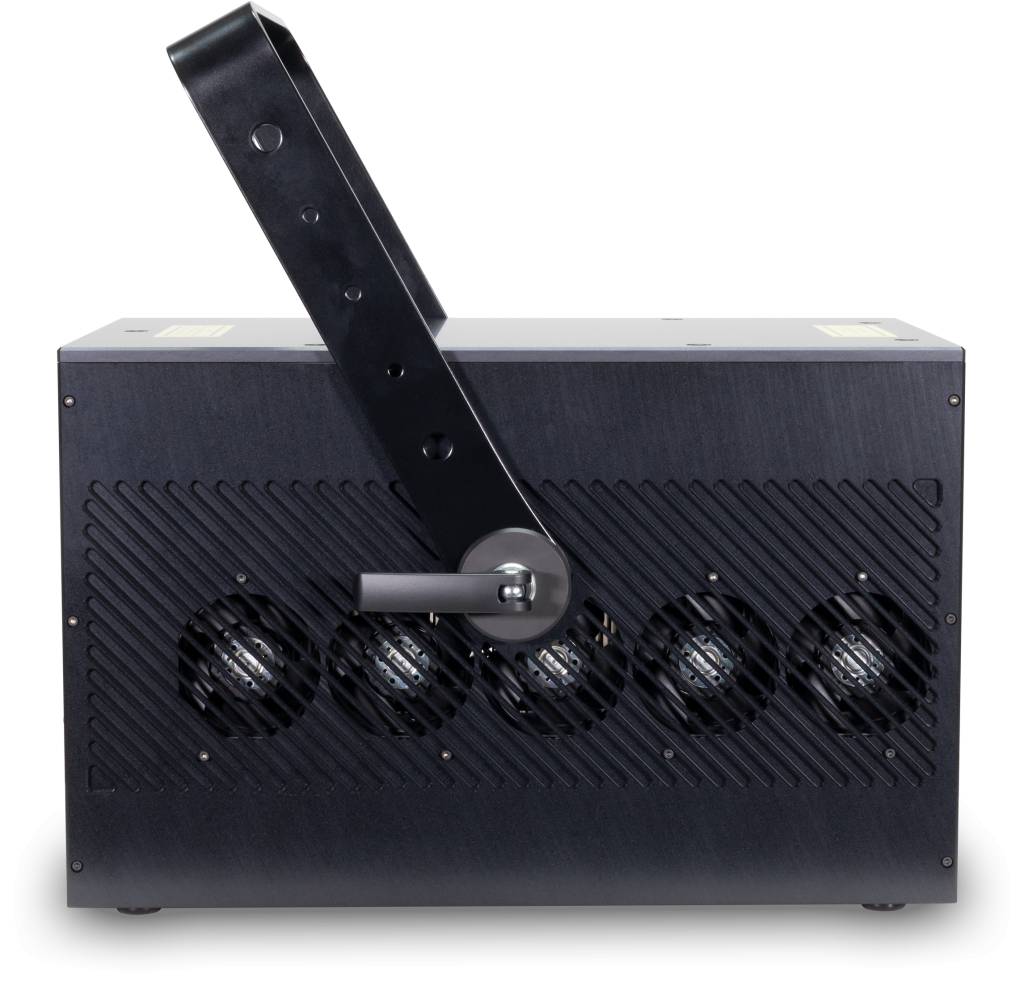

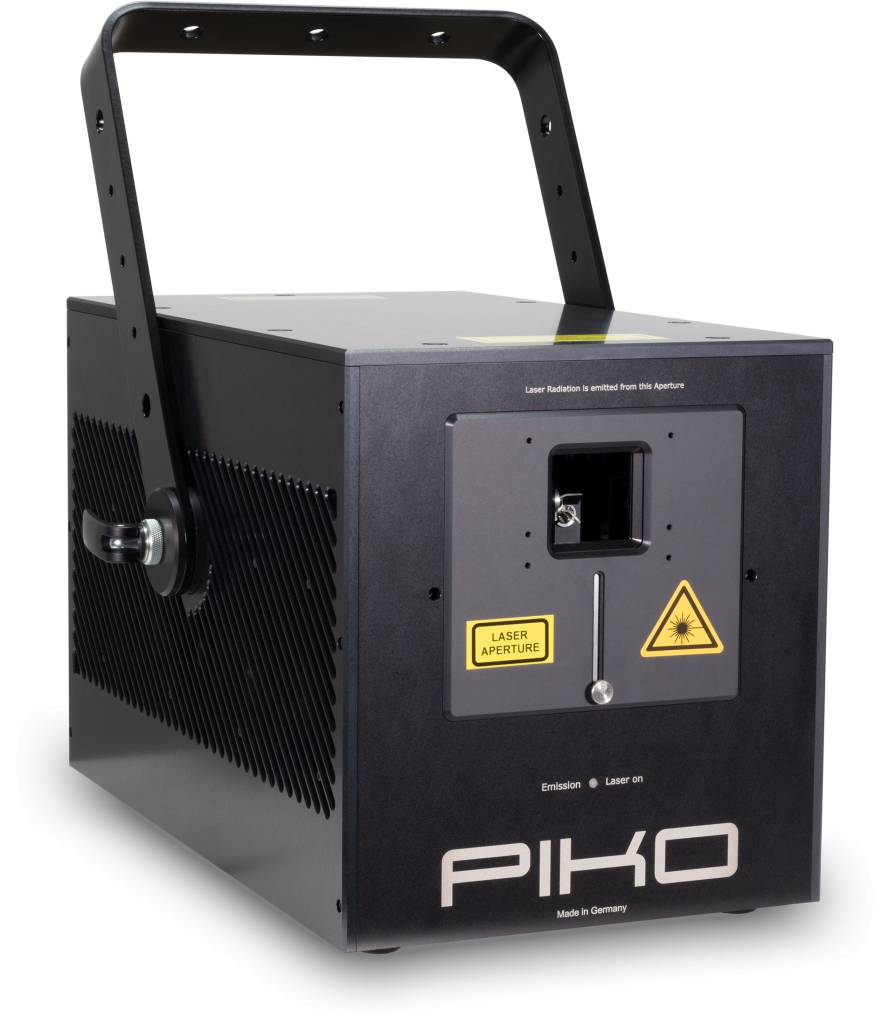

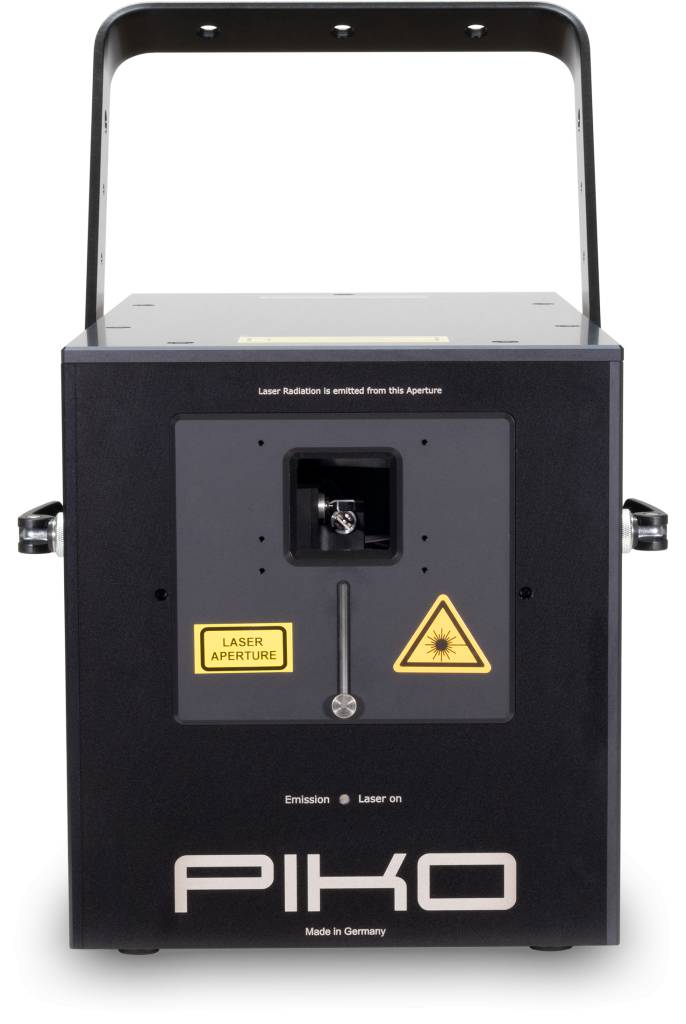

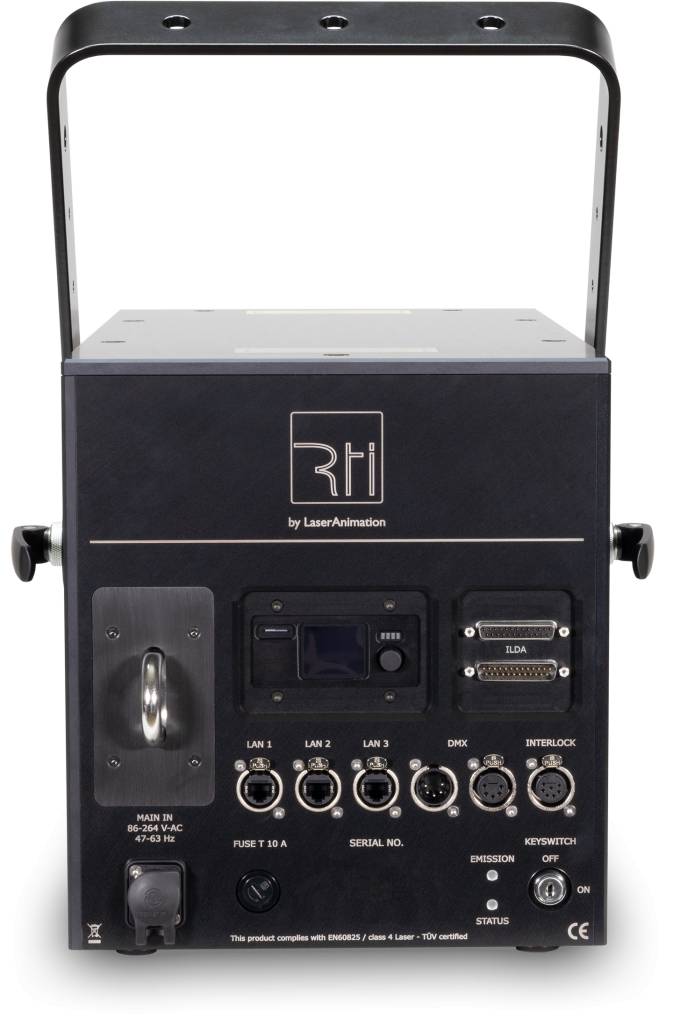

RTI PIKO 50 G additional image 1
RTI PIKO 50 G additional image 2
RTI PIKO 50 G additional image 3
RTI PIKO 50 G additional image 4
RTI PIKO 50 G additional image 5
RTI PIKO 50 G additional image 6
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
ArtNET modeArtNET Control mode
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
LAN connectionLAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA connectionILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
ILDA StreamingILDA Streaming
ShowNET insideSHOWNET INSIDE:
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
Free Showeditor laser software includedSHOWEDITOR INCLUDED:
The full version of the laser show control software Showeditor is included in delivery.
The RTI PIKO 50 G impresses with a guaranteed output power of 50'000 mW. Great visibility is achieved with the new RTI Semiconductor Laser Modules (RSL) with special wavelengths for increased visibility:2x 30'000 mW / 525 nm green. The 525nm green provides a warmer green tone than the 520nm diodes and has increased visibility. These new RSL modules with their extremely low divergence and homogenous beam shape make the RTI PIKO 50 G a top professional laser system. The extremely small beam diameter of only ca. 10.0 mm allows for the use of small scanner mirrors which leads to reduced inertia and higher scan speeds. This is especially important, as the RTI PIKO 50 G can be used for any kind of laser show application: Super sharp beams and vivid color for large scale concerts and festivals but also a perfectly matched beam for crisp graphics.

  • Maintenance free, no misalignment: new generation of laser
  • Integrated network switch for linking the control signal


  • The RTI Semiconductor Laser Modules are maintenance free and do not come out of internal alignment. The standard scanners can be run at a maximum of 38kpps ILDA 8° and a maximum scan angle of max. 48°. The housing is built very durable and ideal for use on the road. Due to the dustproof housing, the maintenance effort is very low and the device is also suitable for tough touring applications. The powerful RTI PIKO 50 G is suitable for indoor and outdoor show laser applications at concerts, festivals and other huge events. Demanding graphics projections or projections over long distances are possible without any problems, due to the extremely good divergence. If the laser is operated in hot temperatures (above 35°C), please contact your key account for the required accessories.



    > More details

    External ILDA Standard Control:

    ILDA connector
    Analog ILDA

    Optional control options (modification required!):

    Optional control options require modifications to the general laser setup. Other operation modes or compatibilities may get lost.
    Pangolin Software
    Quickshow
    Pangolin Software
    Beyond



    > More details

    Guaranteed Power at aperture
    50'000 mW
    Power Green
    2x 30'000 mW / 525 nm
    Beam Specifications*
    ca. 10.0 mm / <0.9 mrad
    Scanner
    38kpps ILDA 8°
    Max. Scan Angle
    max. 48°
    Laser Source
    RTI Semiconductor Laser Modules
    Laser Class
    4
    Operation Modes
    ILDA, LAN (Software), DMX, ArtNET, ILDA-Streaming, Stand-Alone
    Basic Patterns
    over 120 (layers, tunnels, fences, waves, etc.)
    Accessories
    Incl. waterproof flightcase, interlock connector, key, power cable, manual,; full version Showeditor software license included
    IP rating
    IP54
    Power Supply
    85-250 V AC 50/60 Hz
    Power Consumption
    2100 W
    Dimensions
    271 x 491 x 296 mm
    Weight
    27 kg
    EAN / MPN
    836215091
    *Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.



    > More details
