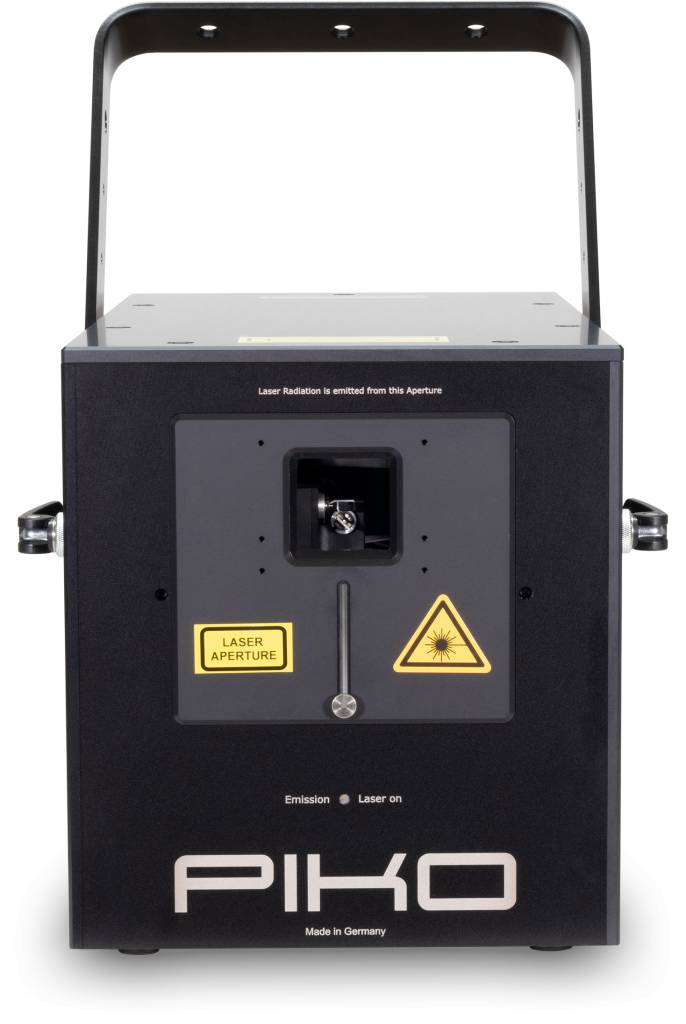

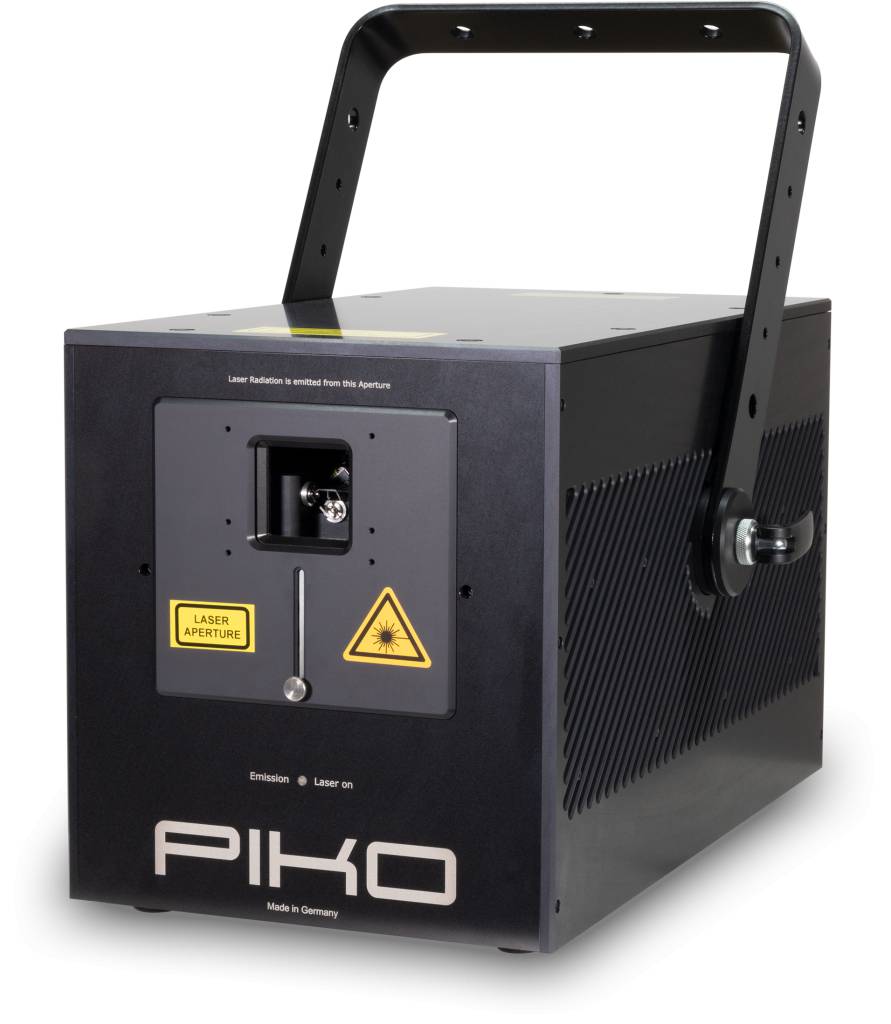

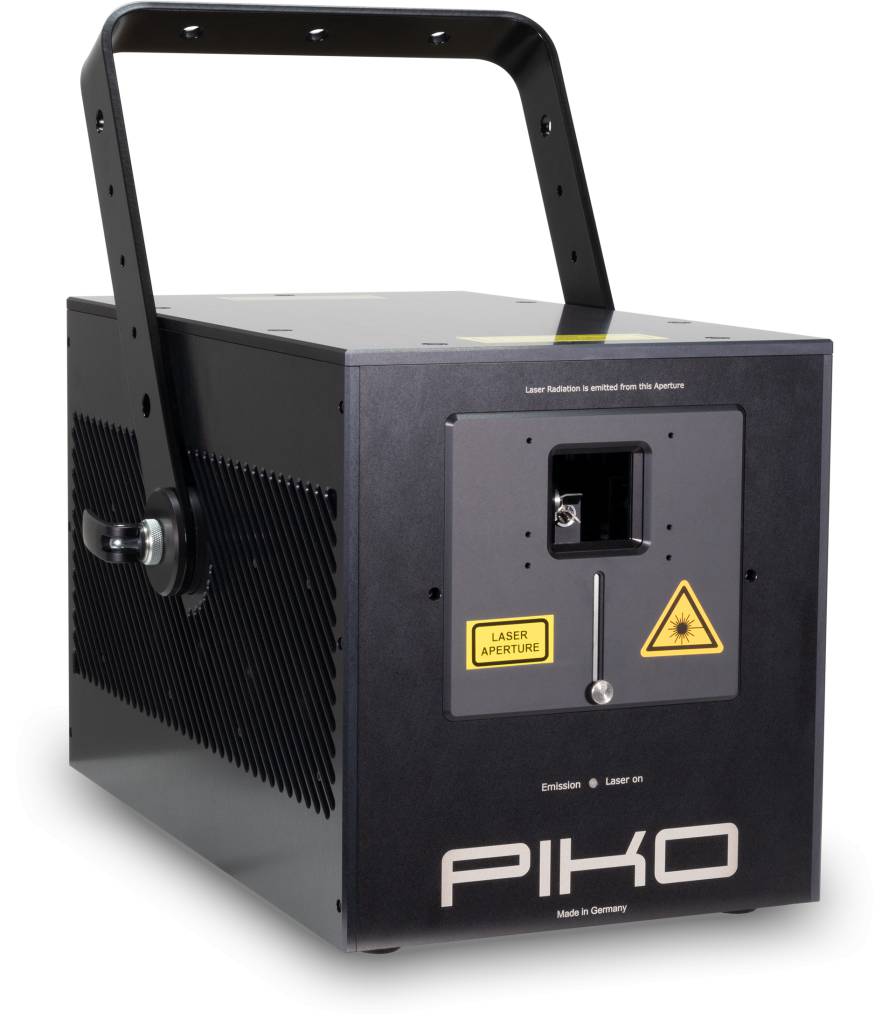

RTI PIKO 38
The powerful but compact RTI PIKO 38 is suitable for indoor and outdoor laser show applications at concerts, festivals, and other huge events with easy operation due to the built-in software and DMX control. The PIKO is equipped with the latest RTI Semiconductor modules (RSL) making it an amazing laser for beam shows and demanding graphic projections such as laser mapping or projections over long distances. The high-end performance is part of the PIKO's DNA and makes this possible due to the perfectly matched beam profiles across all colors and great divergence on both the x and y axis.
Incl. waterproof flightcase and rain cover.
Incl. waterproof flightcase and rain cover.
- 38 W guaranteed power
- Advanced RTI Semiconductor laser modules (RSL) produce a perfect shaped beam profile across all colors
- Equal divergence on x and y axis
- Maintenance free laser system
- RSL Modules with no color misalignment
- New advanced sealed optical section with no color misalignment
- Complex graphics capable - 45kpps ILDA 8° scanners – upgradable to 60kpps
- Full-color mixing
- Extremely sharp intense beams - low divergence
- Integrated intelligent LaserAnimation Sollinger Mainboard and ShowNET Laser Mainboard
- Integrated Touch Display for adjustment of basic functions

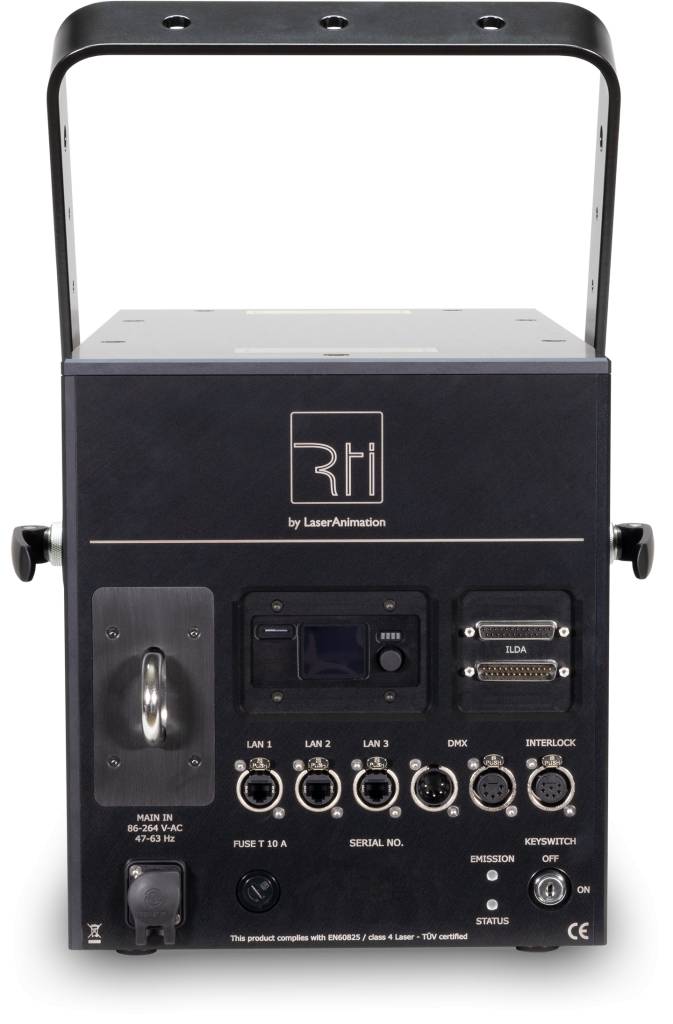

- Integrated network switch for linking the control signal
- FB4-QS MAX optional integration

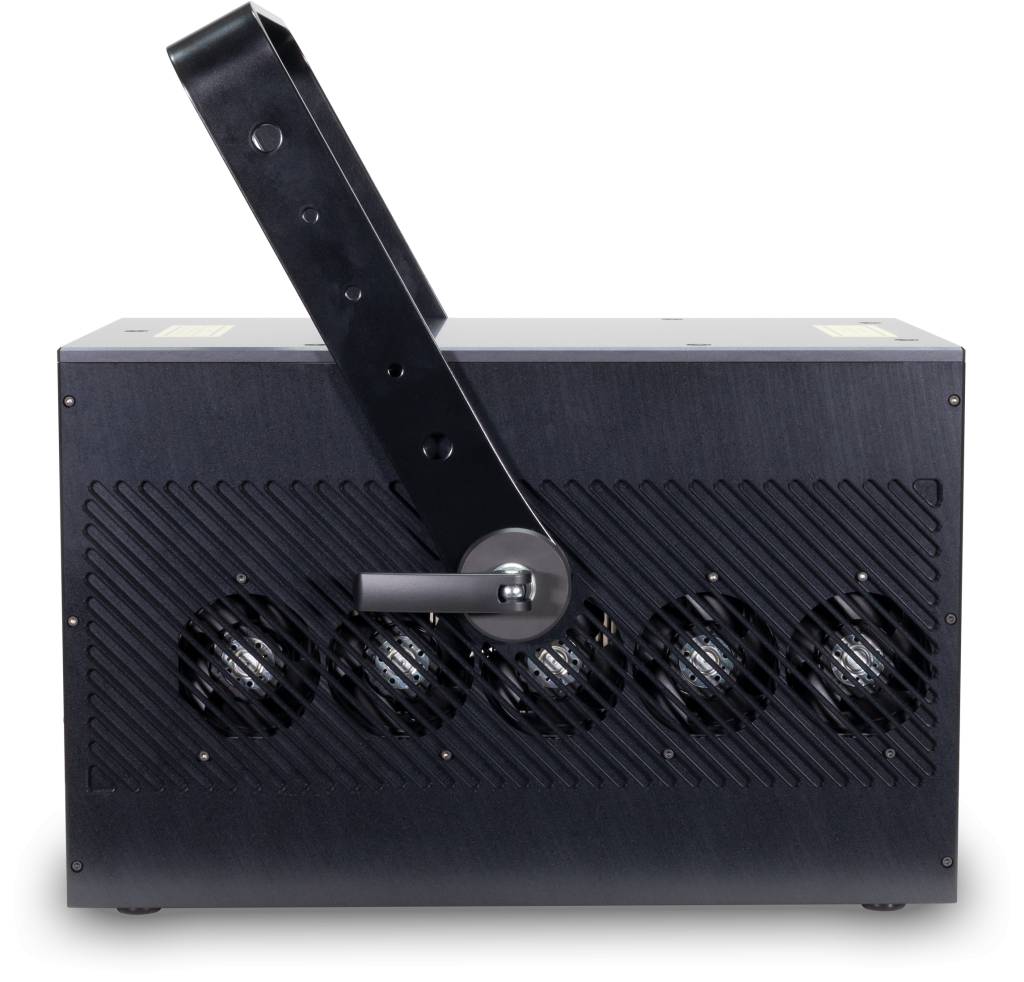

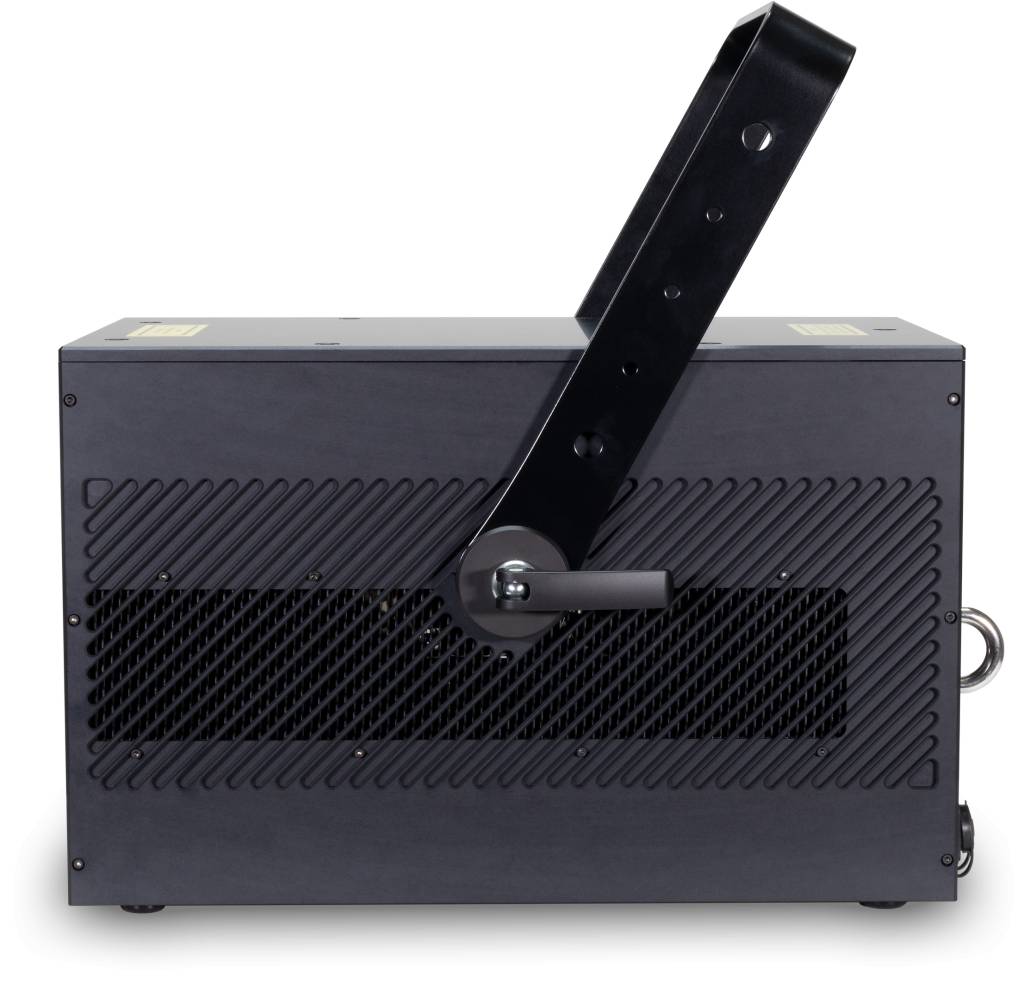

- 360° Bracket with quick-lock system
- Rugged tour-grade compact housing
- Incl. waterproof flightcase and rain cover
- operating temperature: +5°C to +45°C
ShowNET mainboard as standard:
- Various control options: ILDA, Professional DMX (two modes), Professional Art-Net (two modes), Stand-Alone Operation, Master-Slave, ILDA Streaming Receiver, LAN (Computer control, integrated DAC)
- Create custom content, store it inside the laser and play it back in different modes
- Free laser show control software included
STAND-ALONE MODE:The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX MODE:The laser can be controlled with a standard DMX controller or DMX software.
ArtNET Control mode
MASTER-SLAVE MODE:One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
LAN MODE:The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA MODE:The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
ILDA Streaming
SHOWNET INSIDE:The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
SHOWEDITOR INCLUDED:The full version of the laser show control software Showeditor is included in delivery.
AVAILABLE MODIFICATIONS:
PANGOLIN FB4:Order your laser standard equipped with the Pangolin FB4 DAC. The FB4 substitutes the ShowNET mainboard, so features are limited to the ones of the FB4.
With the FB4 integrated, the laser can be directly controlled via Pangolin software.
SCANNER UPGRADE CT-6210H:Upgrade the scanner performance with the powerful CT-6210H Scanners with Laseranimation Turboscan drivers.
The RTI PIKO 38 impresses with a guaranteed RGB output power of 38'000 mW. Great visibility is achieved with the new RTI Semiconductor Laser Modules (RSL) with special wavelengths for increased visibility: 8'500 mW / 637 nm for a very bright red combined with 15'000 mW / 525 nm green and a strong blue laser module with 20'000 mW / 455 nm. The 525nm green provides a warmer green tone than the 520nm diodes and has increased visibility.
These new RSL modules with their extremely low divergence and homogenous beam shape make the RTI PIKO 38 a top professional laser system. The extremely small beam diameter of only ca. 5.0 mm allows for the use of small scanner mirrors which leads to reduced inertia and higher scan speeds. This is especially important, as the RTI PIKO 38 can be used for any kind of laser show application: Super sharp beams and vivid colors for large scale concerts and festivals but also a perfectly matched beam for crisp graphics.
The RTI Semiconductor Laser Modules are maintenance free and do not come out of internal alignment. The standard scanners can be run at a maximum of 45kpps ILDA 8°; optional CT-6210 with LAS Turboscan: 60kpps ILDA 8°; max. 60° (@35 kpps) and a maximum scan angle of max. 50°. CT-6210 scanners with LAS Turboscan drivers are available as option and provide even higher scan speeds with up to 60kpps at ILDA 8°. The housing is built very durable and ideal for use on the road. Control signals can be looped through directly via the network switch, which is also integrated. Due to the dustproof housing, the maintenance effort is very low and the device is also suitable for tough touring applications. The new 360° brackets can be safely fixed in the needed position in just a few moments thanks to the quick-lock system. The powerful RTI PIKO 38 is suitable for indoor and outdoor show laser applications at concerts, festivals and other huge events. Demanding graphics projections or projections over long distances are possible without any problems, due to the extremely good divergence.
- Maintenance free, no misalignment: new generation of laser color combination
- Integrated network switch for linking the control signal
The RTI Semiconductor Laser Modules are maintenance free and do not come out of internal alignment. The standard scanners can be run at a maximum of 45kpps ILDA 8°; optional CT-6210 with LAS Turboscan: 60kpps ILDA 8°; max. 60° (@35 kpps) and a maximum scan angle of max. 50°. CT-6210 scanners with LAS Turboscan drivers are available as option and provide even higher scan speeds with up to 60kpps at ILDA 8°. The housing is built very durable and ideal for use on the road. Control signals can be looped through directly via the network switch, which is also integrated. Due to the dustproof housing, the maintenance effort is very low and the device is also suitable for tough touring applications. The new 360° brackets can be safely fixed in the needed position in just a few moments thanks to the quick-lock system. The powerful RTI PIKO 38 is suitable for indoor and outdoor show laser applications at concerts, festivals and other huge events. Demanding graphics projections or projections over long distances are possible without any problems, due to the extremely good divergence.
INCLUDING LaserAnimation Sollinger Mainboard and ShowNET
The intelligent LaserAnimation Sollinger Mainboard is integrated into the RTI PIKO 38, which provides the laser operator with a variety of control and setting options (e.g. the LA.toolbox) or transmission options (such as AVB). Together with the ShowNET laser mainboard, which is also integrated, ILDA, LAN (software), DMX and ArtNET control, ILDA streaming, stand-alone operation, among others, are available, ensuring the highest possible flexibility.
Control signals can be looped through directly via the network switch, which is also integrated.
The intelligent LaserAnimation Sollinger Mainboard is integrated into the RTI PIKO 38, which provides the laser operator with a variety of control and setting options (e.g. the LA.toolbox) or transmission options (such as AVB). Together with the ShowNET laser mainboard, which is also integrated, ILDA, LAN (software), DMX and ArtNET control, ILDA streaming, stand-alone operation, among others, are available, ensuring the highest possible flexibility.
Control signals can be looped through directly via the network switch, which is also integrated.
> More details
ShowNET Internal Control:
DMX Control
ArtNet Control
Automatic / Stand Alone
Master-Slave
ILDA Streaming
External ILDA Standard Control:
Analog ILDA
Optional control options (modification required!):
Optional control options require modifications to the general laser setup. Other operation modes or compatibilities may get lost.
Quickshow
Beyond
> More details
