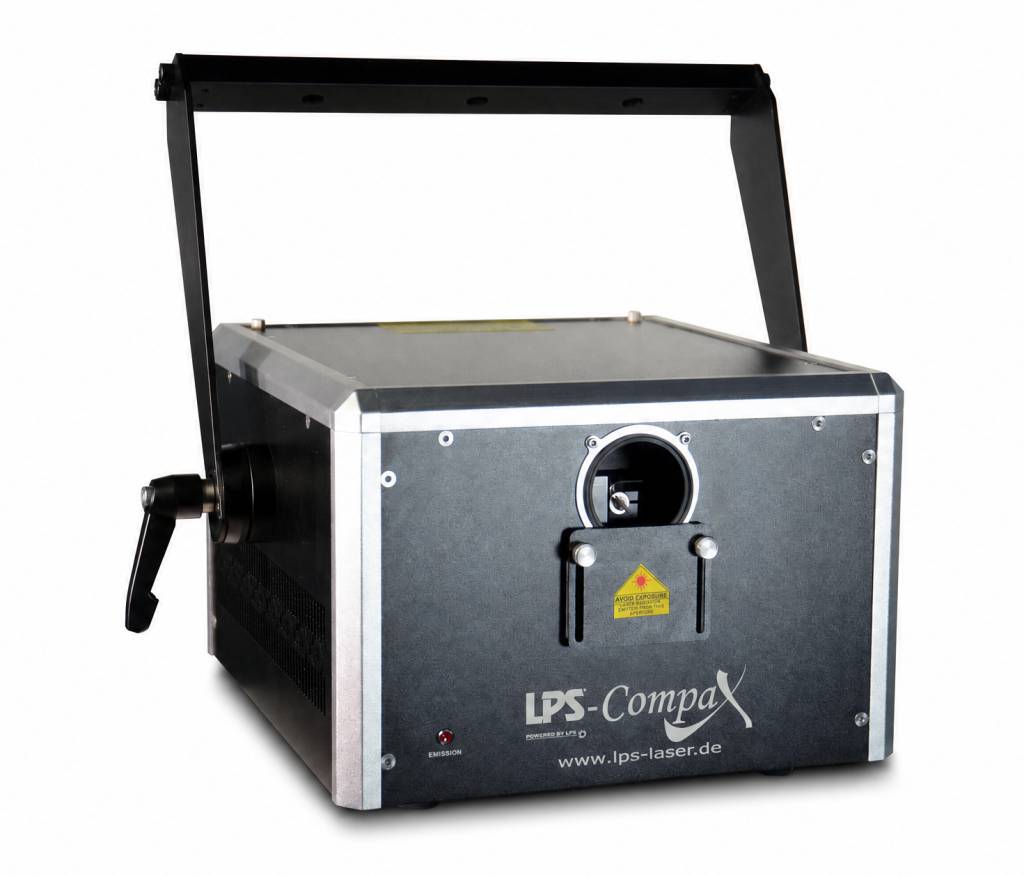

LPS-CompaX RGB — Small. Powerful. Professional.

Compact in size, uncompromising in performance: the LPS-CompaX RGB with integrated FB4 Max is designed specifically for professional staging and medium-sized events. The LPS-CompaX RGB delivers a punching 30 W RGB output from a unit weighing just 20 kg — measuring a remarkably compact 360 × 310 × 230 mm (L × W × H, without mount). Its smart, road-ready design makes it the perfect companion for festivals, theatres, live stages, and all kinds of events where reliable laser power matter.
  • 30'000 mW guaranteed power
  • Graphics capable - 40kpps @ 8°
  • Max scan angle 60°
  • Full colour mixing - analog modulation
  • Sharp intense beams – ca. 6 x 6 mm beam diameter and low divergence of 1 mrad
  • In-built FB4 Max incl. QuickShow Software
  • Full colour mixing — analog modulation

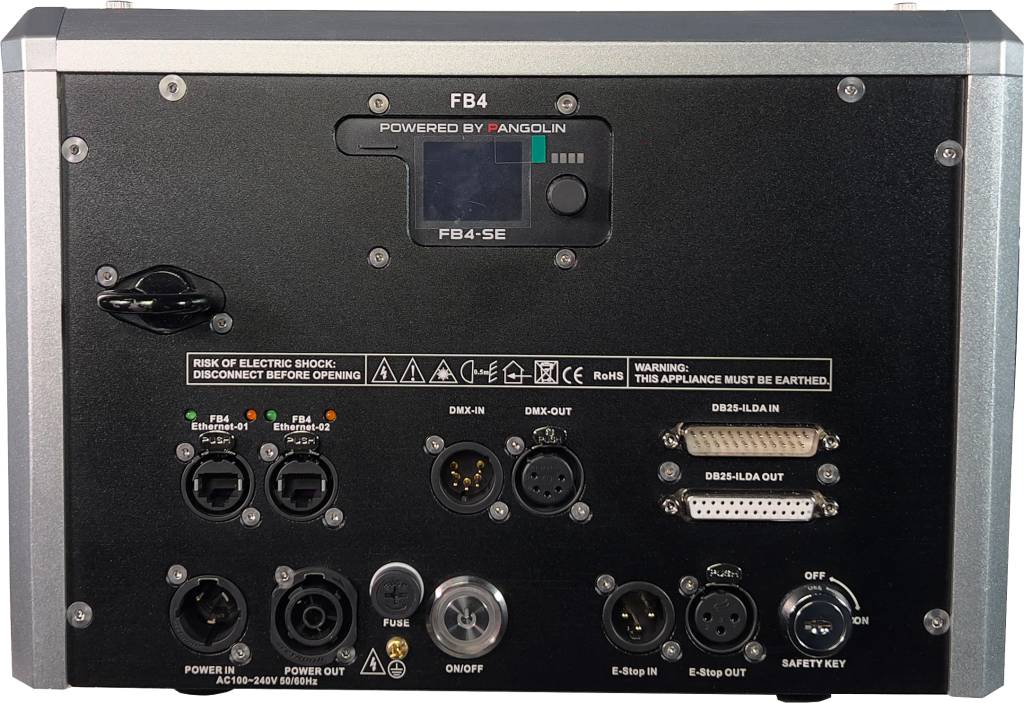

  • Control modes: ILDA In/Out, LAN, DMX In/Out (5-pin)
  • XLR 3-pin Interlock
  • PowerCon True1 & 5-pin DMX
  • XLR E-Stop safety

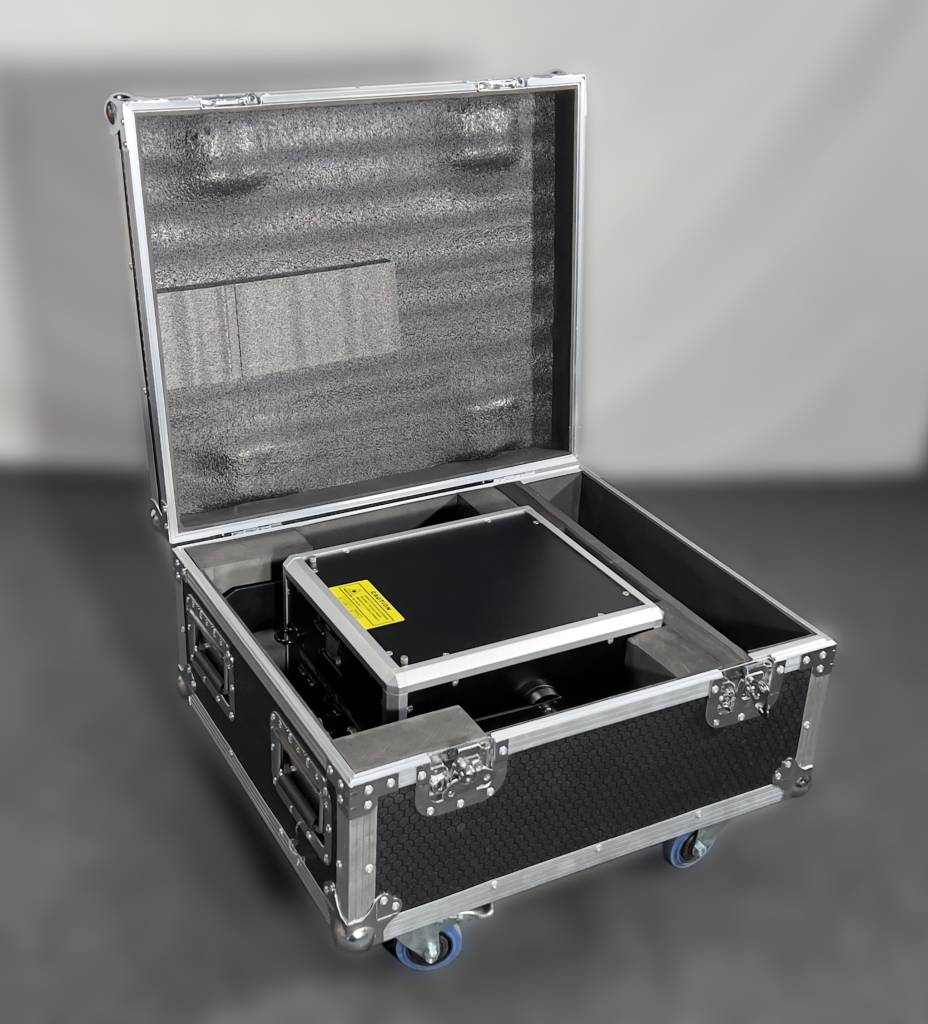

  • Including Flight Case
  • Model 2025
    Special Remaining Stock Price:
    4,200.00 €

    excl. VAT, excl. shipping
    price per unit
LPS-CompaX 30W RGB with FB4 Max and Flight Case, NEW  (1 pc) additional image 1
LPS-CompaX 30W RGB with FB4 Max and Flight Case, NEW  (1 pc) additional image 2
LPS-CompaX 30W RGB with FB4 Max and Flight Case, NEW  (1 pc) additional image 3
LPS-CompaX 30W RGB with FB4 Max and Flight Case, NEW  (1 pc) additional image 4
LPS-CompaX 30W RGB with FB4 Max and Flight Case, NEW  (1 pc) additional image 5
LPS-CompaX 30W RGB with FB4 Max and Flight Case, NEW  (1 pc) additional image 6
LPS-CompaX 30W RGB with FB4 Max and Flight Case, NEW  (1 pc) additional image 7
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
ILDA connectionILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
Compact in size, uncompromising in performance: the LPS-CompaX 30W RGB with FB4 Max and Flight Case, NEW (1 pc) with integrated FB4 Max is designed specifically for professional staging and medium-sized events. The LPS-CompaX 30W RGB with FB4 Max and Flight Case, NEW (1 pc) delivers a punching 30 W RGB output from a unit weighing just 20 kg — measuring a remarkably compact 360 × 310 × 230 mm (L × W × H, without mount). Its smart, road-ready design makes it the perfect companion for festivals, theatres, live stages, and all kinds of events where reliable laser power matter. Modified and refined by LPS-Laser, the LPS-CompaX 30W RGB with FB4 Max and Flight Case, NEW (1 pc) is built tough for real-world use. It comes equipped with in-built FB4 Max including QuickShow Software, PowerCon True1, 5-pin DMX, interlock, and an XLR E-Stop for maximum safety on stage. Thanks to its mount and low weight, it attaches effortlessly to trusses — ready to perform in minutes. The scanning system with 40 kpps @ 8° and a maximum scan angle of 60° ensure sharp, dynamic beam effects and graphics. Full colour mixing via analog modulation, a beam diameter of 8 × 6.5 mm, and a low divergence of 1.0 mrad deliver visuals that are as precise as they are breathtaking.



> More details

Guaranteed Power at aperture
30'000 mW
Power Red
8'000 mW / 638 nm
Power Green
10'000 mW / 520 nm
Power Blue
12'000 mW / 450 nm
Beam Specifications*
ca. 6 x 6 mm / 1 mrad
Scanner
40kpps @ 8°
Max. Scan Angle
60°
Laser Source
Diode
Laser Class
4
Operation Modes
ILDA, DMX, LAN
Accessories
PowerCON True1 cable, manual, interlock, key, XLR E-Stop
Power Supply
100 V - 240 V AC, 50/60 Hz
Power Consumption
~ 900 W
Dimensions
360 x 310 x 230 mm (L x W x H)
Weight
20 kg
EAN / MPN
94011
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
