Laserworld PL-5000RGB MK3

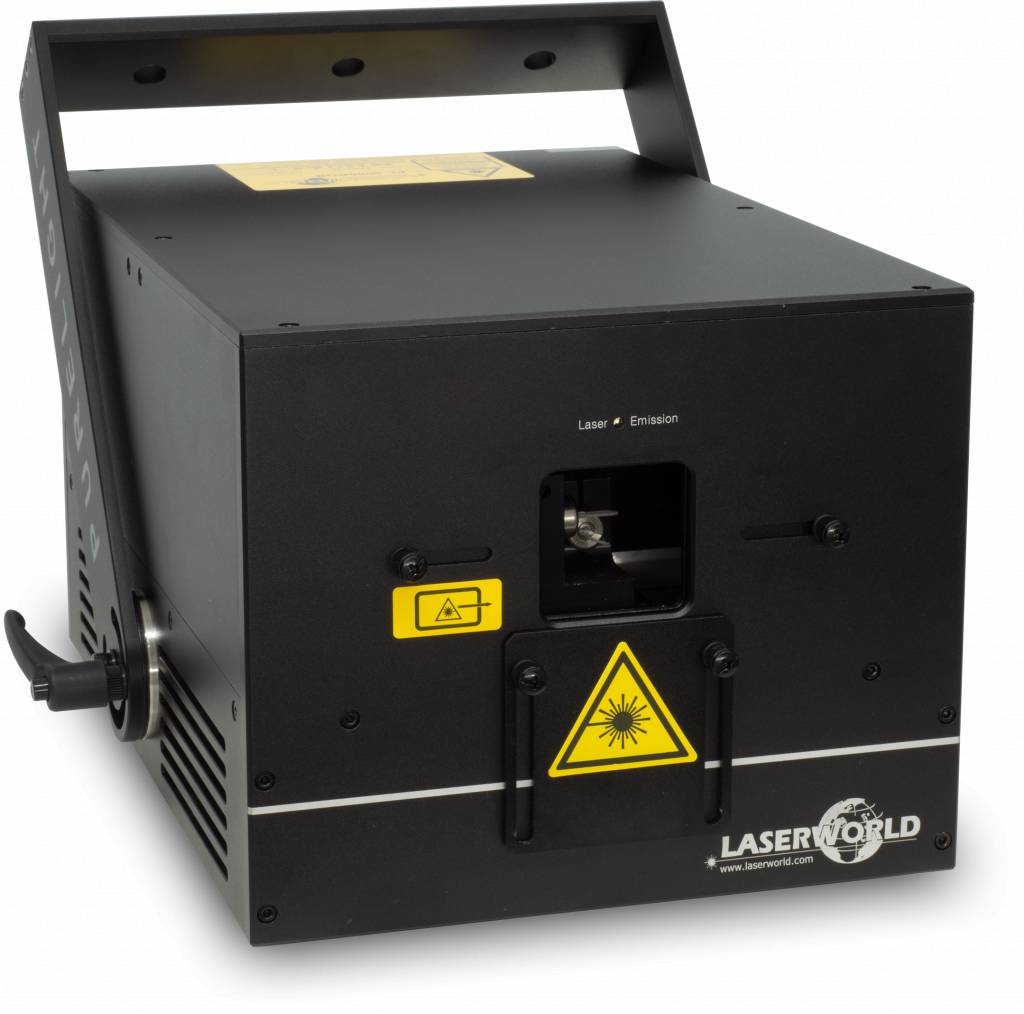

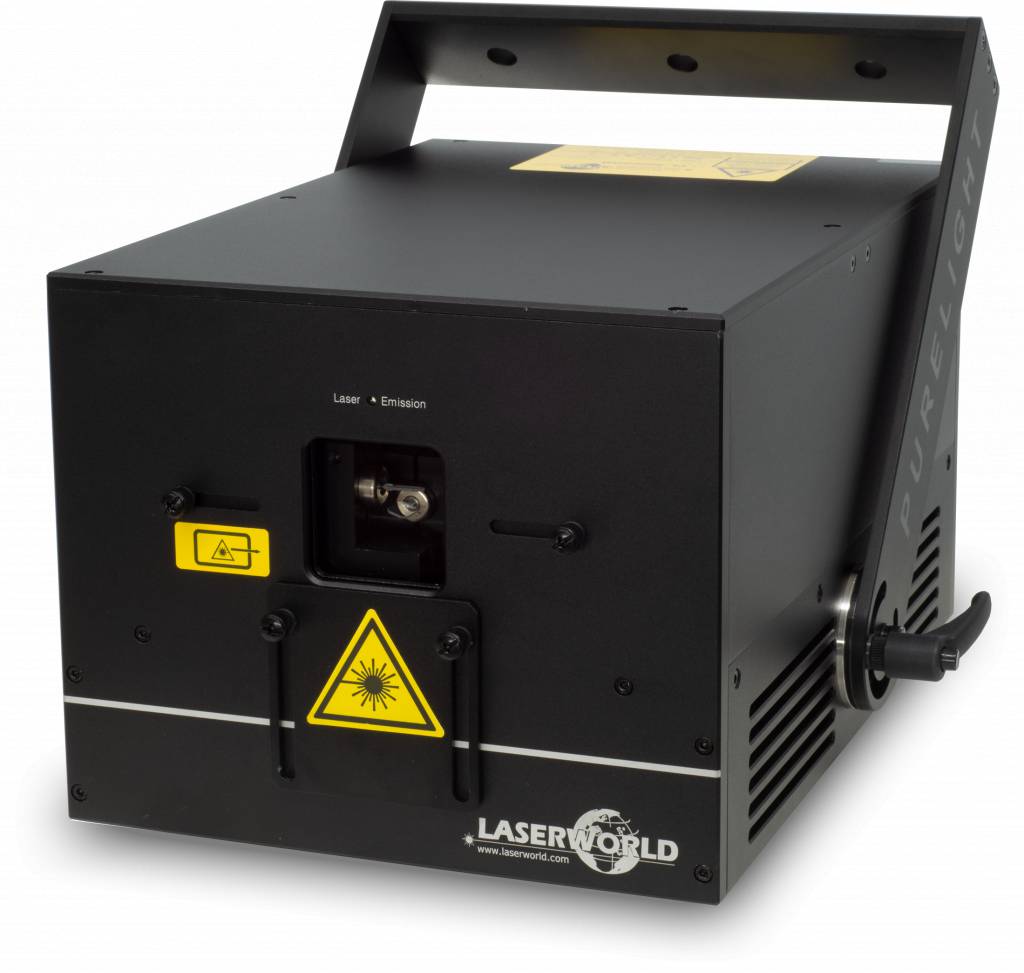

Laserworld PL-5000RGB MK3 main image
A high power, full colour laser with built in multi-control mainboard. Amazing DMX / ArtNET control with internal safety settings making it simple to control multiple units along with the rest of your DMX lighting. Full feature laser show software license included! Sealed optics section for low maintenance Perfect for large nightclub installs, indoor events, small outdoor events and look amazing on large productions in numbers running DMX chases.
IP54 waterproof laser system, suitable for outdoor use.

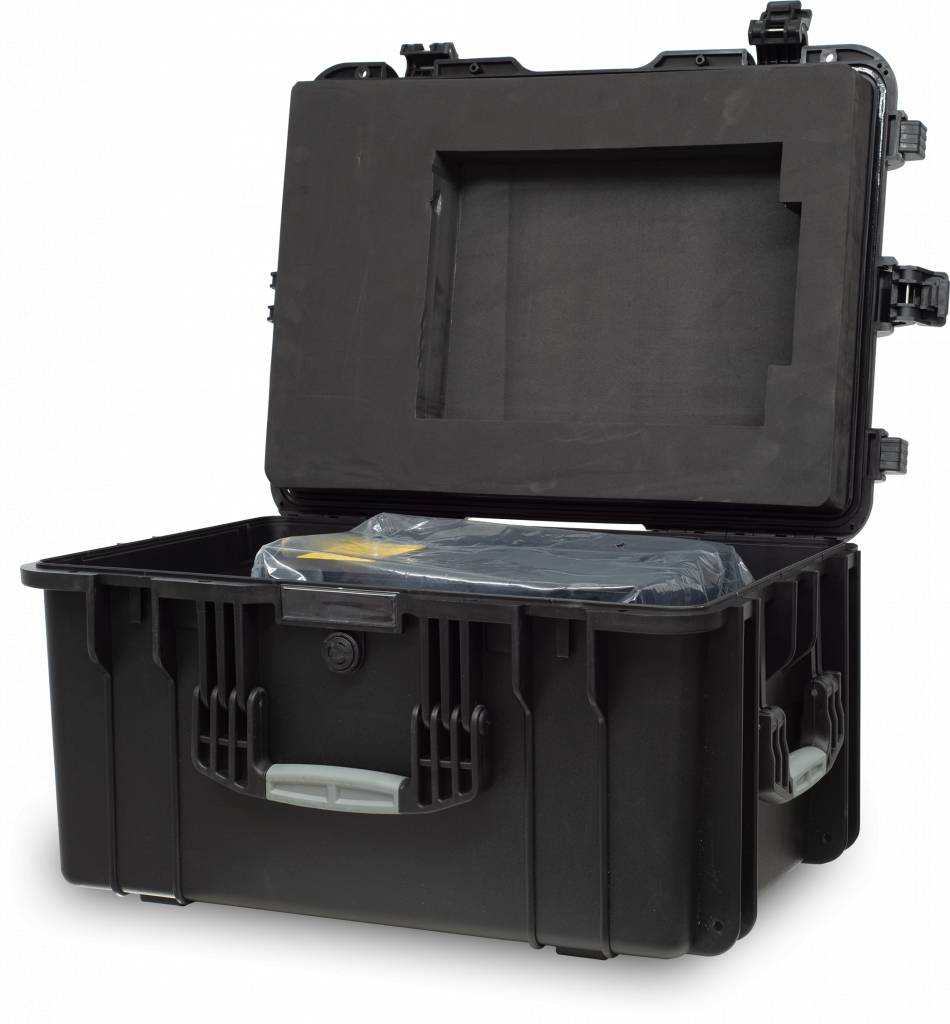

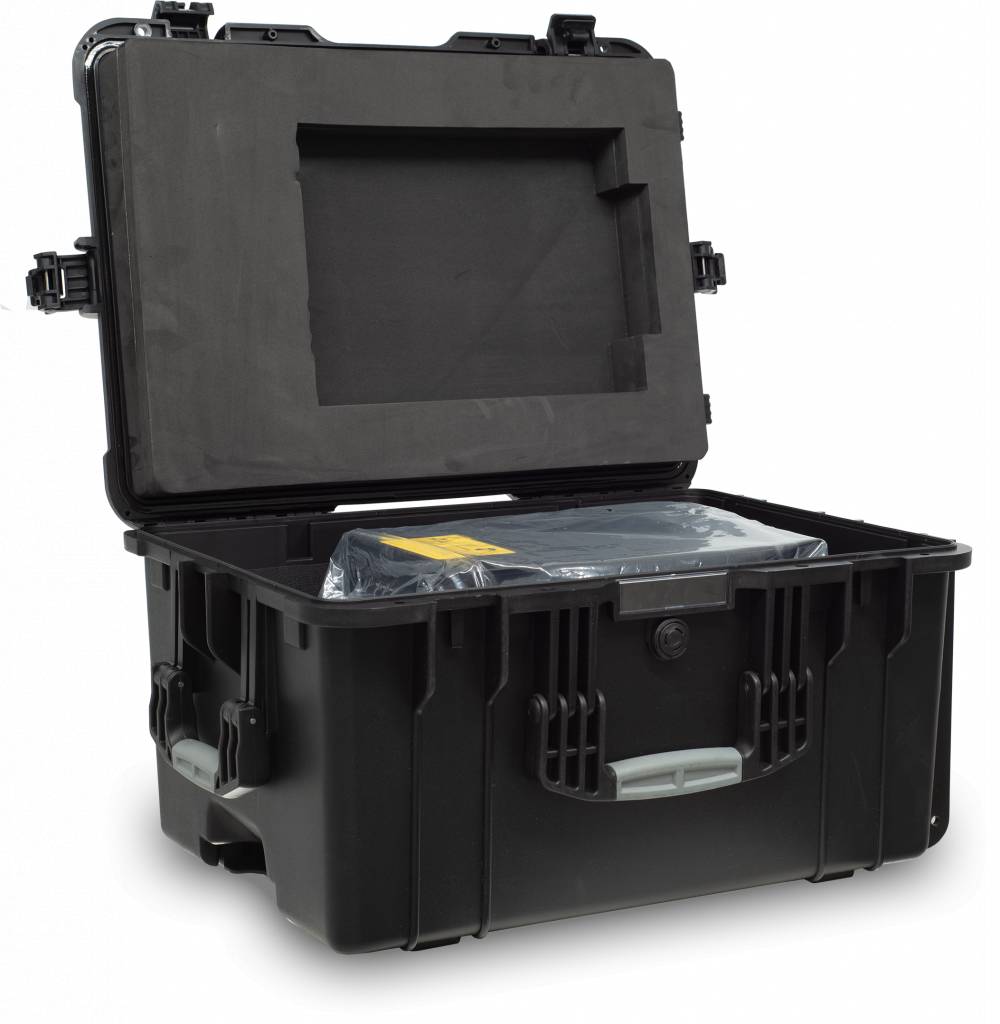

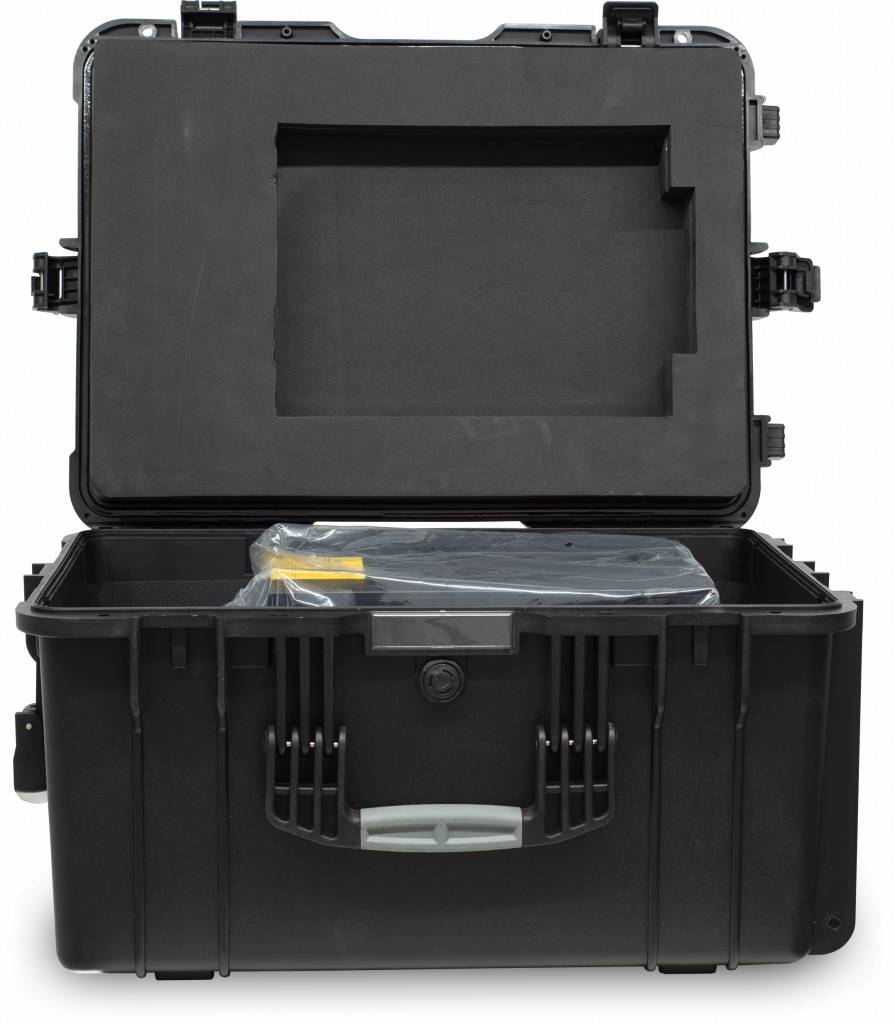

Including waterproof flightcase.
  • 5'000 mW guaranteed power
  • Graphics capable - 40kpps @ 8°
  • Max scan angle 50°
  • Full colour mixing - analog modulation
  • Sharp intense beams – ca. 5.0 mm beam diameter and low divergence of 1.0 mrad
  • IP54 waterproof housing
  • Save safety settings direct to the laser and they apply in all modes
  • Link multiple units with linking Power, DMX and ILDA
  • Free computer control software – Showeditor - upgradable to Showcontroller
  • Multiple control modes - Auto, DMX, Artnet and ILDA
  • Incl. waterproof flightcase

ShowNET mainboard as standard:
  • Various control options: ILDA, Professional DMX (two modes), Professional Art-Net (two modes), Stand-Alone Operation, Master-Slave, ILDA Streaming Receiver, LAN (Computer control, integrated DAC)
  • Create custom content, store it inside the laser and play it back in different modes
  • Free laser show control software included
Laserworld PL-5000RGB MK3 additional image 3
Laserworld PL-5000RGB MK3 additional image 5
Laserworld PL-5000RGB MK3 additional image 6
Laserworld PL-5000RGB MK3 additional image 7
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
ArtNET modeArtNET Control mode
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
LAN connectionLAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA connectionILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
ILDA StreamingILDA Streaming
ShowNET insideSHOWNET INSIDE:
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
Free Showeditor laser software includedSHOWEDITOR INCLUDED:
The full version of the laser show control software Showeditor is included in delivery.
The Laserworld PL-5000RGB MK3 show laser light is completely equipped with diodes and has a good white balance, with linear color fading behaviour and high visibility.

The Laserworld PL-5000RGB MK3 units have a built-in network DAC for Showcontroller, Showeditor, Touchdesigner, MadLaser, ILD Render, etc., but also can be controlled with any ILDA laser control software such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface (e.g. FB3). They also have a built-in memory with pre-set patterns, that can be easily triggered through DMX / ArtNET or automatic mode.

The Laserworld PL-5000RGB MK3 comes with integrated ShowNET network interface and free laser show software. Details in the box below.

Advantages of the Laserworld PL-5000RGB MK3 laser light are:

  • a low-cost yet powerful solution for power demanding laser applications
  • great for large nightclubs and medium sized stages
  • brilliant colors with great linear color fading behavior
  • ideal for long distance beam shows and basic graphics projections

The Laserworld PL-5000RGB MK3 has a beam diameter of about ca. 5.0 mm and beam divergence of ca. 1.0 mrad.
Guaranteed output power at aperture is 5'000 mW and individual power are: 1'200 mW / 638 nm (red), 1'700 mW / 520 nm (green), 3'000 mW / 450 nm (blue).
Fast scanners work at a speed of 40kpps @ 8° and can do a max. scan angle of 50°.

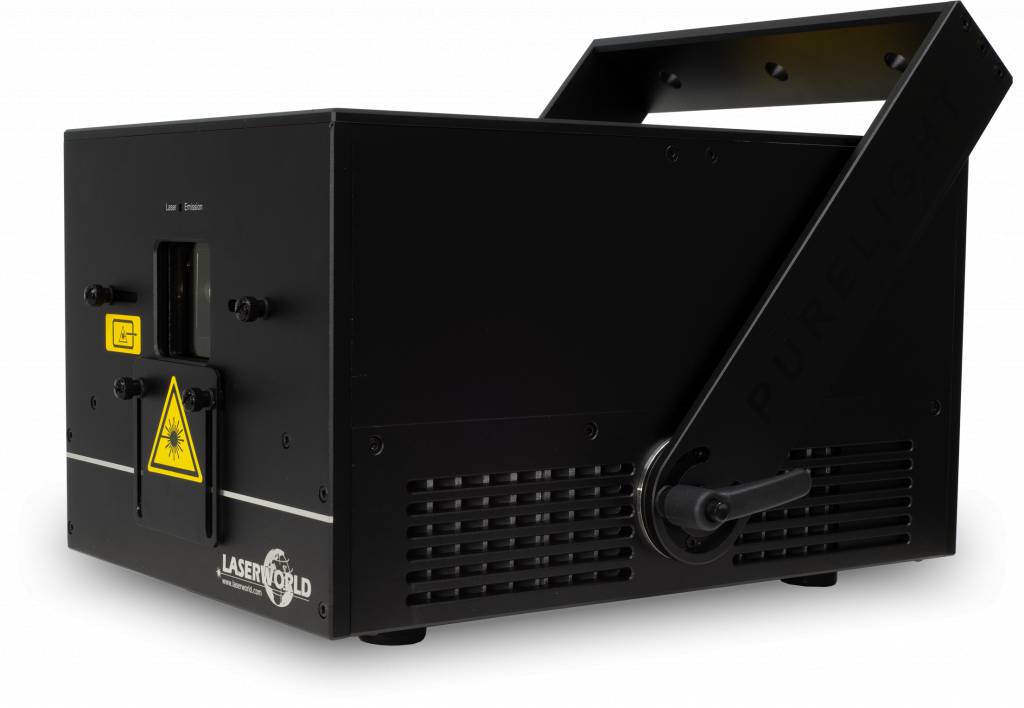

The complete projector is built with sealed housing technology and is cooled through the external cooling fins (bottom part). Thus the maintenance effort is kept very low.

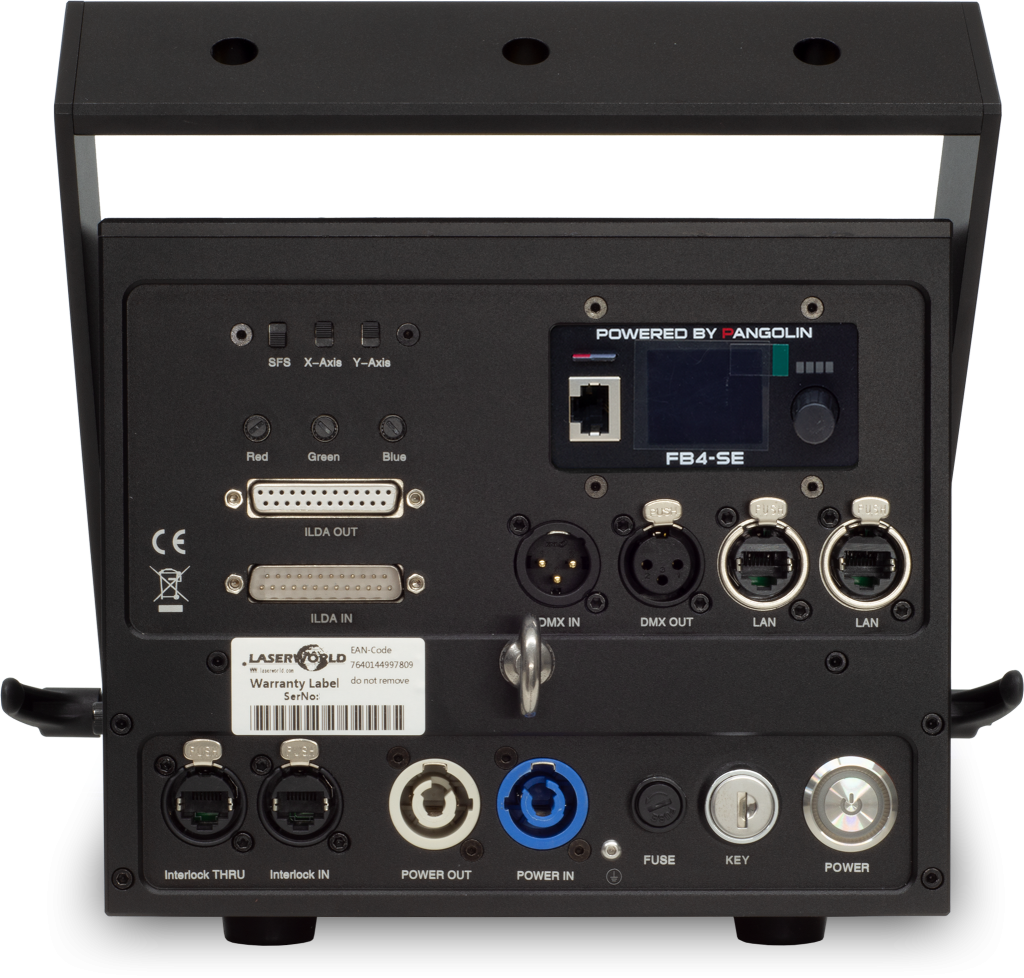

At the back of the unit there are trim pots for color settings, so the color balance can be quickly adjusted. The X- / Y-axis can also be mirrored through switches. Additionally the scan safety can be set at the backside of the laser system.

+ Integrated ShowNET incl. free laser show software

The Laserworld PL-5000RGB MK3 features an integrated ShowNET network interface with free laser control software included!
Start with your own professional laser show thanks to the intuitive Showeditor laser show software which comes with every new Laserworld PL-5000RGB MK3 for free. The Showcontroller software is supported as well and can be purchased additionally.
The integrated ShowNET allows for direct input through ILDA and LAN. Besides DMX, it is possible to trigger single frames via ArtNet. You can play custom frames and shows from an integrated SD card (included in delivery) – even in stand-alone and sound-to-light mode!
There are two different DMX modes:
(1) DJ Mode with the most used features for beginners. Only a few DMX channels are used for a quick and easy access to the most important adjustments directly at the laser system.
(2) Professional Mode with all DMX features especially for users with a DMX console. All adjustments can be triggered and allow for full control of the professional laser show.
The integrated ShowNET works as DAC (digital to analog converter) and enables ILDA streaming



> More details

External ILDA Standard Control:

ILDA connector
Analog ILDA

Optional control options (modification required!):

Optional control options require modifications to the general laser setup. Other operation modes or compatibilities may get lost.
Pangolin Software
Quickshow
Pangolin Software
Beyond



> More details

Laserworld PL-5000RGB MK3 laser beam and explanatory image 1
Laserworld PL-5000RGB MK3 laser beam and explanatory image 2
Laserworld PL-5000RGB MK3 laser beam and explanatory image 4
Laserworld PL-5000RGB MK3 laser beam and explanatory image 8
Laserworld PL-5000RGB MK3 laser beam and explanatory image 9
Laserworld PL-5000RGB MK3 laser beam and explanatory image 10
Laserworld PL-5000RGB MK3 laser beam and explanatory image 11
Laserworld PL-5000RGB MK3 laser beam and explanatory image 12
Laserworld PL-5000RGB MK3 laser beam and explanatory image 13
Laserworld PL-5000RGB MK3 laser beam and explanatory image 14
Laserworld PL-5000RGB MK3 laser beam and explanatory image 15
Laserworld PL-5000RGB MK3 laser beam and explanatory image 16
Laserworld PL-5000RGB MK3 laser beam and explanatory image 17
Laserworld PL-5000RGB MK3 laser beam and explanatory image 18
Laserworld PL-5000RGB MK3 laser beam and explanatory image 19
Laserworld PL-5000RGB MK3 laser beam and explanatory image 20
Laserworld PL-5000RGB MK3 laser beam and explanatory image 21
Laserworld PL-5000RGB MK3 laser beam and explanatory image 22
Laserworld PL-5000RGB MK3 laser beam and explanatory image 23
Laserworld PL-5000RGB MK3 laser beam and explanatory image 24
Laserworld PL-5000RGB MK3 laser beam and explanatory image 25
Laserworld PL-5000RGB MK3 laser beam and explanatory image 26



> More details

Guaranteed Power at aperture
5'000 mW
Power Red
1'200 mW / 638 nm
Power Green
1'700 mW / 520 nm
Power Blue
3'000 mW / 450 nm
Beam Specifications*
ca. 5.0 mm / 1.0 mrad
Scanner
40kpps @ 8° ILDA
Max. Scan Angle
50°
Laser Source
Diode
Laser Class
4
Operation Modes
ILDA, DMX, LAN, ArtNet, ILDA streaming, integrated SD card, stand-alone, master-slave
Basic Patterns
over 120 (layers, tunnels, fences, waves, etc.)
Accessories
Incl. Waterproof flightcase, key, power cable, manual; full version Showeditor software license included
IP rating
IP54
Power Supply
85-250 V AC 50/60 Hz
Power Consumption
150 W
Dimensions
320 x 220 x 180 mm
Weight
10.1 kg
EAN / MPN
7640144997779
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
