Laserworld PL-30.000RGB

Laserworld Purelight Series   XL   Front Left S
A very high power full colour laser with built in multi-control mainboard. Amazing DMX control with internal safety settings making it simple to control multiple units along with the rest of your DMX lighting. Full feature laser show software license included! Sealed optics section for low maintenance Perfect for Large indoor events, Large outdoor events and festivals. Looks amazing on large productions in numbers running DMX Chases.
  • 30'000 mW guaranteed power
  • Graphics capable - 35 [email protected]° ILDA
  • Max scan angle 50°
  • Full colour mixing - analog modulation
  • Sharp intense beams – ca. 6.5 mm beam diameter and low divergence of 1.3 mrad
  • Save safety settings direct to the laser and they apply in all modes
  • Link multiple units with linking Power, DMX and ILDA
  • Free computer control software – Showeditor - upgradable to Showcontroller
  • Multiple control modes - Auto, Sound to light, DMX, Artnet and ILDA

ShowNET mainboard as standard:
  • Various control options: ILDA, Professional DMX and ArtNET (two modes), LAN (computer control, integrated DAC), Stand-Alone Operation, ILDA Streaming Receiver, Master-Slave
  • Create custom content, store it inside the laser and play it back in different modes
  • Free laser show control software included

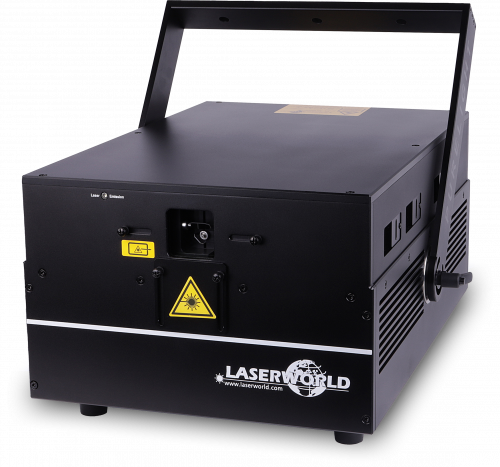

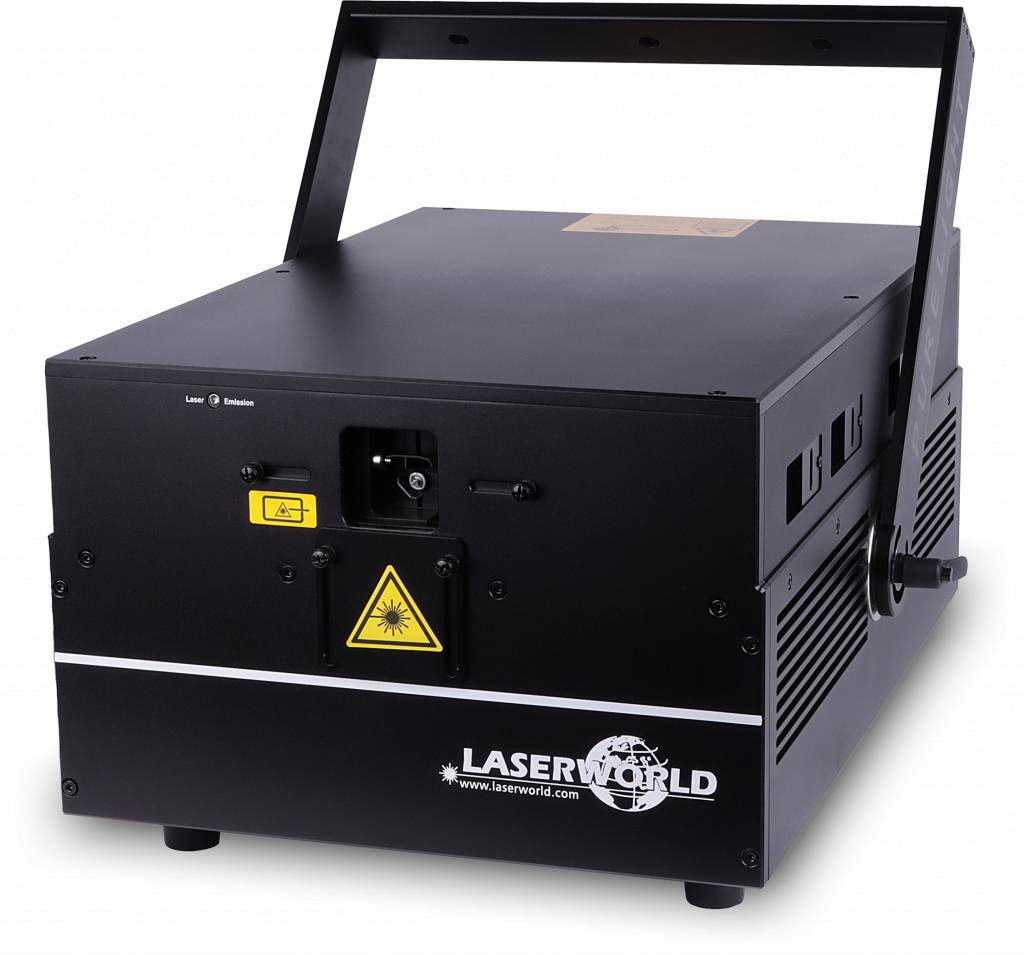

Laserworld Purelight Series   XL   Front Left S

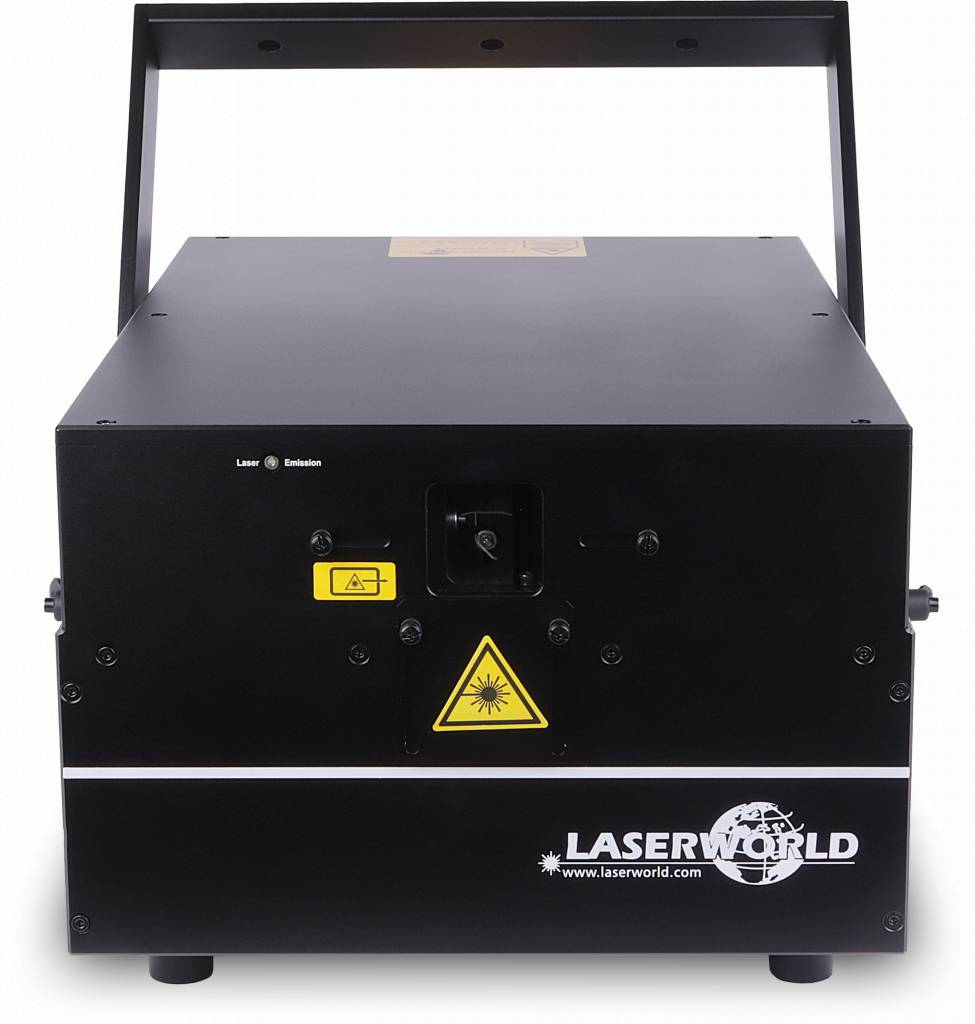

Laserworld Purelight Series   XL   Front S

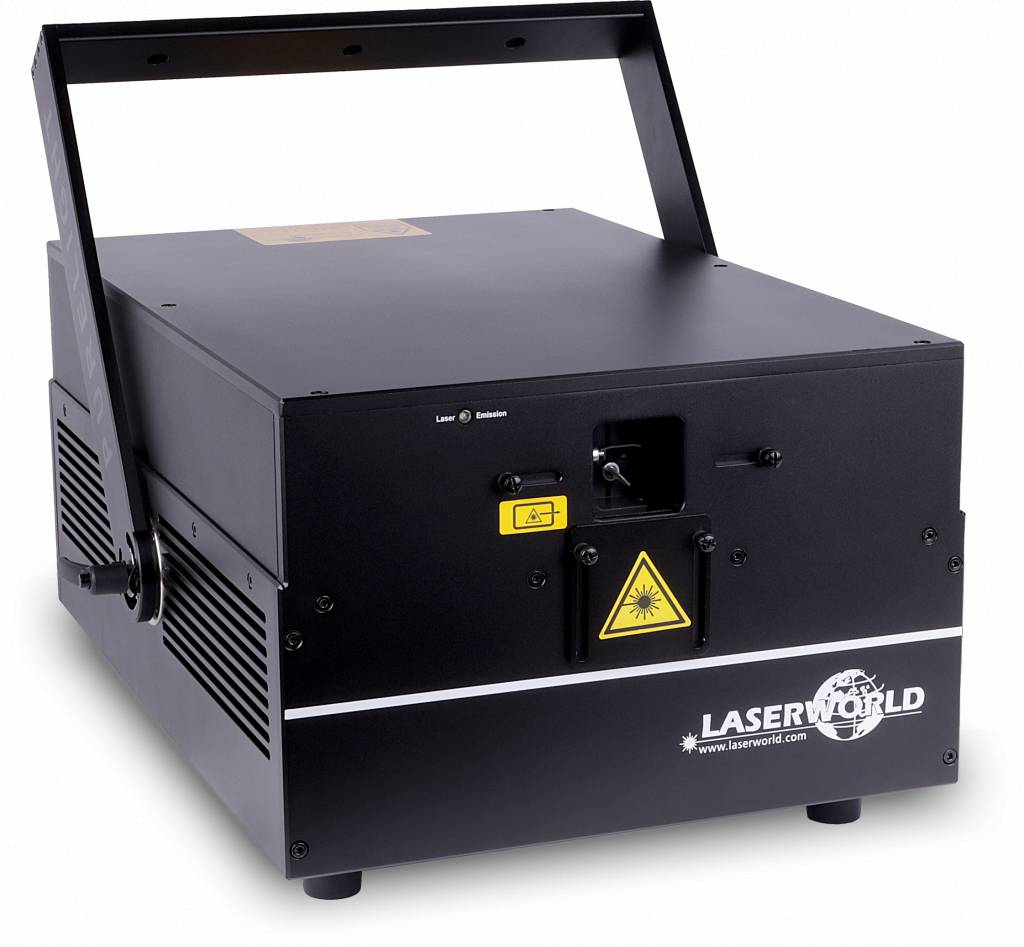

Laserworld Purelight Series   XL   Front Right S

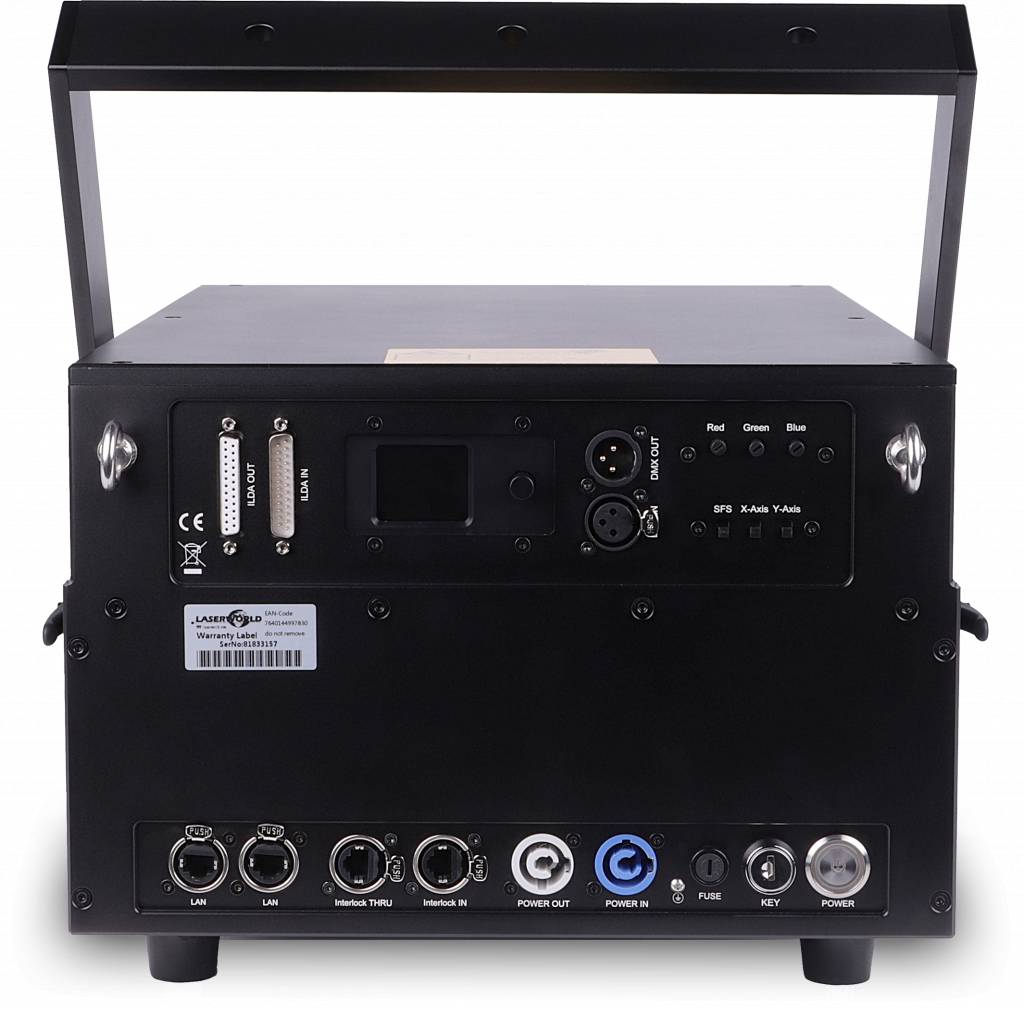

Laserworld PL 30000RGB   Back S
Sound-to-light modeSOUND-TO-LIGHT MODE:
Let the beat of the music control the laser automatically
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
The laser can be controlled with a standard DMX controller or DMX software.
ArtNET modeArtNET Control mode
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
LAN connectionLAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA connectionILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
ILDA StreamingILDA Streaming
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
Free Showeditor laser software includedSHOWEDITOR INCLUDED:
The full version of the laser show control software Showeditor is included in delivery.
The Laserworld PL-30.000RGB show laser light is completely equipped with diodes and has a good white balance, with linear color fading behaviour and high visibility.

The Laserworld PL-30.000RGB units have a built-in network DAC for Showcontroller and Showeditor, but also can be controlled with any ILDA laser control software such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface (e.g. FB3). They also have a built-in memory with pre-set patterns, that can be easily triggered through DMX, automatic and sound-to-light mode.

The Laserworld PL-30.000RGB comes with integrated ShowNET network interface and free laser show software. Details in the box below.

Advantages of the Laserworld PL-30.000RGB laser light are:

  • a low-cost yet powerful solution for power demanding laser applications
  • great for large nightclubs and medium sized stages
  • brilliant colors with great linear color fading behavior
  • ideal for long distance beam shows and basic graphics projections

The Laserworld PL-30.000RGB has a beam diameter of about ca. 6.5 mm and beam divergence of ca. 1.3 mrad.
Guaranteed output power at aperture is 30'000 mW. 7'500 mW / 638 nm (red), 8'500 mW / 520 nm (green), 15'000 mW / 450 nm (blue).
Fast scanners work at a speed of 35 [email protected]° ILDA and can do a max. scan angle of 50°.

The complete projector is built with Sealed Housing Technology and is cooled through the external cooling fins (bottom part). Thus the maintenance effort is kept very low.
The show laser has an internal PSU for easy handling.

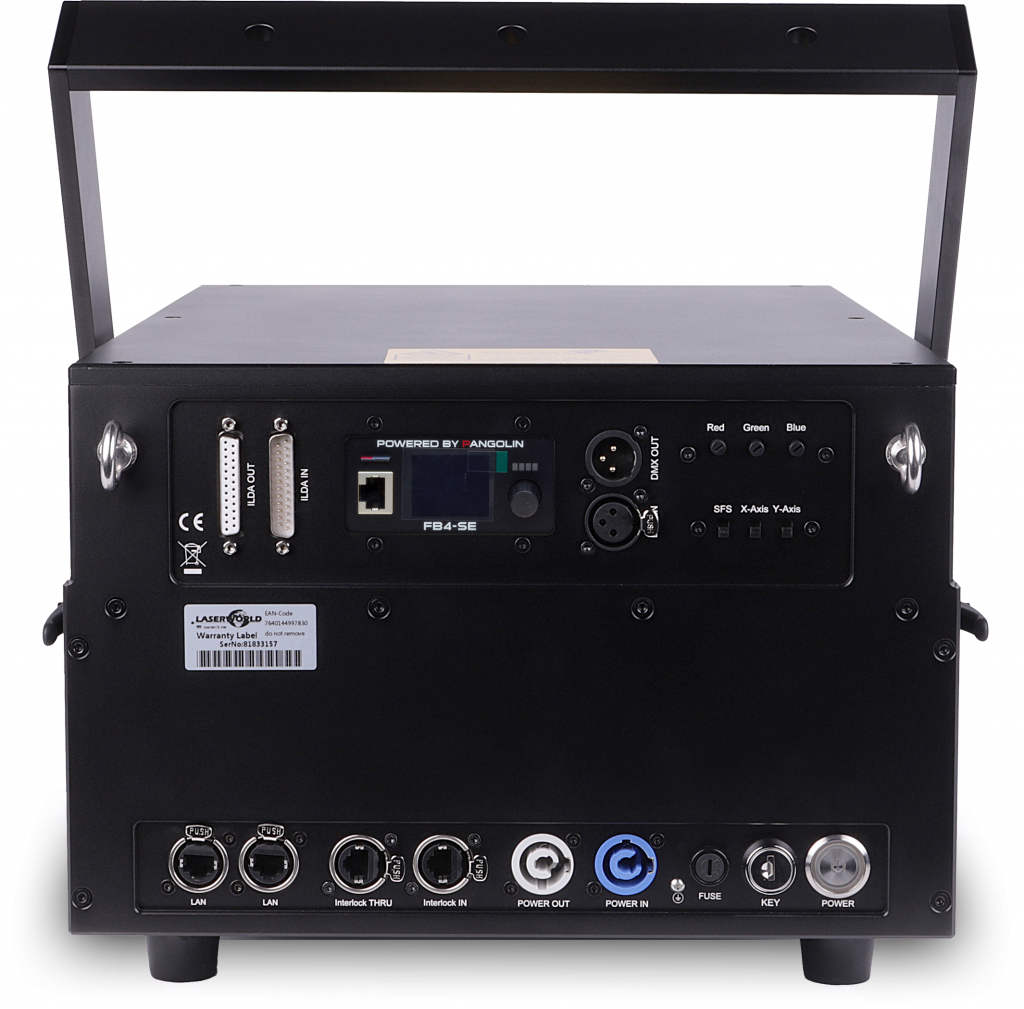

At the back of the unit there are trim pots for color settings, so the color balance can be quickly adjusted. The X- / Y-axis offset can also be set by trim pots. Additionally the Scan Safety can be set at the backside of the laser system.

+ Integrated ShowNET incl. free laser show software

The Laserworld PL-30.000RGB features an integrated ShowNET network interface with free laser control software included!
Start with your own professional laser show thanks to the intuitive Showeditor laser show software which comes with every new Laserworld PL-30.000RGB for free. The Showcontroller software is supported as well and can be purchased additionally.
The integrated ShowNET allows for direct input through ILDA and LAN. Besides DMX, it is possible to trigger single frames via ArtNet. You can play custom frames and shows from an integrated SD card (included in delivery) – even in stand-alone and sound-to-light mode!
There are two different DMX modes:
(1) DJ Mode with the most used features for beginners. Only a few DMX channels are used for a quick and easy access to the most important adjustments directly at the laser system.
(2) Professional Mode with all DMX features especially for users with a DMX console. All adjustments can be triggered and allow for full control of the professional laser show.
The integrated ShowNET works as DAC (digital to analog converter) and enables ILDA streaming

Laserworld PL 20000RGB 014 Beam
Laserworld PL 20000RGB 018 Beam
Laserworld PL 20000RGB 010 Beam
Laserworld PL 20000RGB 016 Beam
Laserworld PL 20000RGB 009 Beam
Laserworld PL 20000RGB 019 Beam
Laserworld PL 20000RGB 020 Beam
Laserworld PL 20000RGB 013 Beam
Laserworld PL 20000RGB 011 Beam
Laserworld PL 20000RGB 017 Beam
Laserworld PL 20000RGB 015 Beam
Laserworld PL 20000RGB 002 Beam
Laserworld PL 20000RGB 007 Beam
Laserworld PL 20000RGB 006 Beam
Laserworld PL 20000RGB 001 Beam
Laserworld PL 20000RGB 005 Beam
Laserworld PL 20000RGB 008 Beam
Laserworld PL 20000RGB 003 Beam
Laserworld PL 20000RGB 004 Beam
Laserworld PL 20000RGB 012 Beam
Guaranteed Power at aperture
30'000 mW
Power Red
7'500 mW / 638 nm
Power Green
8'500 mW / 520 nm
Power Blue
15'000 mW / 450 nm
Beam Specifications
ca. 6.5 mm / 1.3 mrad
Max. Scan Angle
Laser Source
Laser Class
Operation Modes
ILDA, DMX, LAN, ArtNet, ILDA streaming, integrated SD card, stand-alone, sound-to-light, master-slave
Basic Patterns
over 120 (layers, tunnels, fences, waves, etc.)
incl. case, key, power cable, manual; full version Showeditor software license included
Power Supply
internal PSU
Power Consumption
900 W
500 x 336 x 215 mm (L x W x H)
31 kg
