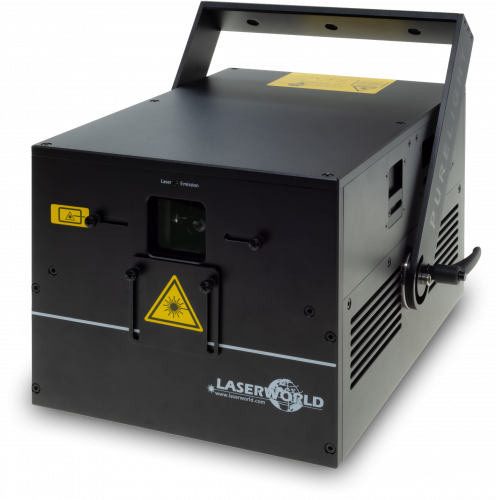

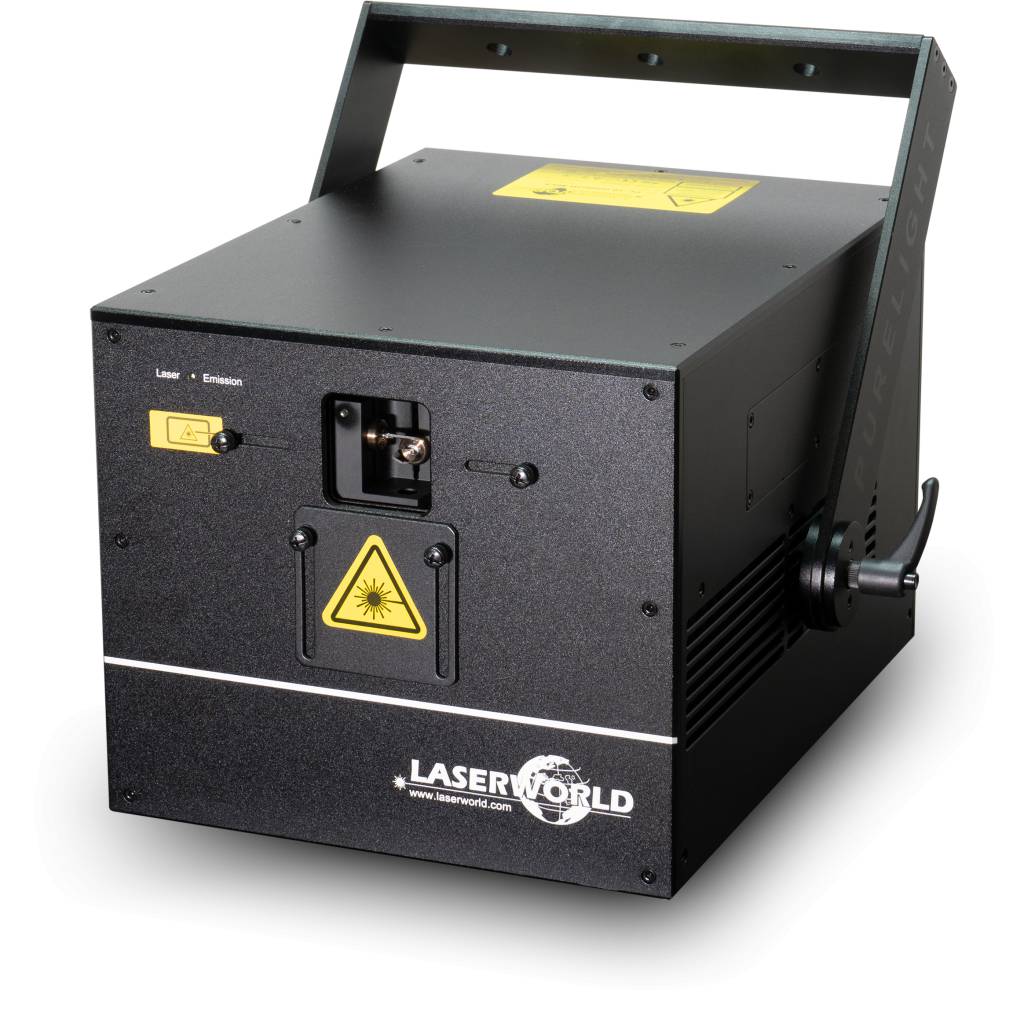

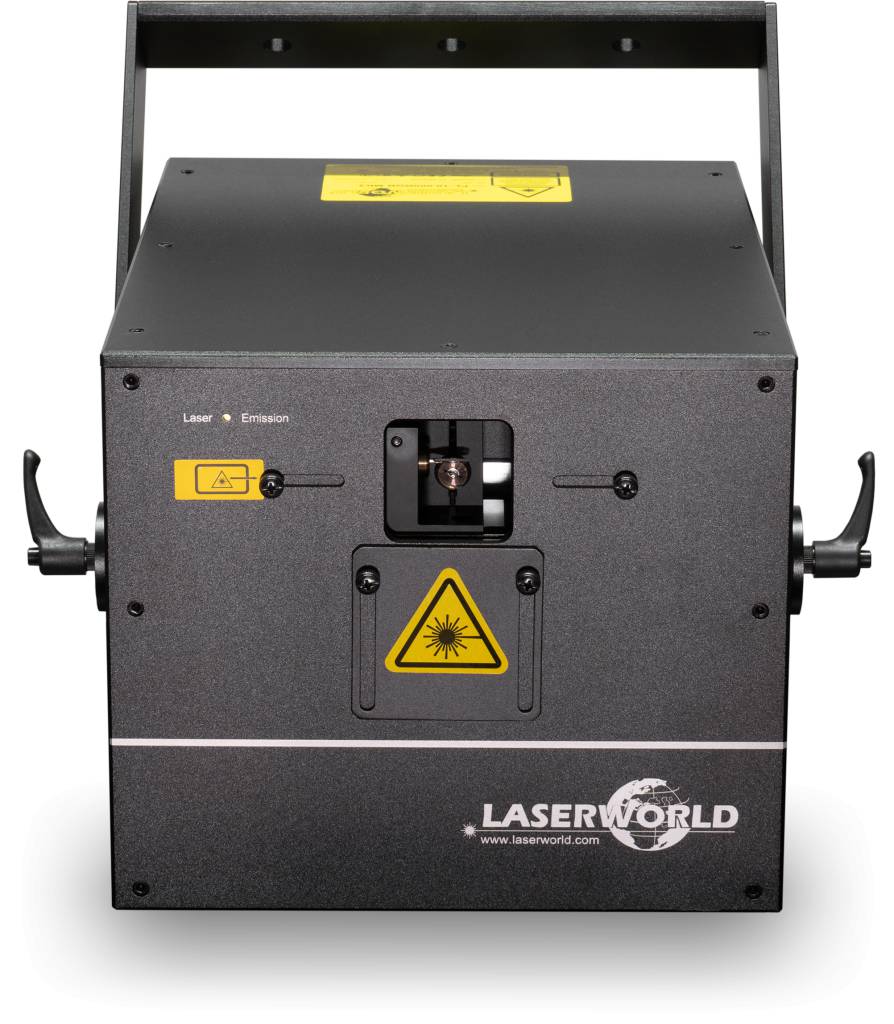

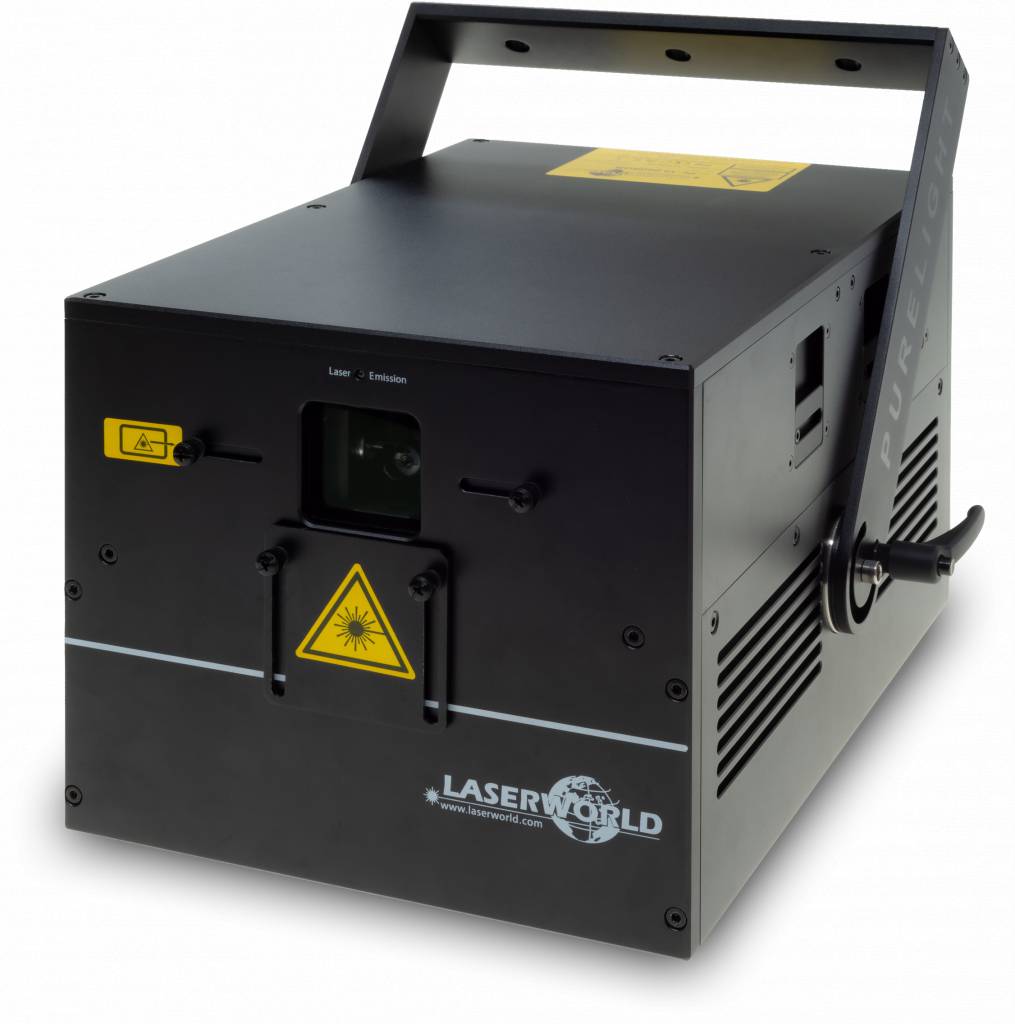

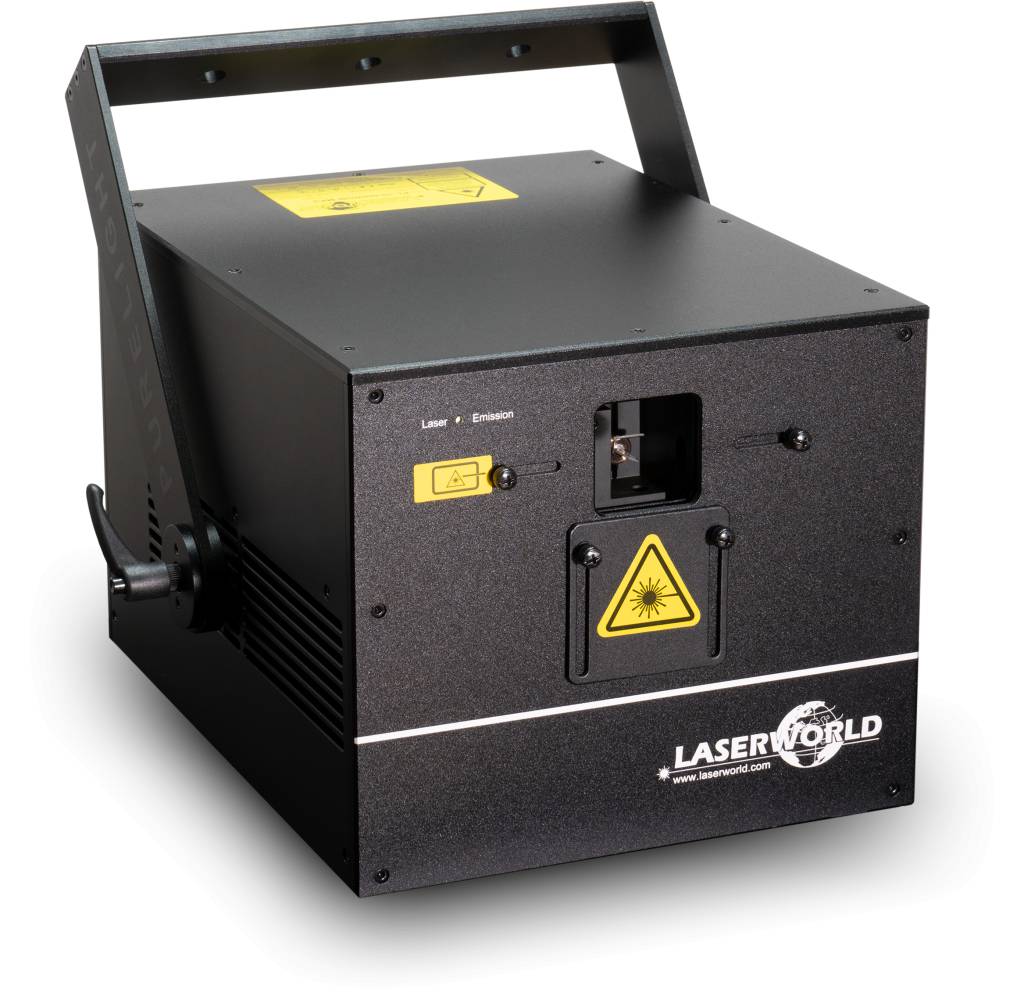

Laserworld PL-10.000RGB MK3
![Laserworld PL-10.000RGB MK3 main image](https://www.laserworld.com/images_product/7640144997786/500/Laserworld_PL-10000RGB_MK3_fl_s.png)
IP54 waterproof laser system, suitable for outdoor use.

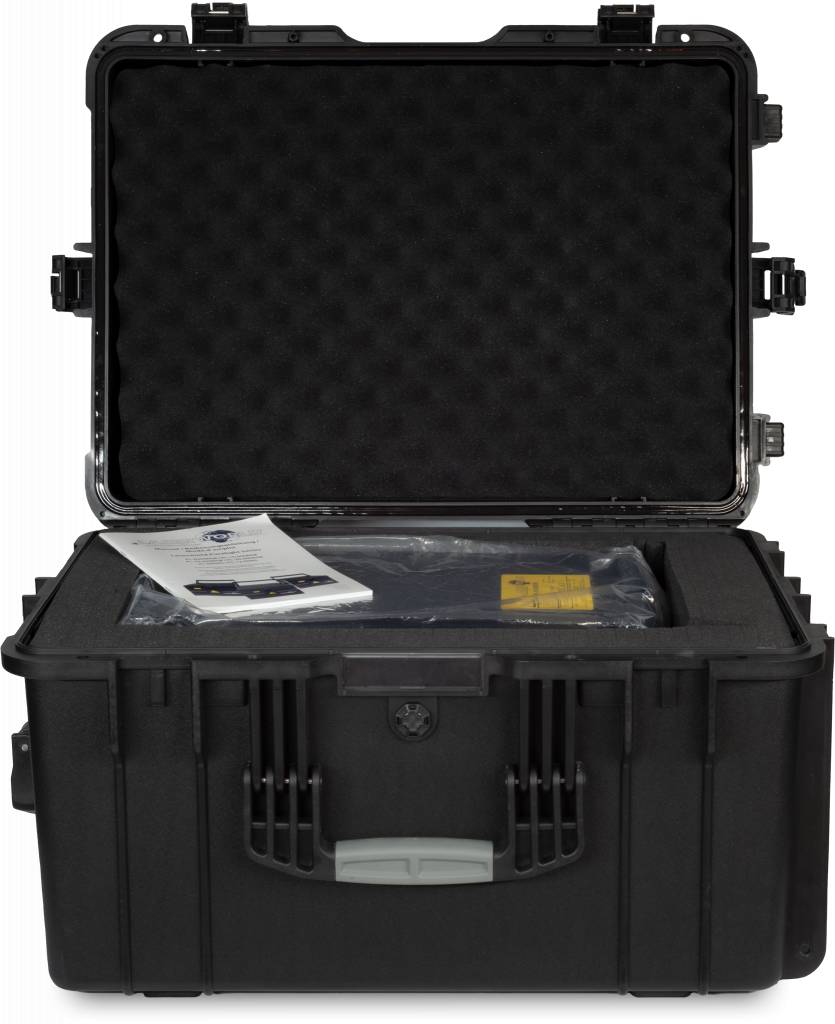

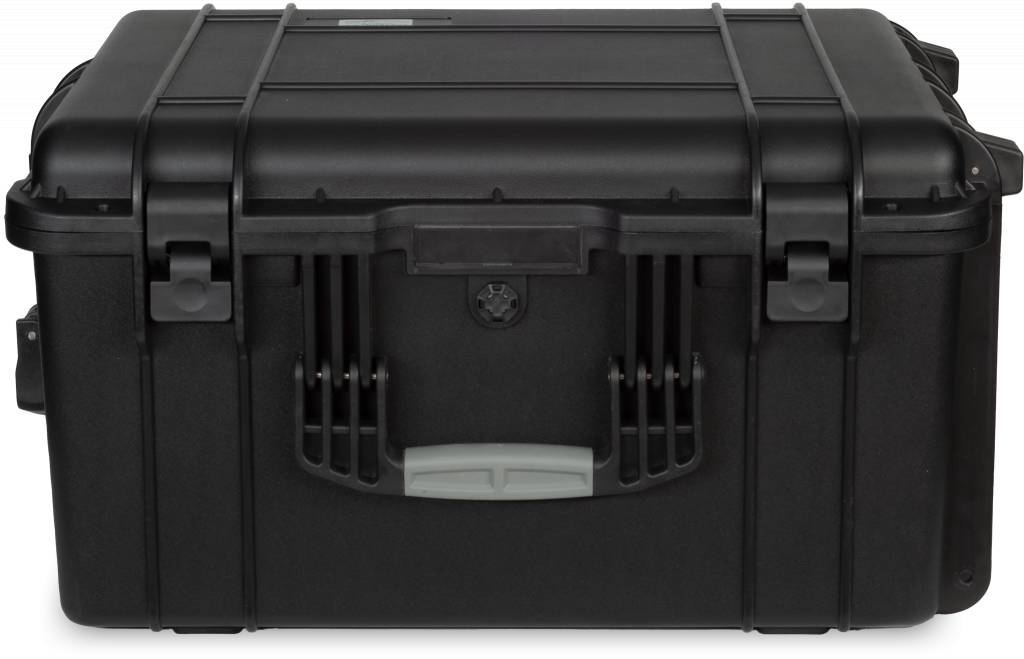

Incl. waterproof flightcase
- 10'000 mW guaranteed power
- Graphics capable - 40kpps @ 8° ILDA
- Max scan angle 50°
- Full colour mixing - analog modulation
- Sharp intense beams – ca. 5.5 mm beam diameter and low divergence of 1.0 mrad
- IP54 waterproof housing
- Save safety settings direct to the laser and they apply in all modes
- Link multiple units with linking Power, DMX and ILDA
- Free computer control software – Showeditor - upgradable to Showcontroller
- Multiple control modes - Auto,DMX, Artnet and ILDA
- including waterproof flightcase
ShowNET mainboard as standard:
- Various control options: ILDA, Professional DMX (two modes), Professional Art-Net (two modes), Stand-Alone Operation, Master-Slave, ILDA Streaming Receiver, LAN (Computer control, integrated DAC)
- Create custom content, store it inside the laser and play it back in different modes
- Free laser show control software included
![Stand-Alone mode](/productcaller/icons/AUTO_MODE.png)
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
![DMX mode](/productcaller/icons/DMX_MODE.png)
The laser can be controlled with a standard DMX controller or DMX software.
![ArtNET mode](/productcaller/icons/ArtNET_MODE.png)
![Master-Slave mode](/productcaller/icons/MASTER_SLAVE.png)
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
![LAN connection](/productcaller/icons/LAN_INPUT.png)
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
![ILDA connection](/productcaller/icons/ILDA_INPUT.png)
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
![ILDA Streaming](/productcaller/icons/ILDA_STREAMING.png)
![ShowNET inside](/productcaller/icons/SHOWNET.png)
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
![Free Showeditor laser software included](/productcaller/icons/SHOWEDITOR.png)
The full version of the laser show control software Showeditor is included in delivery.
![Pangolin FB4](/productcaller/modifications/PANGOLIN_FB4.png)

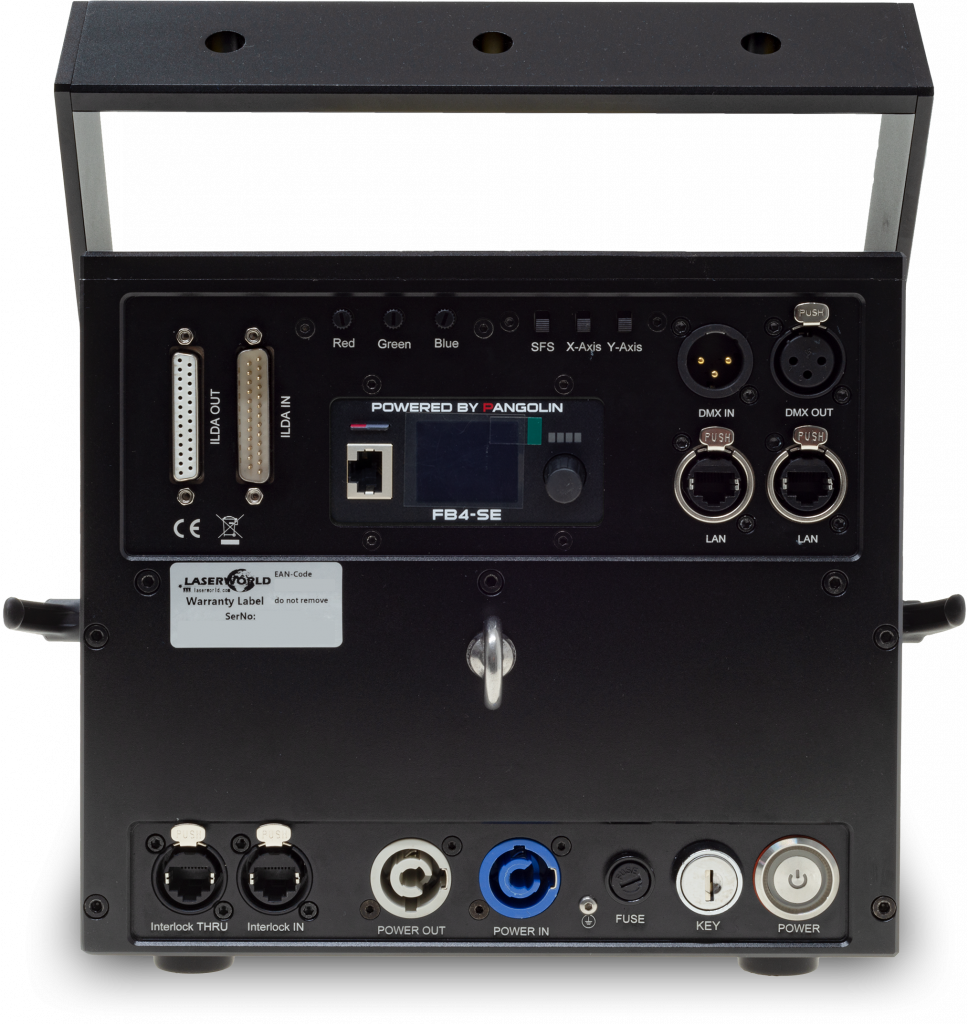

Order your laser standard equipped with the Pangolin FB4 DAC. The FB4 substitutes the ShowNET mainboard, so features are limited to the ones of the FB4.
With the FB4 integrated, the laser can be directly controlled via Pangolin software.
![Gobo Wheel - Grating effects](https://www.laserworld.com/productcaller/modifications/GOBO_WHEEL.png)
Add awesome glass effects and gratings to the laser show with this additional effects wheel.
The Laserworld PL-10.000RGB MK3 units have a built-in network DAC for Showcontroller and Showeditor, but also can be controlled with any ILDA laser control software such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface (e.g. FB3). They also have a built-in memory with pre-set patterns, that can be easily triggered through DMX / ArtNET and automatic mode.
The Laserworld PL-10.000RGB MK3 comes with integrated ShowNET network interface and free laser show software. Including practical waterproof flightcase for transportation. Including Details in the box below.
Advantages of the Laserworld PL-10.000RGB MK3 laser light are:
- a low-cost yet powerful solution for power demanding laser applications
- great for large nightclubs and indoor events and medium/large sized stages and outdoor events
- Diode-only laser system
- brilliant colors with great linear color fading behavior
- ideal for long distance beam shows and basic graphics projections
- including waterproof flightcase
The Laserworld PL-10.000RGB MK3 has a beam diameter of about ca. 5.5 mm and beam divergence of ca. 1.0 mrad.
Guaranteed output power at aperture is 10'000 mW and individual power are: 3'000 mW / 638 nm (red), 4'000 mW / 520 nm (green), 4'000 mW / 450 nm (blue).
Fast scanners work at a speed of 40kpps @ 8° ILDA and can do a max. scan angle of 50°.

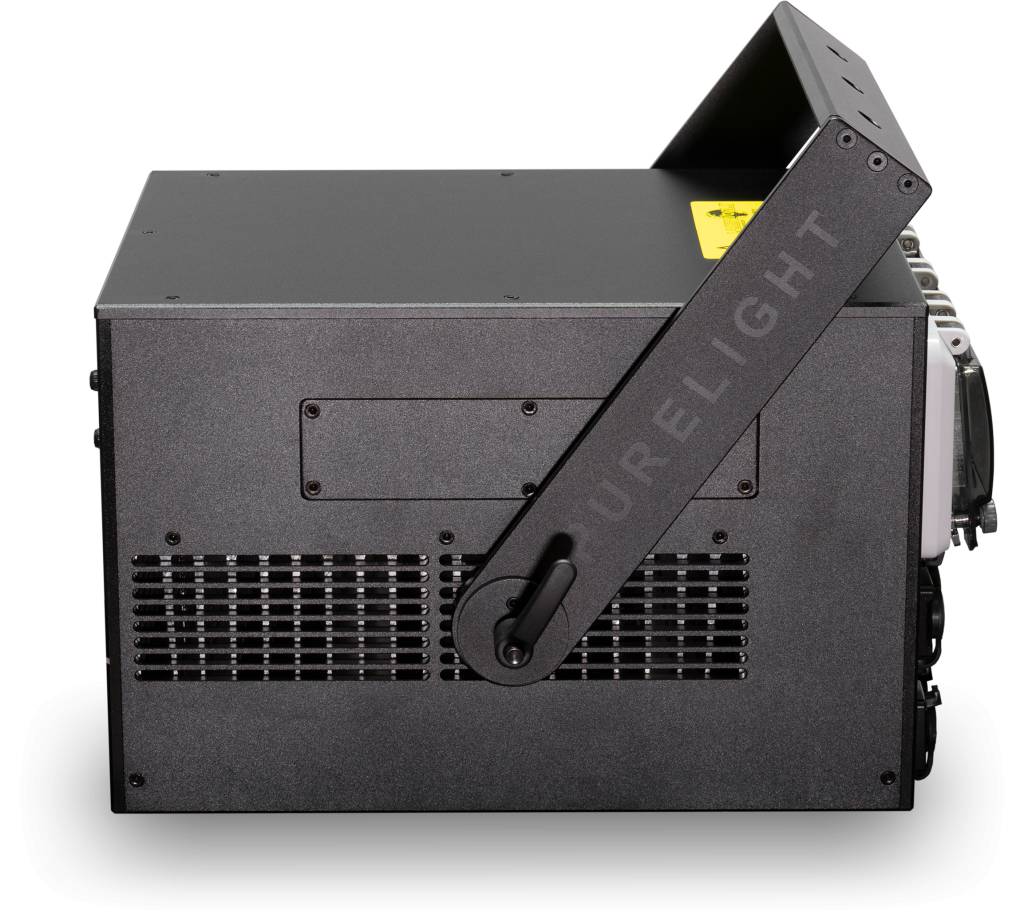

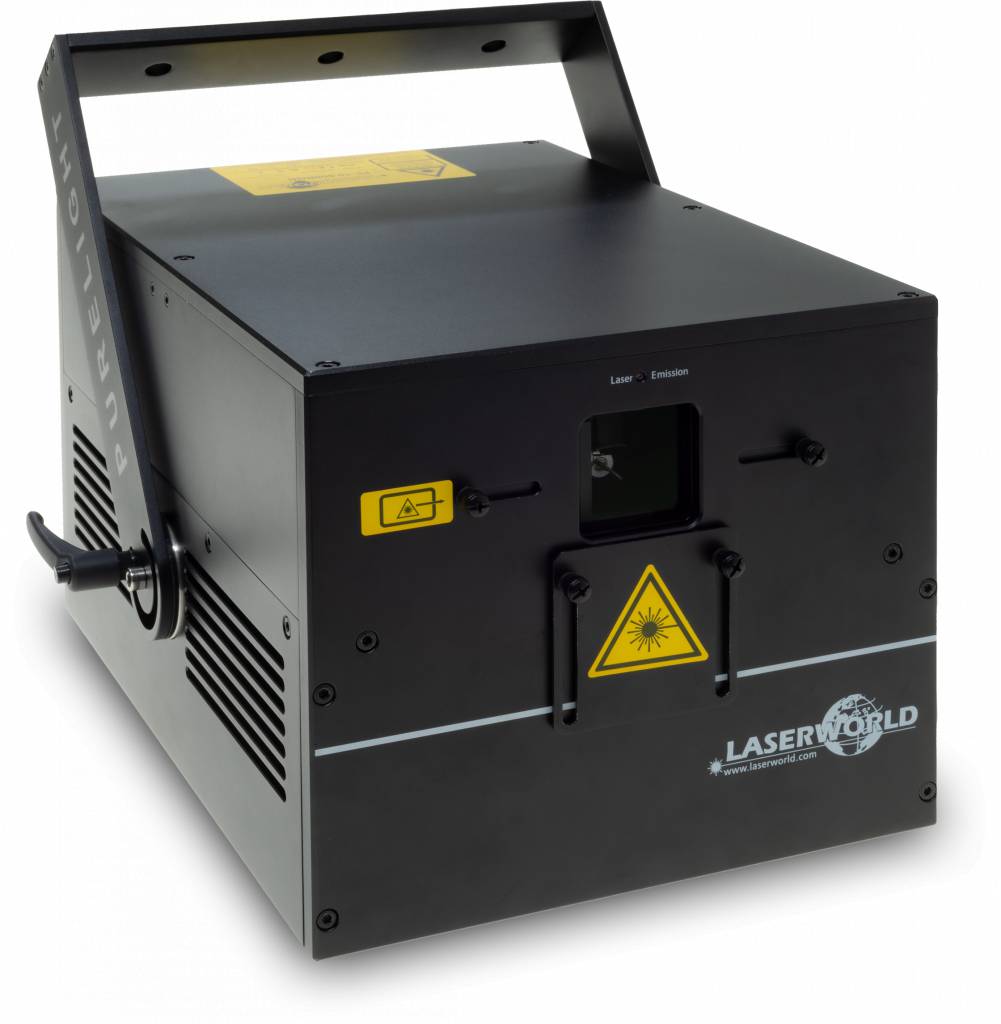

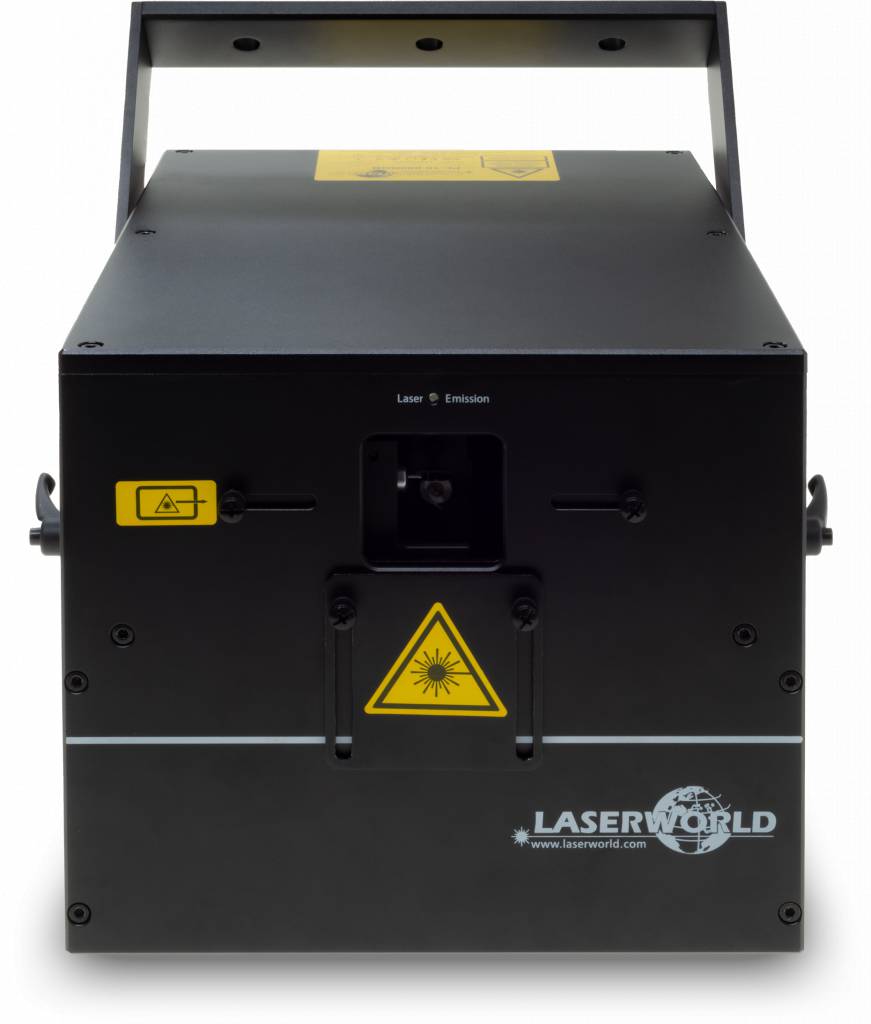

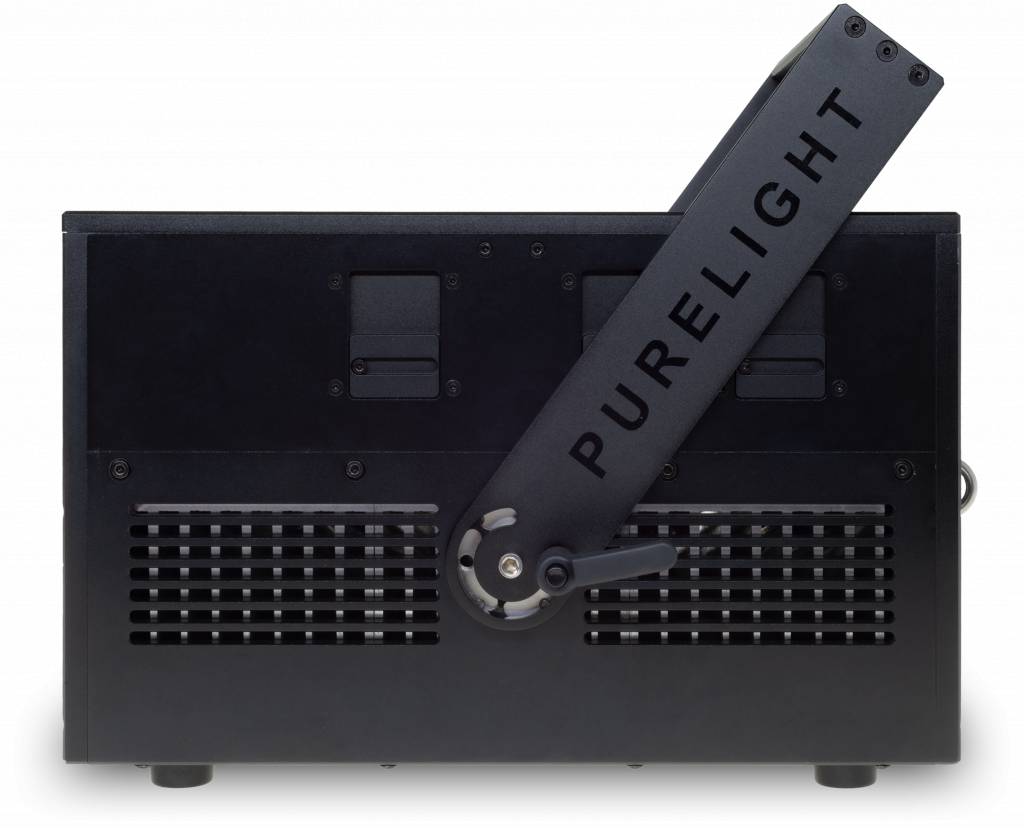

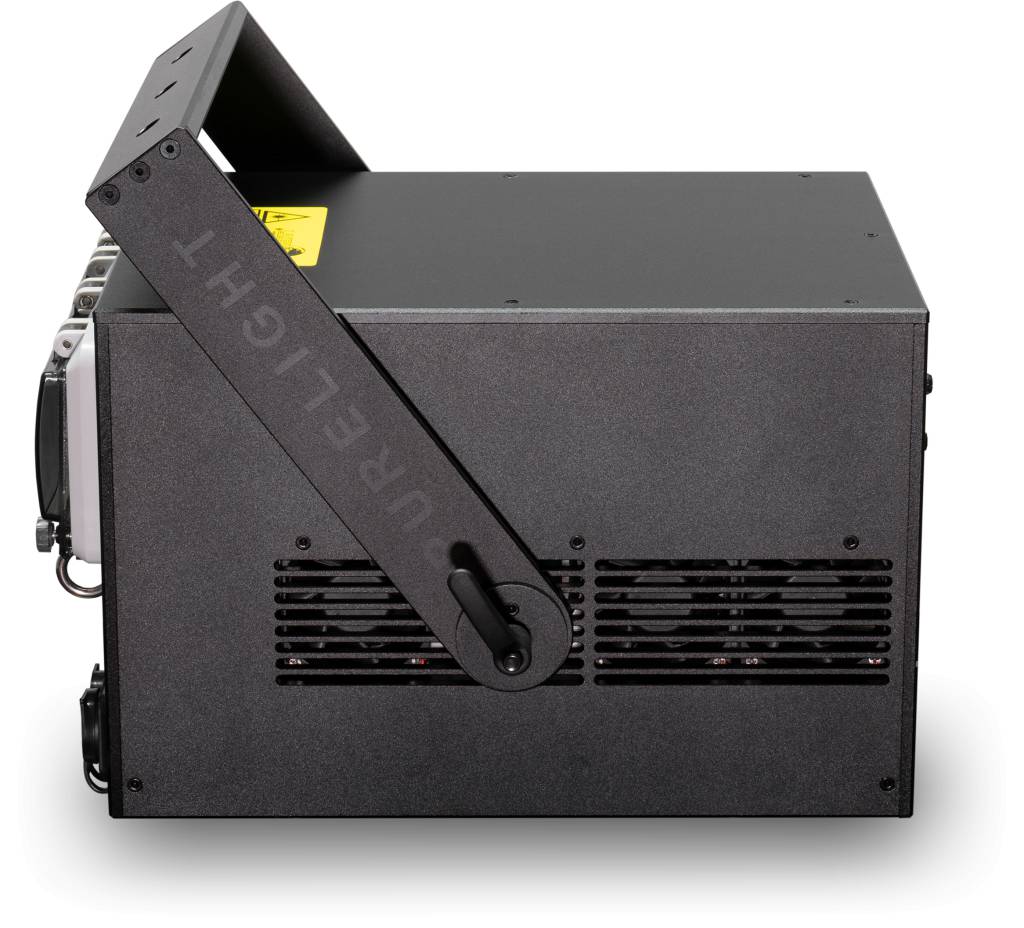

The complete projector is built with sealed housing technology and is cooled through the external cooling fins (bottom part). Thus the maintenance effort is kept very low.
The show laser has an internal PSU for easy handling.

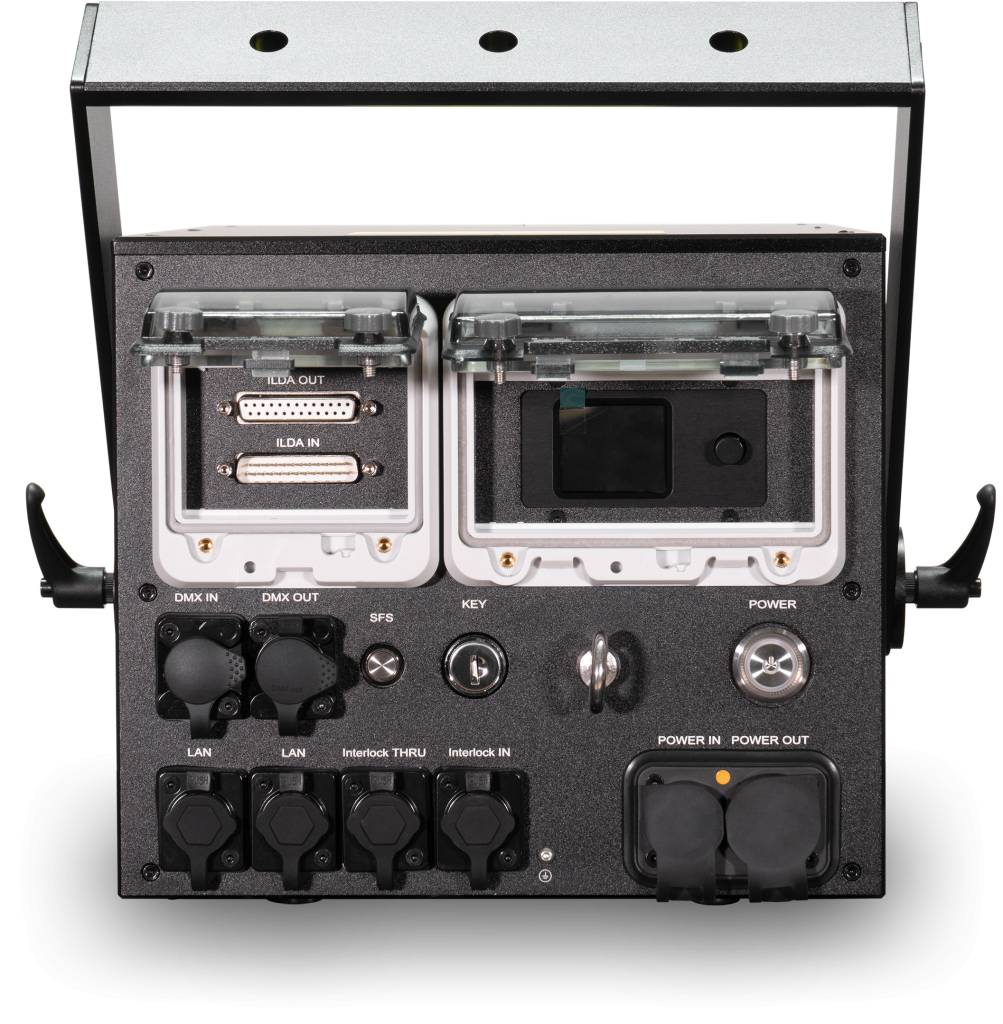

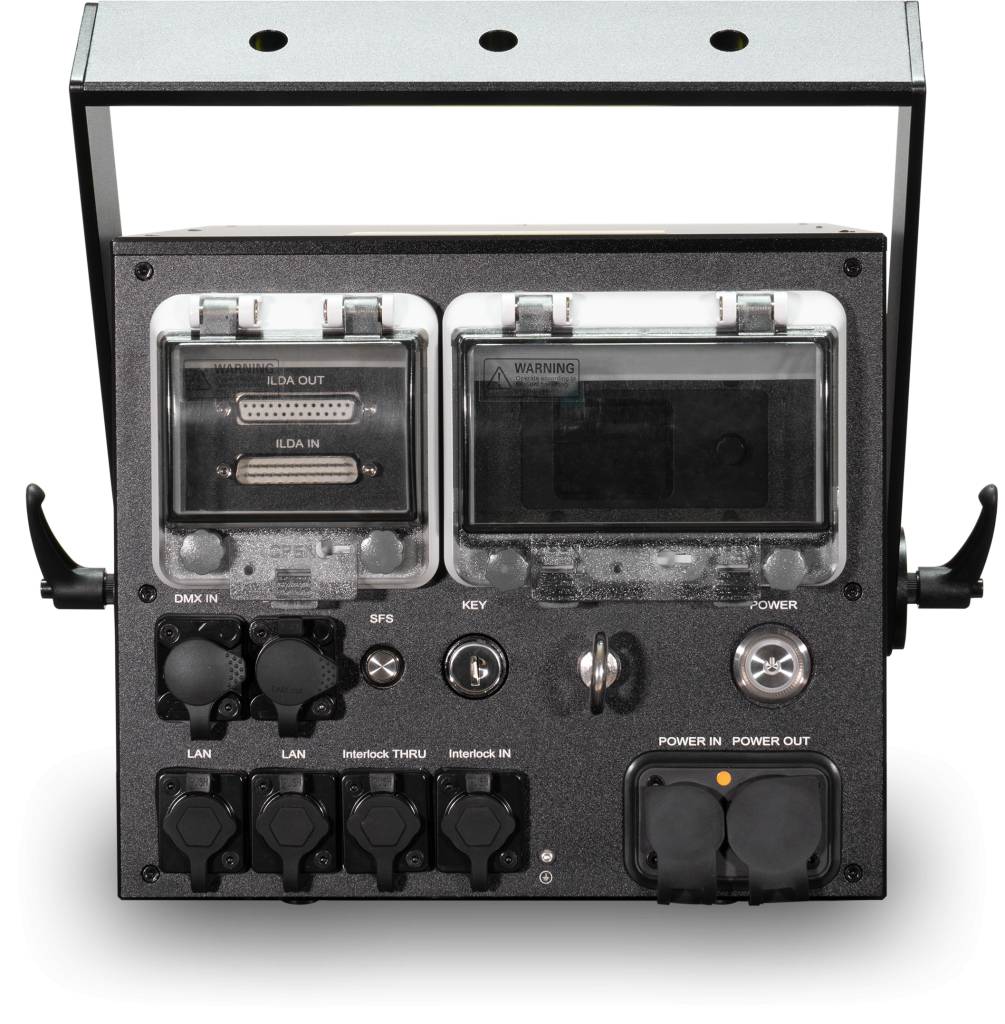

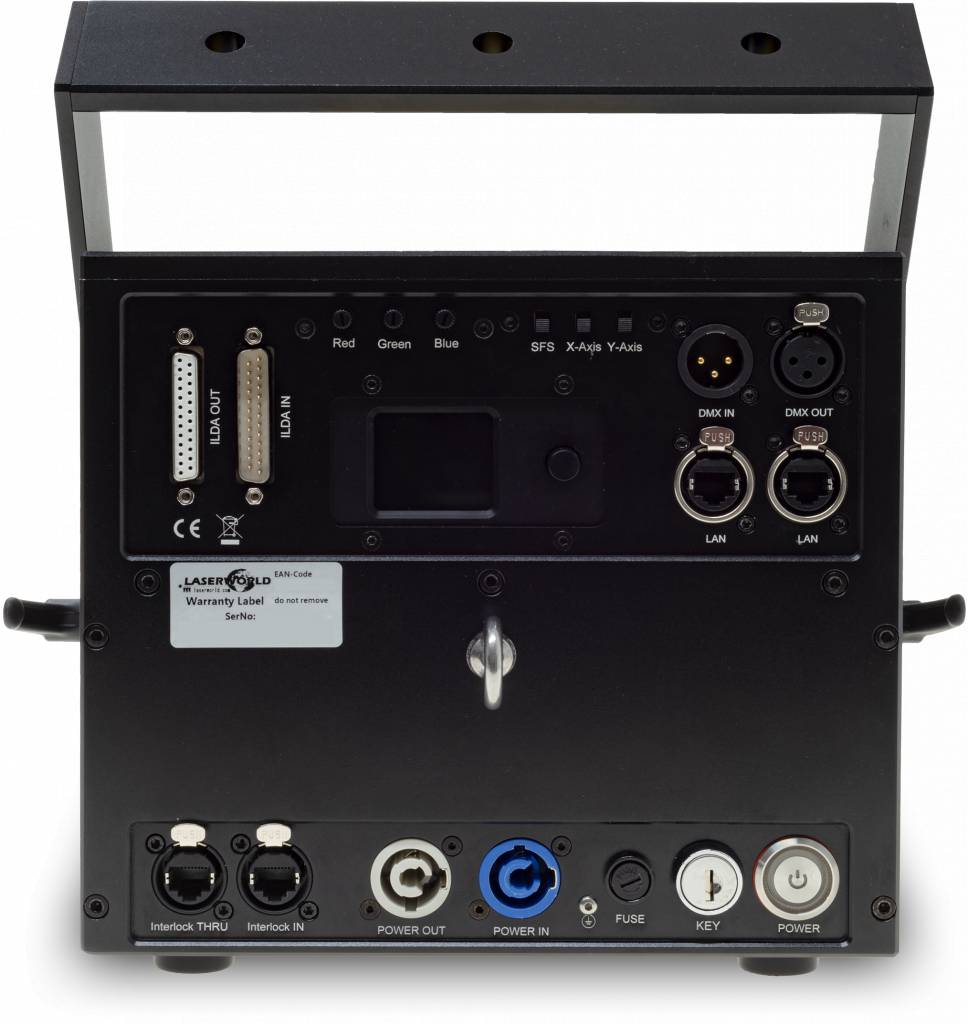

At the back of the unit there are trim pots for color settings, so the color balance can be quickly adjusted. The X- / Y-axis can also be mirrored through switches. Additionally the scan safety can be set at the backside of the laser system.
+ Integrated ShowNET incl. free laser show software
The Laserworld PL-10.000RGB MK3 features an integrated ShowNET network interface with free laser control software included!
Start with your own professional laser show thanks to the intuitive Showeditor laser show software which comes with every new Laserworld PL-10.000RGB MK3 for free. The Showcontroller software is supported as well and can be purchased additionally.
The integrated ShowNET allows for direct input through ILDA and LAN. Besides DMX, it is possible to trigger single frames via ArtNet. You can play custom frames and shows from an integrated SD card (included in delivery) – even in stand-alone mode!
There are two different DMX modes:
(1) DJ Mode with the most used features for beginners. Only a few DMX channels are used for a quick and easy access to the most important adjustments directly at the laser system.
(2) Professional Mode with all DMX features especially for users with a DMX console. All adjustments can be triggered and allow for full control of the professional laser show.
The integrated ShowNET works as DAC (digital to analog converter) and enables ILDA streaming
> More details
ShowNET Internal Control:
![DMX DMX](/images/al_gfx/online-manual/icons/Operation_modes_icon_dmx.png)
DMX Control
![Art-Net Art-Net](/images/al_gfx/online-manual/icons/Operation_modes_icon_artnet.png)
ArtNet Control
![Automatic operation, Stand-alone Automatic operation, Stand-alone](/images/al_gfx/online-manual/icons/Operation_modes_icon_auto.png)
Automatic / Stand Alone
![Master-Slave Master-Slave](/images/al_gfx/online-manual/icons/Operation_modes_icon_masterslave.png)
Master-Slave
![ILDA Streaming ILDA Streaming](/images/al_gfx/online-manual/icons/Operation_modes_icon_ildastreaming.png)
ILDA Streaming
External ILDA Standard Control:
![ILDA connector ILDA connector](/images/Logos/shownet_compatible/ilda_connector.png)
Analog ILDA
Optional control options (modification required!):
Optional control options require modifications to the general laser setup. Other operation modes or compatibilities may get lost.![Pangolin Software Pangolin Software](/images/Logos/Pangolin_logo.png)
Quickshow
![Pangolin Software Pangolin Software](/images/Logos/Pangolin_logo.png)
![Pangolin Software Pangolin Software](/images/Logos/Pangolin_logo.png)
![Pangolin Software Pangolin Software](/images/Logos/Pangolin_logo.png)
Beyond
> More details
