Laserworld DS-15.000 FB4 IP65
- IP65 waterproof housing
- Pure RGB diode laser system with 15'000 mW power
- Integrated Pangolin FB4 interface
- DMX and Art-Net controllable
- Stand-alone operation capability
- Computer controllable via FB4 (QuickShow software, BEYOND-Software)
- Graphics capable – 30kpps @ 8°
- Analog modulation for linear color fading

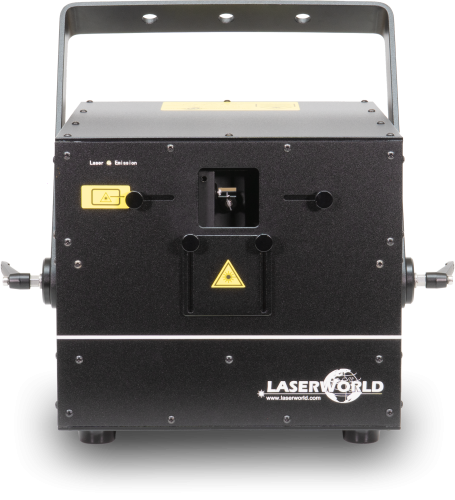

- Laser beam masking plate on the front panel
- 360° mounting bracket
- IP65 waterproof housing
- Pure RGB diode laser system with 15'000 mW power
- Integrated Pangolin FB4 interface
- DMX and Art-Net controllable
Bestens geeignet für
Architektur, Werbung
Kunst und Illumination
Mobile DJs, Hochzeiten
LASERWORLD
Laserworld DS-15.000 FB4 IP65
The Laserworld DS-15.000 FB4 IP65 laser systems feature a new IP65-rated housing. These full-color diode lasers offer linear color fading combined with high visibility, thanks to analog modulation and intense color saturation.
Via the internal FB4 interface, the laser system offers versatile control options, including DMX and Art-Net, as well as direct computer control via network. Custom effects and animations can be uploaded from the software to the internal memory and then be triggered via DMX/Art-Net, allowing for live adjustments in color, position, or additional effects. The Laserworld DS-15.000 FB4 IP65 includes the professional QuickShow software (BEYOND-ready), enabling the display of custom or pre-programmed laser shows, logos, texts, and high-end graphics.

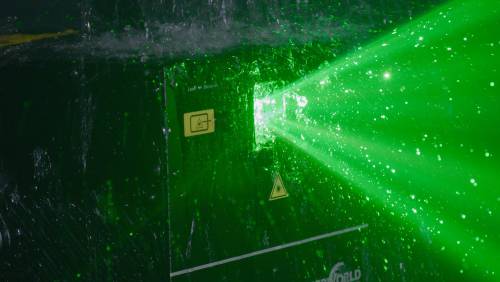

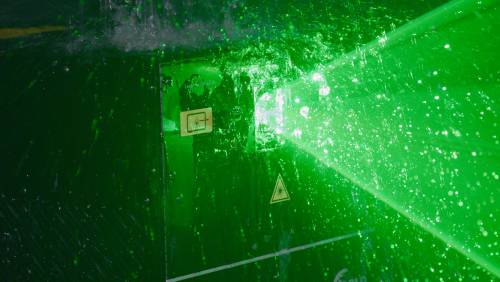

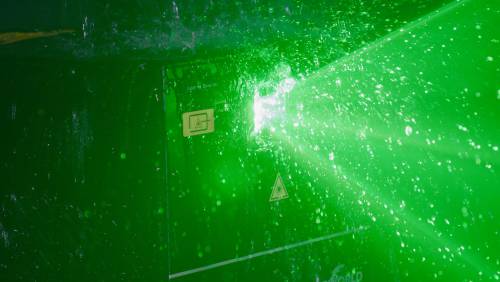

The Laserworld DS-15.000 FB4 IP65 features a beam of approximately ca. 5.5 mm / 1.1 mrad. Guaranteed output power is 15'000 mW, with individual RGB values of 4'000 mW / 638 nm red, 4'500 mW / 520 nm green, and 8'000 mW / 450 nm blue. It has a scanning speed of 30kpps @ 8° and a maximum scan angle of 50°. Thanks to its IP65 rating, the laser is not only perfectly suited for outdoor use but also reduces maintenance requirements to an absolute minimum.
Via the internal FB4 interface, the laser system offers versatile control options, including DMX and Art-Net, as well as direct computer control via network. Custom effects and animations can be uploaded from the software to the internal memory and then be triggered via DMX/Art-Net, allowing for live adjustments in color, position, or additional effects. The Laserworld DS-15.000 FB4 IP65 includes the professional QuickShow software (BEYOND-ready), enabling the display of custom or pre-programmed laser shows, logos, texts, and high-end graphics.
The Laserworld DS-15.000 FB4 IP65 features a beam of approximately ca. 5.5 mm / 1.1 mrad. Guaranteed output power is 15'000 mW, with individual RGB values of 4'000 mW / 638 nm red, 4'500 mW / 520 nm green, and 8'000 mW / 450 nm blue. It has a scanning speed of 30kpps @ 8° and a maximum scan angle of 50°. Thanks to its IP65 rating, the laser is not only perfectly suited for outdoor use but also reduces maintenance requirements to an absolute minimum.
DMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
The laser can be controlled with a standard DMX controller or DMX software.
LAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
FB4 INTEGRATED:
The laser can be controlled through the integrated Pangolin FB4 board
The laser can be controlled through the integrated Pangolin FB4 board
For Dealers and Distribution Partners
See all prices and availability.
Subscribe to newsletter
Stay up to date with the latest news.
Compatible Control
External ILDA Standard Control
Technical Details
| Guaranteed Power at aperture | 15'000 mW |
| Power Red | 4'000 mW / 638 nm |
| Power Green | 4'500 mW / 520 nm |
| Power Blue | 8'000 mW / 450 nm |
| Beam Specifications | ca. 5.5 mm / 1.1 mrad |
| Scanner | 30kpps @ 8° |
| Max. Scan Angle | 50° |
| Laser Source | Diode |
| Laser Class | 4 |
| Operation Modes | ILDA, DMX, Art-Net, LAN, integrated SD card, stand-alone |
| Basic Patterns | Available for download |
| Accessories | Key, Interlock dongle, power cable, manual |
| IP rating | 65 |
| Power Supply | 85 V - 250 V / AC, 50/60 Hz |
| Power Consumption | 120 W |
| Dimensions | 292 x 232 x 201 mm (L x W x H) |
| Weight | 11.5 kg |
| EAN / MPN | 7640144996086FB4 |
| Delivery Scope | Key, Interlock dongle, power cable, manual |
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
