Laserworld CUBE 3
- Controllable via mobile-app
- built-in battery (3.500 mAh)
- Typical power of 3'000 mW
- Diode-only laser system
- Computer controllable via ILDA
- Sound-to-light and stand-alone mode
- DMX controllable, master-slave operation possible
- 30kpps @ 8° scanners
- Controllable via mobile-app
- built-in battery (3.500 mAh)
- Typical power of 3'000 mW
- Diode-only laser system
Bestens geeignet für
LASERWORLD
Laserworld CUBE 3
|
New! The Cube Laser Control app, a mobile app-controlled laser system developed exclusively for the CUBE Series.
New for the CUBE: a built-in battery with 3.500 mAh, enabling wireless operation and maximum mobility. The app is only compatible with the Laserworld CUBE Series and lets you control the laser system conveniently from your smartphone or tablet. Its user-friendly interface allows you to select, create, and manage laser shows quickly and easily.The Laserworld CUBE 3 diode laser features a compact housing and is notable for its light weight.
A robust mounting bracket provides various mounting and positioning options, so the system can be used either hanging or standing. It is also ideal for permanent setups on truss systems, ceilings, or walls – perfect for small to medium-sized nightclubs, indoor events, and mobile DJs.The Laserworld CUBE 3 is a pure, analog-modulated RGB diode laser system with a total power of up to 3'000 mW. The red laser source delivers 900 mW / 638 nm, the green 950 mW / 520 nm, and the royal blue 1'700 mW / 450 nm. The laser sources offer brilliant colors and intense beams, with excellent beam specifications of ca. 5.5 mm / 1.1 mrad. The Laserworld CUBE 3 is equipped with a graphics-capable scanning system that operates at speeds of up to 30kpps @ 8° .
There is no air circulation in the optical area, minimizing maintenance and cleaning requirements.
Through DMX, in automatic and music modes, over 250 Patterns (level, tunnel, grid, waves, etc.) can be projected in various colors and speeds. Automatic mode plays patterns continuously, while music mode synchronizes them with the music.

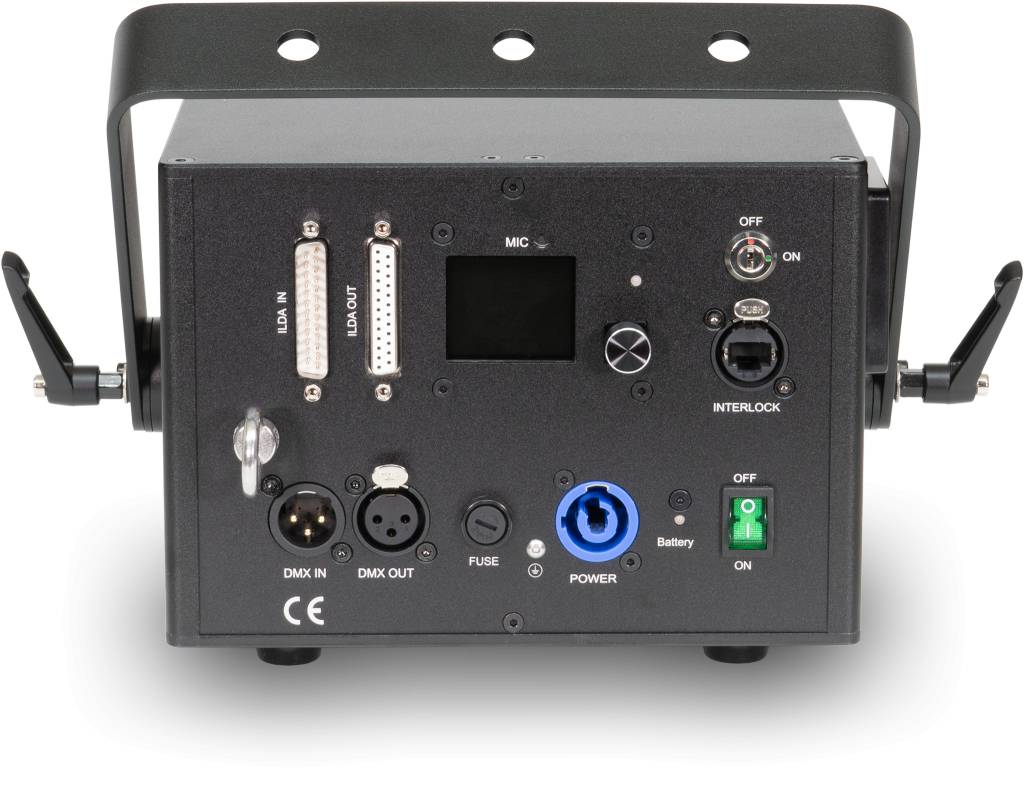

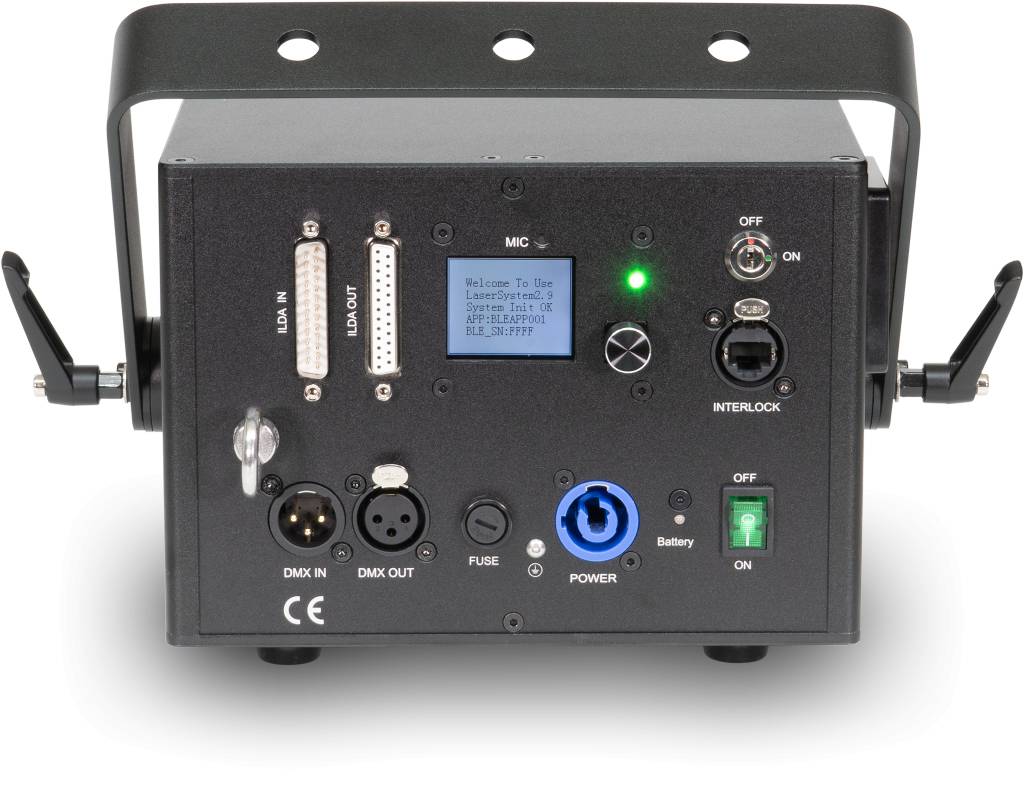

This laser system also features a master-slave mode in combination with automatic or sound-to-light operation, where one system triggers other identical systems to operate in sync. The Laserworld CUBE 3 can also be controlled via computer using the integrated professional ILDA interface, allowing custom or pre-made laser shows, logos, text, and custom graphics or animations to be displayed via laser control software.The Laserworld CUBE 3 includes safety features such as a key switch, an interlock interface, and a power switch.
The Laserworld CUBE 3 is perfect for semi-professional applications and ideally suited for bars, small to medium-sized clubs and discos, as well as mobile DJs and a wide variety of party venues.
Let the beat of the music control the laser automatically
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
The laser can be controlled with a standard DMX controller or DMX software.
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
For Dealers and Distribution Partners
See all prices and availability.
Subscribe to newsletter
Stay up to date with the latest news.
Compatible Control
External ILDA Standard Control
Technical Details
| Total Power | 3'000 mW |
| Guaranteed Power | 3'000 mW |
| Power Red | 900 mW / 638 nm |
| Power Green | 950 mW / 520 nm |
| Power Blue | 1'700 mW / 450 nm |
| Beam Specifications | ca. 5.5 mm / 1.1 mrad |
| Scanner | 30kpps @ 8° |
| Max. Scan Angle | 50° |
| Laser Source | Diode |
| Laser Class | 4 |
| Operation Modes | Auto, DMX, ILDA, S2L, Mobile-APP |
| Basic Patterns | over 250 Patterns (level, tunnel, grid, waves, etc.) |
| Accessories | power cable, manual, interlock, key |
| Power Supply | 85 V - 250 V AC, 50/60 Hz |
| Power Consumption | 50 W |
| Dimensions | 200x165x141 mm |
| Weight | 3.7 kg |
| EAN / MPN | 7640144990527 |
| Delivery Scope | power cable, manual, interlock, key |
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
Download Technical Datasheet
