Laserworld CUBE 1
A powerful, semi-professional diode laser with analog modulation, designed to create intense effects such as beams, waves, tunnels, and simple graphics. It features plug-and-play in music mode, sound-to-light control, DMX compatibility for synchronization with other lighting systems, and an ILDA connector for professional computer control. Additionally, the Laserworld CUBE 1 supports master-slave mode. With the mobile app specially developed for the CUBE, effects can be easily customized and the laser can be controlled directly from a smartphone or a tablet. Perfect for small to medium-sized clubs, indoor events, and mobile DJs.
- Controllable via mobile-app
- Typical power of 1'000 mW
- Diode-only laser system
- Computer controllable via ILDA
- Sound-to-light and stand-alone mode
- DMX controllable, master-slave operation possible
- 25kpps @ 8° scanners
-
SOUND-TO-LIGHT MODE:
Let the beat of the music control the laser automatically
STAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
MASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
ILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
New! The CUBE Laser Control app, a mobile app-controlled laser system specifically developed exclusively for the Laserworld CUBE 1.
The app is exclusively compatible with the Laserworld CUBE 1 and allows you to control the laser via smartphone or tablet. It offers a user-friendly interface that makes it easy to select, create, and control laser shows directly.

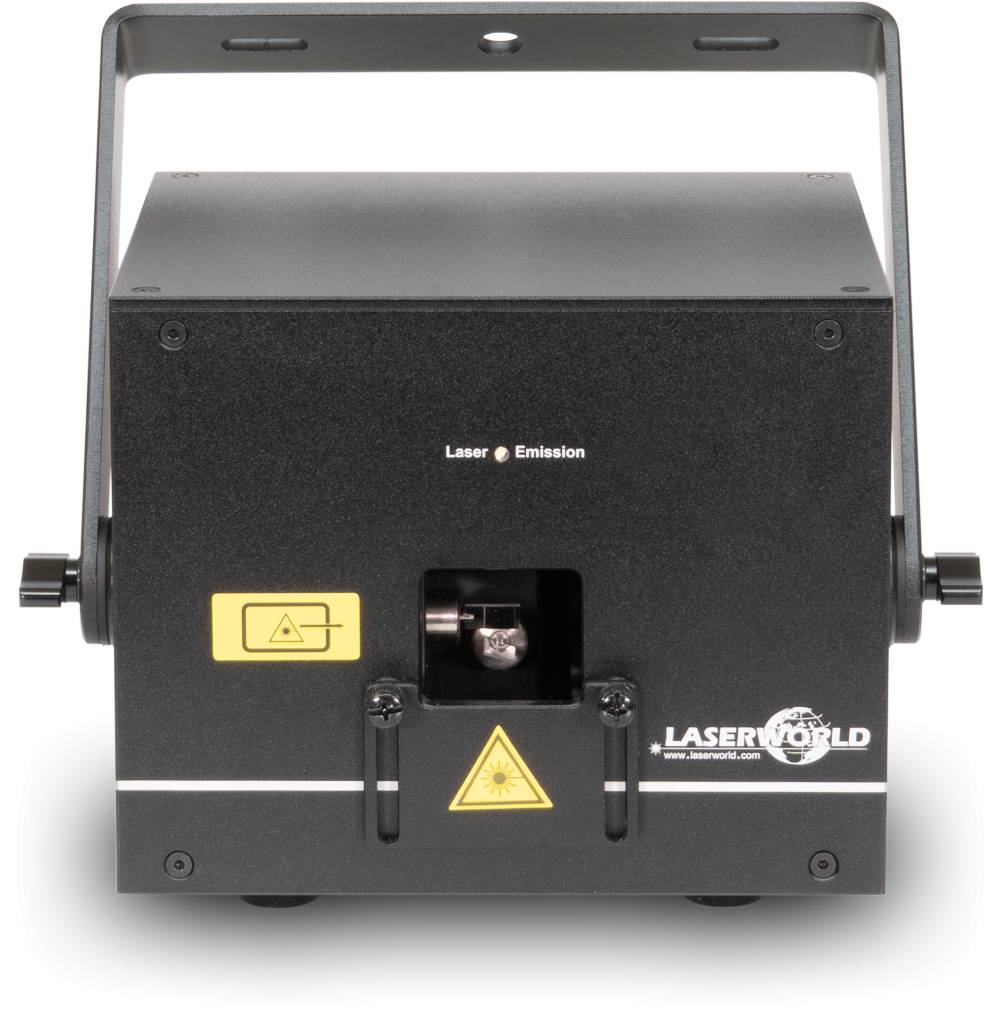

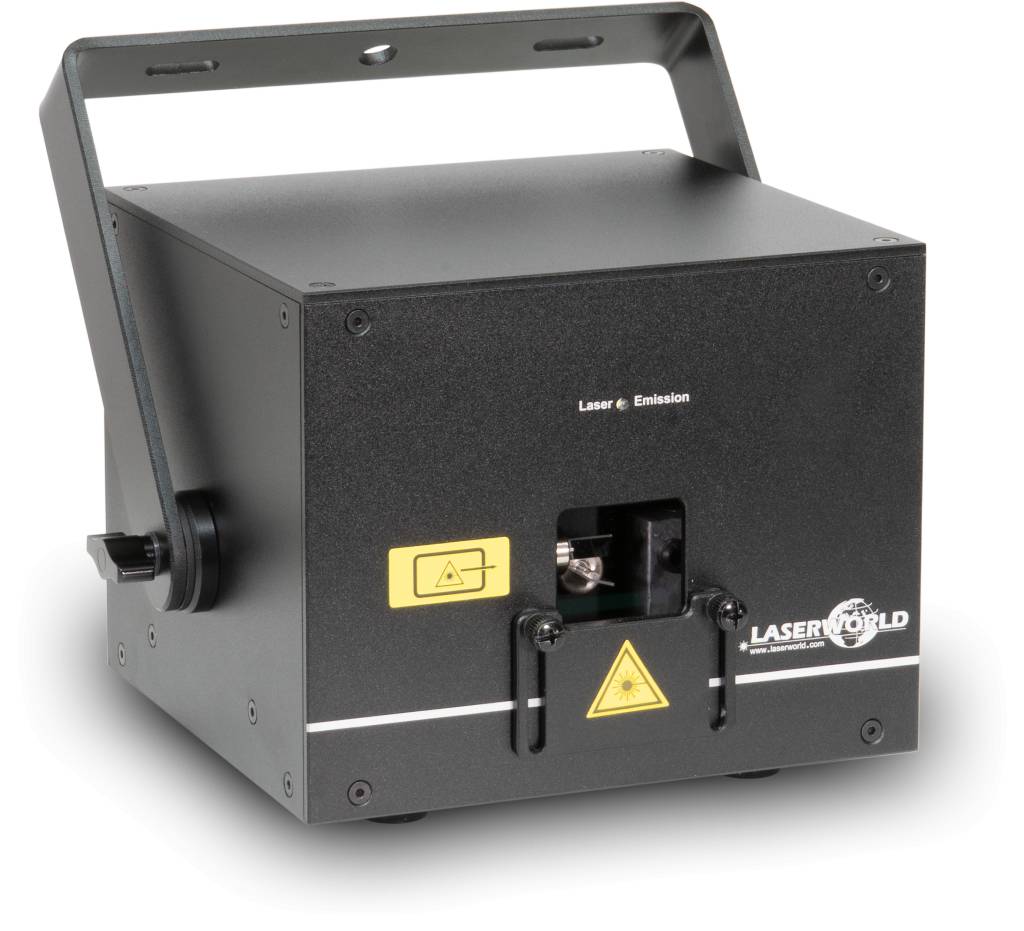

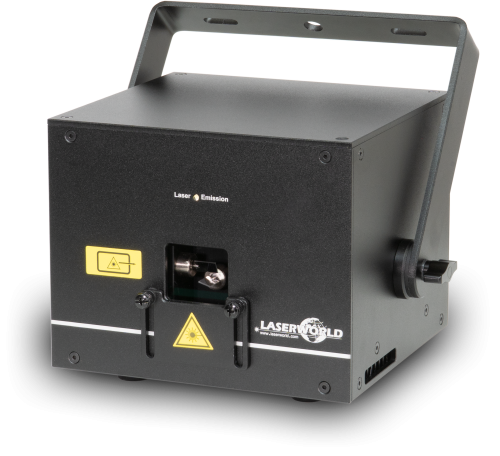

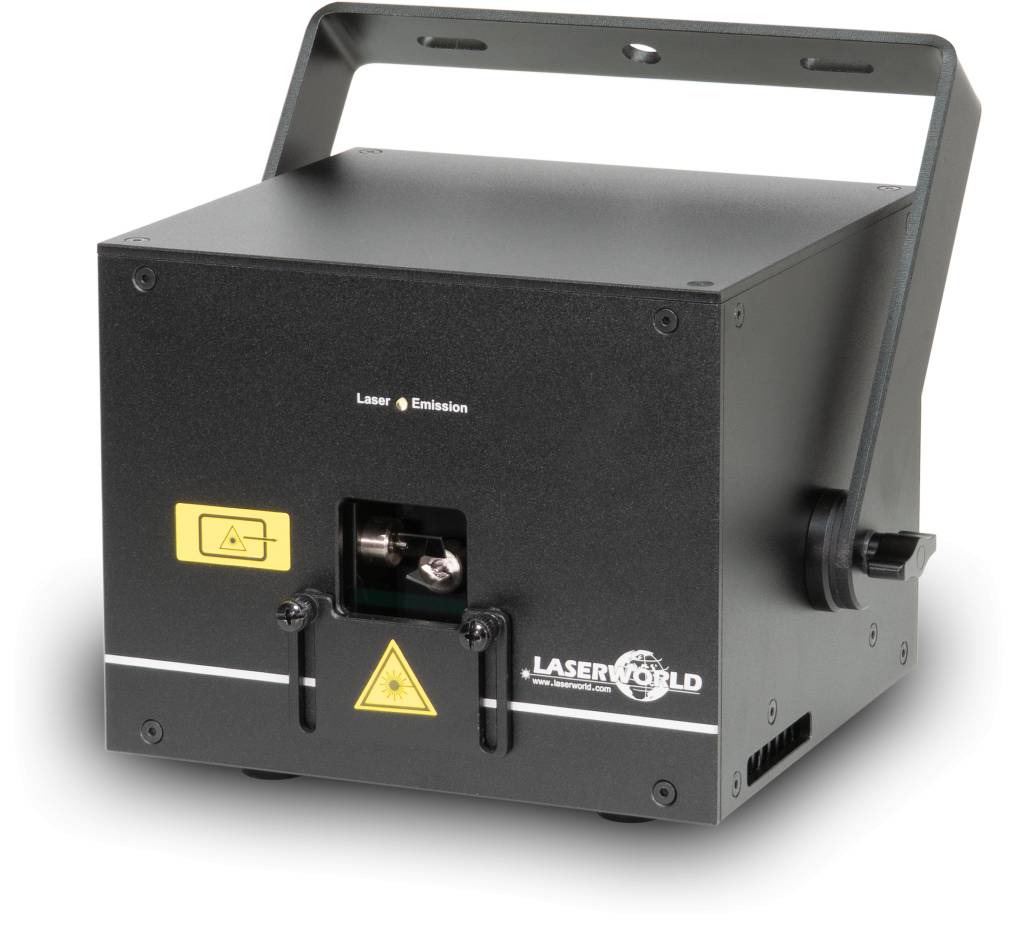

The Laserworld CUBE 1 diode laser features a compact housing, reflected in its light weight.

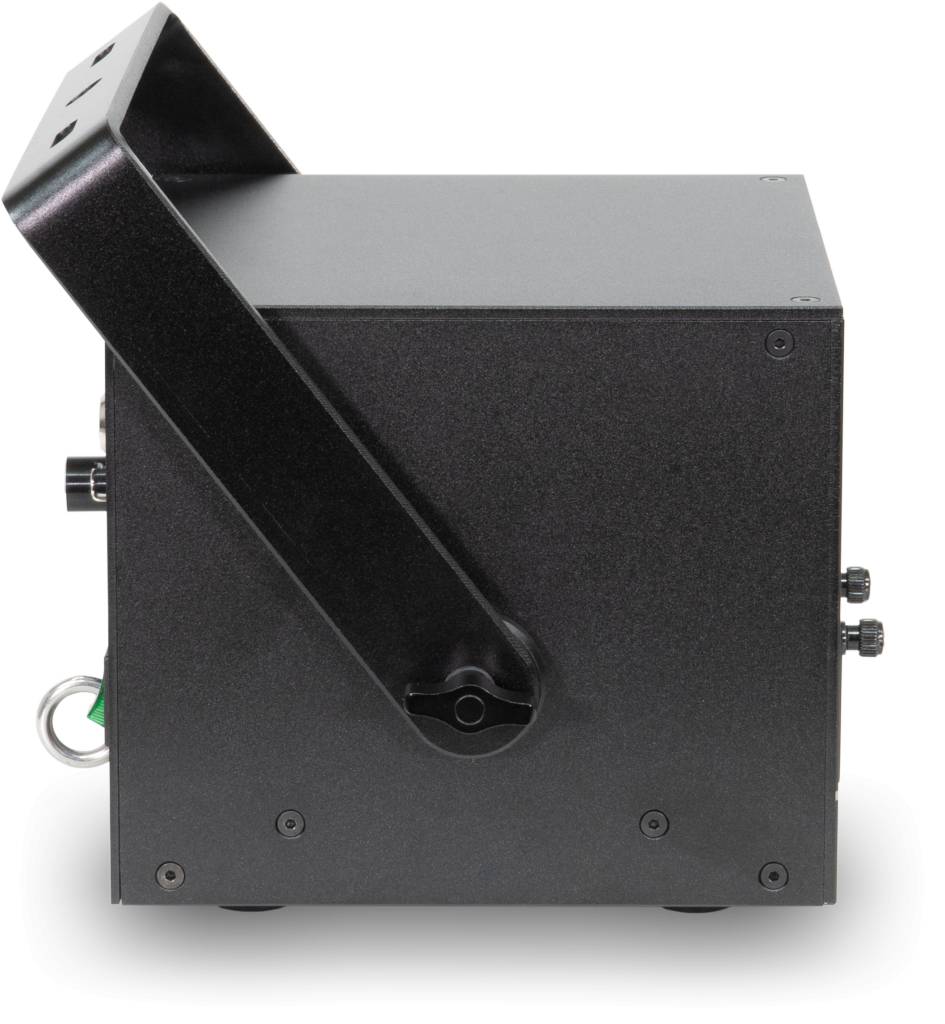

A stable mounting bracket allows for various mounting and positioning options, enabling the projector to be used both hanging and standing on the bracket. It is equally suitable for permanent installations on truss systems, ceilings, or walls – ideal for small to medium-sized nightclubs, indoor events, and mobile DJs.
The Laserworld CUBE 1 is a pure, analog-modulated RGB diode laser system with a total power of up to 1'000 mW. The red laser source has an output power of 200 mW / 638 nm, the green 200 mW / 520 nm, and the royal blue 600 mW / 450 nm. The laser sources provide brilliant colors and intense laser beams. The laser system has good beam specifications with ca. 4 mm / 1.1 mrad. The Laserworld CUBE 1 is equipped with a graphics capable scanning system that works at a speed of up to 25kpps @ 8°.
There is no air circulation in the optical area to reduce maintenance and cleaning effort.
Via DMX, in automatic and music mode, patterns like can be projected in various colors and speeds. When the automatic mode is active, the patterns are played back automatically. In music mode, the playback synchronizes with the music.
In addition to the modes already mentioned, this laser system also features a master-slave mode, where one laser system triggers other laser systems of the same type so they work in sync.
The Laserworld CUBE 1 can also be controlled via computer, using the integrated professional ILDA interface. This allows for displaying custom or pre-made laser shows, logos, text, as well as custom graphics and animations in combination with laser control software.
The Laserworld CUBE 1 includes safety features such as a key switch, an interlock interface, and a power switch.
The Laserworld CUBE 1 is perfect for semi-professional applications and is ideally suited for bars, small to medium-sized clubs and discos, as well as for mobile DJs, and party venues of all kinds.
