Laserworld CS-1000RGB MKIII

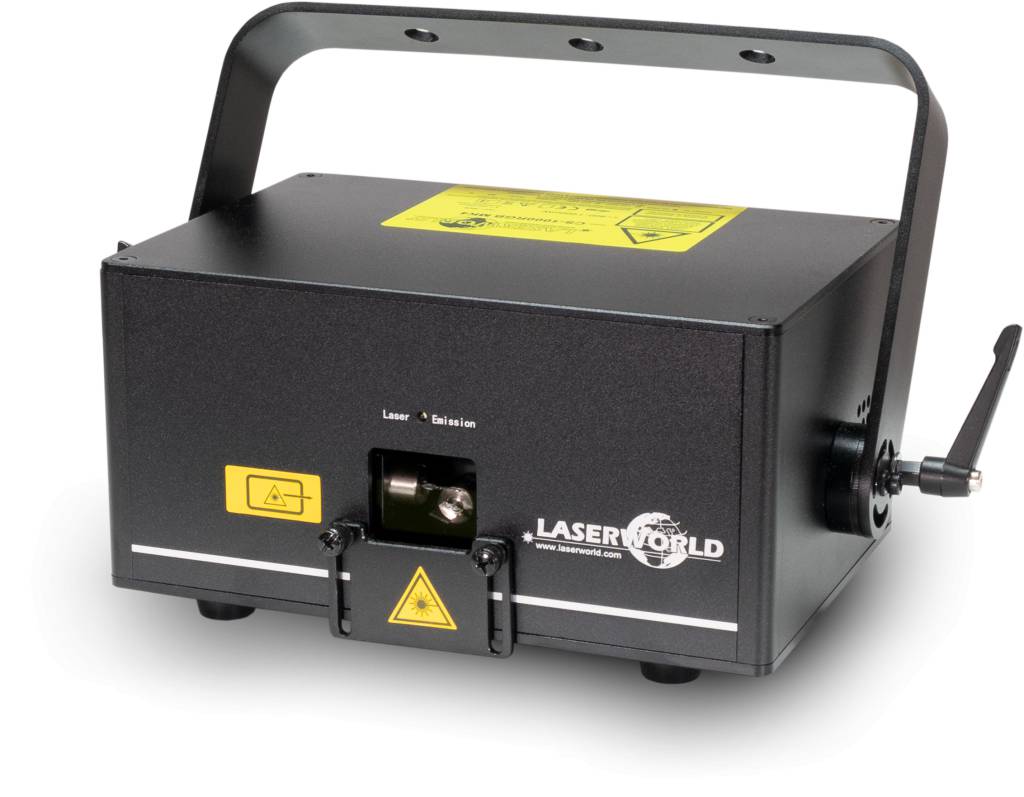

Laserworld CS 1000RGB Fl S
A powerful semi-professional pure diode laser, capable of intense standard laser effects like beams, waves and tunnels but also basic graphics. This laser has easy plug and play, sound-to-light and stand-alone modes, DMX control, so it can be controlled with the rest of your lighting, but also has an ILDA port for professional computer control. Of course, the Laserworld CS-1000RGB MKIII can also be operated in master-slave mode. Perfect for small to medium sized nightclub installs, indoor events and mobile DJs.
  • 1 W RGB laser system
  • DMX controllable, master-slave operation possible
  • Diode-only laser system
  • Computer controllable via ILDA
  • Sound-to-light and stand-alone mode
  • Front panel laser beam masking plate
  • Capable of basic graphics, texts and logos
  • Several hundred colors, including white
  • 28 kpps @ 8° ILDA scanners
  • 360° mounting bracket
Laserworld CS 1000RGB Graphics 05 Beam
Laserworld CS 1000RGB Graphics 03 Beam
Laserworld CS 1000RGB Graphics 02 Beam
Laserworld CS 1000RGB Graphics 01 Beam
Laserworld CS 1000RGB 03 Beam
Laserworld CS 1000RGB Graphics 04 Beam
Laserworld CS 1000RGB 20 Beam1
Laserworld CS 1000RGB 21 Beam1
Laserworld CS 1000RGB 22 Beam1
Laserworld CS 1000RGB 24 Beam1
Laserworld CS 1000RGB 23 Beam1
Laserworld CS 1000RGB 07 Beam
Laserworld CS 1000RGB 04 Beam
Sound-to-light modeSOUND-TO-LIGHT MODE:
Let the beat of the music control the laser automatically
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
ILDA connectionILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
Laserworld CS 1000RGB Fl S
Laserworld CS 1000RGB Fr S

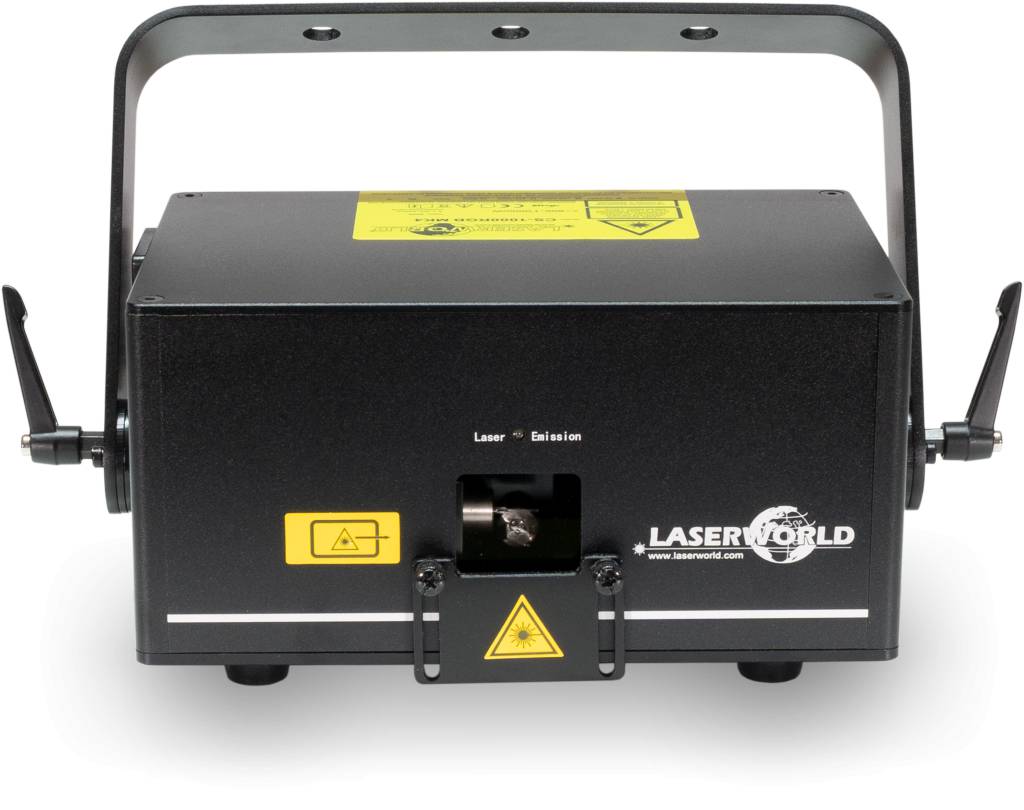

Laserworld CS 1000RGB F S
Laserworld CS 1000RGB B S
READ MORE PRODUCT DETAILS

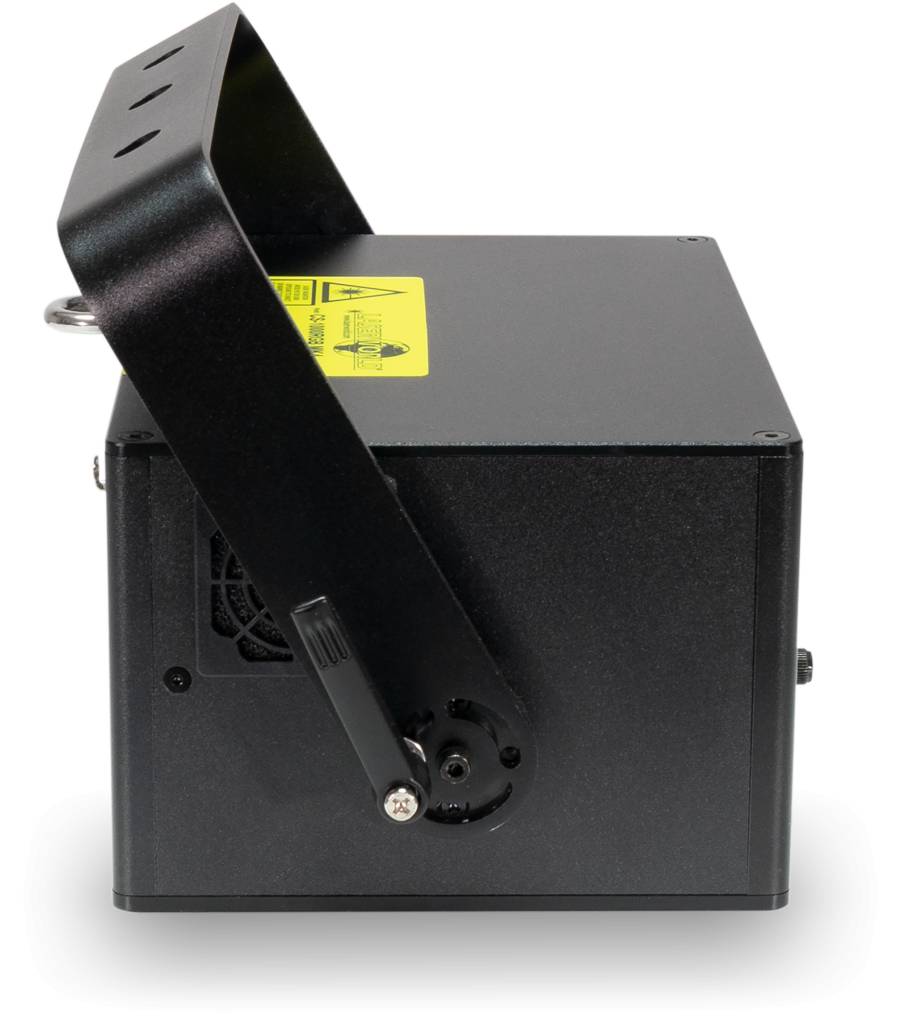

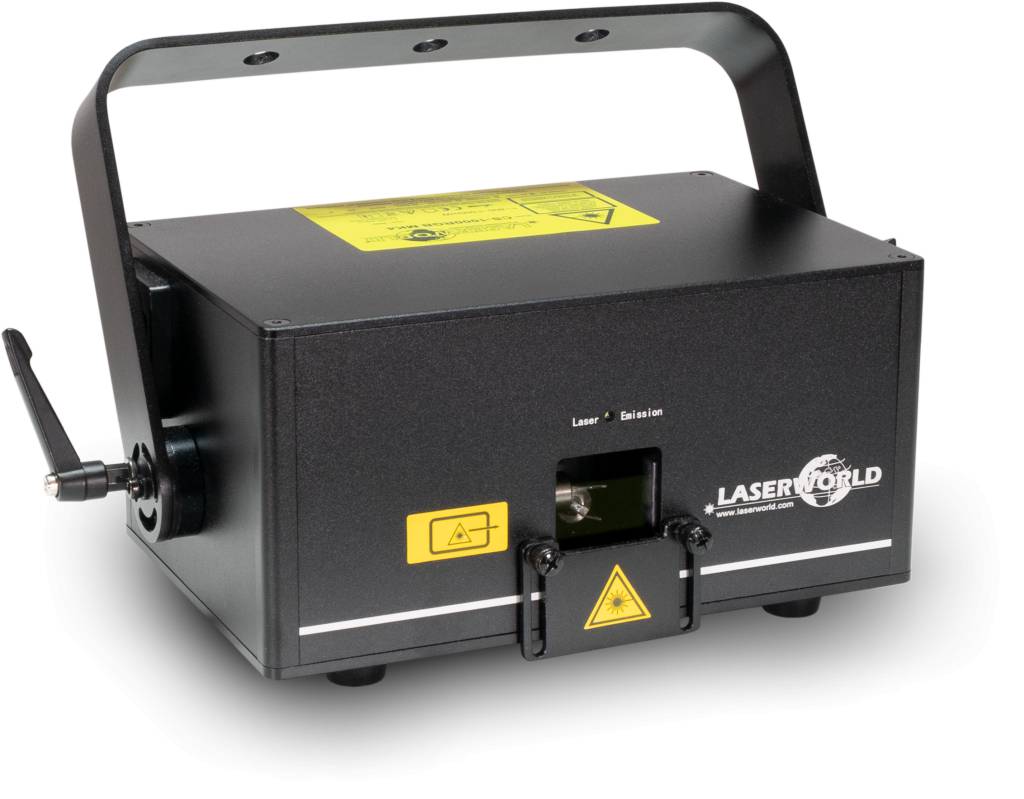

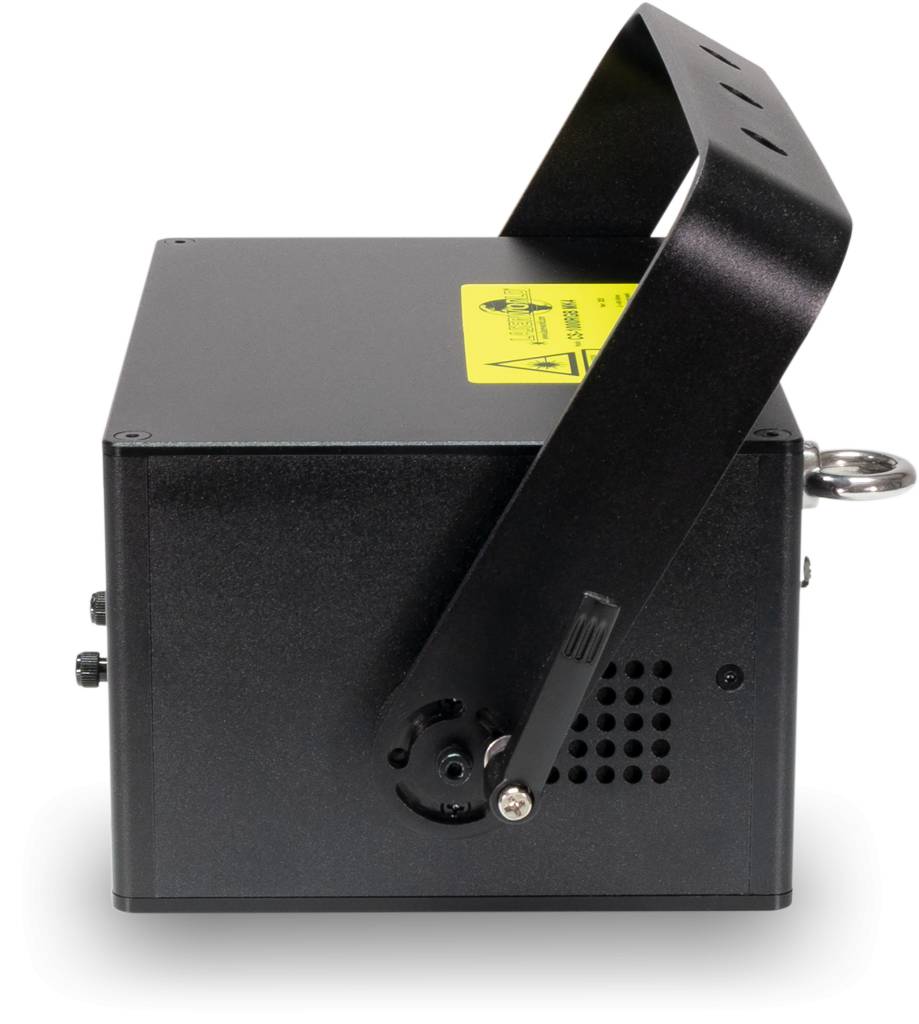

The Laserworld CS-1000RGB MKIII show laser projector comes with a completely new designed compact housing, which is light weight and has a stable bracket. The solid bracket allows for different mounting positions: a hanging as well as a standing installation is possible - ideal for mobile DJs and temporary laser shows, but also for fixed installations at a truss or at the ceiling.

The Laserworld CS-1000RGB MKIII is a pure diode multi color RGB laser system with a total output power of up to 1'000 mW and a guaranteed output power of 800 mW. The red laser source has an output power of 200 mW / 650 nm, the green 70 mW / 520 nm and the royal-blue laser source has an output power of 530 mW / 450 nm. The laser sources ensure brilliant colors and powerful laser beams. The projector has good beam specifications with ca. 3 mm / 1.1 mrad. The galvo system has a scan speed of up to 28 kpps @ 8° ILDA.

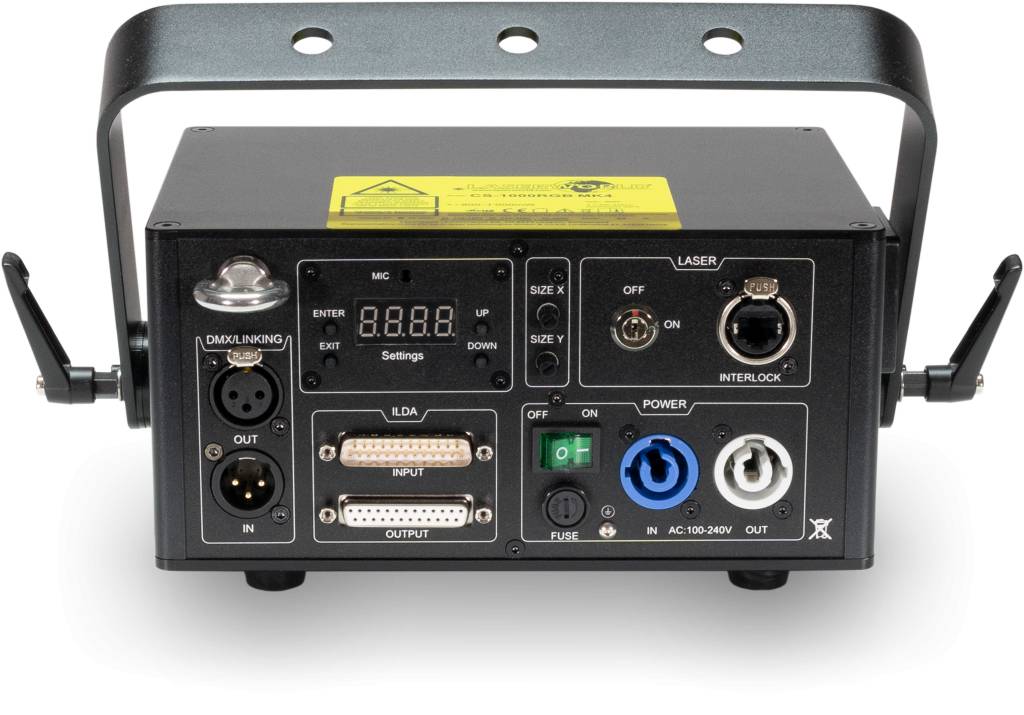

Pattern size can be set by two rotary buttons (X and Y axis) on the rear side of the housing. The sensitivity of the microphone can be adjusted via the integrated display.

Through DMX, in the automatic mode as well as in the sound-to-light mode ca. 130 (layers, tunnels, fences, waves, etc.) can be projected in different colors and in various speed. If the automatic mode is active, the pre-programmed patterns run without assistance and in the sound-to-light mode, the laser system projects according to the sound.

Next to the modes mentioned  above, this laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX to a main projector (master projector) project the same patterns like the master projector.

The Laserworld CS-1000RGB MKIII is computer controllable through a professional ILDA interface. Thus custom or pre-programmed lasershows, logos, texts or own graphics and animations can be shown in combination with a laser control software.

There are safety features like a key switch, an interlock connector and an on-off switch.

The Laserworld CS-1000RGB MKIII is ideal for small to semi-professional applications and is perfectly suitable in bars, small to medium sized clubs and discos as well as for mobile DJs, private use and in any other party location.

SEE DETAIL PICTURES
Laserworld CS 1000RGB Graphics 05 Beam
Laserworld CS 1000RGB Graphics 03 Beam
Laserworld CS 1000RGB Graphics 02 Beam
Laserworld CS 1000RGB Graphics 01 Beam
Laserworld CS 1000RGB 03 Beam
Laserworld CS 1000RGB Graphics 04 Beam
Laserworld CS 1000RGB 20 Beam1
Laserworld CS 1000RGB 21 Beam1
Laserworld CS 1000RGB 22 Beam1
Laserworld CS 1000RGB 24 Beam1
Laserworld CS 1000RGB 23 Beam1
Laserworld CS 1000RGB 07 Beam
Laserworld CS 1000RGB 04 Beam
TECHNICAL DETAILS
Total Power
1'000 mW
Guaranteed Power
800 mW
Power Red
200 mW / 650 nm
Power Green
70 mW / 520 nm
Power Blue
530 mW / 450 nm
Beam Specifications
ca. 3 mm / 1.1 mrad
Scanner
28 kpps @ 8° ILDA
Max. Scan Angle
40°
Laser Source
Diode
Laser Class
4
Operation Modes
stand-alone, sound-to-light, DMX, ILDA, master-slave
Basic Patterns
ca. 130 (layers, tunnels, fences, waves, etc.)
Accessories
power cable, manual, interlock, key
Power Supply
85V - 250 V AC
Power Consumption
20 W
Dimensions
220 x 150 x 116 mm
Weight
2.5 kg
EAN / MPN
7640144997434
