Laserworld BeamBar 10G MK3

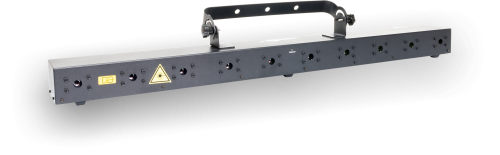

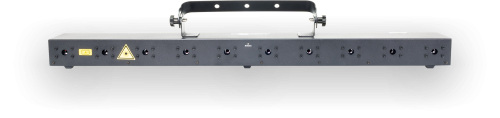

Laserworld BeamBar 10G MK3 main image
A 10 head aperture laser system with extra bright single green beam outputs and DMX control. Suitable for medium to large-sized events and great for creating stage effects.
  • 750mW guaranteed total output power
  • 10 extra bright green diode modules
  • Easy laser alignment via the front plate
  • Brightness control - analog modulation
  • DMX programmable
  • Automatic, stand-alone, and master-slave modes
    Sound-to-light modeSOUND-TO-LIGHT MODE:
    Let the beat of the music control the laser automatically
    Stand-Alone modeSTAND-ALONE MODE:
    The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
    DMX modeDMX MODE:
    The laser can be controlled with a standard DMX controller or DMX software.
    Master-Slave modeMASTER-SLAVE MODE:
    One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
Laserworld BeamBar 10G MK3 additional image 3
Laserworld BeamBar 10G MK3 additional image 4
Laserworld BeamBar 10G MK3 additional image 5
Laserworld BeamBar 10G MK3 additional image 6
This special laser effect creates fans of laser beams and can be controlled through DMX or runs in stand-alone or music mode.


The Laserworld BeamBar 10G MK3 is a bar with 10 single beam laser outlets, each equipped with a extra bright green diode laser source, what means 10 x 75mW / 520nm.

The advantages of the Laserworld BeamBar 10G MK3 are:

  • a extra bright green
  • very affordable
  • a very good beam profile

This show laser light provides an analog modulation. It means a better color fading and a much broader color hue. These facts make the Laserworld BeamBar 10G MK3 ideal for all applications requiring many different color fadings.

Each laser beam can be individually aligned through a 4-point alignment system, that can easily be accessed from the front - so no opening of the housing is necessary.

The Laserworld BeamBar 10G MK3 can be controlled through 13 DMX channels, so each laser source can be controlled individually. Thus it's possible to create many different chaser, beam or fan effects.

Due to the standard DMX compatibility, the Laserworld BeamBar 10G MK3 can easily be integrated into an existing lighting setup.

This laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX to a main projector (master projector) project the same patterns like the master projector.

The Laserworld BeamBar 10G MK3 is a great effect for stages, live gigs and nightclubs, as well as for TV Shows and show productions.



> More details

Laserworld BeamBar 10G MK3 laser beam and explanatory image 1
Laserworld BeamBar 10G MK3 laser beam and explanatory image 2



> More details

Guaranteed Power at aperture
750mW
Power Green
10 x 75mW / 520nm
Beam Specifications*
ca. 3.0mm / 1.1mrad
Laser Source
diode
Laser Class
3B
Operation Modes
DMX, stand-alone, Sound-to-Light, master-slave
Accessories
Interlock connector, manual, key
IP rating
IP4X
Power Supply
100V - 250V AC 50/60Hz
Power Consumption
50W
Dimensions
1000 x 160 x 80 mm
Weight
9.0 kg
EAN / MPN
7640144994839
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
