Laserworld BeamBar 10R MK3

Laerworld BeamBar 10R 638 MK3 Fr S
A 10 head aperture laser system with single red beam outputs and DMX control. Suitable for medium to large-sized events and great for creating stage effects.
  • 1'200 mW guaranteed total output power
  • 10 red diode modules
  • Easy laser alignment via the front plate
  • Brightness control - analog modulation
  • DMX programmable
  • Automatic, stand-alone, and master-slave modes
Laserworld BeamBar 10R 0001 Beam
Laserworld BeamBar 10R 0002 Beam
Laserworld BeamBar 10R 0003 Beam
Laserworld BeamBar 10R 0004 Beam
Laserworld BeamBar 10R 0005 Beam
Sound-to-light modeSOUND-TO-LIGHT MODE:
Let the beat of the music control the laser automatically
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
Laerworld BeamBar 10R 638 MK3 Fr S
Laerworld BeamBar 10R 638 MK3 F S
Laerworld BeamBar 10R 638 MK3 Fl S

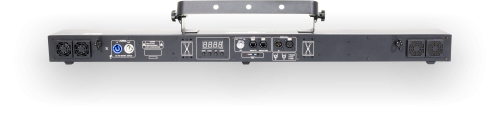

Laerworld BeamBar 10R 638 MK3 B S
This special laser effect creates fans of laser beams and can be controlled through DMX or runs in stand-alone or music mode.


The Laserworld BeamBar 10R MK3 is a bar with 10 single beam laser outlets, each equipped with a red laser diode (the bright and good visible red!), which means 10 x 120 mW / 638 nm.
Each laser beam can be individually aligned through a 4-point alignment system, that can easily be accessed from the front - so no opening of the housing is necessary.

This show laser light provides an analog modulation. It means a better color fading and a much broader color hue. These facts make the Laserworld BeamBar devices ideal for all applications requiring many different color hues and color fadings.

The Laserworld BeamBar 10R MK3 can be controlled through 13 DMX channels, so each diode can be controlled individually. Thus it's possible to create many different chaser, beam or fan effects.

Due to the standard DMX compatibility, the Laserworld BeamBar 10R MK3 can easily be integrated into an existing lighting setup.

This laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX to a main projector (master projector) project the same patterns like the master projector.

The Laserworld BeamBar 10R MK3 is a great effect for stages, live gigs and nightclubs, as well as for TV Shows and show productions.



> More details

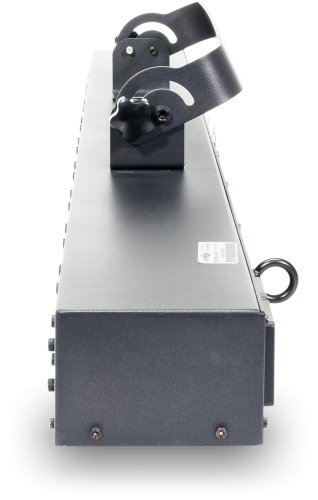

Laerworld BeamBar 10R 638 MK3 R S Detail

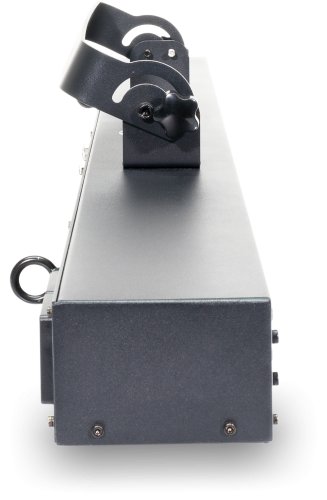

Laerworld BeamBar 10R 638 MK3 L S Detail
Laserworld BeamBar 10R 0001 Beam
Laserworld BeamBar 10R 0002 Beam
Laserworld BeamBar 10R 0003 Beam
Laserworld BeamBar 10R 0004 Beam
Laserworld BeamBar 10R 0005 Beam



> More details

Guaranteed Power at aperture
1'200 mW
Power Red
10 x 120 mW / 638 nm
Beam Specifications*
ca. 3.0 mm / 1.1 mrad
Laser Source
Diode
Laser Class
3B
Operation Modes
DMX, stand-alone, sound-to-light, master-slave
Accessories
Interlock connector, manual, key
IP rating
IP4X
Power Supply
85 V - 250 V / AC, 50/60 Hz
Power Consumption
50 W
Dimensions
1000 x 160 x 80 mm
Weight
9.0 kg
EAN / MPN
7640144994822
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.



> More details
