Remaining Stock Item
LPS-BaX 30W RGB with FB4 Max, NEW (4 pcs)
Remaining Stock Item - only as long as stock lasts!Remaining Stock Item - Only as long as Stock lasts!

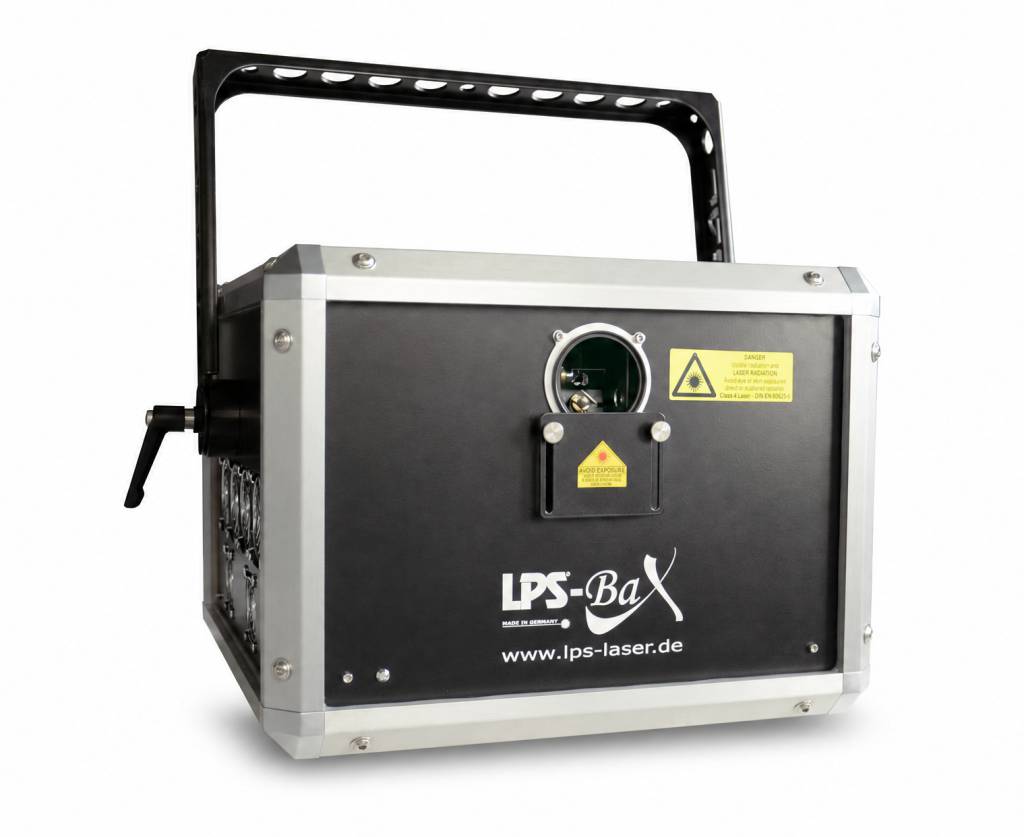

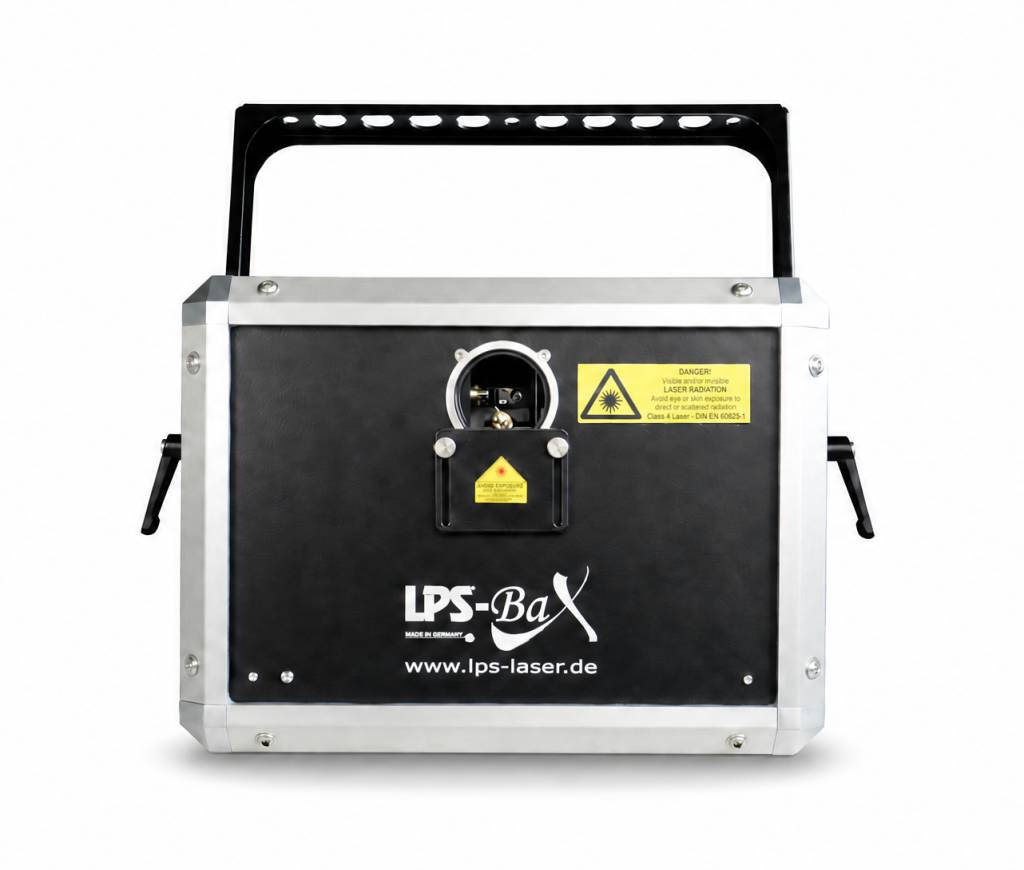

LPS-BaX RGB — Precision Engineered. Built to Perform. Made in Germany.
This exceptional Made in Germany show laser stands for everything that defines true engineering: the finest materials, innovative technology, meticulous precision, and a noble, timeless design.
With its powerful 30 W RGB output and an integrated FB4 Max by Pangolin, the LPS-BaX RGB delivers uncompromising performance. Thoughtful engineering details such as Easy Outside Beam Alignment and dedicated Service Flaps ensure effortless setup and maintenance in professional environments. The system is certified to IEC 60825-1 and EN 60825-1.
For touring professionals and installations requiring maximum protection, an optional PVC Flight Case is available for € 499 net. It is IP 67 rated, dust- and waterproof, lockable, stackable, and with rollers for easy transport.
This exceptional Made in Germany show laser stands for everything that defines true engineering: the finest materials, innovative technology, meticulous precision, and a noble, timeless design.
With its powerful 30 W RGB output and an integrated FB4 Max by Pangolin, the LPS-BaX RGB delivers uncompromising performance. Thoughtful engineering details such as Easy Outside Beam Alignment and dedicated Service Flaps ensure effortless setup and maintenance in professional environments. The system is certified to IEC 60825-1 and EN 60825-1.
For touring professionals and installations requiring maximum protection, an optional PVC Flight Case is available for € 499 net. It is IP 67 rated, dust- and waterproof, lockable, stackable, and with rollers for easy transport.
- 30'000 mW guaranteed power
- Graphics capable - EMS 8000, 30kpps @ 8°
- Max scan angle 60°
- Full colour mixing - analog modulation
- Sharp intense beams – ca. 6 x 6 mm beam diameter and low divergence of 1 mrad

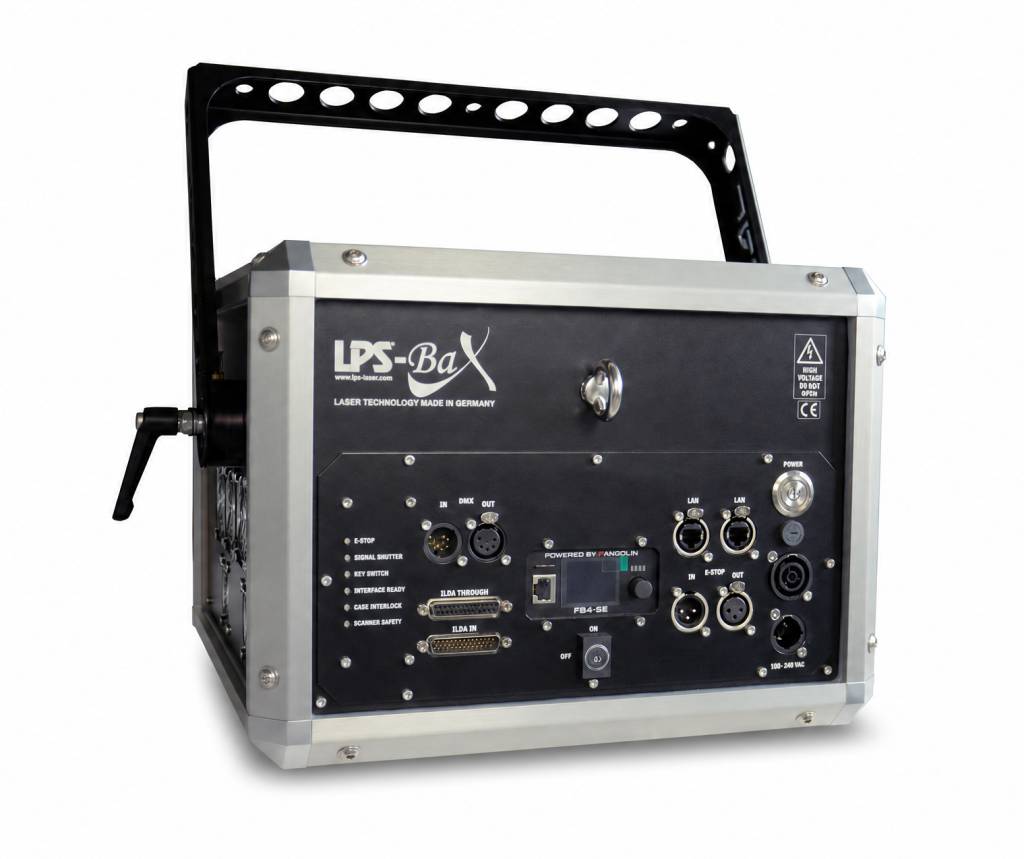

- Multiple control modes - ILDA, DMX, Art-Net and LAN
- In-built FB4 Max
- Easy Outside Beam Alignment
- Service Flaps
- XLR 3-pin Interlock
- OPTION: For touring professionals and installations requiring maximum protection, an optional PVC Flight Case is available for € 499 net. It is IP 67 rated, dust- and waterproof, lockable, stackable, and with rollers for easy transport.Special Remaining Stock Price:10,999.00 €excl. VAT, excl. shipping
price per unit
DMX MODE:The laser can be controlled with a standard DMX controller or DMX software.
ArtNET Control mode
MASTER-SLAVE MODE:One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
ILDA MODE:The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
The LPS-BaX 30W RGB with FB4 Max, NEW (4 pcs) show laser is Made in Germany and convince with many features like multiple control modes (ILDA In/Out, LAN, DMX In/Out (5-pin), Art-Net), In-built FB4 Max, Easy Outside Beam Alignment, Service Flaps. It is a diodes equipped projector, with an impressive white balance and linear color gradient with high visibility.
The LPS-BaX 30W RGB with FB4 Max, NEW (4 pcs) systems can be controlled with any ILDA laser control software via an external ILDA interface (e.g. Lasergraph DSP or others).

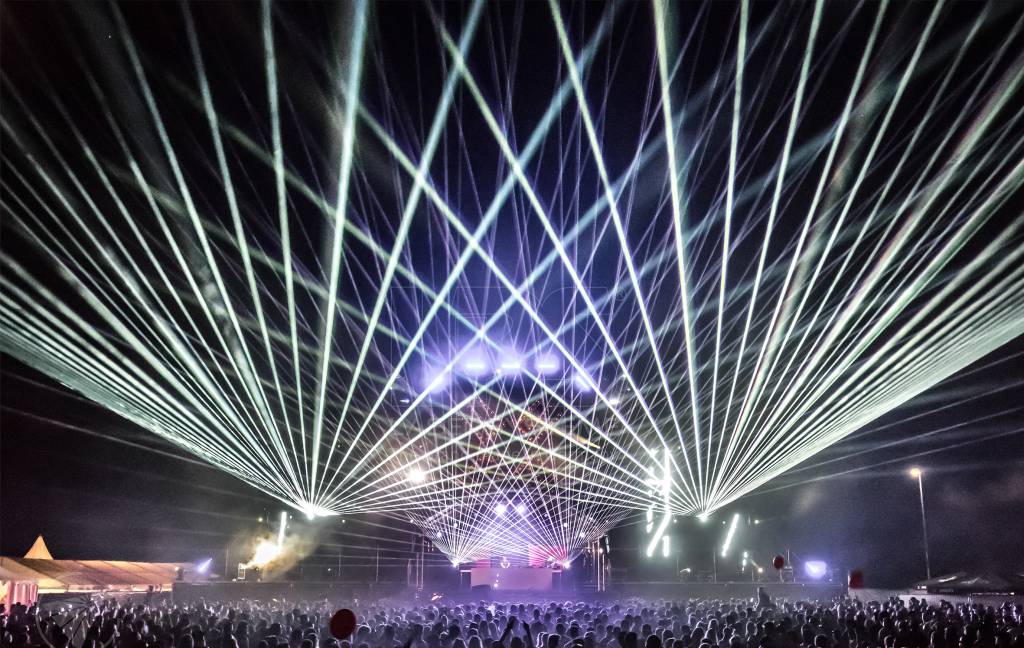

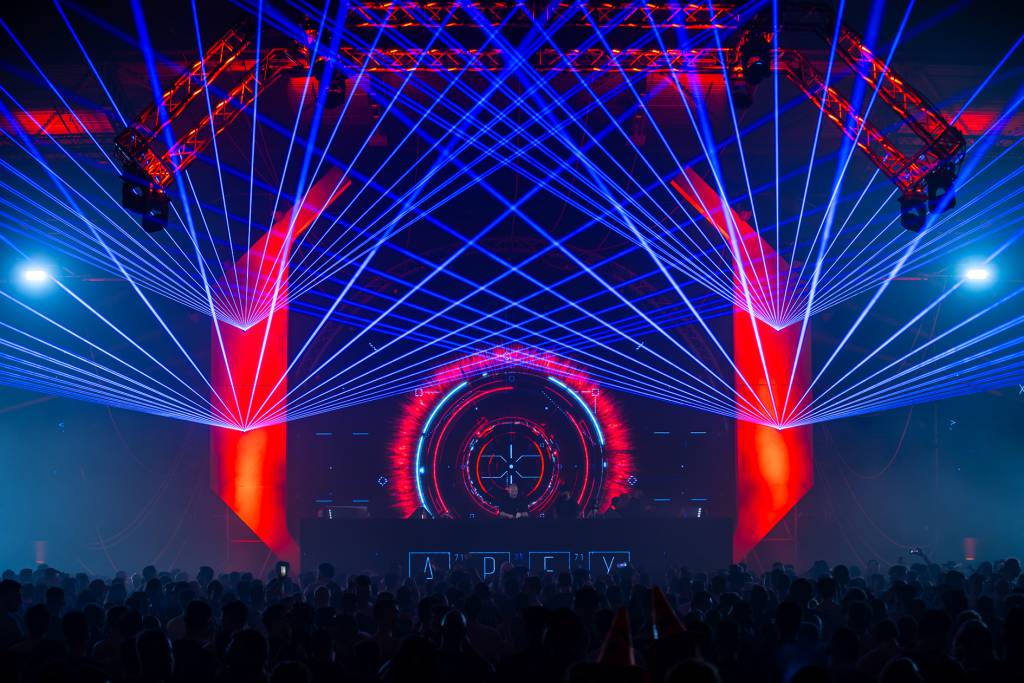

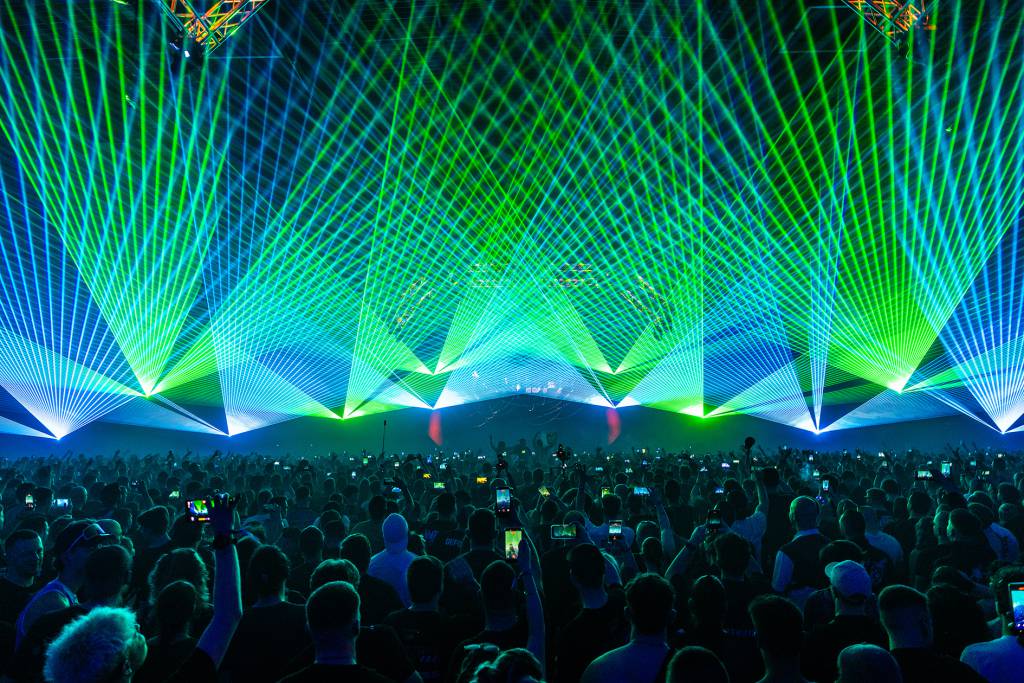

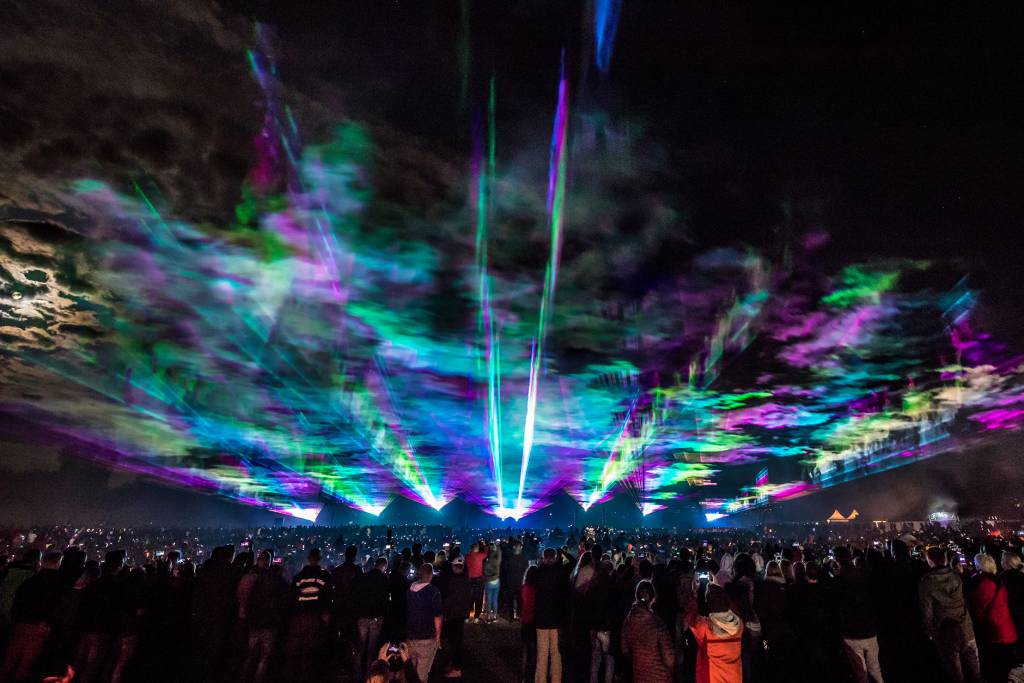

The LPS-BaX RGB is a true globetrotter. Equally at home in temporary laser shows and permanent installations, it has earned the trust of professional lighting designers, experienced restaurateurs, event organizers, hotel owners, government project managers, and theme park operators across the globe. Among its most distinguished references is the Friedrichstadt-Palast in Berlin, Germany — operator of what is considered the largest theatre stage in the world.

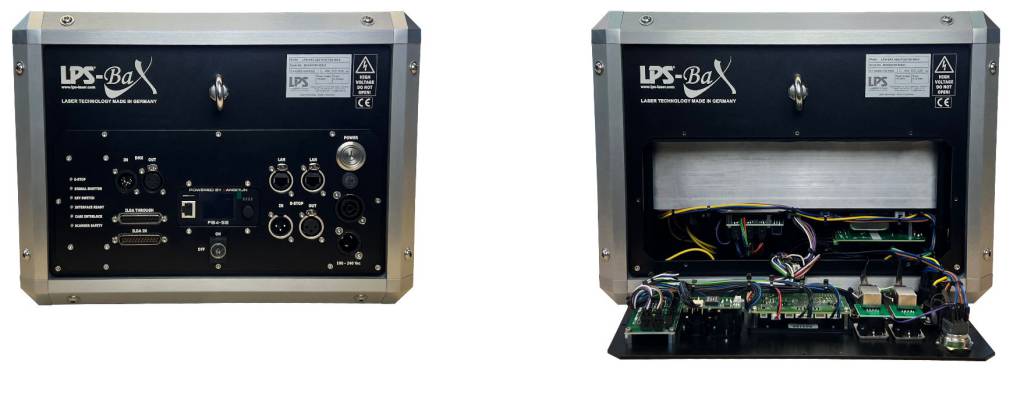

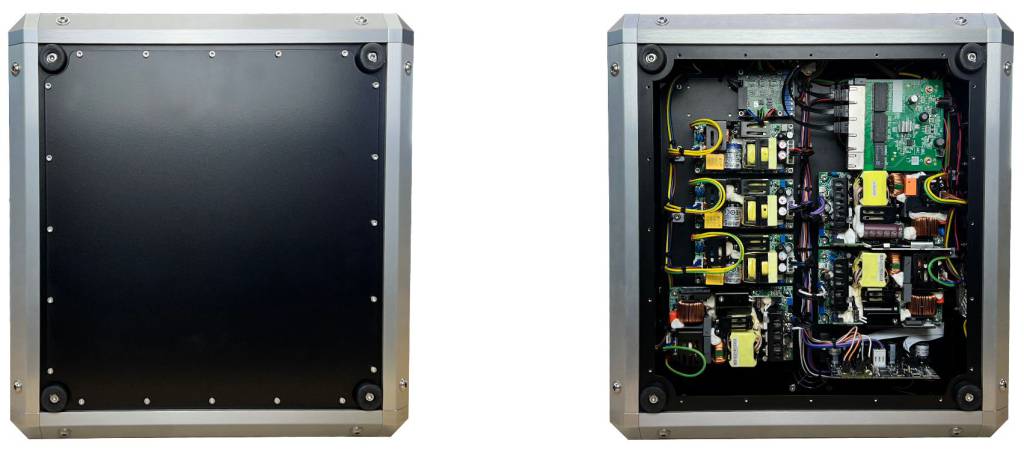

⚠️ Important Notice: The Service Flaps may only be opened by specially trained and qualified specialist personnel.
The LPS-BaX 30W RGB with FB4 Max, NEW (4 pcs) systems can be controlled with any ILDA laser control software via an external ILDA interface (e.g. Lasergraph DSP or others).
The LPS-BaX RGB is a true globetrotter. Equally at home in temporary laser shows and permanent installations, it has earned the trust of professional lighting designers, experienced restaurateurs, event organizers, hotel owners, government project managers, and theme park operators across the globe. Among its most distinguished references is the Friedrichstadt-Palast in Berlin, Germany — operator of what is considered the largest theatre stage in the world.
⚠️ Important Notice: The Service Flaps may only be opened by specially trained and qualified specialist personnel.
> More details
Guaranteed Power at aperture
30'000 mW
Power Red
8'000 mW / 638 nm
Power Green
10'000 mW / 520 nm
Power Blue
12'000 mW / 450 nm
Beam Specifications*
ca. 6 x 6 mm / 1 mrad
Scanner
EMS 8000, 30kpps @ 8°
Max. Scan Angle
60°
Laser Source
Diode
Laser Class
4
Operation Modes
ILDA, DMX, Art-Net, LAN
Accessories
PowerCON True1 cable, manual, interlock, key
Power Supply
100 V - 240 V AC, 50/60 Hz
Power Consumption
600 W
Dimensions
390 x 410 x 280 mm (L x W x H)
Weight
30 kg
EAN / MPN
XX0002
Download Technical Datasheet
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
