Laserworld CS-6000RGB

Remaining Stock Item - only as long as stock lasts!

Remaining Stock Item - Only as long as Stock lasts!

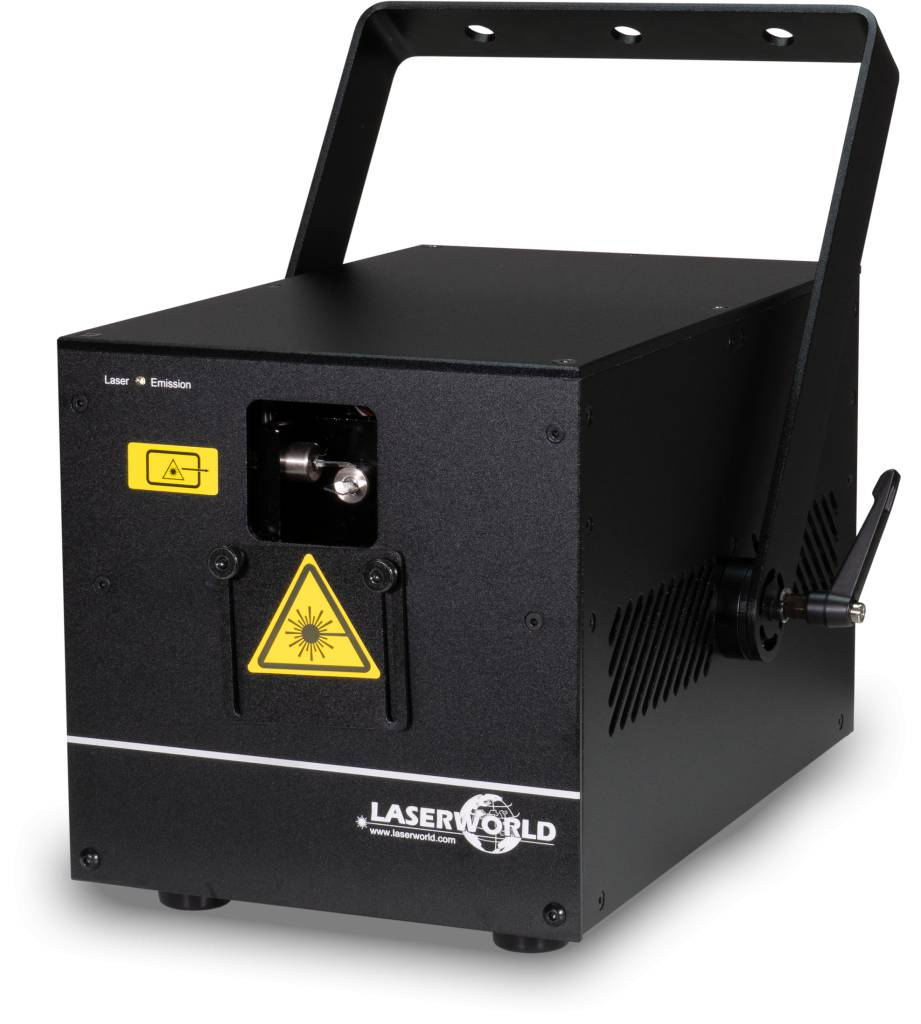

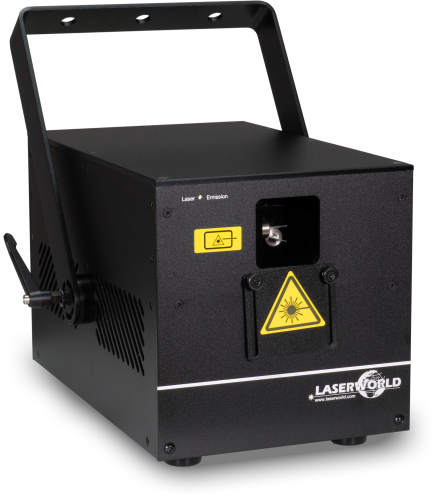

Laserworld CS-6000RGB  main image
USED. With small signs of usage.

A powerful semi-professional analog modulated pure diode laser, designed for creating intense laser effects such as beams, waves, and tunnels, as well as simple graphics. It features easy plug and play functionality, sound-to-light and stand-alone modes, DMX control for syncing with other lighting systems, and an ILDA port for professional computer control. Additionally, the Laserworld CS-6000RGB supports master-slave mode. Ideal for small to medium-sized nightclub installations, indoor events, and mobile DJs.
  • pure diode RGB laser system
  • DMX controllable, master-slave operation possible
  • Computer controllable via ILDA
  • Plug & play: Sound-to-light and stand-alone modes
  • Capable of basic graphics - 30kpps @ 8° scanners
  • Full color with analog modulation

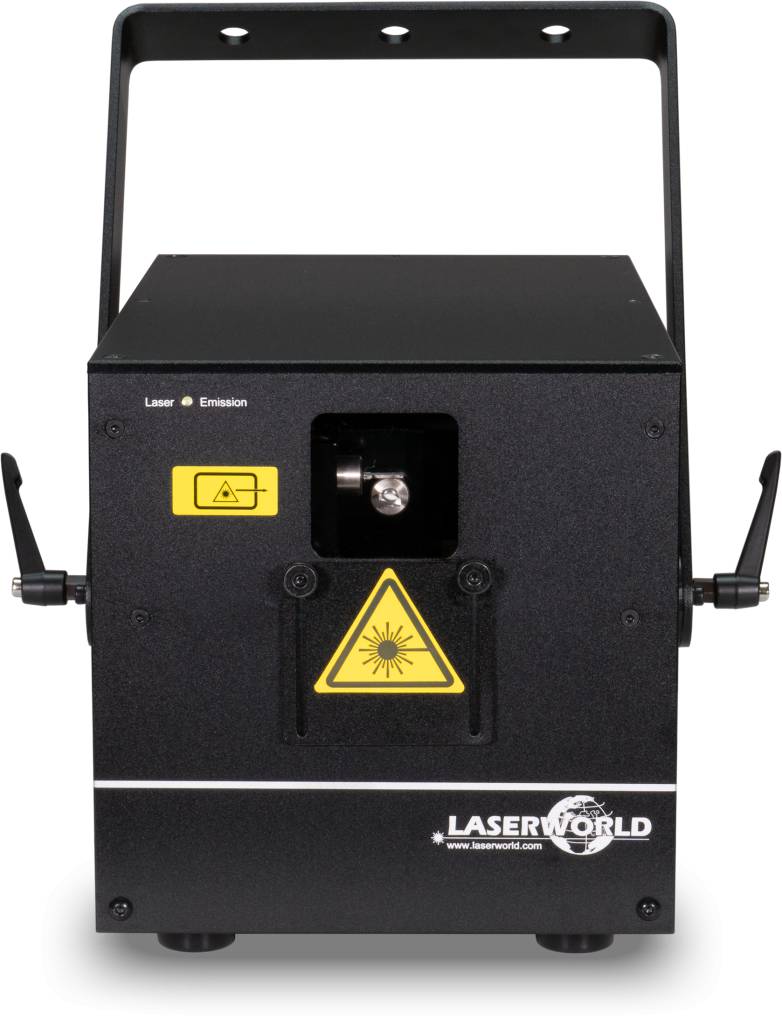

  • Front panel laser beam masking plate
  • 360° mounting bracket
    Special Remaining Stock Price:
    699.00 €

    excl. VAT, excl. shipping
    price per unit
Laserworld CS-6000RGB  additional image 1
Laserworld CS-6000RGB  additional image 2
Laserworld CS-6000RGB  additional image 3
Laserworld CS-6000RGB  additional image 4
Laserworld CS-6000RGB  additional image 5
Laserworld CS-6000RGB  additional image 6
Sound-to-light modeSOUND-TO-LIGHT MODE:
Let the beat of the music control the laser automatically
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
ILDA connectionILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.

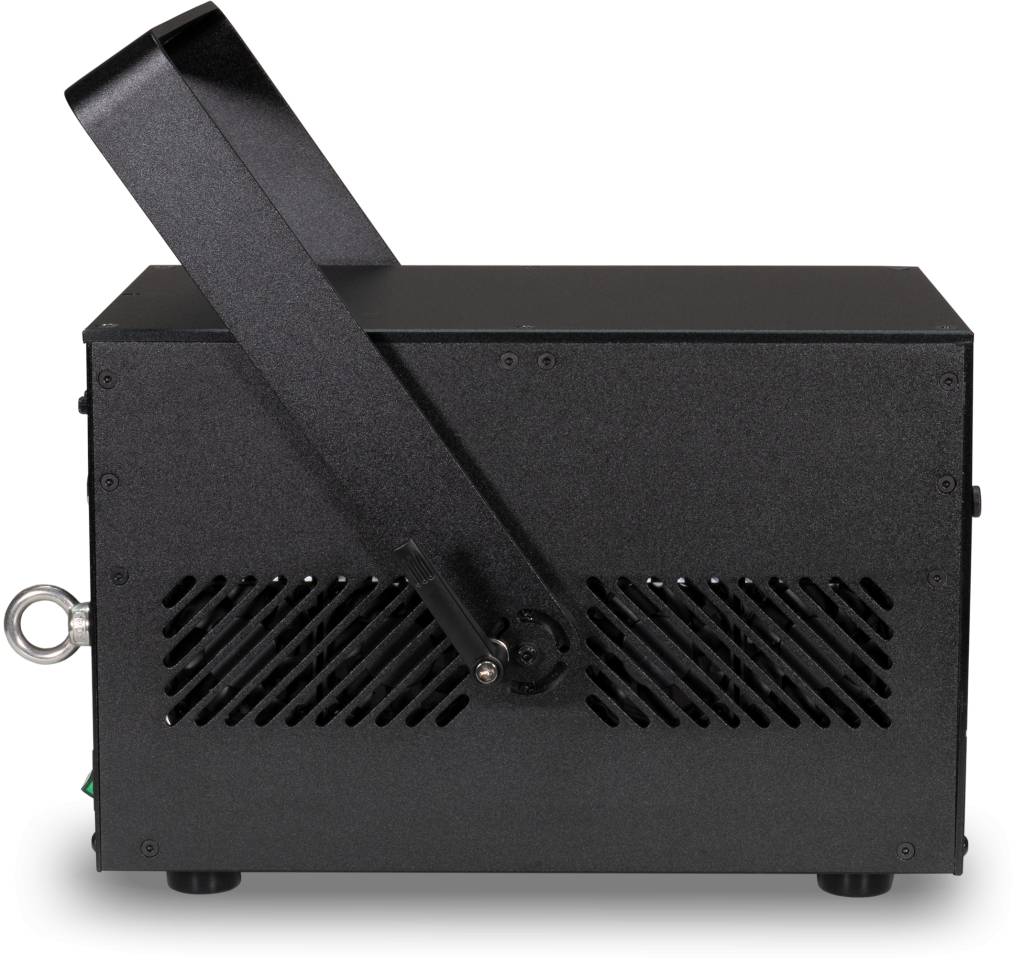

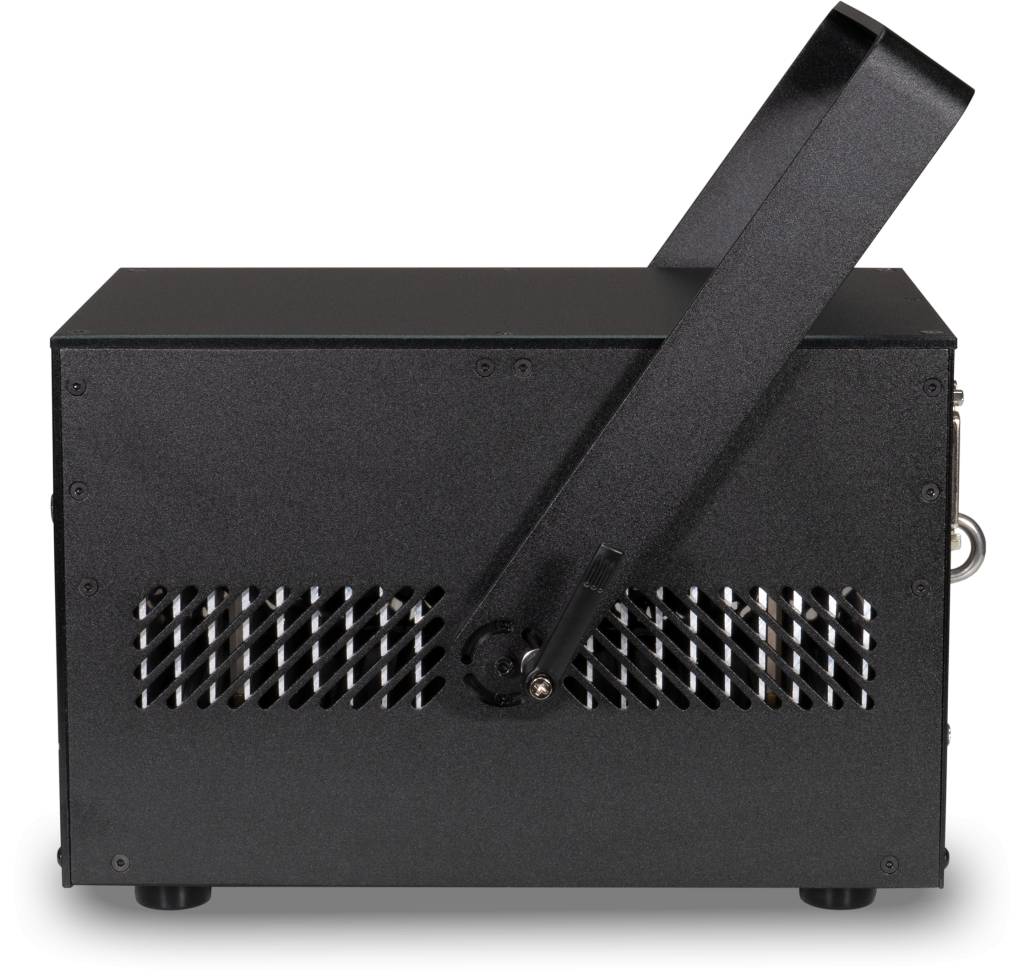

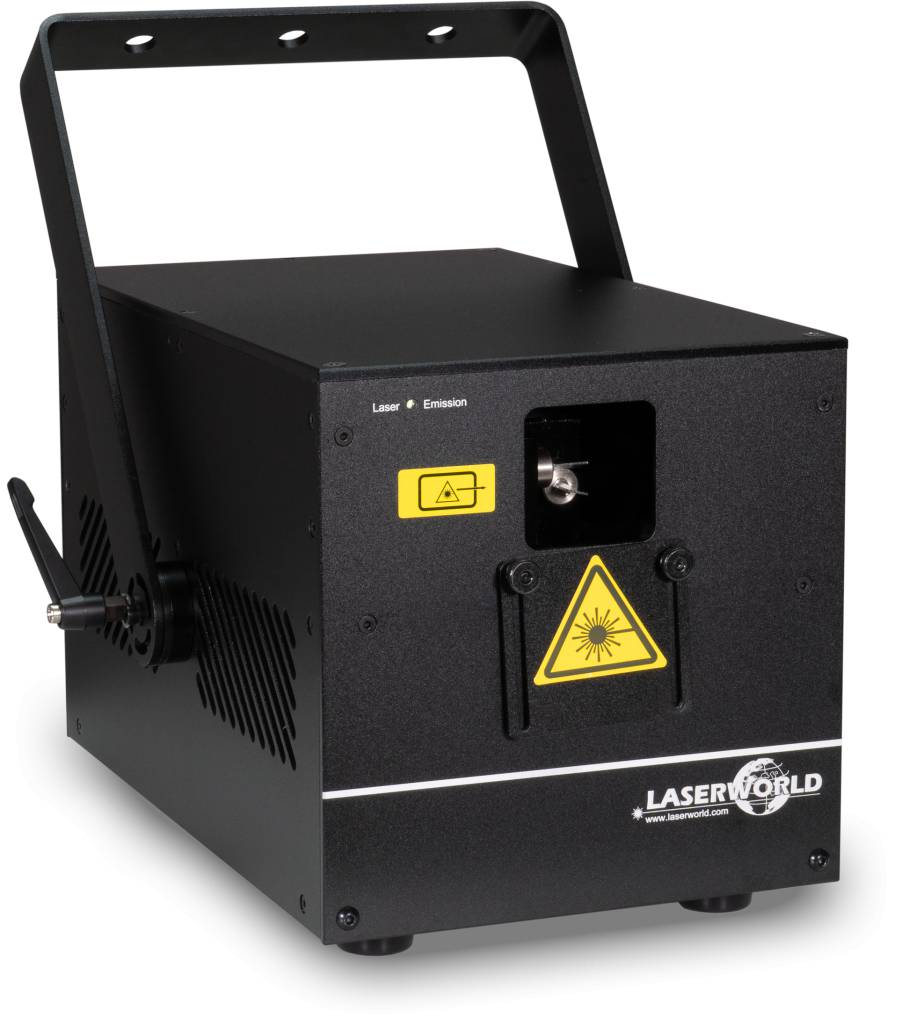

The Laserworld CS-6000RGB show laser projector comes with a compact and light weight housing with a stable bracket. The solid bracket allows different mounting positions: hanging as well as a standing installation is possible - ideal for mobile DJs and temporary laser shows, but also for fixed installations at a truss or at the ceiling.

The Laserworld CS-6000RGB is a analog modulated pure diode multi color RGB laser system with a total output power of up to 6'000 mW and a guaranteed output power of . The red laser source has an output power of 1'000 mW / 638 nm, the green 2'000 mW / 520 nm and the royal-blue laser source has an output power of 3'000 mW / 450 nm. The laser sources ensure brilliant colors and powerful laser beams. The projector has good beam specifications with ca. 5 mm / 1.2 mrad. The galvo system has a scan speed of up to 30kpps @ 8°.

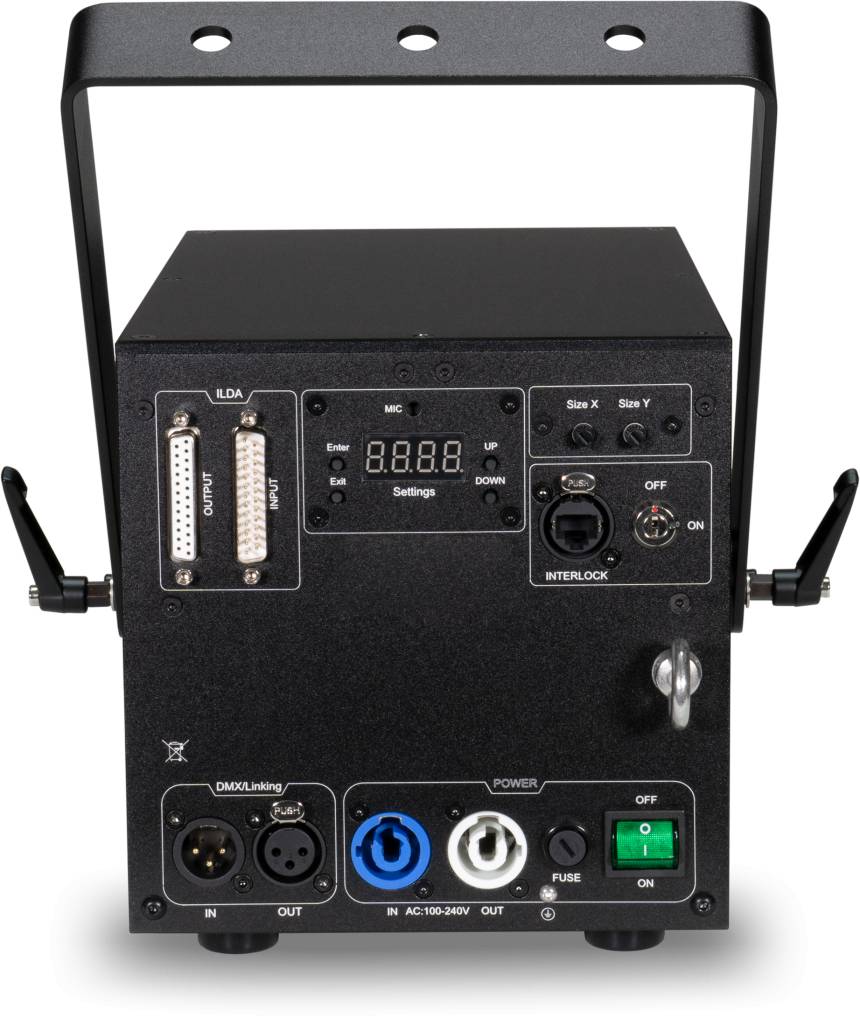

Pattern size can be set by two rotary buttons (X and Y axis) on the rear side of the housing. The sensitivity of the microphone can be adjusted via the integrated display.

There is no air flow in the optical compartment, the temperature is regulated separately with cooling fins. This minimizes maintenance and cleaning requirements.

Through DMX, in the automatic mode as well as in the sound-to-light mode ca. 130 (layers, tunnels, fences, waves, etc.) can be projected in different colors and in various speed. If the automatic mode is active, the pre-programmed patterns run without assistance and in the sound-to-light mode, the laser system projects according to the sound.

Next to the modes mentioned  above, this laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX to a main projector (master projector) project the same patterns like the master projector.

The Laserworld CS-6000RGB is computer controllable through a professional ILDA interface. Thus custom or pre-programmed lasershows, logos, texts or own graphics and animations can be shown in combination with a laser control software.

There are safety features like a key switch, an interlock connector and an on-off switch.

The Laserworld CS-6000RGB is ideal for small to semi-professional applications and is perfectly suitable in bars, medium to large sized clubs and discos as well as for mobile DJs and in any other party location.



> More details

Laserworld CS-6000RGB  laser beam and explanatory image 7
Laserworld CS-6000RGB  laser beam and explanatory image 8
Laserworld CS-6000RGB  laser beam and explanatory image 9
Laserworld CS-6000RGB  laser beam and explanatory image 10
Laserworld CS-6000RGB  laser beam and explanatory image 11
Laserworld CS-6000RGB  laser beam and explanatory image 12



> More details

Total Power
6'000 mW
Power Red
1'000 mW / 638 nm
Power Green
2'000 mW / 520 nm
Power Blue
3'000 mW / 450 nm
Beam Specifications*
ca. 5 mm / 1.2 mrad
Scanner
30kpps @ 8°
Max. Scan Angle
40°
Laser Source
Diode
Laser Class
4
Operation Modes
sound-to-light, DMX, ILDA
Basic Patterns
ca. 130 (layers, tunnels, fences, waves, etc.)
Accessories
power cable, manual, interlock, key
Power Supply
85 V - 250 V AC, 50/60 Hz
Power Consumption
100 W
Dimensions
285 x 180 x 190 mm
Weight
4.0 kg
EAN / MPN
R93950
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
