Remaining Stock Item

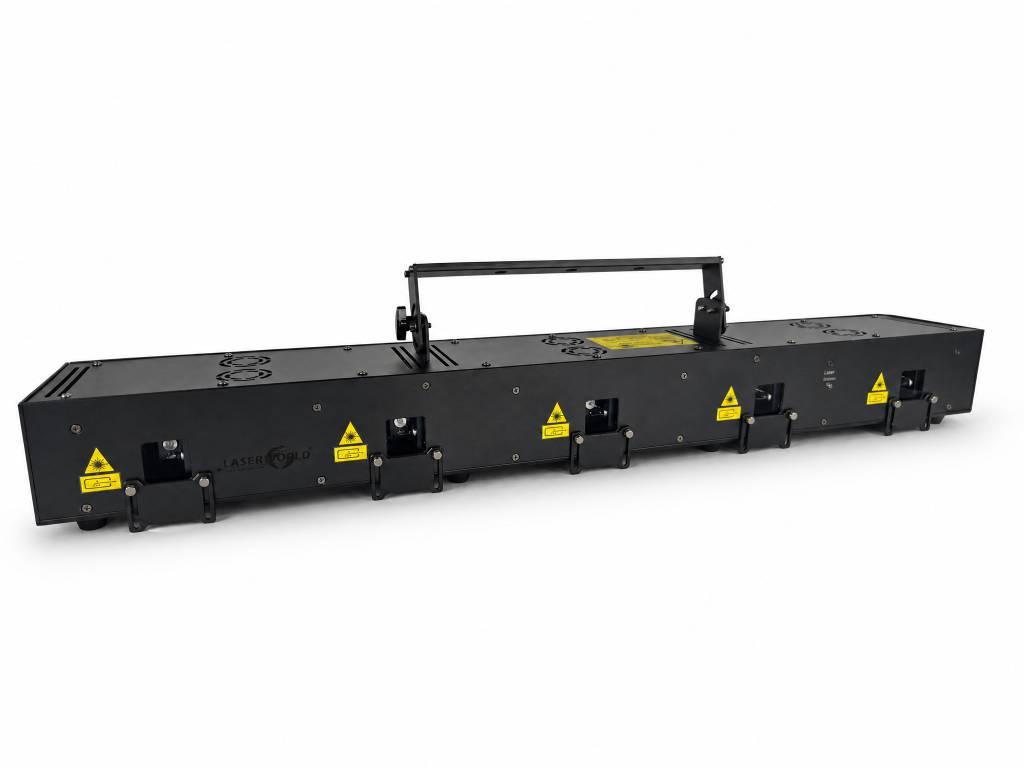

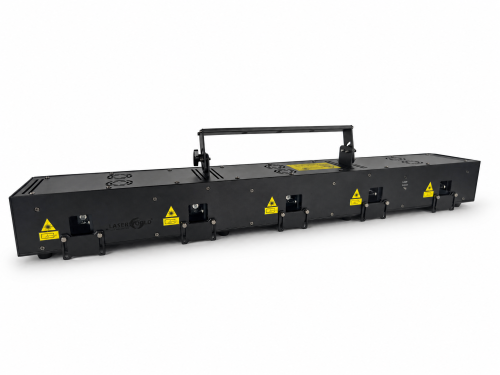

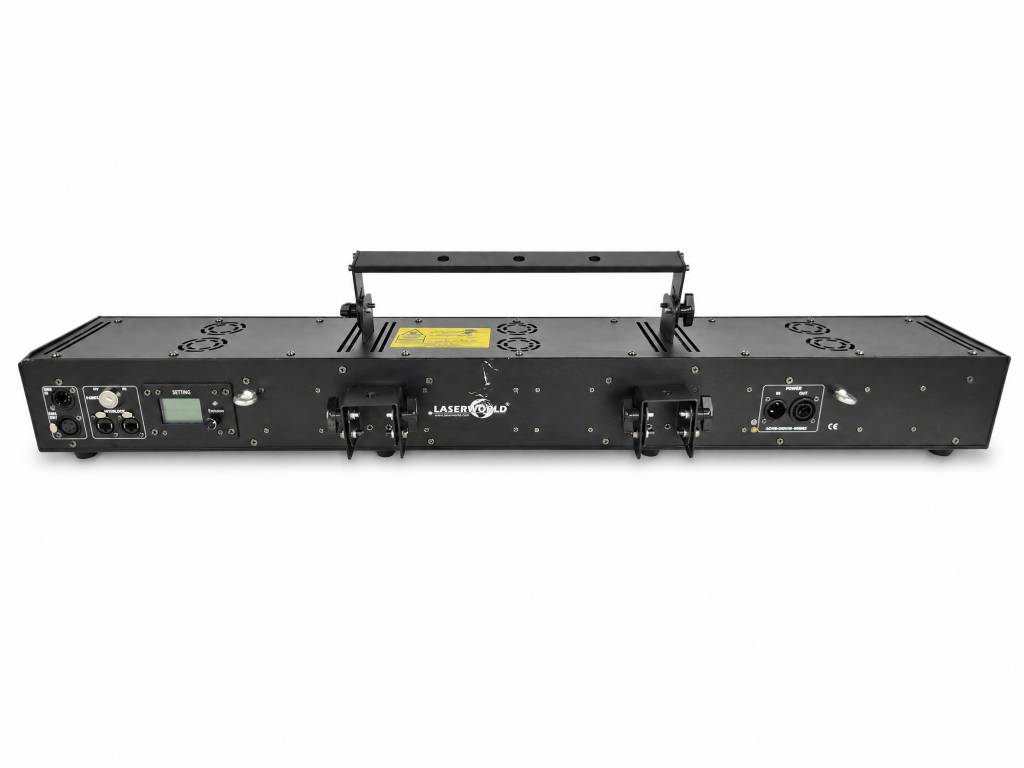

Laserworld ScanBar 10RGB (1 pc)
Remaining Stock Item - only as long as stock lasts!Remaining Stock Item - Only as long as Stock lasts!
.png)

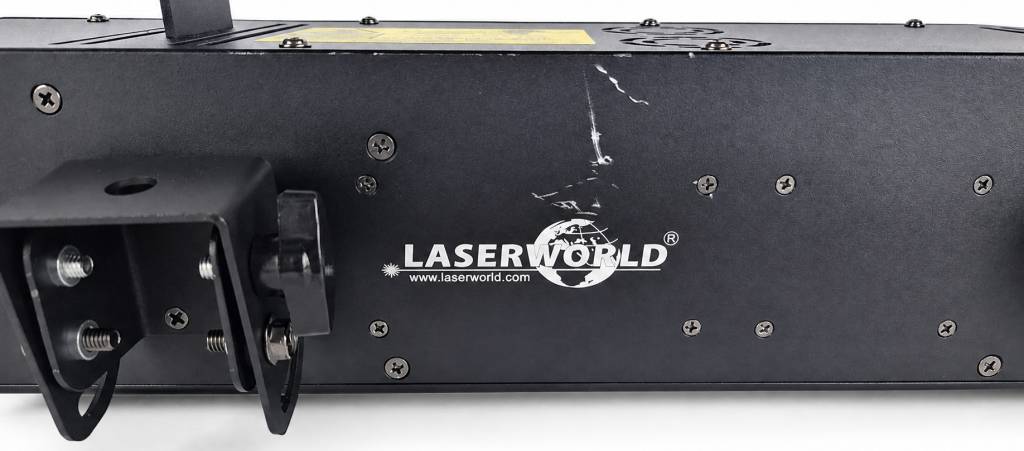

Used, with slight damage to the casing, as shown in the pictures
Arobust, professional full-color laserwithfive beam outputsandcomplete X/Y scanning. It featuresfour integrated DMX profilesfor control. It's ideal for large events requiring single-beam projection and for creating impressive stage effects at almost any event size using itsbuilt-in pre-set patterns.
Used units may show a few signs of usage.
Arobust, professional full-color laserwithfive beam outputsandcomplete X/Y scanning. It featuresfour integrated DMX profilesfor control. It's ideal for large events requiring single-beam projection and for creating impressive stage effects at almost any event size using itsbuilt-in pre-set patterns.
Used units may show a few signs of usage.
- 10'000 mW guaranteed power
- 5 x RGB Diode Modules
- 5 x X/Y Scanners - 25kpps at 8°
- Full color mixing - analog modulation
- Extremely sharp beams - low divergence
- Professional DMX with four different profiles
Special Remaining Stock Price:
1,149.00 €
excl. VAT, excl. shipping
price per unit
price per unit
.jpg)
.jpg)
.jpg)
STAND-ALONE MODE:The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX MODE:The laser can be controlled with a standard DMX controller or DMX software.
MASTER-SLAVE MODE:One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
The Laserworld ScanBar 10RGB (1 pc) is awhite-light RGB laserwithanalog modulationand. It's controlled viafour DMX profiles, making it easy to integrate into existing lighting setups. Each beam output features its ownX/Y scan setwith 25kpps at 8°. In addition to single-beam projection, the Laserworld ScanBar 10RGB (1 pc) offers >100 pre-set patterns.
The Laserworld ScanBar 10RGB (1 pc) is equipped with RGB laser diode modules, with each RGB module delivering a power of 5 x 450 mW / 638 nm red, 5 x 600 mW / 525 nm green, and 5 x 950 mW / 450 nm blue. These power values are measured after the apertures.
Controlled viaDMX profiles, the Laserworld ScanBar 10RGB (1 pc) is compatible with all current DMX controllers. This Laserworld ScanBar 10RGB (1 pc) can be effortlessly integrated into an existing lighting setup.
It's agreat visual effect for large events.
The Laserworld ScanBar 10RGB (1 pc) is equipped with RGB laser diode modules, with each RGB module delivering a power of 5 x 450 mW / 638 nm red, 5 x 600 mW / 525 nm green, and 5 x 950 mW / 450 nm blue. These power values are measured after the apertures.
Controlled viaDMX profiles, the Laserworld ScanBar 10RGB (1 pc) is compatible with all current DMX controllers. This Laserworld ScanBar 10RGB (1 pc) can be effortlessly integrated into an existing lighting setup.
It's agreat visual effect for large events.
> More details
Guaranteed Power at aperture
10'000 mW
Power Red
5 x 450 mW / 638 nm
Power Green
5 x 600 mW / 525 nm
Power Blue
5 x 950 mW / 450 nm
Beam Specifications*
4 mm / 1.1 mrad
Scanner
25kpps at 8°
Laser Source
Diode
Laser Class
4
Operation Modes
DMX, stand-alone, Sound-to-Light
Basic Patterns
>100
Accessories
power cable, manual, interlock, key
Power Supply
85 V - 250 V AC, 50/60 Hz
Power Consumption
150 W
Dimensions
1000 x 152 x 105 mm (L x W x H)
Weight
12 kg
EAN / MPN
94001
Download Technical Datasheet *Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
