Laserworld EL-230RGB MK2
- Guaranteed Power 230 mW
- 7 colors including white
- ca. 50 (layers, tunnels, fences, waves, etc.)
- Stand-alone mode
- Sound-to-light mode
- DMX programmable
- Guaranteed Power 230 mW
- 7 colors including white
- ca. 50 (layers, tunnels, fences, waves, etc.)
- Stand-alone mode
Bestens geeignet für
Architektur, Werbung
Kunst und Illumination
Mobile DJs, Hochzeiten
LASERWORLD
Laserworld EL-230RGB MK2
The Laserworld EL-230RGB MK2 is a RGB laser system with a total output power of up to .
The red diode laser module with a wavelength of 650 nm, the green DPSS laser module with a wavelength of 532nm and the royal-blue laser module with a wavelength of 445 nm ensure beautiful colors and brightness. The beams have a diameter of about ca. 4 mm and a beam divergence of about 1 mrad and the projector offers Step motors, up to 2-5 kpps as well as a scan angle of up to . About ca. 50 (layers, tunnels, fences, waves, etc.) can be controlled via DMX. A sound-to-light mode as well as a stand-alone mode are available too. For the sound-to-light mode the sensitivity of the integrated adjustable microphone can be adjusted.

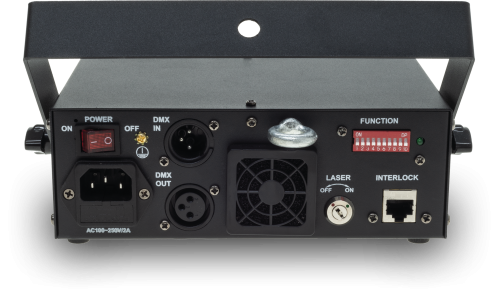

There is an interlock connector for safety switch as well as a key switch at the rear side of this very compact device.
The Laserworld EL-230RGB MK2 is a good solution for first-time users and mobile use and it is often used in bars, small clubs, at private parties or for home use.
With ultra bright 450 nm royal blue!
The red diode laser module with a wavelength of 650 nm, the green DPSS laser module with a wavelength of 532nm and the royal-blue laser module with a wavelength of 445 nm ensure beautiful colors and brightness. The beams have a diameter of about ca. 4 mm and a beam divergence of about 1 mrad and the projector offers Step motors, up to 2-5 kpps as well as a scan angle of up to . About ca. 50 (layers, tunnels, fences, waves, etc.) can be controlled via DMX. A sound-to-light mode as well as a stand-alone mode are available too. For the sound-to-light mode the sensitivity of the integrated adjustable microphone can be adjusted.
There is an interlock connector for safety switch as well as a key switch at the rear side of this very compact device.
The Laserworld EL-230RGB MK2 is a good solution for first-time users and mobile use and it is often used in bars, small clubs, at private parties or for home use.
With ultra bright 450 nm royal blue!
SOUND-TO-LIGHT MODE:
Let the beat of the music control the laser automatically
Let the beat of the music control the laser automatically
STAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
The laser can be controlled with a standard DMX controller or DMX software.
MASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
For Dealers and Distribution Partners
See all prices and availability.
Subscribe to newsletter
Stay up to date with the latest news.
Technical Details
| Guaranteed Power | 230 mW |
| Power Red | 100 mW / 650 nm |
| Power Green | 40 mW / 532 nm |
| Power Blue | 90 mW / 450 nm |
| Beam Specifications | ca. 4 mm / 1 mrad |
| Scanner | Step motors, up to 2-5 kpps |
| Laser Source | Diode, DPSS |
| Laser Class | 3B |
| Operation Modes | Stand-Alone, Sound-to-Light, DMX |
| Basic Patterns | ca. 50 (layers, tunnels, fences, waves, etc.) |
| Accessories | power cable, manual, interlock, key |
| Power Supply | 85 V - 250 V AC, 50/60 Hz |
| Power Consumption | 30 W |
| Dimensions | 205 x 145 x 75 mm |
| Weight | 2.0 kg |
| EAN / MPN | 7640144991630 |
| Delivery Scope | power cable, manual, interlock, key |
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
Download Technical DatasheetSuitable Accessories
