Laserworld E-Stop Distributor

Estop Distributor Fl S
E-Stop distribution panel with integrated E-Stop button with key switch and the option to add two more E-Stop signals. The E-Stop signal is routed to two signal strings that can be linked to lasers.
  • Integrated E-Stop with Key
  • 19" rack mount
  • Two connection ports for additional E-Stop buttons, sensors, etc.
  • Two E-Stop connections for laser interlock strings
Estop Distributor Fl S
Estop Distributor F S
Estop Distributor Fr S
READ MORE PRODUCT DETAILS
This E-Stop Distribution system allows for the distribution of signals from up to 3 E-Stop inputs to two strings of lasers using the interlock signal. Several of this E-Stop distribution boxes can be linked together to extend the range or the number of connectible strings of lasers.

Detailed explanation:
As the interlock signal of laser systems is not protocollizesd, it cannot the linked via a switch or similar, but always needs to be wired directly to the E-Stop. With this distribution system, the signal can be handled and distributed. Several laser interlock signals can be daisy chained, so it is already possible to connect several lasers to one E-Stop in one string. However, depending on the cable length and the number of lasers connected together, the distance between the E-Stop and the lasers is limited. With using the E-Stop distributor it is possible to extend the range between the E-Stop(s) and the lasers and also connect several E-Stops to switch off all lasers at once.
TECHNICAL DETAILS
Power Supply
85 V - 250 V / AC, 50/60 Hz
Power Consumption
50W
Dimensions
48 x 8.8 x 30 cm (W/H/D)
Weight
5.5 kg
EAN / MPN
7640144998875
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.

RTI PIKO 40

RTI PIKO Fl
The powerful but compact RTI PIKO 40 is suitable for indoor and outdoor laser show applications at concerts, festivals, and other huge events with easy operation due to the built-in software and DMX control. The PIKO is equipped with the latest RTI Semiconductor modules (RSL) making it an amazing laser for beam shows and demanding graphic projections such as laser mapping or projections over long distances. The high-end performance is part of the PIKO's DNA and makes this possible due to the perfectly matched beam profiles across all colors and great divergence on both the x and y axis.
Incl. waterproof flightcase and rain cover.
  • 40 W guaranteed power
  • Advanced RTI Semiconductor laser modules (RSL) produce a perfect shaped beam profile across all colors
  • Equal divergence on x and y axis
  • Maintenance free laser system
  • RSL Modules with no color misalignment
  • New advanced sealed optical section with no color misalignment
  • Complex graphics capable - 45kpps ILDA 8° scanners – upgradable to 60kpps
  • Full-color mixing
  • Extremely sharp intense beams - low divergence
  • Integrated intelligent LaserAnimation Sollinger Mainboard and ShowNET Laser Mainboard
  • Integrated Touch Display for adjustment of basic functions
  • Integrated network switch for linking the control signal
  • FB4-QS MAX optional integration
  • 360° Bracket with quick-lock system
  • Rugged tour-grade compact housing
  • Incl. waterproof flightcase and rain cover
  • operating temperature: +5°C to +45°C

ShowNET mainboard as standard:
  • Various control options: ILDA, Professional DMX and ArtNET (two modes), LAN (computer control, integrated DAC), Stand-Alone Operation, ILDA Streaming Receiver, Master-Slave
  • Create custom content, store it inside the laser and play it back in different modes
  • Free laser show control software included

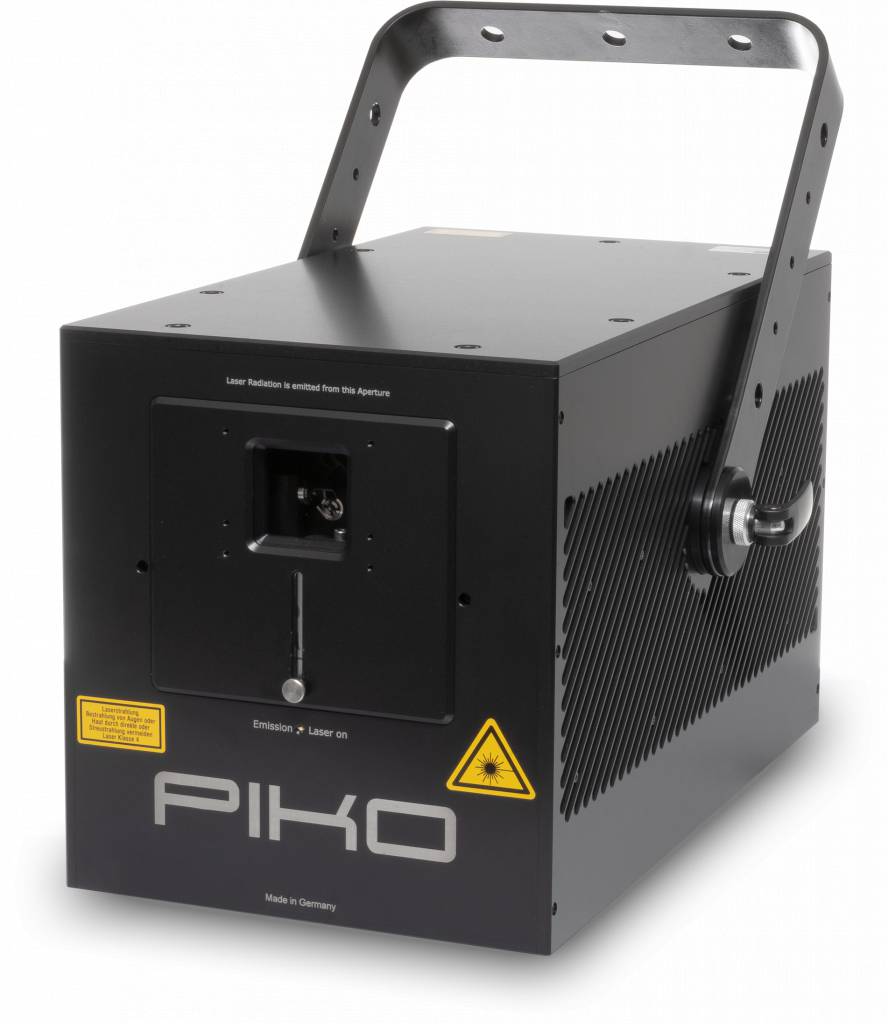

RTI PIKO Fl

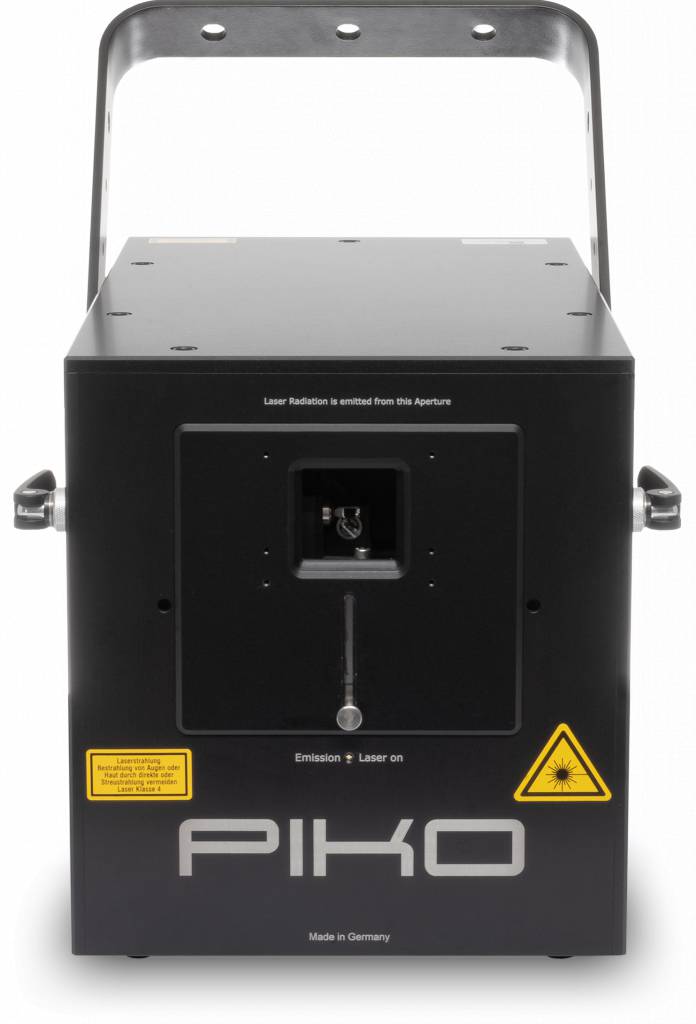

RTI PIKO F

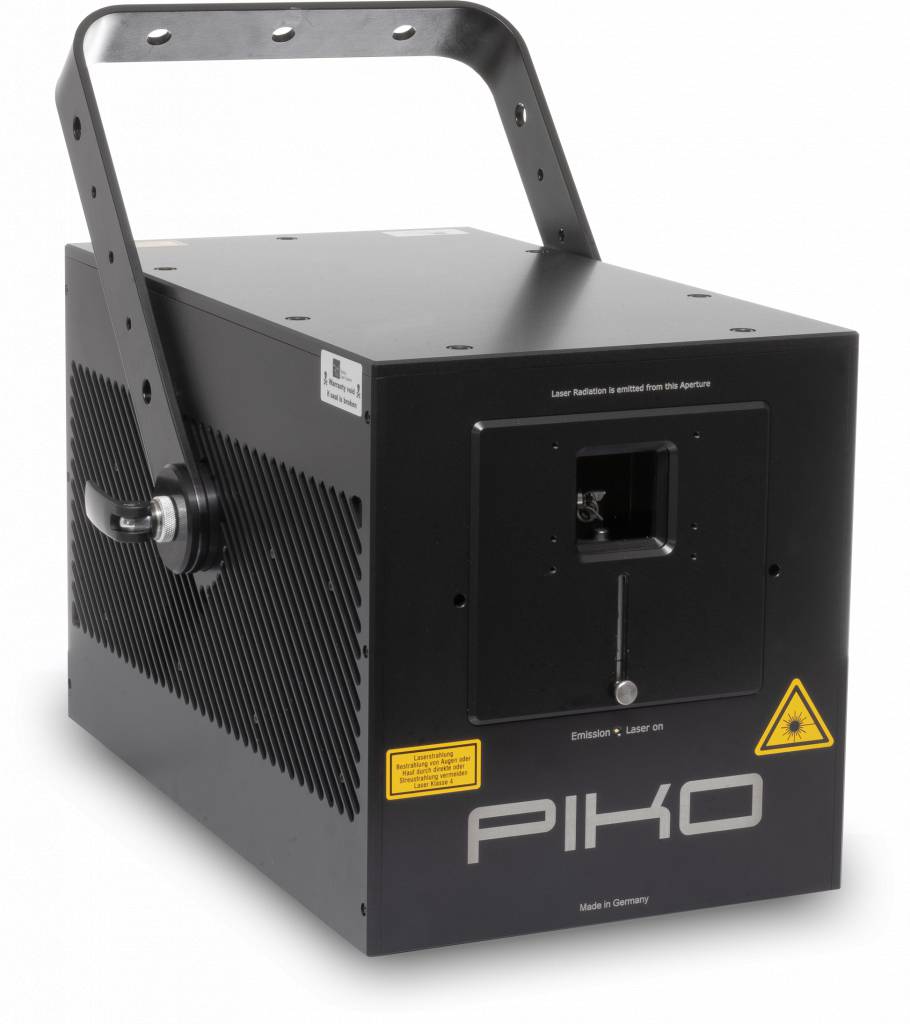

RTI PIKO Fr
RTI PIKO B
RTI PIKO L
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
ArtNET modeArtNET Control mode
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
LAN connectionLAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA connectionILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
ILDA StreamingILDA Streaming
ShowNET insideSHOWNET INSIDE:
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
Free Showeditor laser software includedSHOWEDITOR INCLUDED:
The full version of the laser show control software Showeditor is included in delivery.
READ MORE PRODUCT DETAILS
The RTI PIKO 40 impresses with a guaranteed RGB output power of 40'000 mW. Great visibility is achieved with the new RTI Semiconductor Laser Modules (RSL) with special wavelengths for increased visibility: 12'500 mW / 637 nm for a very bright red combined with 13'000 mW / 525 nm green and a strong blue laser module with 22'000 mW / 455 nm. The 525nm green provides a warmer green tone than the 520nm diodes and has increased visibility. These new RSL modules with their extremely low divergence and homogenous beam shape make the RTI PIKO 40 a top professional laser system. The extremely small beam diameter of only ca. 7 mm allows for the use of small scanner mirrors which leads to reduced inertia and higher scan speeds. This is especially important, as the RTI PIKO 40 can be used for any kind of laser show application: Super sharp beams and vivid colors for large scale concerts and festivals but also a perfectly matched beam for crisp graphics.


  • Maintenance free, no misalignment: new generation of laser color combination
  • Integrated network switch for linking the control signal


The RTI Semiconductor Laser Modules are maintenance free and do not come out of internal alignment. The standard scanners can be run at a maximum of 45kpps ILDA 8°; optional CT-6210 with LAS Turboscan: 60kpps ILDA 8°; max. 60° (@35 kpps) and a maximum scan angle of max. 50°. CT-6210 scanners with LAS Turboscan drivers are available as option and provide even higher scan speeds with up to 60kpps at ILDA 8°. The housing is built very durable and ideal for use on the road. It has an interlock / e-stop through port, which allows for daisy-chaining the interlock signal, which means that only one e-stop is required for several laser systems. Control signals can be looped through directly via the network switch, which is also integrated. Due to the dustproof housing, the maintenance effort is very low and the device is also suitable for tough touring applications. The new 360° brackets can be safely fixed in the needed position in just a few moments thanks to the quick-lock system. The powerful RTI PIKO 40 is suitable for indoor and outdoor show laser applications at concerts, festivals and other huge events. Demanding graphics projections or projections over long distances are possible without any problems, due to the extremely good divergence.
INCLUDING LaserAnimation Sollinger Mainboard and ShowNET

The intelligent LaserAnimation Sollinger Mainboard is integrated into the RTI PIKO 40, which provides the laser operator with a variety of control and setting options (e.g. the LA.toolbox) or transmission options (such as AVB). Together with the ShowNET laser mainboard, which is also integrated, ILDA, LAN (software), DMX and ArtNET control, ILDA streaming, stand-alone operation, among others, are available, ensuring the highest possible flexibility.

The emergency stop signal can be looped through the interlock through connection and only one emergency stop switch is required for several devices. Control signals can be looped through directly via the network switch, which is also integrated.
SEE DETAIL PICTURES
TECHNICAL DETAILS
Guaranteed Power at aperture
40'000 mW
Power Red
12'500 mW / 637 nm
Power Green
13'000 mW / 525 nm
Power Blue
22'000 mW / 455 nm
Beam Specifications*
ca. 7 mm / <0.8 mrad
Scanner
45kpps ILDA 8°; optional CT-6210 with LAS Turboscan: 60kpps ILDA 8°; max. 60° (@35 kpps)
Max. Scan Angle
max. 50°
Laser Source
RTI Semiconductor Laser Modules RSL 2
Laser Class
4
Operation Modes
AVB / TSN interface for streaming ILDA data via Ethernet, AIFF player function, stand-alone player, ILDA, DMX / ArtNET, control software “LA.toolbox” for PC or Mac included, LAN (software) with ShowNET DAC
Basic Patterns
over 120 (layers, tunnels, fences, waves, etc.)
Accessories
Incl. waterproof flightcase, interlock connector, key, power cable, manual,, incl. the LA.toolbox control software
IP rating
IP54
Power Supply
85-250 V AC 50/60 Hz
Power Consumption
600 W
Dimensions
271 x 491 x 296 mm
Weight
27 kg
EAN / MPN
836215313
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.


RTI NEO 12

Rti Neo 12 Fl S
A six head robust professional full color laser with full X/Y scanning and DMX control. Perfect for large indoor events with single beam projection and creating great stage effects for nearly any size of venue when utilising the in-built pre-set patterns.
  • 12 W guaranteed power
  • 6 x RGB Diode Modules
  • 6 x X/Y Scanners - 45 [email protected]° ILDA
  • Maximum scan angle of 45°
  • Full color mixing - analog modulation
  • Extremely sharp beams - low divergence
  • Professional DMX with 10 pre-set patterns
  • Rugged tour-grade compact housing
Rti Neo 12 Fl S
Rti Neo 12 Front S
Rti Neo 12 Fr S
Rti Neo 12 Back S
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
READ MORE PRODUCT DETAILS
The RTI NEO 12 is a whitelight RGB beam array with analog modulation and six beam outlets. It is controlled through DMX and thus is suitable for easy implementation to existing lighting setups. Each beam output comes with its own XY scan set with 45 [email protected]° ILDA.
Besides the single beam, the RTI NEO 12 offers 10 standard preset patterns like a square, a circle, a triangle and others which can be displayed by all six laser outputs, but can be selected individually.

The RTI NEO 12 is equipped with 6 RGB laser diode modules.
Each RGB module is balanced at a power of 6 x 600 mW / 638 nm red, 6 x 600 mW / 520 nm green and 6 x 800 mW / 450 nm blue for a brilliant white balance. Powers are measured after apertures and are balanced on manufacturing.

The RTI NEO 12 is controlled via DMX thus it is possible to create many different chaser, beam and fan laser light effects. Most important settings can also be adjusted via integrated display. The beam array can easily be integrated into an existing lighting setup.

A great visual effect for stages, live gigs, nightclubs, show productions and any event which requires a unique visual enhancement.

SEE DETAIL PICTURES
RTI NEO 006 Beam
RTI NEO 005 Beam
RTI NEO 007 Beam
RTI NEO 008 Beam
RTI NEO 009 Beam
RTI NEO 004 Beam
TECHNICAL DETAILS
Guaranteed Power at aperture
12'000 mW
Power Red
6 x 600 mW / 638 nm
Power Green
6 x 600 mW / 520 nm
Power Blue
6 x 800 mW / 450 nm
Beam Specifications*
ca. 5 mm / 0.9 mrad
Scanner
Max. Scan Angle
45°
Laser Source
diode
Laser Class
4
Operation Modes
DMX
Basic Patterns
10 preset patterns (circles, squares, etc.)
Accessories
Power cable, manual, interlock plug, keys
IP rating
IP5x
Power Supply
85-250 V AC 50/60 Hz
Power Consumption
500 W
Dimensions
1000 x 170 x 155 mm (without bracket)
Weight
17.5 kg
EAN / MPN
836215095
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.




tarm 11G OUTDOOR

Tarm 11G OUTDOOR Fl S
Single green outdoor laser, perfectly suitable for fixed installations for advertising, mappings or any kind of graphics projections. The high quality beam with uniform beam profile, due to the full equipment with the high performance RSL modules of the second generation, combined with the fast scanning and upgrade option to CT-6210, makes the tarm 11G OUTDOOR an awsome projection unit.
IP65 waterproof laser system, suitable for outdoor use and fixed installations.
  • IP65 waterproof housing
  • 11'000 mW guaranteed power
  • Complex graphics capable - 45kpps @ 8° ILDA scanners – upgradable to 60kpps
  • Extremely sharp intense beams - low divergence of <0.8 mrad
  • Integrated powerful mainboard with advanced configuration features (geo-correction, zone setup, color balancing, etc.) and DAC feature
  • Control screen (internal) for convenient mode selection
  • Laser Artists' choice
  • Lighting Designers' choice

ShowNET mainboard as standard:
  • Various control options: ILDA, Professional DMX and ArtNET (two modes), LAN (computer control, integrated DAC), Stand-Alone Operation, ILDA Streaming Receiver, Master-Slave
  • Create custom content, store it inside the laser and play it back in different modes
  • Free laser show control software included
Tarm 11G OUTDOOR Fl S
Tarm 11G OUTDOOR F S
Tarm 11G OUTDOOR Fr S
Tarm 11G OUTDOOR B S
Tarm 11G OUTDOOR U S
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
ArtNET modeArtNET Control mode
LAN connectionLAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA StreamingILDA Streaming
ShowNET insideSHOWNET INSIDE:
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
Free Showeditor laser software includedSHOWEDITOR INCLUDED:
The full version of the laser show control software Showeditor is included in delivery.
READ MORE PRODUCT DETAILS
Built with the latest RTI Semiconductor Laser Module technology!

The tarm 11G OUTDOOR are especially designed for outdoor laser installations. They come equipped with the top quality laser setup known from the standard tarm units, but have a waterproof enclosure that not only protects the components inside from water, but also shields off direct heat from solar exposure. A specially designed roof in front of the output window prevents it from getting impacted by direct rain.
To cope with varying temperatures, the tarm OUTDOOR units are equipped with an active watercooling system, that is built into the housing. An active heating system helps to keep the laser systems operational even at low temperatures. Thus the tarm 11G OUTDOOR lasers can be used at environmental temperatures between -10°C and +45°C. A CT Scanner upgrade with LAS Turboscan drivers is available for the tarm 11G OUTDOOR to achieve top end quality graphics results.


The tarm 11G OUTDOOR is made in Germany and is a compact show laser system that is ideally suited for top professional laser show applications of any kind. It is built with the latest RTI semiconductor laser modules that are specially designed in a way to keep spot size as well as divergence equal on both x- and y-axis. This is significantly advantageous over solutions with a very good divergence on one axis, but a bad divergence on the other. The laser modules inside the tarm 11G OUTDOOR are different - the spot size and shape is equal on both axis!

The beam specifications of the new tarm 11G OUTDOOR are given with only ca. 5.0 mm diameter and <0.8 mrad divergence - which applies to both axis. The extremely small beam diameter allows for the use of very small mirrors, which results in reduced inertia and thus very good scanning performance.

KEY FEATURES

  • 11 W total power in a small housing of only 800/370/260 mm
  • super small spot of ca. 5.0 mm for reduced inertia and thus fast scanning
  • extremely low divergence of <0.8 mrad - on both axis!
  • Laser modules do not come out of internal alignment
  • Maintenance free laser modules
  • High quality product, Made in Germany
  • Great scanning performance suitable for projections as well as for beams

The tarm 11G OUTDOOR impresses with a guaranteed RGB output power of 11'000 mW. Great visibility is achieved with the new RTI Semiconductor Laser modules (RSL): 13'000 mW / 525 nm green laser module. The 525nm green provides a warmer green tone than the 520nm diodes and has increased visibility.
These new RSL modules with their extremely low divergence and homogenous beam shape make the tarm 11G OUTDOOR a top professional laser system. The extremely small beam diameter of only ca. 5.0 mm allows for the use of small scanner mirrors which leads to reduced inertia and higher scan speeds. This is especially important, as the tarm 11G OUTDOOR can be used for any kind of laser show application: Super sharp beams and strong green for installation projects and multimedia, especially for crisp graphics.



The RTI Semiconductor Laser modules are maintenance free and do not come out of internal alignment.
The standard scanners can be run at a maximum of 45kpps @ 8° ILDA and a maximum scan angle of 50°. CT-6210 scanners with LAS Turboscan drivers are available as option and provide even higher scan speeds with up to 60kpps at 8° ILDA .

Demanding graphics projections or projections over long distances are possible without any problems, due to the extremely good divergence.

INCLUDING SHOWNET LASER MAINBOARD

The tarm 11G OUTDOOR is delivered with a ShowNET laser mainboard as standard. This means it has a multitude of control features already built-in: Control via ArtNET, just like a normal lighting fixture, are possible as well as computer control via ILDA or LAN. Of course the laser can be run in stand alone operation, too. The contents for playback (for ArtNet, Stand-Alone, etc.) can be fully customized. As the ShowNET laser mainboard comes with a full license of the Showeditor software, it is easy to create custom content for the built-in memory or even directly control the laser with a computer - either live or for creation an playback of complete laser shows.

If ILDA shall be used as control option, like from an external Lasergraph DSP, the internal ShowNET mainboard can also be used as receiver for an ILDA streaming signal - so the external ILDA signal can be feeded to an external ShowNET device and this sends the direct control to the tarm 11G OUTDOOR via ILDA Streaming - so no long ILDA cables are required any more, even with ILDA based control systems.
SEE DETAIL PICTURES
Tarm 11G OUTDOOR R S Detail
Tarm 11G OUTDOOR L S Detail
TECHNICAL DETAILS
Guaranteed Power at aperture
11'000 mW
Power Green
13'000 mW / 525 nm
Beam Specifications*
ca. 5.0 mm / <0.8 mrad
Scanner
45kpps @ 8° ILDA; optional CT-6210 with LAS Turboscan: 60 [email protected]° ILDA, max. 60°
Max. Scan Angle
50°
Laser Source
RSL modules
Laser Class
4
Operation Modes
LAN, ArtNet, ILDA streaming, integrated SD card, stand-alone; integrated intelligent ShowNET laser mainboard with display
Basic Patterns
over 120 (layers, tunnels, fences, waves, etc.)
Accessories
Incl. power cable, manual, E-Stop, interlock connector, full version Showeditor software license included
IP rating
IP65
Power Supply
85 V - 250 V / AC
Power Consumption
400 W
Dimensions
800/370/260 mm
Weight
24.0 kg
EAN / MPN
7640144996154
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.


tarm 11 OUTDOOR

Tarm 11 OUTDOOR Fl S
Outdoor laser, perfectly suitable for fixed installations for advertising, mappings or any kind of graphics projections. The high quality beam with uniform beam profile, due to the full equipment with the high performance RSL modules of the second generation, combined with the fast scanning and upgrade option to CT-6210, makes the tarm 11 OUTDOOR an awsome projection unit.
IP65 waterproof laser system, suitable for outdoor use and fixed installations.
  • IP65 waterproof housing
  • 12'000 mW guaranteed power
  • Complex graphics capable - 45kpps @ 8° ILDA scanners – upgradable to 60kpps
  • Extremely sharp intense beams - low divergence of <0.8 mrad
  • Integrated powerful mainboard with advanced configuration features (geo-correction, zone setup, color balancing, etc.) and DAC feature
  • Control screen (internal) for convenient mode selection
  • Laser Artists' choice
  • Lighting Designers' choice

ShowNET mainboard as standard:
  • Various control options: ILDA, Professional DMX and ArtNET (two modes), LAN (computer control, integrated DAC), Stand-Alone Operation, ILDA Streaming Receiver, Master-Slave
  • Create custom content, store it inside the laser and play it back in different modes
  • Free laser show control software included
Tarm 11 OUTDOOR Fl S
Tarm 11 OUTDOOR F S
Tarm 11 OUTDOOR Fr S
Tarm 11 OUTDOOR B S
Tarm 11 OUTDOOR U S
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
ArtNET modeArtNET Control mode
LAN connectionLAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA StreamingILDA Streaming
ShowNET insideSHOWNET INSIDE:
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
Free Showeditor laser software includedSHOWEDITOR INCLUDED:
The full version of the laser show control software Showeditor is included in delivery.
READ MORE PRODUCT DETAILS
Built with the latest RTI Semiconductor Laser Module technology!

The tarm 11 OUTDOOR are especially designed for outdoor laser installations. They come equipped with the top quality laser setup known from the standard tarm units, but have a waterproof enclosure that not only protects the components inside from water, but also shields off direct heat from solar exposure. A specially designed roof in front of the output window prevents it from getting impacted by direct rain.
To cope with varying temperatures, the tarm OUTDOOR units are equipped with an active watercooling system, that is built into the housing. An active heating system helps to keep the laser systems operational even at low temperatures. Thus the tarm 11 OUTDOOR lasers can be used at environmental temperatures between -10°C and +45°C. A CT Scanner upgrade with LAS Turboscan drivers is available for the tarm 11 OUTDOOR to achieve top end quality graphics results.


The tarm 11 OUTDOOR is made in Germany and is a compact show laser system that is ideally suited for top professional laser show applications of any kind. It is built with the latest RTI semiconductor laser modules that are specially designed in a way to keep spot size as well as divergence equal on both x- and y-axis. This is significantly advantageous over solutions with a very good divergence on one axis, but a bad divergence on the other. The laser modules inside the tarm 11 OUTDOOR are different - the spot size and shape is equal for all colors and on both axis!

The beam specifications of the new tarm 11 OUTDOOR are given with only ca. 5.0 mm diameter and <0.8 mrad divergence - which applies to both axis. The extremely small beam diameter allows for the use of very small mirrors, which results in reduced inertia and thus very good scanning performance.

KEY FEATURES

  • 12 W total RGB power in a small housing of only 800/370/260 mm
  • super small spot of ca. 5.0 mm for reduced inertia and thus fast scanning
  • All wavelengths matched in divergence and beam size
  • extremely low divergence of <0.8 mrad - on both axis!
  • Different, brighter wavelengths for increased visibility
  • brilliant colors and great color fading
  • Laser modules do not come out of internal alignment
  • Maintenance free laser modules
  • High quality product, Made in Germany
  • Great scanning performance suitable for projections as well as for beams

The tarm 11 OUTDOOR impresses with a guaranteed RGB output power of 12'000 mW. Great visibility is achieved with the new RTI Semiconductor Laser modules (RSL) with special wavelengths for increased visibility: 3'800 mW / 637 nm for a very bright red combined with 5'000 mW / 525 nm green and a strong blue laser module with 5'000 mW / 455 nm. The 525nm green provides a warmer green tone than the 520nm diodes and has increased visibility.
These new RSL modules with their extremely low divergence and homogenous beam shape make the tarm 11 OUTDOOR a top professional laser system. The extremely small beam diameter of only ca. 5.0 mm allows for the use of small scanner mirrors which leads to reduced inertia and higher scan speeds. This is especially important, as the tarm 11 OUTDOOR can be used for any kind of laser show application: Super sharp beams and vivid colors for installation projects and multimedia, especially for crisp graphics.



The RTI Semiconductor Laser modules are maintenance free and do not come out of internal alignment.
The standard scanners can be run at a maximum of 45kpps @ 8° ILDA and a maximum scan angle of 50°. CT-6210 scanners with LAS Turboscan drivers are available as option and provide even higher scan speeds with up to 60kpps at 8° ILDA .

Demanding graphics projections or projections over long distances are possible without any problems, due to the extremely good divergence.

INCLUDING SHOWNET LASER MAINBOARD

The tarm 11 OUTDOOR is delivered with a ShowNET laser mainboard as standard. This means it has a multitude of control features already built-in: Control via ArtNET, just like a normal lighting fixture, are possible as well as computer control via ILDA or LAN. Of course the laser can be run in stand alone operation, too. The contents for playback (for ArtNet, Stand-Alone, etc.) can be fully customized. As the ShowNET laser mainboard comes with a full license of the Showeditor software, it is easy to create custom content for the built-in memory or even directly control the laser with a computer - either live or for creation an playback of complete laser shows.

If ILDA shall be used as control option, like from an external Lasergraph DSP, the internal ShowNET mainboard can also be used as receiver for an ILDA streaming signal - so the external ILDA signal can be feeded to an external ShowNET device and this sends the direct control to the tarm 11 OUTDOOR via ILDA Streaming - so no long ILDA cables are required any more, even with ILDA based control systems.
SEE DETAIL PICTURES
Tarm 11 OUTDOOR R S Detail
Tarm 11 OUTDOOR L S Detail
TECHNICAL DETAILS
Guaranteed Power at aperture
12'000 mW
Power Red
3'800 mW / 637 nm
Power Green
5'000 mW / 525 nm
Power Blue
5'000 mW / 455 nm
Beam Specifications*
ca. 5.0 mm / <0.8 mrad
Scanner
45kpps @ 8° ILDA; optional CT-6210 with LAS Turboscan: 60 [email protected]° ILDA, max. 60°
Max. Scan Angle
50°
Laser Source
RSL modules
Laser Class
4
Operation Modes
LAN, ArtNet, ILDA streaming, integrated SD card, stand-alone; integrated intelligent ShowNET laser mainboard with display
Basic Patterns
over 120 (layers, tunnels, fences, waves, etc.)
Accessories
Incl. power cable, manual, E-Stop, interlock connector, full version Showeditor software license included
IP rating
IP65
Power Supply
85 V - 250 V / AC
Power Consumption
400 W
Dimensions
800/370/260 mm
Weight
24.0 kg
EAN / MPN
7640144996123
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.


tarm 6 OUTDOOR

Tarm 6 OUTDOOR Fl S
Outdoor laser, perfectly suitable for fixed installations for advertising, mappings or any kind of graphics projections. The high quality beam with uniform beam profile, combined with the fast scanning and upgrade option to CT-6210, makes the tarm 6 OUTDOOR a great projection unit.
IP65 waterproof laser system, suitable for outdoor use and fixed installations.
  • IP65 waterproof housing
  • 6'000 mW guaranteed power
  • Graphics capable - 45kpps @ 8° ILDA Scanners
  • Full color mixing - analog modulation
  • Extremely sharp intense beams - low divergeance of <0.6 mrad
  • Control screen (internal) for convenient mode selection
  • Free computer control software - Showeditor - upgradable to Showcontroller
  • Integrated powerful mainboard with advanced configuration features (geo-correction, zone setup, color balancing, etc.) and DAC feature
  • Multiple control modes - stand-alone, ArtNET, LAN and ILDA streaming

ShowNET mainboard as standard:
  • Various control options: ILDA, Professional DMX and ArtNET (two modes), LAN (computer control, integrated DAC), Stand-Alone Operation, ILDA Streaming Receiver, Master-Slave
  • Create custom content, store it inside the laser and play it back in different modes
  • Free laser show control software included
Tarm 6 OUTDOOR Fl S
Tarm 6 OUTDOOR F S
Tarm 6 OUTDOOR Fr S
Tarm 6 OUTDOOR B S
Tarm 6 OUTDOOR U S
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
ArtNET modeArtNET Control mode
LAN connectionLAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA StreamingILDA Streaming
ShowNET insideSHOWNET INSIDE:
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
Free Showeditor laser software includedSHOWEDITOR INCLUDED:
The full version of the laser show control software Showeditor is included in delivery.
READ MORE PRODUCT DETAILS
The tarm 6 OUTDOOR are especially designed for outdoor laser installations. They come equipped with the top quality laser setup known from the standard tarm units, but have a waterproof enclosure that not only protects the components inside from water, but also shields off direct heat from solar exposure. A specially designed roof in front of the output window prevents it from getting impacted by direct rain.
To cope with varying temperatures, the tarm OUTDOOR units are equipped with an active watercooling system, that is built into the housing. An active heating system helps to keep the laser systems operational even at low temperatures. Thus the tarm 6 OUTDOOR lasers can be used at environmental temperatures between -10°C and +45°C. A CT Scanner upgrade with LAS Turboscan drivers is available for the tarm 6 OUTDOOR to achieve top end quality graphics results.


The tarm 6 OUTDOOR show laser projector is a full color whitelight RGB laser systems with full analog color modulation and diode-only equipment. The guaranteed output power is specified at 6'000 mW after optics.

The tarm 6 OUTDOOR units have a built-in network DAC for Showcontroller, Showeditor, Touchdesigner, MadLaser, etc., but also can be controlled with any ILDA laser control software such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface (e.g. FB3) and ILDA streaming. They also have a built-in memory with pre-set patterns, that can be easily triggered through ArtNet and automatic mode.
The tarm 6 OUTDOOR comes with integrated ShowNET network interface and free laser show software. Details in the box below.

The benefits include:

  • 6'000 mW guaranteed output power
  • a very fast maximum scan speed of 45kpps @ 8° ILDA for graphics projection
  • high-precision diode arrays provide an excellent beam divergence of less than <0.6 mrad for a low beam diameter
  • pure diode laser
  • novel method for increasing the beam precision of the diodes
  • beautiful colors and good color fading
  • the tarm 6 OUTDOOR impresses with very bright 637 nm red diodes



The tarm 6 OUTDOOR laser has great beam specifications with a diameter of ca. ca. 4.5 mm and a beam divergence of less than <0.6 mrad.
It is equipped with a bright red (2'000 mW / 637 nm), a green (2'000 mW / 520 nm), and a blue (2'500 mW / 450 nm) diode laser source.

The scanners are very fast with 45kpps @ 8° ILDA standard and allow for a maximum scan angle of 50°. Thus they are well graphics capable and suitable for professional laser applications.
Optionally as upgrade available: CT-6210 scanners with 60 [email protected]° ILDA and a max. scan angle of 60°.

+ Integrated ShowNET incl. free laser show software

The tarm 6 OUTDOOR features an integrated ShowNET network interface with free laser control software included!
Start with your own professional laser show thanks to the intuitive Showeditor laser show software which comes with every new tarm 6 OUTDOOR for free. The Showcontroller software is supported as well and can be purchased additionally.
The integrated ShowNET allows for direct input through ILDA and LAN. It is also possible to trigger single frames via ArtNet. Custom frames and shows can be played from an integrated SD card (included in delivery) – even in stand-alone mode!
There are two different ArtNet modes:
(1) DJ Mode with the most used features for beginners. Only a few channels are used for a quick and easy access to the most important adjustments directly at the laser system.
(2) Professional Mode with all ArtNet features especially for users with an ArtNet capable console. All adjustments can be triggered and allow for full control of the professional laser show.
The integrated ShowNET works as DAC (digital to analog converter) and enables ILDA streaming.

SEE DETAIL PICTURES
Tarm 6 OUTDOOR R S Detail
Tarm 6 OUTDOOR L S Detail
TECHNICAL DETAILS
Guaranteed Power at aperture
6'000 mW
Power Red
2'000 mW / 637 nm
Power Green
2'000 mW / 520 nm
Power Blue
2'500 mW / 450 nm
Beam Specifications*
ca. 4.5 mm / <0.6 mrad
Scanner
45kpps @ 8° ILDA; optional: CT-6210 with LAS Turboscan: 60kpps @ 8° ILDA, max. 60°
Max. Scan Angle
50°
Laser Source
Diode
Laser Class
4
Operation Modes
LAN, ArtNet, ILDA Streaming, integrated SD card, stand-alone
Basic Patterns
over 120 (layers, tunnels, fences, waves, etc.)
Accessories
Incl.power cable, manual, E-Stop, interlock connector, full version Showeditor software license included
IP rating
IP65
Power Supply
85 V - 250 V / AC, 50/60 Hz
Power Consumption
300 W
Dimensions
800 / 370 / 260 mm
Weight
22 kg
EAN / MPN
7640144996116
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.


tarm 3 OUTDOOR

Tarm 3 OUTDOOR Fl S
Outdoor laser, perfectly suitable for fixed installations for advertising, mappings or any kind of graphics projections. The high quality beam with uniform beam profile, combined with the fast scanning and upgrade option to CT-6210, makes the tarm 3 OUTDOOR a great projection unit.
IP65 waterproof laser system, suitable for outdoor use and fixed installations.
  • IP65 waterproof housing
  • 3'000 mW guaranteed power
  • Graphics capable - 45kpps @ 8° ILDA Scanners
  • Full color mixing - analog modulation
  • Extremely sharp intense beams - low divergeance of <0.6 mrad
  • Control screen (internal) for convenient mode selection
  • Free computer control software - Showeditor - upgradable to Showcontroller
  • Integrated powerful mainboard with advanced configuration features (geo-correction, zone setup, color balancing, etc.) and DAC feature
  • Multiple control modes - stand-alone, ArtNET, LAN and ILDA streaming

ShowNET mainboard as standard:
  • Various control options: ILDA, Professional DMX and ArtNET (two modes), LAN (computer control, integrated DAC), Stand-Alone Operation, ILDA Streaming Receiver, Master-Slave
  • Create custom content, store it inside the laser and play it back in different modes
  • Free laser show control software included
Tarm 3 OUTDOOR Fl S
Tarm 3 OUTDOOR F S
Tarm 3 OUTDOOR Fr S
Tarm 3 OUTDOOR B S
Tarm 3 OUTDOOR U S
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
ArtNET modeArtNET Control mode
LAN connectionLAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA StreamingILDA Streaming
ShowNET insideSHOWNET INSIDE:
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
Free Showeditor laser software includedSHOWEDITOR INCLUDED:
The full version of the laser show control software Showeditor is included in delivery.
READ MORE PRODUCT DETAILS
The tarm 3 OUTDOOR are especially designed for outdoor laser installations. They come equipped with the top quality laser setup known from the standard tarm units, but have a waterproof enclosure that not only protects the components inside from water, but also shields off direct heat from solar exposure. A specially designed roof in front of the output window prevents it from getting impacted by direct rain. To cope with varying temperatures, the tarm OUTDOOR units are equipped with an active watercooling system, that is built into the housing. An active heating system helps to keep the laser systems operational even at low temperatures. Thus the tarm 3 OUTDOOR lasers can be used at environmental temperatures between -10°C and +45°C. A CT Scanner upgrade with LAS Turboscan drivers is available for the tarm 3 OUTDOOR to achieve top end quality graphics results.


The tarm 3 OUTDOOR show laser projector is a full color whitelight RGB laser systems with full analog color modulation and diode-only equipment. The guaranteed output power is specified at 3'000 mW after optics.

The tarm 3 OUTDOOR units have a built-in network DAC for Showcontroller, Showeditor, Touchdesigner, MadLaser, etc., but also can be controlled with any ILDA laser control software such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface (e.g. FB3) and ILDA streaming. They also have a built-in memory with pre-set patterns, that can be easily triggered through ArtNet and automatic mode.
The tarm 3 OUTDOOR comes with integrated ShowNET network interface and free laser show software. Details in the box below.

The benefits include:

  • 3'000 mW guaranteed output power
  • a very fast maximum scan speed of 45kpps @ 8° ILDA for graphics projection
  • high-precision diode arrays provide an excellent beam divergence of less than <0.6 mrad for a low beam diameter
  • pure diode laser
  • novel method for increasing the beam precision of the diodes
  • beautiful colors and good color fading
  • the tarm 3 OUTDOOR impresses with very bright 637 nm red diodes



The tarm 3 OUTDOOR laser has great beam specifications with a diameter of ca. ca. 4.5 mm and a beam divergence of less than <0.6 mrad.
It is equipped with a bright red (1'000 mW / 637 nm), a green (900 mW / 520 nm), and a blue (1'700 mW / 450 nm) diode laser source.

The scanners are very fast with 45kpps @ 8° ILDA standard and allow for a maximum scan angle of 50°. Thus they are well graphics capable and suitable for professional laser applications.
Optionally as upgrade available: CT-6210 scanners with 60 [email protected]° ILDA and a max. scan angle of 60°.

+ Integrated ShowNET incl. free laser show software

The tarm 3 OUTDOOR features an integrated ShowNET network interface with free laser control software included!
Start with your own professional laser show thanks to the intuitive Showeditor laser show software which comes with every new tarm 3 OUTDOOR for free. The Showcontroller software is supported as well and can be purchased additionally.
The integrated ShowNET allows for direct input through ILDA and LAN. It is also possible to trigger single frames via ArtNet. Custom frames and shows can be played from an integrated SD card (included in delivery) – even in stand-alone mode!
There are two different ArtNet modes:
(1) DJ Mode with the most used features for beginners. Only a few channels are used for a quick and easy access to the most important adjustments directly at the laser system.
(2) Professional Mode with all ArtNet features especially for users with an ArtNet capable console. All adjustments can be triggered and allow for full control of the professional laser show.
The integrated ShowNET works as DAC (digital to analog converter) and enables ILDA streaming.

SEE DETAIL PICTURES
Tarm 3 OUTDOOR R S Detail
Tarm 3 OUTDOOR L S Detail
TECHNICAL DETAILS
Guaranteed Power at aperture
3'000 mW
Power Red
1'000 mW / 637 nm
Power Green
900 mW / 520 nm
Power Blue
1'700 mW / 450 nm
Beam Specifications*
ca. 4.5 mm / <0.6 mrad
Scanner
45kpps @ 8° ILDA; optional: CT-6210 with LAS Turboscan: 60kpps @ 8° ILDA, max. 60°
Max. Scan Angle
50°
Laser Source
Diode
Laser Class
4
Operation Modes
LAN, ArtNet, ILDA Streaming, integrated SD card, stand-alone
Basic Patterns
over 120 (layers, tunnels, fences, waves, etc.)
Accessories
Incl.power cable, manual, E-Stop, interlock connector, full version Showeditor software license included
IP rating
IP65
Power Supply
85 V - 250 V / AC, 50/60 Hz
Power Consumption
300 W
Dimensions
800 / 370 / 260 mm
Weight
22 kg
EAN / MPN
7640144996109
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.


Laserworld CS-8000RGB FX MK2

Laserworld CS 8000RGB FX Fl
A powerful semi-professional pure diode laser, capable of intense standard laser effects like beams, waves and tunnels but also basic graphics all of which can combine with the 3 built in grating effects to become a real room filler. This laser has easy plug and play, sound-to-light and stand-alone modes, DMX control, so it can be controlled with the rest of the lighting, but also has an ILDA port for computer control. Perfect for medium-sized to large nightclub installs, indoor as well as small outdoor events.
  • 8 W pure diode RGB laser system
  • two additional grating effects: Line and Burst
  • DMX controllable, master-slave operation possible
  • Full diode laser system
  • Computer controllable via ILDA
  • Plug & play: Sound-to-light and stand-alone modes
  • Capable of basic graphics - 28kpps @ 8° ILDA, galvo system, switchable effects grating wheel scanners
  • Full color with analog modulation
  • Front panel laser beam masking plate
  • 360° mounting bracket
Sound-to-light modeSOUND-TO-LIGHT MODE:
Let the beat of the music control the laser automatically
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
ILDA connectionILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
Laserworld CS 8000RGB FX Fl
Laserworld CS 8000RGB FX F
Laserworld CS 8000RGB FX Fr
Laserworld CS 8000RGB FX B
READ MORE PRODUCT DETAILS
The Laserworld CS-8000RGB FX MK2 has two grating effects built in in addition to the graphics capable scanners: line grating and burst grating .
Together with the ca. 130 (layers, tunnels, fences, waves, etc.), effects gratings stored on the laser, these effects offer a variety of combinations for impressive illumination of medium-sized to large locations. The grating effects make the projected patterns appear as if they were displayed by many projectors at the same time. The resulting extensiveness allows for effects that could not be achieved in any other way.
But that's not everything the Laserworld CS-8000RGB FX MK2 has to offer:

The Laserworld CS-8000RGB FX MK2 is a pure diode, analog modulated, full color RGB laser system with a total output power of up to 8'000 mW and a guaranteed output power of 7'300 mW. The red laser source has an output power of 1'800 mW / 638 nm, the green of 1'800 mW / 520 nm and the royal-blue laser source has an output power of 3'700 mW / 450 nm. The diode laser sources ensure powerful laser beams. The projector has good beam specifications with a beam diameter of 5 mm and beam divergence of 1.2 mrad. The galvo system has a scan speed of up to 28kpps @ 8° ILDA, galvo system, switchable effects grating wheel.

Pattern size can be set by two rotary buttons on the rear side of the housing. The sensitivity of the microphone can be adjusted via the integrated display.

There is no airflow in the optical compartment, the temperature is regulated through the separate cooling fins compartment. This reduces maintenance and cleaning requirements to a minimum.

Through DMX, in the stand-alone mode as well as in the sound-to-light mode about ca. 130 (layers, tunnels, fences, waves, etc.), effects gratings can be projected in different colors and in various speed. If the stand-alone mode is active, the pre-programmed patterns run without assistance and in the sound-to-light mode, the laser system projects according to the sound.

Next to the modes mentioned above, this laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX cable to a main projector (master projector) project the same patterns like the master projector.

The Laserworld CS-8000RGB FX MK2 is computer controllable through a professional ILDA interface. Thus own or pre-programmed lasershows, logos, texts or own graphics and animations can be shown in combination with a laser control software (e.g. Showeditor or Showcontroller).

There are safety features like a key switch, an interlock and an on-off switch.

The Laserworld CS-8000RGB FX MK2 show laser projector comes with a compact housing, which is light weight and has a stable bracket. The 360° mounting bracket allows for different mounting positions: a hanging as well as a standing installation is possible - ideal for mobile DJs and temporary laser shows, but also for fixed installations at a truss or at the ceiling.

The Laserworld CS-8000RGB FX MK2 is ideal for semi-professional applications and is perfectly suitable in medium sized to large clubs and discos as well as for mobile DJs, private use and in any other party location.

SEE DETAIL PICTURES
TECHNICAL DETAILS
Total Power
8'000 mW
Guaranteed Power
7'300 mW
Power Red
1'800 mW / 638 nm
Power Green
1'800 mW / 520 nm
Power Blue
3'700 mW / 450 nm
Beam Specifications*
5 mm / 1.2 mrad
Scanner
28kpps @ 8° ILDA, galvo system, switchable effects grating wheel
Max. Scan Angle
40°, up to 90° with effects gratings
Laser Source
Diode
Laser Class
4
Operation Modes
stand-alone, sound-to-light, DMX, ILDA, master-slave, Grating
Basic Patterns
ca. 130 (layers, tunnels, fences, waves, etc.), effects gratings
Accessories
power cable, manual, interlock, key
IP rating
IP4X
Power Supply
85V - 250 V AC
Power Consumption
111 W
Dimensions
285 x 180 x 190 mm
Weight
7.7 kg
EAN / MPN
7640144996024
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.


ShowNET OEM Set with Display

ShowNET OEM Set Open Package W Display
ShowNET Integration kit for laser manufacturers or custom builders. ShowNET is a full feature laser mainboard
network interface, including control display, ILDA switch board, ethernet connector and Showeditor laser control software full license
Showeditor software license included for free; also compatible to the Showcontroller laser control software as well as others for direct output, like MadLaser, Touchdesigner, Millumin, ILD Render, etc. .
  • Laser DAC for OEM integration
  • DMX/ArtNET, Stand-Alone, Sound-to-light (optional), Master-Slave, direct software control
  • integrated SD-Card for custom content
  • including full Showeditor software license
  • future firmware updates with new features and improvements
  • ILDA-Streaming capable
  • compatible to various software via API (API available for custom developments)

ShowNET mainboard as standard:
  • Various control options: ILDA, Professional DMX and ArtNET (two modes), LAN (computer control, integrated DAC), Stand-Alone Operation, ILDA Streaming Receiver, Master-Slave
  • Create custom content, store it inside the laser and play it back in different modes
  • Free laser show control software included
ShowNET OEM Set Open Package W Display
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
ArtNET modeArtNET Control mode
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
LAN connectionLAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA connectionILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
ILDA StreamingILDA Streaming
ShowNET insideSHOWNET INSIDE:
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
Free Showeditor laser software includedSHOWEDITOR INCLUDED:
The full version of the laser show control software Showeditor is included in delivery.
READ MORE PRODUCT DETAILS
The ShowNET OEM Set with Display is a special set for the integration of the laser mainboard to laser systems. It is designed for laser manufacturers to easily add a multitude of features to their devices.

Volume discounts available, please contact Laserworld.


- full Showeditor laser show software license included
- fully supported by the Showcontroller laser software
- Software API available to use with any software (contact Laserworld for information)
- can be controlled by any professional lighting desk, like GrandMA, Avolites, Chamsys, etc. either via professional DMX or ArtNET

The integration can easily be done by experienced laser technicians. The kit comes with detailed integration instructions. The ShowNET OEM Set with Display can be powered with 10-25V DC and it usually does not need an additional/separate PSU but can use the same as for the laser sources and/or the scanners.

The ShowNET OEM Set with Display includes an ILDA Switch-board, so the laser can still be used with standard ILDA control signal.


Some hardware features of ShowNET:

X/Y scanner outputs with 12 bit resolution (4096 different positions on each axis)
Color outputs with 8 bit resolution (256 different intensity values per color channel): red, green, blue, intensity linked to green
DMX512 input and output (non-isolated)
100 Mbit Ethernet port
Flexible IP address setting: static address, DHCP or AutoIP
Internal MicroSD card for ILDA file playback (ILDA format code 4/5 RGB), can be accessed via LAN
Maximum scan speed ~100.000 points per second
Up to 16 devices can be used in parallel for multiprojector laser shows
Built-in ArtNet-to-DMX converter

See https://www.laser-interface.com for more details and a feature overview


This is the user manual describing all the possibilities in detail: ShowNET Laser Mainboard User Manual
SEE DETAIL PICTURES
TECHNICAL DETAILS
Operation Modes
ILDA, DMX, LAN, ArtNet, ILDA streaming, integrated SD card, stand-alone, sound-to-light (optional), master-slave
Accessories
manual, integration instructions
Weight
0,25 kg
EAN / MPN
SHOWNET-DOEM
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.



RTI NANO 140

RTI Nano 100 Fr
140W extreme power full color laser system with graphics capable scanning and very low divergence.
  • 140W full color laser, including white
  • High performance scanners of 38kpps @ 8° ILDA; 25kpps @ max. deflection of 48°
  • Divergence only <0.9 mrad
  • Latest RSL module technology, maintenance free modules
  • Built-in air conditioning, can be used from -20° to +60°C
  • Variable mounting options, rainproof housing
  • Great for skylaser, mountain projections, long distance projections, multimedia project use, or any other long throw, high visibility use.

ShowNET mainboard as standard:
  • Various control options: ILDA, Professional DMX and ArtNET (two modes), LAN (computer control, integrated DAC), Stand-Alone Operation, ILDA Streaming Receiver, Master-Slave
  • Create custom content, store it inside the laser and play it back in different modes
  • Free laser show control software included
RTI Nano 100 Fr
RTI Nano 100 F Closed
RTI Nano 100 F
RTI Nano 100 B Closed
RTI Nano 100 B
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
ArtNET modeArtNET Control mode
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
LAN connectionLAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA connectionILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
ILDA StreamingILDA Streaming
ShowNET insideSHOWNET INSIDE:
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
Free Showeditor laser software includedSHOWEDITOR INCLUDED:
The full version of the laser show control software Showeditor is included in delivery.
READ MORE PRODUCT DETAILS
The RTI NANO 140 stretches the physical boundaries of current show laser light technology: With 140.000 mW and professional scanners with 38kpps @ 8° ILDA; 25kpps @ max. deflection of 48° it claims a class for its own.
The 120W full color laser system is powered by three ultra precise laser modules built with the latest generation of the maintenance free RTI Semiconductor Laser (RSL) technology with individual powers of 33.000 mW / 637 nm (red), 52.000 mW / 525 nm (green) and 80.000 mW / 455 nm (blue). With these high powers per color channel it is no problem to create colored beams that are visible from many kilometers away. But the RTI NANO 140 is also graphics capable: Projections to far distance surfaces, like mountains or tall buildings, can be done as well as astonishing aerial effects that cover a huge area.
Typical applications for this unit are sky laser or landmark laser use, long distance and large scale projections towards big surfaces, but it can also be THE special effect for any type of large scale event. Multimedia projects can integrate these lasers to make sure that the beams can definitely be seen without the requirement of artificial fog or haze.
The RTI NANO 140 comes with its own active cooling system to make sure that the output and performance of the laser system can always be kept on a top professional level. The integrated AC keeps the temperature of all critical parts at a constant level, independently of the environmental conditions, which allows for operation of the laser system between -20° and +60° C. The AC unit is integrated to the housing, so no additional external devices are required, which makes transport, handling and mounting quite easy for the power level of this unit.
The interior of the RTI NANO 140 laser system is built with special shock absorbing technology that extends the shock-proof design of the laser modules, so misalignment of the ultra-precise laser modules is prevented, which is essential for long-range use.
Even though the RTI NANO 140 creates such extreme laser powers, the size of the laser beam as well as the divergence is kept extremely low, so it is possible to use small scanner mirrors for fast, professional graphics display. It also maintains a very low widening of the beam over distance (divergence), which makes the laser beam travel over longer distances and keeps up visibility: With a divergence of only <0.9 mrad the RTI NANO 140 is truly outstanding at the power it provides.
The laser system comes in a case housing that can be operated standing on a surface, hung from a truss construction or ceiling, or flown like a line array. It comes on heavy duty castor wheels with a special suspension technology. Of course the laser system is perfectly suitable for outdoor use, even in the rain.
The intelligent LaserAnimation Sollinger Mainboard is integrated into the RTI NANO 140, which provides the laser operator with a variety of control and setting options (e.g. the LA.toolbox) or transmission options (such as AVB). Together with the ShowNET laser mainboard, which is also integrated, ILDA, LAN (software), DMX and ArtNET control, ILDA streaming, stand-alone operation, among others, are available, ensuring the highest possible flexibility.
Creating such extreme laser powers of course requires a proper power supply of the unit. Due to its energy efficient design, the RTI NANO 140 only requires a 3 phase 16A CEE power connection with an overall maximum power consumption of only 6 kW.
The whole laser system, including the built-in air conditioning, has the dimensions of 110 x 80 x 130 cm and weights 120 kg.
SEE DETAIL PICTURES
TECHNICAL DETAILS
Guaranteed Power at aperture
140.000 mW
Power Red
33.000 mW / 637 nm
Power Green
52.000 mW / 525 nm
Power Blue
80.000 mW / 455 nm
Beam Specifications*
ca. 10 mm / <0.9 mrad
Scanner
38kpps @ 8° ILDA; 25kpps @ max. deflection of 48°
Max. Scan Angle
48°
Laser Source
RTI Semiconductor Laser Modules (RSL 2)
Laser Class
4
Operation Modes
AVB / TSN interface for streaming ILDA data via Ethernet, AIFF player function, stand-alone player, ILDA, DMX / ArtNET, control software “LA.toolbox” for PC or Mac included, LAN (software) with ShowNET DAC
Basic Patterns
over 120 (hot beams, layers, tunnels, fences, waves, etc.)
Accessories
Incl. interlock connector, key, power cable, manual, incl. the LA.toolbox control software
IP rating
IP65
Power Supply
16A CEE, 3 phase
Power Consumption
6000 W
Dimensions
110 x 80 x 130 cm
Weight
120 kg
EAN / MPN
836215094
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.



tarm 22

Tarm 22 Fl S
The powerful tarm 22 is suitable for indoor and outdoor show laser applications at concerts, festivals and other huge events. Demanding graphics projections or projections over long distances are no problem for this impressive unit due to the extremely good divergence.
Equipped with the latest RSL Semiconductor modules.
IP54 waterproof laser system, suitable for outdoor use.
Incl. waterproof flightcase
  • 23'000 mW guaranteed power
  • Complex graphics capable - 45kpps @ 8° ILDA scanners – upgradable to 60kpps
  • Extremely sharp intense beams especially compared to other lasers of this power
  • Advanced RTI Semiconductor laser modules for homogenous beam profile and equal divergence of <0.8 mrad on x and y axis
  • IP54 waterproof housing
  • Integrated powerful mainboard with advanced configuration features (geo-correction, zone setup, color balancing, etc.) and DAC feature
  • Integrated network switch for linking the control signal
  • Control screen for convenient mode selection
  • Rugged tour grade compact housing
  • Laser Artists' choice
  • Lighting Designers' choice
  • Incl. waterproof flightcase

ShowNET mainboard as standard:
  • Various control options: ILDA, Professional DMX and ArtNET (two modes), LAN (computer control, integrated DAC), Stand-Alone Operation, ILDA Streaming Receiver, Master-Slave
  • Create custom content, store it inside the laser and play it back in different modes
  • Free laser show control software included
Tarm 22 Fl S
Tarm 22 F S
Tarm 22 Fr S
Tarm22 B S
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
ArtNET modeArtNET Control mode
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
LAN connectionLAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA connectionILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
ILDA StreamingILDA Streaming
ShowNET insideSHOWNET INSIDE:
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
Free Showeditor laser software includedSHOWEDITOR INCLUDED:
The full version of the laser show control software Showeditor is included in delivery.
READ MORE PRODUCT DETAILS
Built with the latest RTI Semiconductor Laser Module technology!

The tarm 22 is made in Germany and is a compact show laser system that is ideally suited for top professional laser show applications of any kind. It is built with the latest RTI semiconductor laser modules that are specially designed in a way to keep spot size as well as divergence equal on both x- and y-axis. This is significantly advantageous over solutions with a very good divergence on one axis, but a bad divergence on the other. The laser modules inside the tarm 22 are different - the spot size and shape is equal for all colors and on both axis!

The beam specifications of the new tarm 22 are given with only ca. 5.0 mm diameter and <0.8 mrad divergence - which applies to both axis. The extremely small beam diameter allows for the use of very small 4.5 mm mirrors, which results in reduced inertia and thus very good scanning performance.

KEY FEATURES

  • 23 W total RGB power in a small housing of only 441/260/153 mm
  • super small spot of ca. 5.0 mm for reduced inertia and thus fast scanning
  • All wavelengths matched in divergence and beam size
  • extremely low divergence of <0.8 mrad - on both axis!
  • Integrated network switch for linking the control signal
  • Compact form factor, module size equal to the Coherent OPSL modules
  • extremely lightweight unit with only 18.3 kg
  • Different, brighter wavelengths for increased visibility
  • brilliant colors and great color fading
  • Laser modules do not come out of internal alignment
  • Maintenance free laser modules
  • High quality product, Made in Germany
  • Great scanning performance suitable for projections as well as for beams

The tarm 22 impresses with a guaranteed RGB output power of 23'000 mW. Great visibility is achieved with the new RTI Semiconductor Laser modules (RSL) with special wavelengths for increased visibility: 7'500 mW / 637 nm for a very bright red combined with 10'000 mW / 525 nm green and a strong blue laser module with 10'000 mW / 455 nm. The 525nm green provides a warmer green tone than the 520nm diodes and has increased visibility.
These new RSL modules with their extremely low divergence and homogenous beam shape make the tarm 22 a top professional laser system. The extremely small beam diameter of only ca. 5.0 mm allows for the use of small scanner mirrors which leads to reduced inertia and higher scan speeds. This is especially important, as the tarm 22 can be used for any kind of laser show application: Super sharp beams and vivid colors for large scale concerts and festivals but also a perfectly matched beam for crisp graphics.

The RTI Semiconductor Laser modules are maintenance free and do not come out of internal alignment.
The standard scanners can be run at a maximum of 45kpps @ 8° ILDA and a maximum scan angle of 50°. CT-6210H scanners with LAS Turboscan drivers are available as option and provide even higher scan speeds with up to 60kpps at 8° ILDA .

The powerful tarm 22 is suitable for indoor and outdoor show laser applications at concerts, festivals and other huge events. Demanding graphics projections or projections over long distances are possible without any problems, due to the extremely good divergence.

INCLUDING SHOWNET LASER MAINBOARD

The tarm 22 is delivered with a ShowNET laser mainboard as standard. This means it has a multitude of control features already built-in: Control via DMX or ArtNET, just like a normal lighting fixture, are possible as well as computer control via ILDA or LAN. Of course the laser can be run in stand alone operation, too. The contents for playback (for DMX, ArtNet, Stand-Alone, etc.) can be fully customized. As the ShowNET laser mainboard comes with a full license of the Showeditor software, it is easy to create custom content for the built-in memory or even directly control the laser with a computer - either live or for creation an playback of complete laser shows.

If ILDA shall be used as control option, like from an external Lasergraph DSP, the internal ShowNET mainboard can also be used as receiver for an ILDA streaming signal - so the externbal ILDA signal can be feeded to an external ShowNET device and this sends the direct control to the tarm 22 via ILDA Streaming - so no long ILDA cables are required any more, even with ILDA based control systems.
SEE DETAIL PICTURES
Tarm 22 R S Detail
Tarm 22 L S Detail
TECHNICAL DETAILS
Guaranteed Power at aperture
23'000 mW
Power Red
7'500 mW / 637 nm
Power Green
10'000 mW / 525 nm
Power Blue
10'000 mW / 455 nm
Beam Specifications*
ca. 5.0 mm / <0.8 mrad
Scanner
45kpps @ 8° ILDA; optional CT-6210 with LAS Turboscan: 60 [email protected]° ILDA, max. 60°
Max. Scan Angle
50°
Laser Source
RSL modules
Laser Class
4
Operation Modes
ILDA, DMX, LAN, ArtNet, integrated SD card, stand-alone, master-slave; integrated intelligent ShowNET laser mainboard with display
Basic Patterns
over 120 (layers, tunnels, fences, waves, etc.)
Accessories
Incl. waterproof flightcase, power cable, manual, key, interlock connector,full version Showeditor software license included
IP rating
IP54
Power Supply
85 V - 250 V / AC, 50/60 Hz
Power Consumption
450 W
Dimensions
441/260/153 mm
Weight
18.3 kg
EAN / MPN
7640144996666
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.


RTI PIKO 70

RTI PIKO Fl
The powerful but compact RTI PIKO 70 is suitable for outdoor laser show applications at concerts, festivals, and other huge events with easy operation due to the built-in software and DMX control. The PIKO is equipped with the latest RSL Semiconductor modules (RSL) making it an amazing laser for beam shows and demanding graphic projections such as laser mapping or projections over long distances. The high-end performance is part of the PIKO's DNA and makes this possible due to the great performance combination of the semiconductor RSL & top scanners
  • 70 W guaranteed power
  • Advanced RTI Semiconductor laser modules (RSL) produce a perfect shaped beam profile for red & blue and green.
  • Maintenance free laser system
  • RSL modules with no color misalignment
  • New advanced sealed optical section with no color misalignment
  • Graphics capable - 42 [email protected]° ILDA scanners
  • Full-color mixing
  • Extremely sharp intense beams - low divergence
  • Integrated intelligent LaserAnimation Sollinger Mainboard and ShowNET Laser Mainboard
  • Integrated Touch-Display for adjustment of basic functions
  • Integrated network switch for linking the control signal
  • FB4-QS MAX optional integration
  • Rugged tour-grade compact housing
  • 360° Bracket with quick-lock system

ShowNET mainboard as standard:
  • Various control options: ILDA, Professional DMX and ArtNET (two modes), LAN (computer control, integrated DAC), Stand-Alone Operation, ILDA Streaming Receiver, Master-Slave
  • Create custom content, store it inside the laser and play it back in different modes
  • Free laser show control software included
RTI PIKO Fl
RTI PIKO F
RTI PIKO Fr
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
ArtNET modeArtNET Control mode
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
LAN connectionLAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA connectionILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
ILDA StreamingILDA Streaming
ShowNET insideSHOWNET INSIDE:
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
Free Showeditor laser software includedSHOWEDITOR INCLUDED:
The full version of the laser show control software Showeditor is included in delivery.
READ MORE PRODUCT DETAILS
Built with the latest RTI Semiconductor Laser Module technology!

The RTI PIKO 70 is made in Germany and is a compact show laser system in a rugged, dust-proof housing that is ideally suited for top professional laser show applications of any kind. It is built with the latest RTI semiconductor laser modules that are specially designed in a way to keep spot size as well as divergence equal on both x- and y-axis. This is significantly advantageous over solutions with a very good divergence on one axis, but a bad divergence on the other. The laser modules inside the RTI PIKO 70 are different - the spot size and shape is equal for all colors and on both axis!

The beam specifications of the new RTI PIKO 70 are given with only ca. 8 mm diameter and <0.8 mrad divergence - which applies to both axis. The extremely small beam diameter allows for the use of very small mirrors, which results in reduced inertia and thus very good scanning performance.

KEY FEATURES

  • 70 W total RGB power in a small housing of only 271 x 491 x 296 mm
  • super small spot of ca. 8 mm for reduced inertia and thus fast scanning
  • extremely low divergence of less than <0.8 mrad - on both axis!
  • Integrated network switch for linking the control signal
  • Maintenance free, no misalignment: new generation of laser color combination
  • Compact form factor, module size equal to the Coherent OPSL modules
  • extremely lightweight unit with only 28 kg
  • Different, brighter wavelengths for increased visibility
  • brilliant colors and great color fading
  • Laser modules do not come out of internal alignment
  • Maintenance free laser modules
  • Interlock / e-stop signal can be daisy-chained
  • High quality product, made in Germany
  • Great scanning performance suitable for projections as well as for beams

The RTI PIKO 70 impresses with a guaranteed RGB output power of 70'000 mW. Great visibility is achieved with the new RTI Semiconductor Laser Modules (RSL) with special wavelengths for increased visibility: 17'000 mW / 637 nm for a very bright red combined with a strong blue laser module with 40'000 mW / 455 nm. The 26'000 mW / 525 nm 525 nm modules have increased visibility compared to normal diode modules.
These new RSL modules with their extremely low divergence and homogenous beam shape make the RTI PIKO 70 a top professional laser system. The extremely small beam diameter of only ca. 8 mm allows for the use of small scanner mirrors which leads to reduced inertia and higher scan speeds. This is especially important, as the RTI PIKO 70 can be used for any kind of laser show application: Super sharp beams and vivid colors for large scale concerts and festivals but also a perfectly matched beam for crisp graphics.

The RTI Semiconductor Laser Modules are maintenance free and do not come out of internal alignment.
The standard scanners can be run at a maximum of 42 [email protected]° ILDA and a maximum scan angle of 48°..

The housing is built very durable and ideal for use on the road. It has an interlock / e-stop through port, which allows for daisy-chaining the interlock signal, which means that only one e-stop is required for several laser systems. Due to the dustproof housing, the maintenance effort is very low and the device is also suitable for tough touring applications.

The new 360° brackets can be safely fixed in the needed position in just a few moments thanks to the quick-lock system.Demanding graphics projections or projections over long distances are possible without any problems, due to the extremely good divergence.

INCLUDING LaserAnimation Sollinger Mainboard and ShowNET

The intelligent LaserAnimation Sollinger Mainboard is integrated into the RTI PIKO 70, which provides the laser operator with a variety of control and setting options (e.g. the LA.toolbox) or transmission options (such as AVB). Together with the ShowNET laser mainboard, which is also integrated, ILDA, LAN (software), DMX and ArtNET control, ILDA streaming, stand-alone operation, among others, are available, ensuring the highest possible flexibility.

The emergency stop signal can be looped through the interlock through connection and only one emergency stop switch is required for several devices. Control signals can be looped through directly via the network switch, which is also integrated.
If the laser is operated in hot temperatures (above 35°C), please contact your key account for the required accessories.
SEE DETAIL PICTURES
TECHNICAL DETAILS
Guaranteed Power at aperture
70'000 mW
Power Red
17'000 mW / 637 nm
Power Green
26'000 mW / 525 nm
Power Blue
40'000 mW / 455 nm
Beam Specifications*
ca. 8 mm / <0.8 mrad
Scanner
Max. Scan Angle
48°
Laser Source
RSL modules
Laser Class
4
Operation Modes
AVB / TSN interface for streaming ILDA data via Ethernet, AIFF player function, stand-alone player, ILDA, DMX / ArtNET, control software “LA.toolbox” for PC or Mac included, LAN (software) with ShowNET DAC
Basic Patterns
over 120 (layers, tunnels, fences, waves, etc.)
Accessories
Incl. waterproof flightcase, rain cover, interlock connector, key, power cable, manual, incl. the LA.toolbox control software
IP rating
IP54
Power Supply
85-250 V AC 50/60 Hz
Power Consumption
2500 W
Dimensions
271 x 491 x 296 mm
Weight
28 kg
EAN / MPN
836215081
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.


Buy Show Laser Light Systems

Laserworld is a world leader in the field of manufacturing and distribution of show laser light systems. The product portfolio ranges from small, entry level laser light systems (effect lasers, club lasers, party lasers) up to high end professional lasers. Every product and product series targets a certain customer group, so the laser systems in the Laserworld product portfolio complement each other, which results in heterogeneous customer groups: musical equipment retail stores, music stores as well as nightclubs, amusement parks, rental and production companies are just a small extract of them.
Laserworld runs an online store for show laser light systems on sale. It is possible to buy laser light systems directly there or purchase them at one of our countless distribution partners. Commercial customers are encouraged to register as dealer.

Rent Laser Systems

It does not always make sense to buy, but to rent laser show systems. Laserworld holds a large stock of laser systems for rent.. The rental laser systems are available for worldwide shipping and can also be rented together with professional laser operators. We only rent out high professional laser show equipment, mainly built by RTI. So products of the PIKO, NANO and NEO Series are available. And of course we offer Showcontroller, Pangolin and Lasergraph DSP laser show control systems for rent as well.
Laserworld holds larger stock of RGB white light laser systems with 10W and more. The online rental price list helps in selecting the right laser for rental and helps to calculate the rental price. It is also possible to select laser accessories for rent, such as haze machines, smoke machines or MIDI controllers.

Laser Show Production

Long year experience of show partners and many references from past laser show and multimedia show projects where lasers manufactured by the Laserworld Group came into action, make us the right partner for any type of laser show production or laser show project. No matter if it’s a fixed installation of laser systems or multi-media projections, or if it’s a temporary show: Our experts help in laser show planning, design, on-site implementation and laser show production. We offer turn-key multimedia show solutions as well as Laser Show productions in part or embedded to other show productions, like it happens at big stage shows, festivals or concerts. Time-coded, pre-synchronized shows can be done as well as live laser shows: We have experts for both types, they can handle even extremely complex synchronization scenarios.
It is also possible to do small-scale laser shows for little money: Just tell us about your plans for your laser show and we help you in specifying a show that meets the show budget.

Laser Show References

Many references of laser shows and multi-media shows where laser systems manufactured by the Laserworld group came into action accumulated over the past years, so we documented them in pictures and videos in our portfolio section. Of course, these references only show a small part of the laser shows and multi-media shows our partners have done throughout the years, as many of our customers did not want us to show their project in our references – mainly as these were commercial laser applications or corporate laser shows, which were not meant to be publicly shown. Nevertheless we prepared a good number of references, and we keep on adding more.
The partners of the Laserworld Group did laser shows and multi-media projects at many different occasions and for many different applications. Most common places laser shows are displayed at nightclubs, festivals, amusement parks and at corporate shows. Also many famous artists and musicians rely on laser show and multimedia support for their stage shows. Besides that, lasers were used at weddings, for product presentations or for architecture and mapping.

Distributed brands:

Distributed Brand LaserworldDistributed Brand tarmdistributed brand Ray Technologies
Distributed Brand Laserworld ShoweditorDistributed Brand ShowcontrollerDistributed Brand PangolinDistributed Brand coherent
