Laserworld DS-30.000 IP65
From outdoor environments via its IP65 rating to medium and large club installations and large-scale productions: The Laserworld DS-30.000 IP65 is a graphics-capable, 30'000 mW full-color laser designed for semi-professional use. This system combines high power output with a narrow beam diameter and low divergence while remaining an affordable solution for its performance class. It features an onboard ShowNET mainboard for direct control via Showeditor (included free of charge), Showcontroller, or other compatible software, as well as ILDA and DMX/ArtNET connectivity.
ShowNET-Mainboard als Standard:
- Vielfältige Steuerungsmöglichkeiten: ILDA, Professionelles DMX (zwei Modi), LAN (Computersteuerung, integrierter DAC)
- Eigene Inhalte erstellen, im Laser speichern und in verschiedenen Modi wiedergeben
- Kostenlose Lasershow-Steuerungssoftware enthalten
DMX MODUS:Der Laser kann mit einem Standard-DMX-Controller oder einer DMX-Software gesteuert werden.
NETZWERK-MODUS:Der Laser kann über LAN gesteuert werden - dies kann entweder eine direkte Softwaresteuerung sein, oder ArtNET oder ähnliches (abhängig vom Mainboard)
ILDA-MODUS:Der Laser kann über Standard-ILDA, das analoge Steuersignal für die Lasersteuerung, gesteuert werden. Es können externe Digital-Analog-Wandler (DACs) verwendet werden.
SHOWNET INSIDE:Der Laser ist mit dem fortschrittlichen ShowNET-Laser-Mainboard ausgestattet, das den Laser um eine Vielzahl von Funktionen erweitert und ihn zu einem intelligenten Lichteffektgerät macht.
SHOWEDITOR INKLUSIVE:Die Vollversion der Lasershow-Steuerungssoftware Showeditor ist im Lieferumfang enthalten.

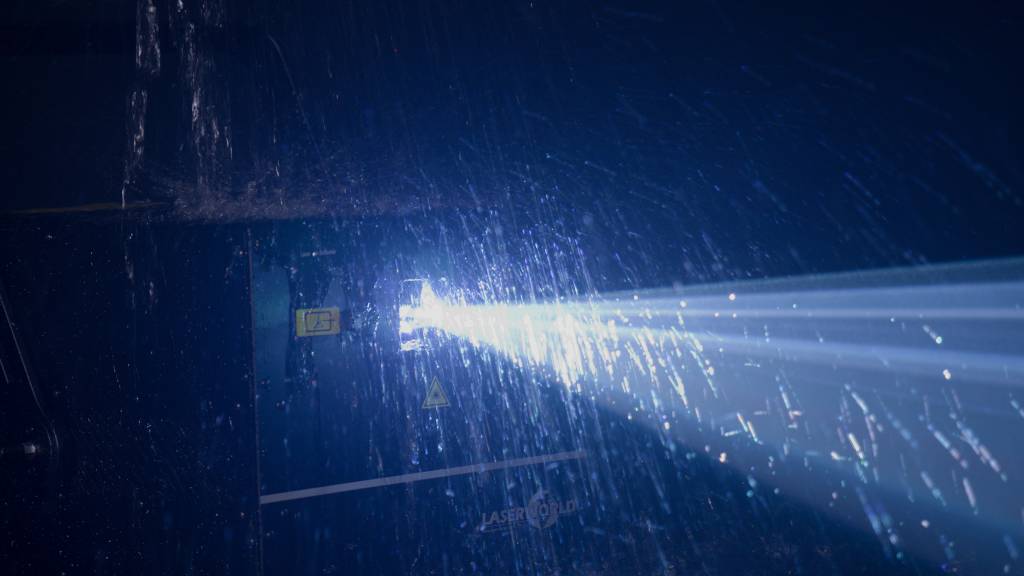

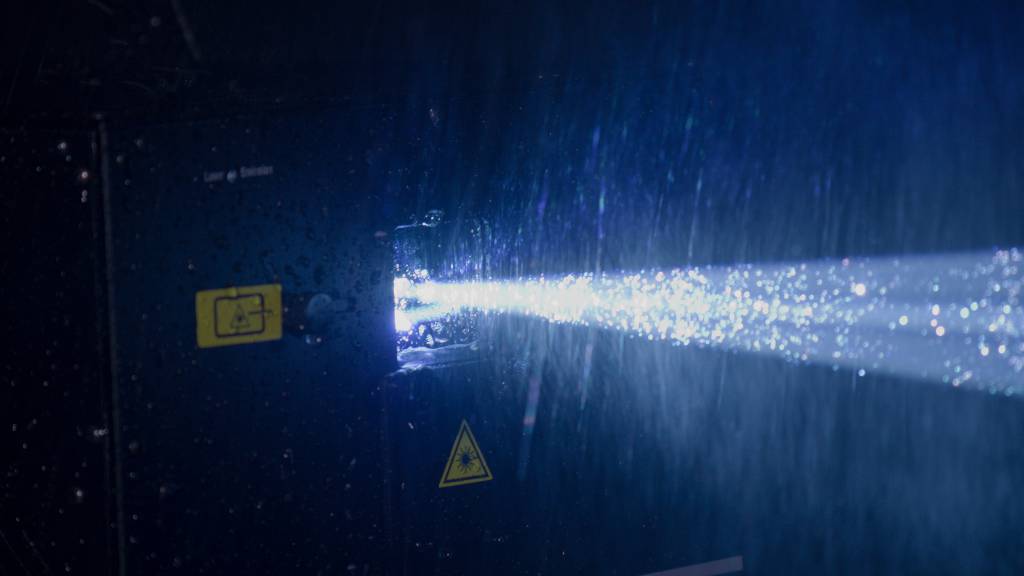

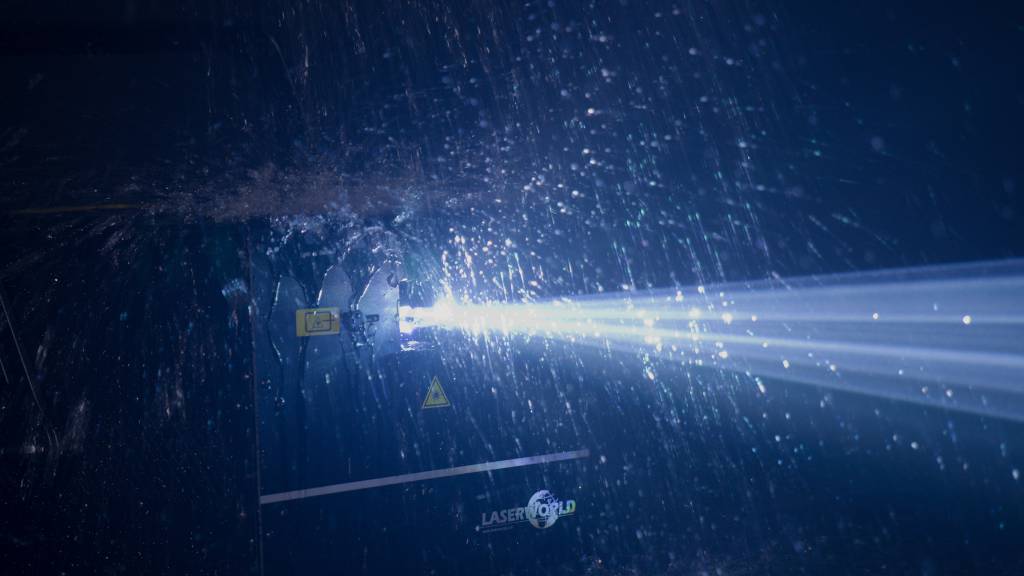

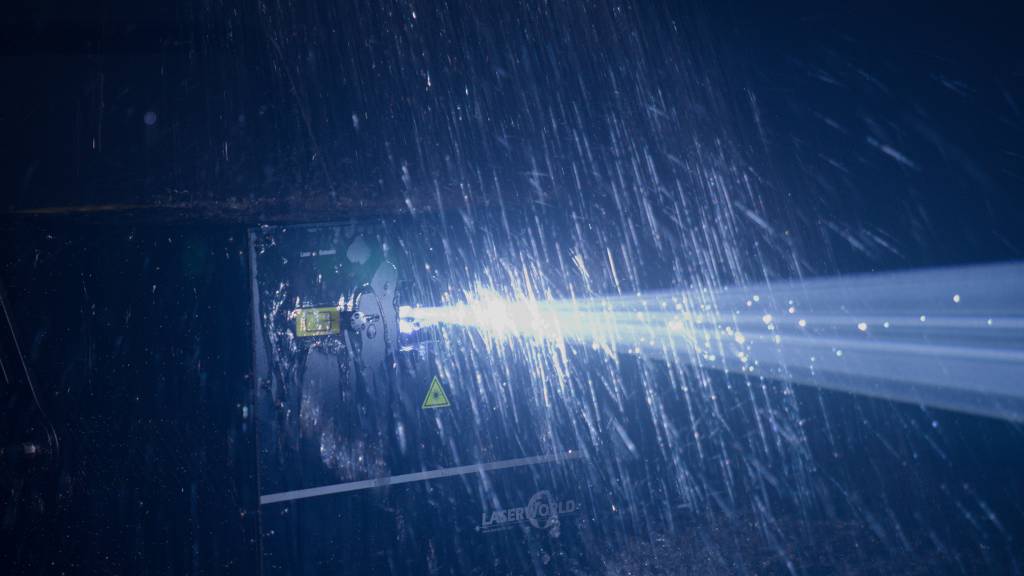

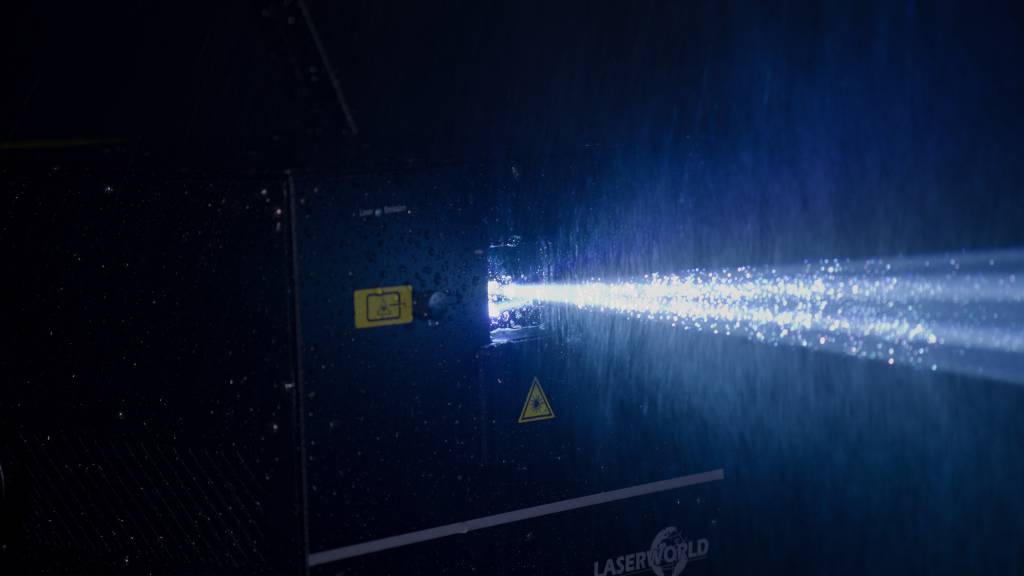

The Laserworld DS-30.000 IP65 laser systems feature a new IP65-rated housing. These full-color diode lasers offer linear color fading combined with high visibility, due to analog modulation, and intense color saturation.
Laserworld DS-30.000 IP65 lasers include an integrated intelligent mainboard with built-in digital-to-analog converter (DAC), allowing them to be controlled directly via software systems like Showcontroller, Showeditor, TouchDesigner, MadLaser, ILD-Render, and more. Any ILDA laser control software can be used to control the Laserworld DS-30.000 IP65 with an external interface, such as LaserGraph DSP. Additionally, the units come standard with built-in memory containing preset patterns that are easily accessible via DMX or ArtNET, or can be played back automatically. Users can also create and store their own custom content into the mainboard using the ShowNET Admin Tool.
The Laserworld DS-30.000 IP65 comes equipped with an integrated ShowNET mainboard and includes free laser show software (see details below).
Beam specifications are at great ca. 5.5 mm / 1.1 mrad. The guaranteed output power is 30'000 mW, with individual RGB values of 6'000 mW / 638 nm for red (638 nm), 8'500 mW / 520 nm for green (520 nm), and 16'000 mW / 450 nm for blue (450 nm). It has a scanning speed of 30 kpps @ 8° and a 50°. Thanks to its IP65 rating, the laser is not only perfectly suited for outdoor use but also reduces maintenance requirements to an absolute minimum.
Laserworld DS-30.000 IP65 lasers include an integrated intelligent mainboard with built-in digital-to-analog converter (DAC), allowing them to be controlled directly via software systems like Showcontroller, Showeditor, TouchDesigner, MadLaser, ILD-Render, and more. Any ILDA laser control software can be used to control the Laserworld DS-30.000 IP65 with an external interface, such as LaserGraph DSP. Additionally, the units come standard with built-in memory containing preset patterns that are easily accessible via DMX or ArtNET, or can be played back automatically. Users can also create and store their own custom content into the mainboard using the ShowNET Admin Tool.
The Laserworld DS-30.000 IP65 comes equipped with an integrated ShowNET mainboard and includes free laser show software (see details below).
Beam specifications are at great ca. 5.5 mm / 1.1 mrad. The guaranteed output power is 30'000 mW, with individual RGB values of 6'000 mW / 638 nm for red (638 nm), 8'500 mW / 520 nm for green (520 nm), and 16'000 mW / 450 nm for blue (450 nm). It has a scanning speed of 30 kpps @ 8° and a 50°. Thanks to its IP65 rating, the laser is not only perfectly suited for outdoor use but also reduces maintenance requirements to an absolute minimum.
> Mehr Details
ShowNET interne Steuerung:
DMX Control
ArtNet Control
Automatic / Stand Alone
Master-Slave
ILDA Streaming
Externe ILDA Standard Ansteuerung:
Analog ILDA
> Mehr Details
Technisches Datenblatt herunterladen
