Laserworld PL-5 FB4
The latest generation of Purelight IP65 laser systems features innovative RSL2 technology, combining an extremely compact and lightweight design with outstanding beam quality. With 5'000 mW of power and an IP65 rating, the Laserworld PL-5 FB4 is a dependable choice for large-scale club installations, touring, production, and smaller outdoor shows. Its 45 kpps @ 8° scanning system ensures it is capable of professional-level graphics projections.

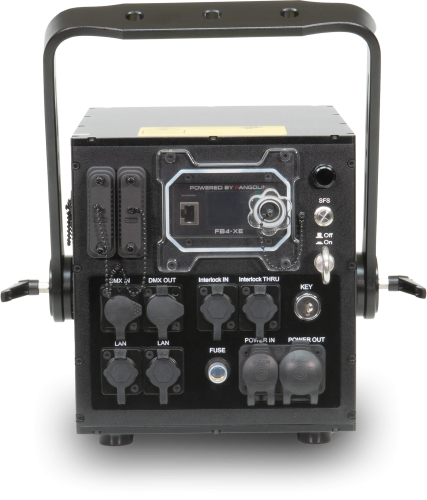

Each device features an integrated FB4 mainboard and a built-in color display for easy operation mode configuration. This hardware allows the Purelight Series to be controlled directly via various laser software or integrated into lighting setups via DMX and ArtNet.
Each device features an integrated FB4 mainboard and a built-in color display for easy operation mode configuration. This hardware allows the Purelight Series to be controlled directly via various laser software or integrated into lighting setups via DMX and ArtNet.
- Innovative RSL2 module technology for optimized optical performance and a compact housing
- Professional graphics capable – 45 kpps @ 8°
- Maximum scan angle: 50°
- Full color mixing with analog modulation
- Sharp, intense beams – ca. 5.5 mm
- IP65 waterproof housing
- Save safety settings directly to the laser for application in all operation modes
- Link multiple units with Power, DMX, and ILDA linking
- Multiple control modes: Auto, DMX, ArtNet, and ILDA

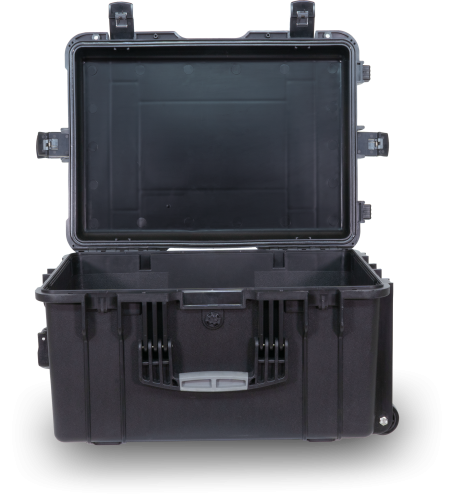

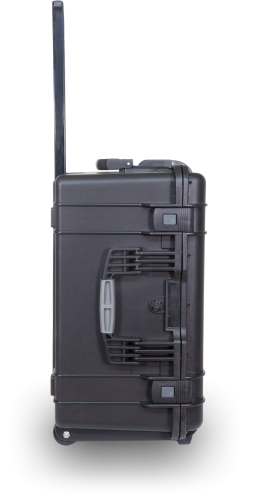

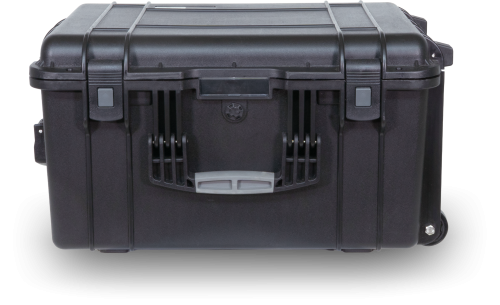

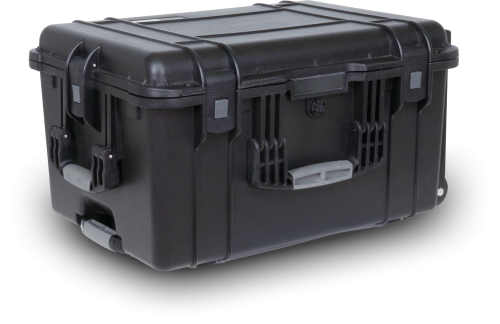

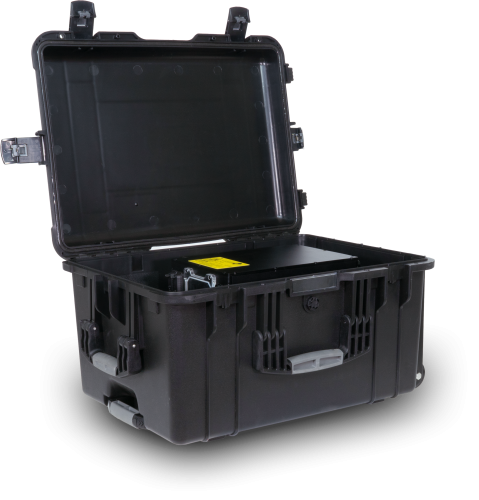

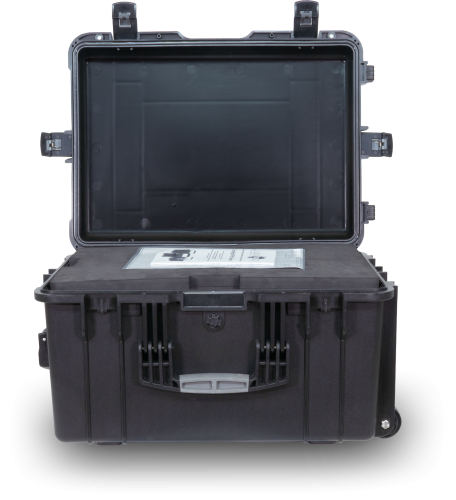

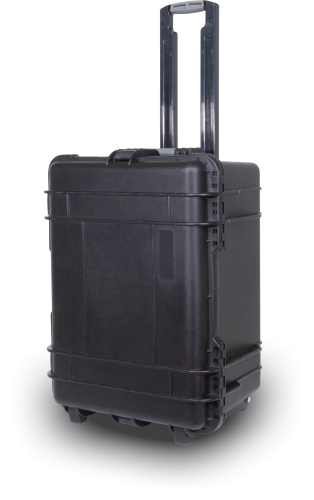

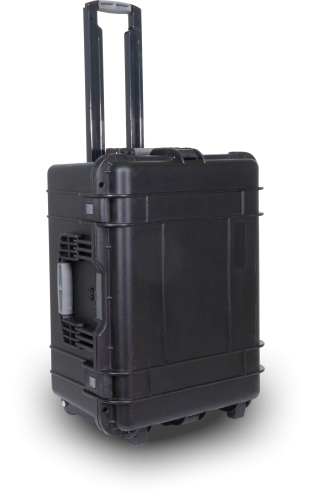

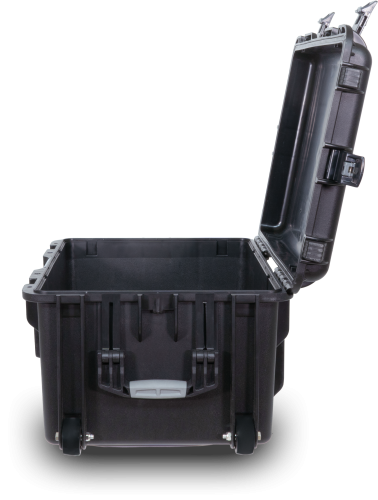

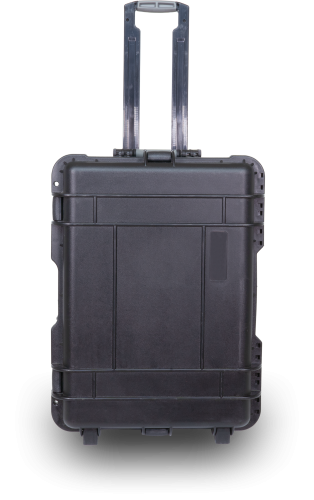

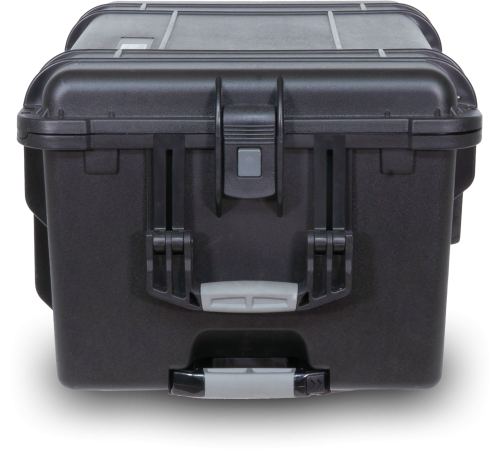

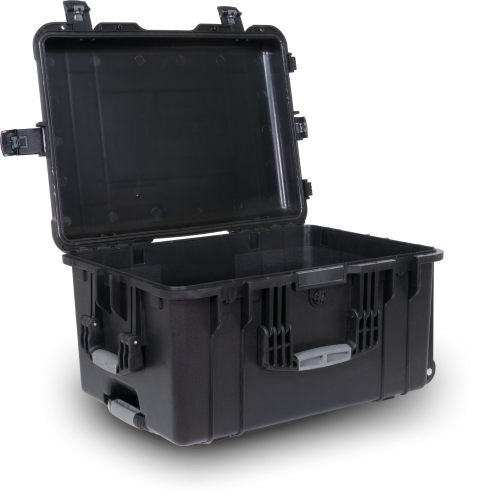

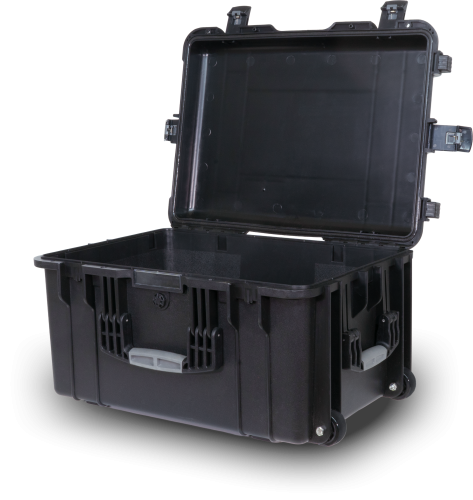

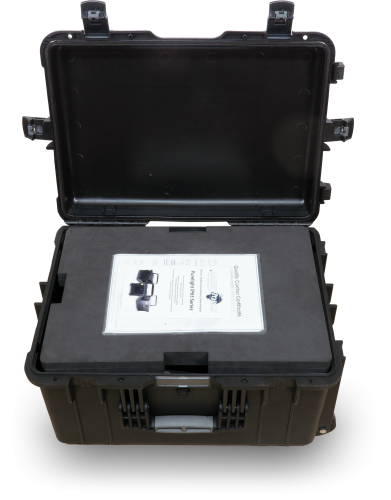

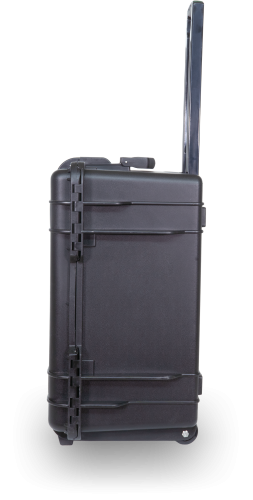

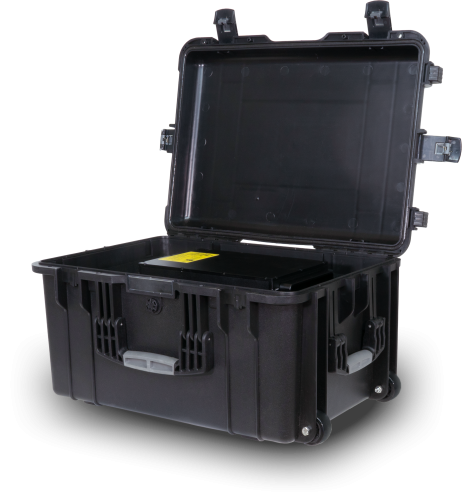

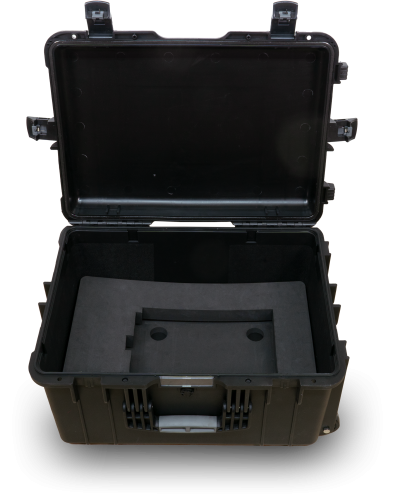

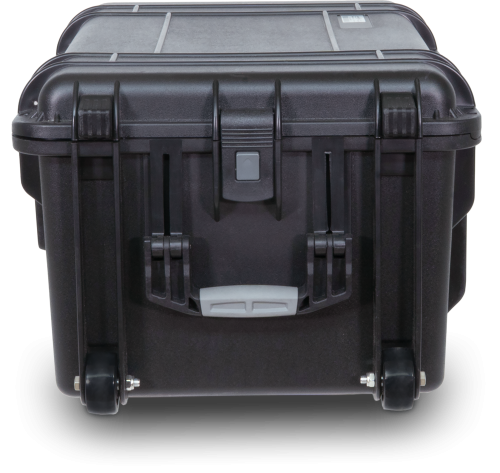

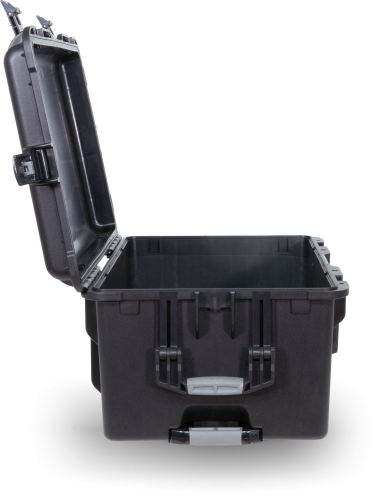

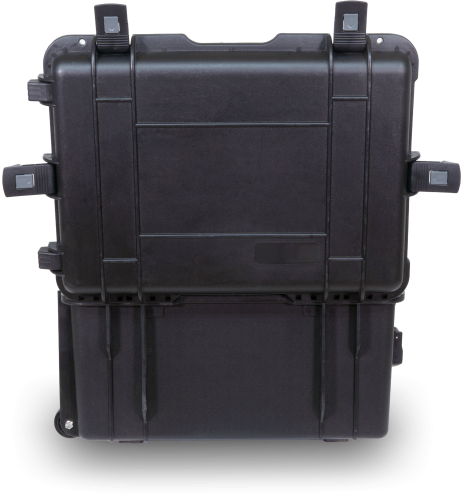

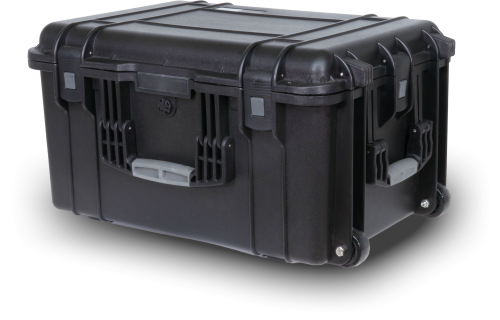

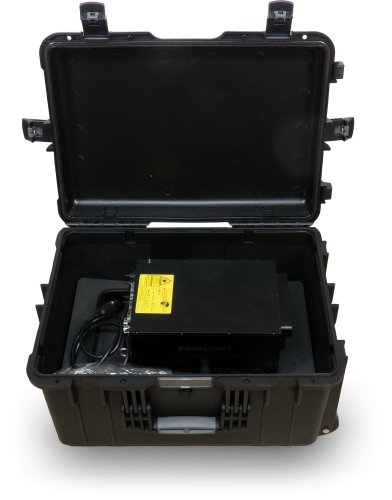

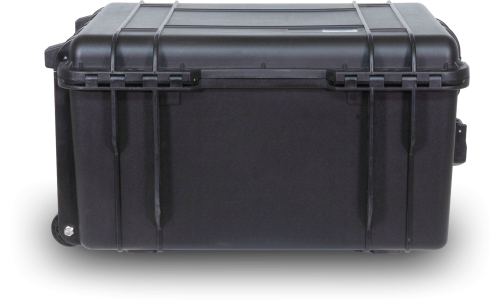

- Including waterproof flightcase
- Integrated Pangolin FB4 interface
ShowNET-Mainboard als Standard:
- Vielfältige Steuerungsmöglichkeiten: ILDA, Professionelles DMX (zwei Modi), LAN (Computersteuerung, integrierter DAC)
- Eigene Inhalte erstellen, im Laser speichern und in verschiedenen Modi wiedergeben
- Kostenlose Lasershow-Steuerungssoftware enthalten
DMX MODUS:Der Laser kann mit einem Standard-DMX-Controller oder einer DMX-Software gesteuert werden.
NETZWERK-MODUS:Der Laser kann über LAN gesteuert werden - dies kann entweder eine direkte Softwaresteuerung sein, oder ArtNET oder ähnliches (abhängig vom Mainboard)
ILDA-MODUS:Der Laser kann über Standard-ILDA, das analoge Steuersignal für die Lasersteuerung, gesteuert werden. Es können externe Digital-Analog-Wandler (DACs) verwendet werden.
SHOWNET INSIDE:Der Laser ist mit dem fortschrittlichen ShowNET-Laser-Mainboard ausgestattet, das den Laser um eine Vielzahl von Funktionen erweitert und ihn zu einem intelligenten Lichteffektgerät macht.
SHOWEDITOR INKLUSIVE:Die Vollversion der Lasershow-Steuerungssoftware Showeditor ist im Lieferumfang enthalten.
The Laserworld PL-5 FB4 laser system is equipped with RSL2 module technology, originally developed by LaserAnimation Sollinger. This technology enables an extremely small and lightweight housing while simultaneously improving beam quality. With its 5'000 mW of power, an IP65 rating, and 45 kpps @ 8° scanners, the Laserworld PL-5 FB4 is a dependable choice for large-scale club installations, touring, and production, as well as smaller outdoor shows and professional graphics projections. This RSL2-based full color diode laser system provides analog modulation for linear color fading combined with great visibility.
The Laserworld PL-5 FB4 laser features the FB4 mainboard, allowing for various control options including DMX, ArtNet as well as direct computer control via network (QuickShow or BEYOND software). Custom effects and animations can be uploaded from the software to be triggered by DMX/ArtNet and adjusted live in color, position, or with additional effects.
The Laserworld PL-5 FB4 features a beam diameter and divergence of ca. 5.5 mm / 0.9 mrad. The guaranteed output power is 5'000 mW, with individual RGB values of 1'000 mW / 638 nm, 2'000 mW / 520 nm, and 3'000 mW / 450 nm. It offers a scan speed of 45 kpps @ 8° and a maximum scan angle of 50°. Thanks to its IP65 rating, the laser is perfectly suited for outdoor use and reduces maintenance requirements to an absolute minimum.
The Laserworld PL-5 FB4 laser features the FB4 mainboard, allowing for various control options including DMX, ArtNet as well as direct computer control via network (QuickShow or BEYOND software). Custom effects and animations can be uploaded from the software to be triggered by DMX/ArtNet and adjusted live in color, position, or with additional effects.
The Laserworld PL-5 FB4 features a beam diameter and divergence of ca. 5.5 mm / 0.9 mrad. The guaranteed output power is 5'000 mW, with individual RGB values of 1'000 mW / 638 nm, 2'000 mW / 520 nm, and 3'000 mW / 450 nm. It offers a scan speed of 45 kpps @ 8° and a maximum scan angle of 50°. Thanks to its IP65 rating, the laser is perfectly suited for outdoor use and reduces maintenance requirements to an absolute minimum.
> Mehr Details
ShowNET interne Steuerung:
DMX Control
ArtNet Control
Automatic / Stand Alone
Master-Slave
ILDA Streaming
Externe ILDA Standard Ansteuerung:
Analog ILDA
> Mehr Details
