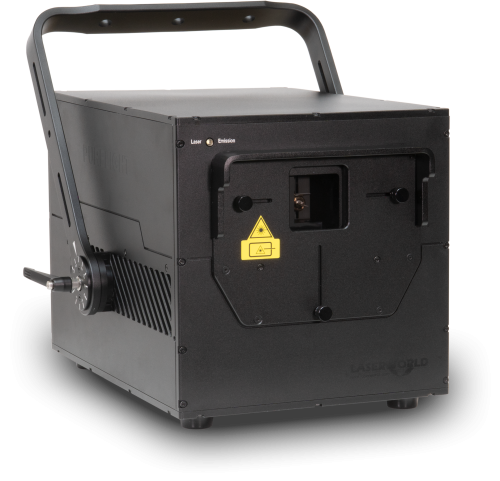

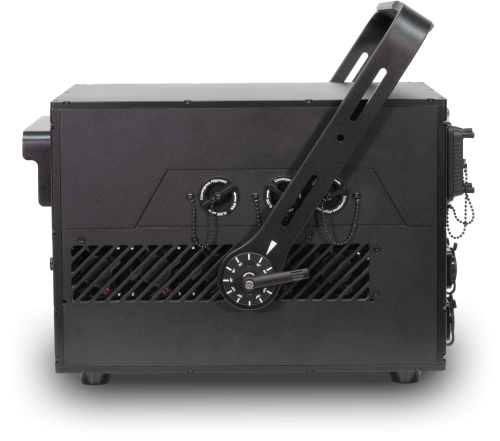

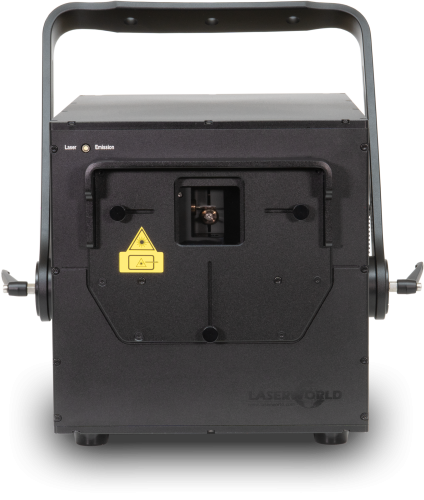

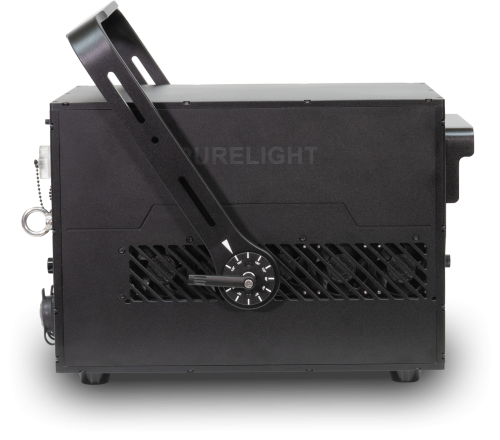

Laserworld PL-20 FB4
The latest generation of Purelight IP65 laser systems features innovative RSL2 technology, which combines an extremely compact and lightweight design with outstanding beam quality. Delivering 20'000 mW of power and featuring an IP65 rating, the Laserworld PL-20 FB4 is a great choice for large-scale club installations, touring and production, and larger outdoor shows. Its 45 kpps @ 8° scanning system ensures it is fully capable of handling professional graphics projections.
Each device features an integrated FB4 mainboard and a built-in color display for easy operation mode configuration. This hardware allows the Purelight Series to be controlled directly via various laser software or integrated into lighting setups via DMX and ArtNet.
Each device features an integrated FB4 mainboard and a built-in color display for easy operation mode configuration. This hardware allows the Purelight Series to be controlled directly via various laser software or integrated into lighting setups via DMX and ArtNet.
- RSL2 module, optimized optical performance and a more compact housing
- Graphics capable – 45 kpps @ 8°
- Max. scan angle: 50°
- Full color mixing – analog modulation
- Sharp, intense beams – ca. 6.5 mm
- IP65 waterproof housing
- Save safety settings directly to the laser (applies in all modes)

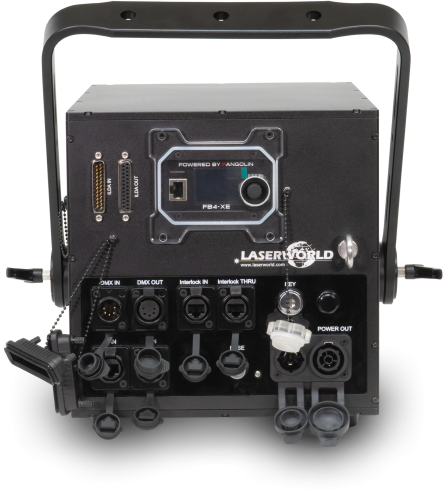

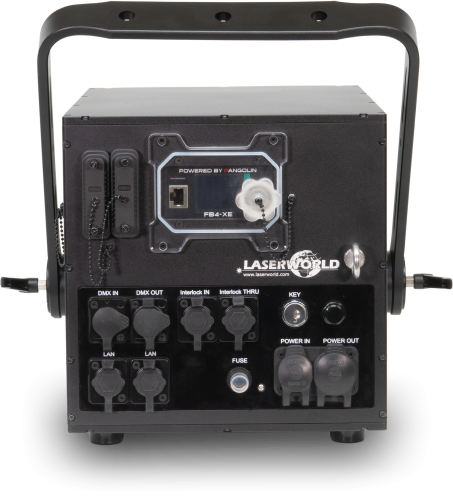

- Link multiple units with Power, DMX, and ILDA linking
- Multiple control modes: Auto, DMX, ArtNet, and ILDA
- Including waterproof flightcase
- Integrated Pangolin FB4 interface
DMX MODUS:Der Laser kann mit einem Standard-DMX-Controller oder einer DMX-Software gesteuert werden.
NETZWERK-MODUS:Der Laser kann über LAN gesteuert werden - dies kann entweder eine direkte Softwaresteuerung sein, oder ArtNET oder ähnliches (abhängig vom Mainboard)
ILDA-MODUS:Der Laser kann über Standard-ILDA, das analoge Steuersignal für die Lasersteuerung, gesteuert werden. Es können externe Digital-Analog-Wandler (DACs) verwendet werden.
FB4 INTEGRIERT:Der Laser kann über die integrierte Pangolin FB4-Karte gesteuert werden
The Laserworld PL-20 FB4 laser system is equipped with RSL2 module technology, which was originally developed by LaserAnimation Sollinger. This technology enables an extremely small and lightweight housing while simultaneously improving beam quality. With its 20'000 mW of power, an IP65 rating and 45 kpps @ 8° scanners, the Laserworld PL-20 FB4 is a great choice for large-scale club installations, touring and production, and larger outdoor shows as well as complex graphics projections. This RSL2-based full color diode laser system provides analog modulation for linear color fading combined with great visibility.
Laserworld PL-20 FB4 lasers include the FB4 mainboard, allowing for various control options including DMX and ArtNet, as well as direct computer control via network (QuickShow or BEYOND software). Custom effects and animations can be uploaded from the software to be triggered by DMX/ArtNet and adjusted live in color, position, or with additional effects.
The Laserworld PL-20 FB4 has a beam diameter and divergence of ca. 6.5 mm / 0.9 mrad. The guaranteed output power is 20'000 mW, with individual RGB values of 5'500 mW / 638 nm, 8'000 mW / 520 nm, and 9'000 mW / 450 nm. It offers a scan speed of 45 kpps @ 8° and a maximum scan angle of 50°. Thanks to its IP65 rating, the laser is perfectly suited for outdoor use and reduces maintenance requirements to an absolute minimum.
Laserworld PL-20 FB4 lasers include the FB4 mainboard, allowing for various control options including DMX and ArtNet, as well as direct computer control via network (QuickShow or BEYOND software). Custom effects and animations can be uploaded from the software to be triggered by DMX/ArtNet and adjusted live in color, position, or with additional effects.
The Laserworld PL-20 FB4 has a beam diameter and divergence of ca. 6.5 mm / 0.9 mrad. The guaranteed output power is 20'000 mW, with individual RGB values of 5'500 mW / 638 nm, 8'000 mW / 520 nm, and 9'000 mW / 450 nm. It offers a scan speed of 45 kpps @ 8° and a maximum scan angle of 50°. Thanks to its IP65 rating, the laser is perfectly suited for outdoor use and reduces maintenance requirements to an absolute minimum.
