Laserworld EL-200RGB MK2

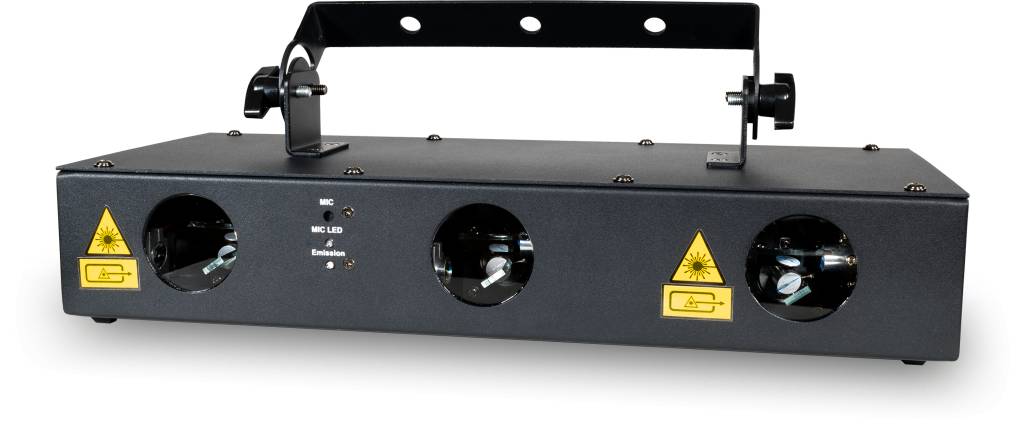

Laserworld EL 200RGB Fl S
3-Head RGB laser with plug & play operation and DMX control projecting in-air beams, waves and tunnel effects. Perfect for creating a fun Laser show at home parties, small bars, and mobile DJ events.
  • Typical power 155 mW
  • Individual red, green & blue colors
  • ca. 50 (layers, tunnels, fences, waves, etc.)effects
  • Stand-alone mode
  • Sound-to-light mode
  • DMX programmable
Laserworld EL 200RGB MK2 002 Beam
Laserworld EL 200RGB MK2 004 Beam
Laserworld EL 200RGB MK2 009 Beam
Laserworld EL 200RGB MK2 003 Beam
Laserworld EL 200RGB MK2 005 Beam
Laserworld EL 200RGB MK2 014 Beam
Laserworld EL 200RGB MK2 012 Beam
Laserworld EL 200RGB MK2 011 Beam
Laserworld EL 200RGB MK2 013 Beam
Laserworld EL 200RGB MK2 007 Beam
Laserworld EL 200RGB MK2 010 Beam
Laserworld EL 200RGB MK2 006 Beam
Laserworld EL 200RGB MK2 008 Beam
Laserworld EL 200RGB MK2 001 Beam
Sound-to-light modeSOUND-TO-LIGHT MODE:
Let the beat of the music control the laser automatically
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
Laserworld EL 200RGB Fl S

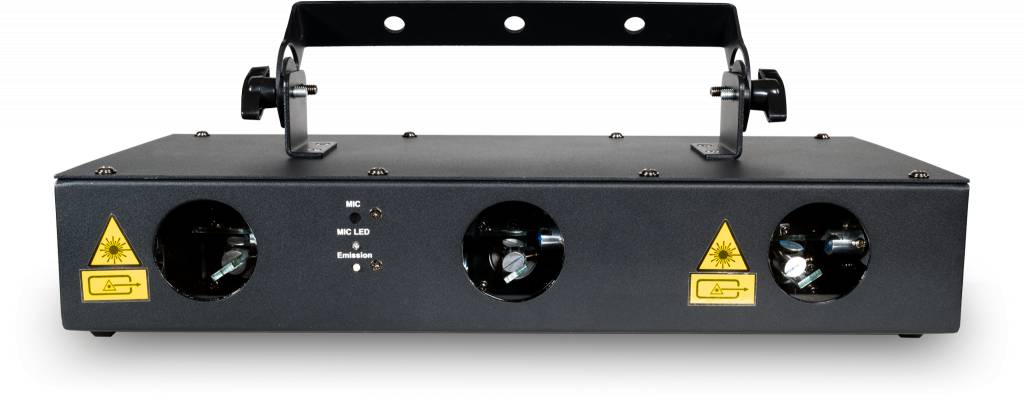

Laserworld EL 200RGB F S

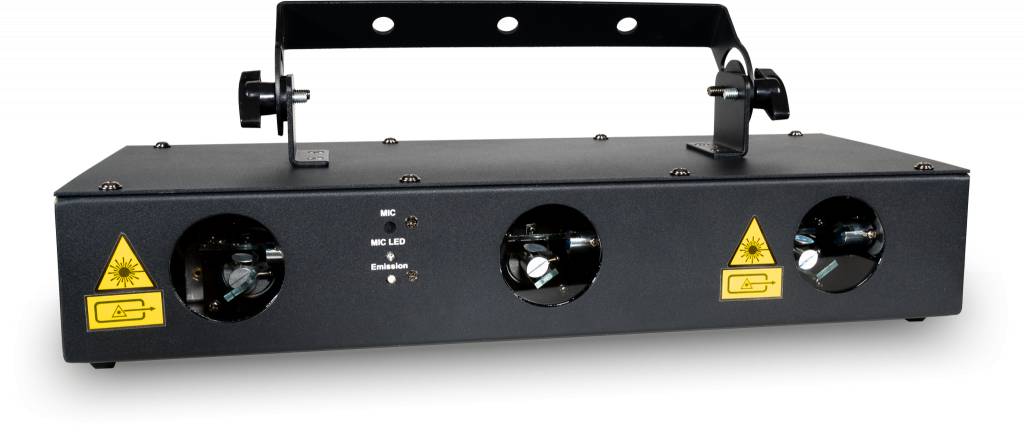

Laserworld EL 200RGB Fr S

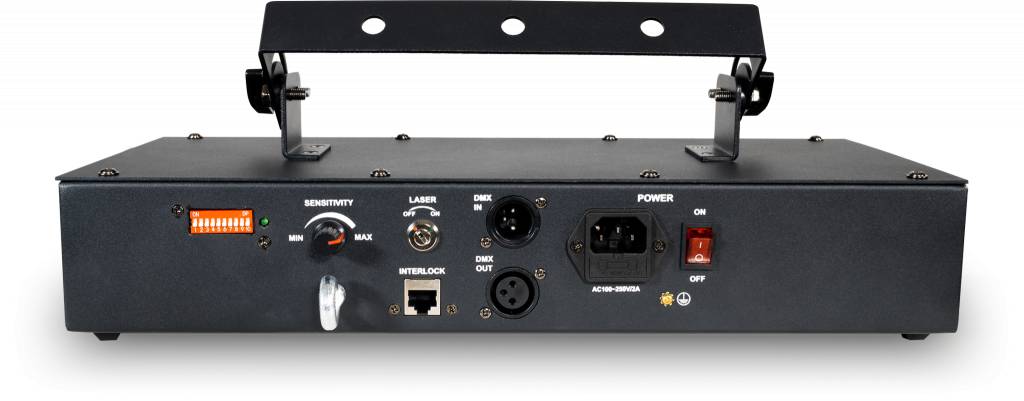

Laserworld EL 200RGB B S

The Laserworld EL-200RGB MK2 is an RGB laser system with a total output power of up to 155 mW.

The red diode laser module with 70 mW / 638 nm, the green DPSS laser module with 25 mW / 532 nm and the royal-blue laser module with 60 mW / 450 nm ensure beautiful colours and brightness. The beams have good specifications with ca. 3 mm / 2 mrad and the projector offers high-speed step motors with up to 2-5 kpps as well as a scan angle of up to . About ca. 50 (layers, tunnels, fences, waves, etc.) basic effects can be controlled via DMX. A sound-to-light mode as well as a stand-alone mode are available too. For the sound-to-light mode the sensitivity of the integrated microphone can be adjusted.
There is an interlock connector for safety switch as well as a key switch at the rear side of this very compact device.The triple laser aperture provides extra intense red, green and blue beam effects.

The Laserworld EL-200RGB MK2 is a good solution for first-time users and mobile use and it is often used in bars, small clubs, at private parties or for home use.

With ultra bright 450 nm royal blue!



> More details

Laserworld EL 200RGB MK2 002 Beam
Laserworld EL 200RGB MK2 004 Beam
Laserworld EL 200RGB MK2 009 Beam
Laserworld EL 200RGB MK2 003 Beam
Laserworld EL 200RGB MK2 005 Beam
Laserworld EL 200RGB MK2 014 Beam
Laserworld EL 200RGB MK2 012 Beam
Laserworld EL 200RGB MK2 011 Beam
Laserworld EL 200RGB MK2 013 Beam
Laserworld EL 200RGB MK2 007 Beam
Laserworld EL 200RGB MK2 010 Beam
Laserworld EL 200RGB MK2 006 Beam
Laserworld EL 200RGB MK2 008 Beam
Laserworld EL 200RGB MK2 001 Beam



> More details

Total Power
155 mW
Power Red
70 mW / 638 nm
Power Green
25 mW / 532 nm
Power Blue
60 mW / 450 nm
Beam Specifications*
ca. 3 mm / 2 mrad
Scanner
high-speed step motors with up to 2-5 kpps
Laser Source
Diode, DPSS Laser
Laser Class
3B
Operation Modes
Stand-Alone, Sound-to-Light, DMX
Basic Patterns
ca. 50 (layers, tunnels, fences, waves, etc.)
Accessories
power cable, manual, interlock, key
Power Supply
85V - 250 V AC
Power Consumption
60 W
Dimensions
175 x 395 x 85 mm
Weight
4 kg
EAN / MPN
7640144993160
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
