Laserworld DS-2000RGB MK4

Laserworld DS 2000RGB MK4 Fl S
A high power full colour semi professional laser with built in multi-control mainboard. Amazing DMX control with internal safety settings making it simple to control multiple units along with the rest of your DMX lighting. Full feature laser show software license included! Sealed optics section for low maintenance Perfect for small/medium sized nightclub installs, indoor events and mobile DJs.
  • 2'000 mW guaranteed power
  • Graphics capable - 40 kpps@8° ILDA
  • Max scan angle 50°
  • Full colour mixing - analog modulation
  • Extremely sharp intense beams – ca. 4 mm beam diameter and low divergence of 0.9 mrad
  • Save safety settings direct to the laser and they apply in all modes
  • Link multiple units with linking Power, DMX and ILDA
  • Free computer control software – Showeditor - upgradable to Showcontroller
  • Multiple control modes - Auto, DMX, Artnet and ILDA

ShowNET mainboard as standard:
  • Various control options: ILDA, Professional DMX and ArtNET (two modes), LAN (computer control, integrated DAC), Stand-Alone Operation, ILDA Streaming Receiver, Master-Slave
  • Create custom content, store it inside the laser and play it back in different modes
  • Free laser show control software included

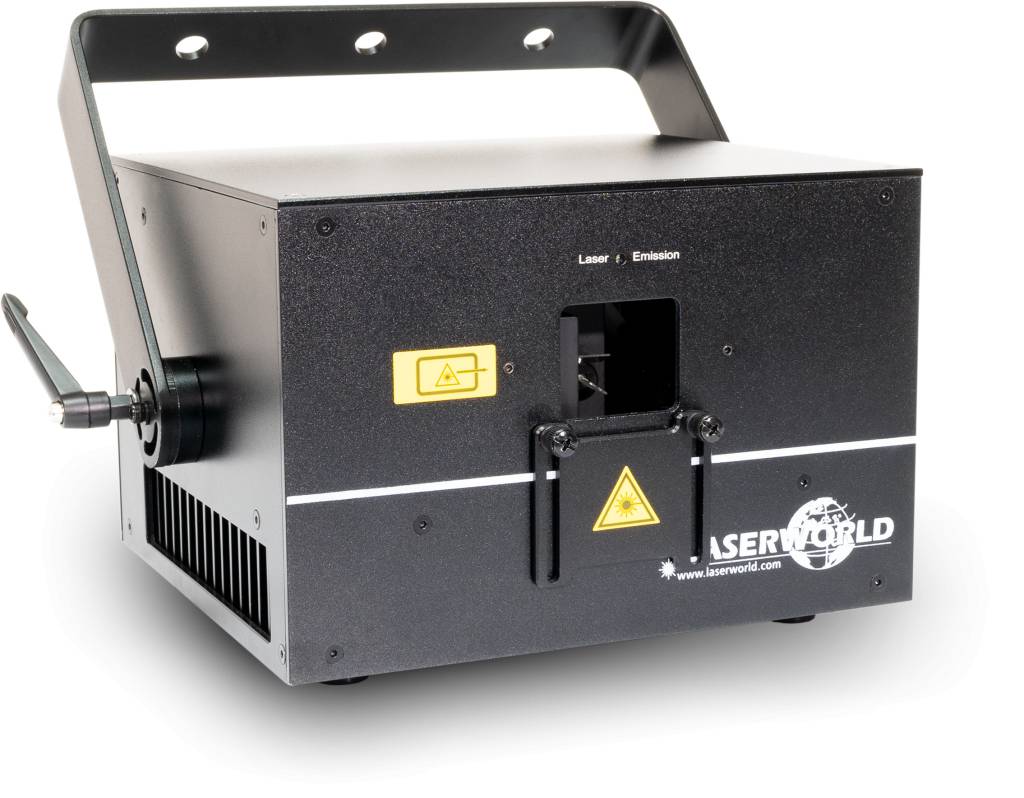

Laserworld DS 2000RGB MK4 Fl S

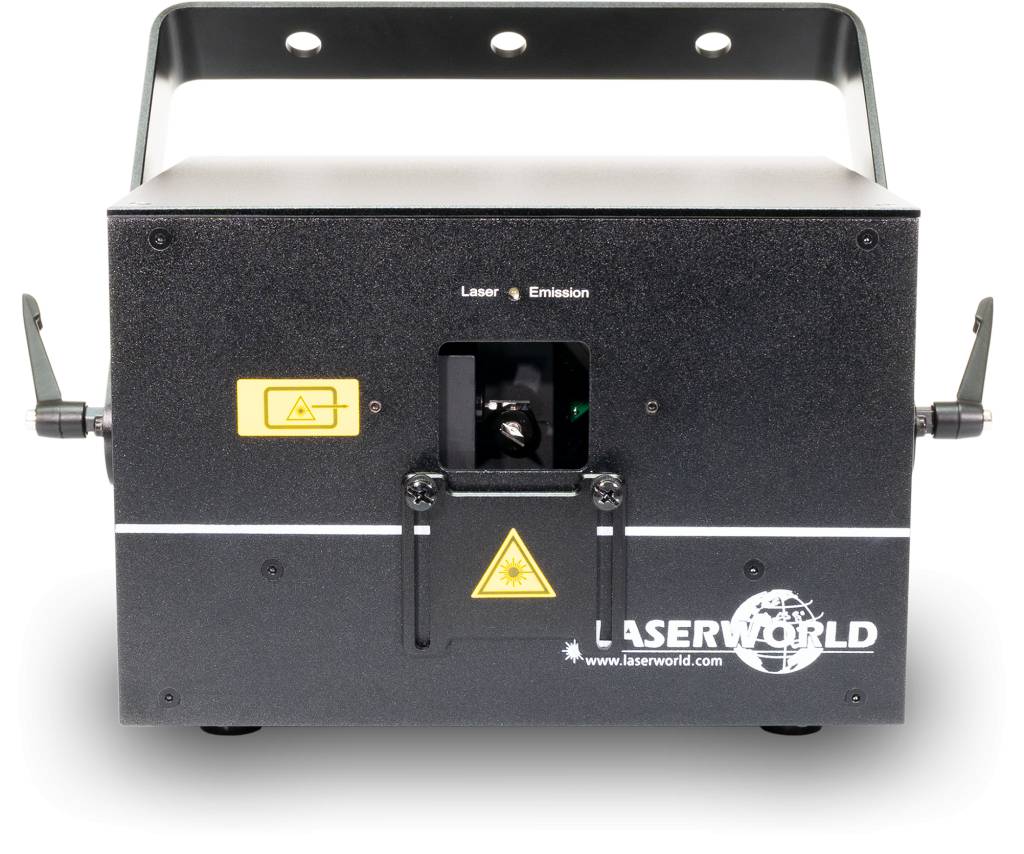

Laserworld DS 2000RGB MK4 F S

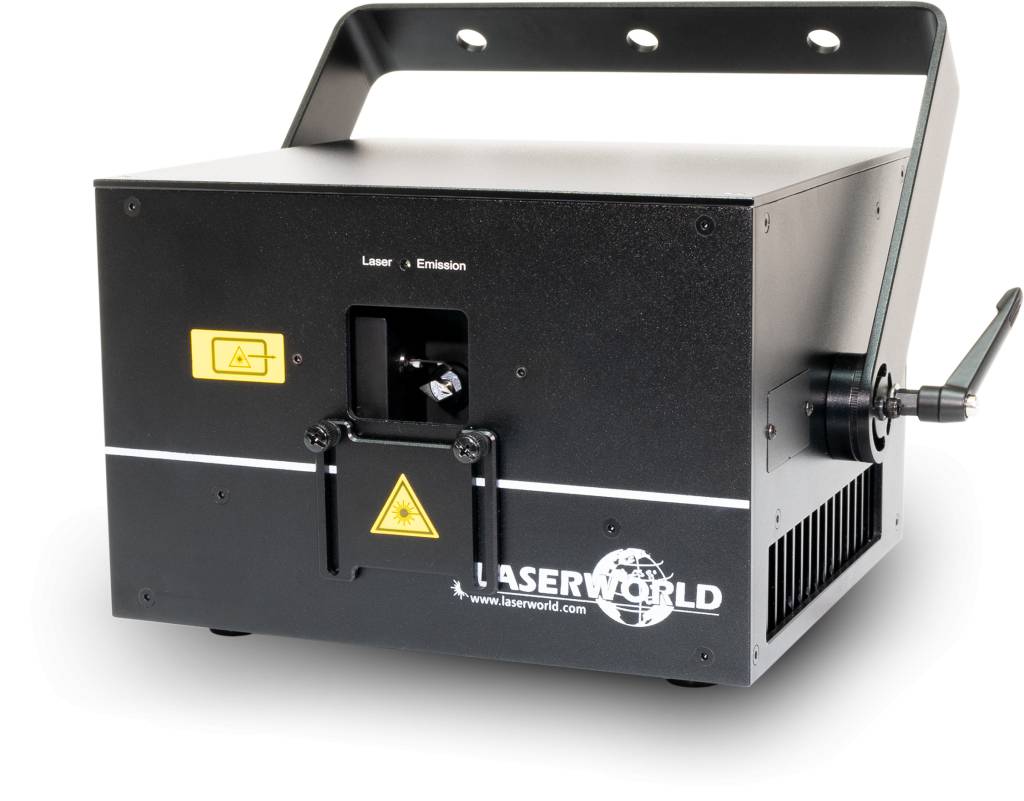

Laserworld DS 2000RGB MK4 Fr S

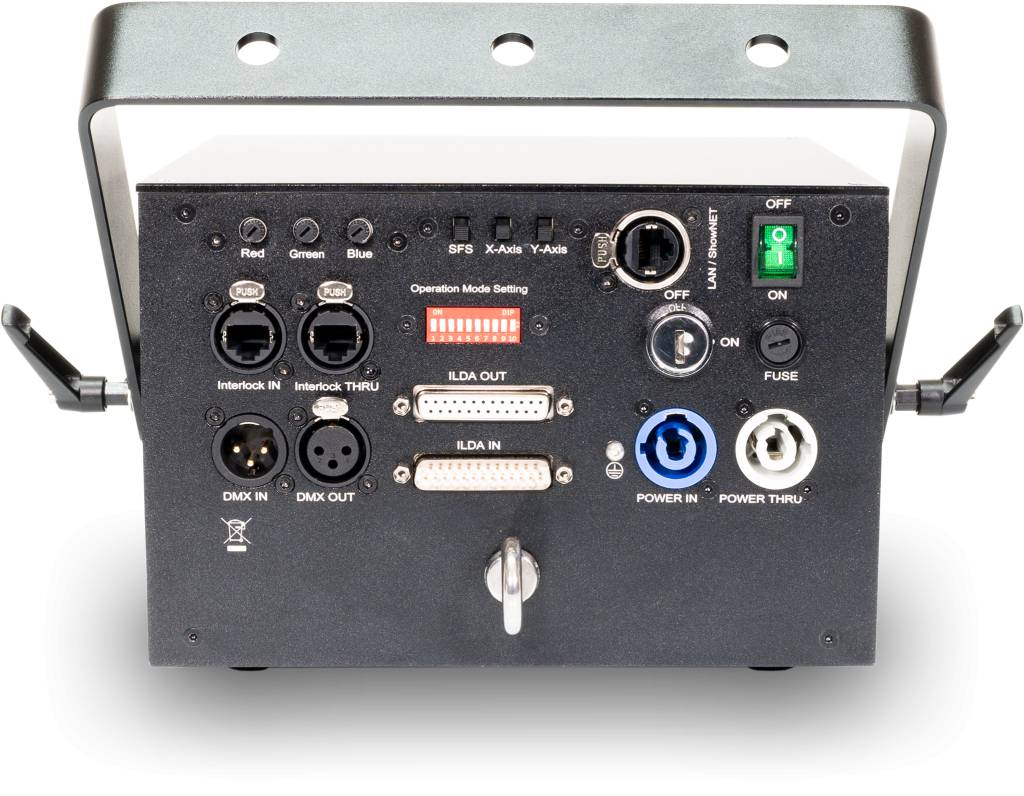

Laserworld DS 2000RGB MK4 B S

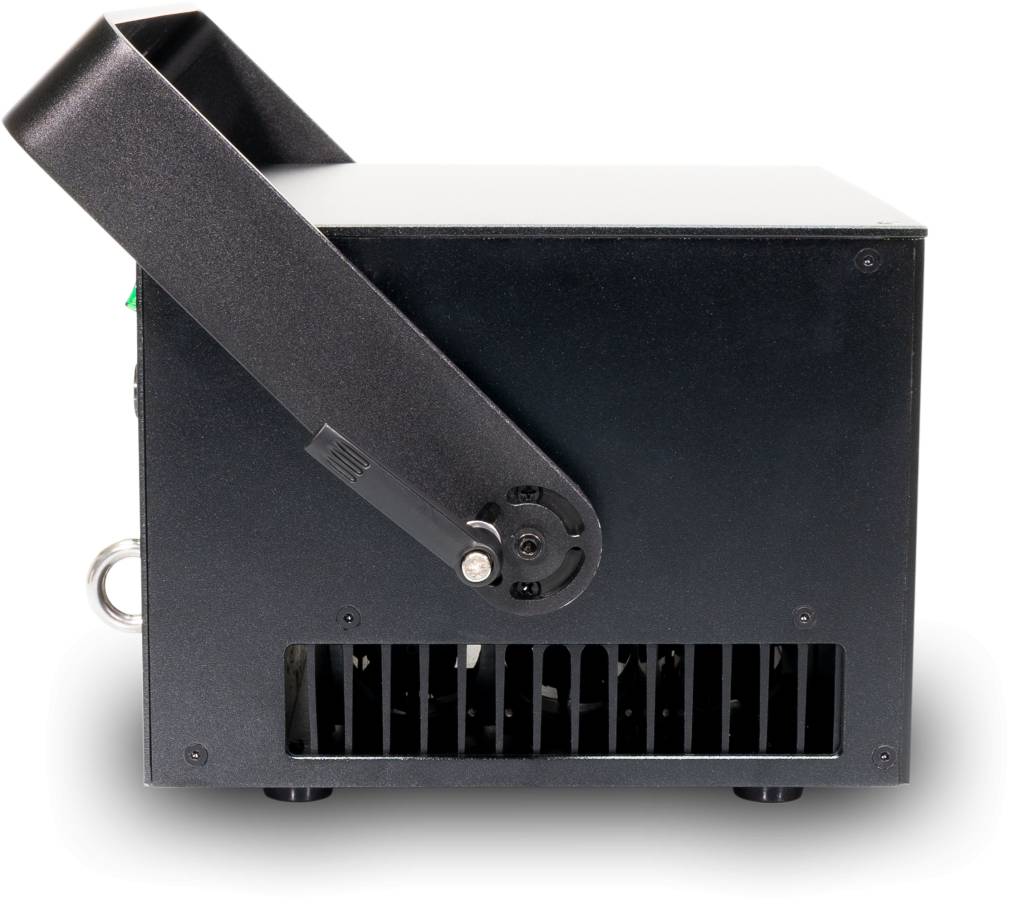

Laserworld DS 2000RGB MK4 L S

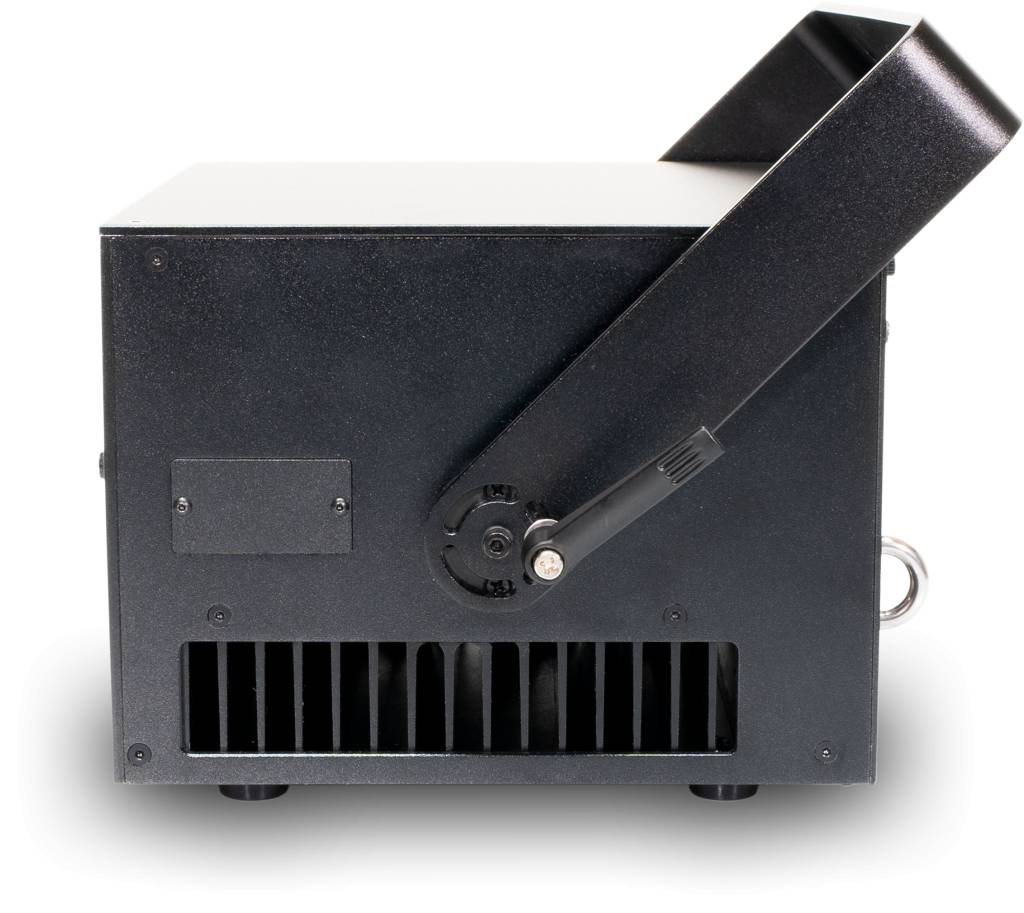

Laserworld DS 2000RGB MK4 R S
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
ArtNET modeArtNET Control mode
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
LAN connectionLAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA connectionILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
ILDA StreamingILDA Streaming
ShowNET insideSHOWNET INSIDE:
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
Free Showeditor laser software includedSHOWEDITOR INCLUDED:
The full version of the laser show control software Showeditor is included in delivery.
The Laserworld DS-2000RGB MK4 units come with diode-only laser sources ("Pure Diode") and thus have great beam specifications with beautiful analog color modulation.

The Laserworld DS-2000RGB MK4 units have a built-in network DAC for Showcontroller and Showeditor, but also can be controlled with any ILDA laser control software such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface (e.g. FB3). They also have a built-in memory with pre-set patterns (which can also be changed / updated by user), that can be easily triggered through DMX, stand-alone

The Laserworld DS-2000RGB MK4 comes with integrated ShowNET network interface and free laser show software. Details in the box below.

Beginners as well as professionals use the Laserworld Diode Series units, as they are easy to use, versatile in their features and very compact and lightweight.

The Laserworld DS-2000RGB MK4 comes with 500 mW / 638 nm red and uses green diodes at 500 mW / 520 nm. The blue diode has 1'400 mW / 450 nm.

Beam specifications are at great ca. 4 mm / 0.9 mrad full angle and scanning can go as fast as 40 kpps@8° ILDA, whereas the scanners can scan a maximum angle of 50°.

With integrated and switchable scan safety.

The whole projector is built with Sealed Housing technology and thus maintenance intervals can be kept very low.



+ Integrated ShowNET incl. free laser show software

The Laserworld DS-2000RGB MK4 features an integrated ShowNET network interface with free laser control software included!
Start with your own professional laser show thanks to the intuitive Showeditor laser show software which comes with every new Laserworld DS-2000RGB MK4 for free. The Showcontroller software is supported as well and can be purchased additionally.
The integrated ShowNET allows for direct input through ILDA and LAN. Besides DMX, it is possible to trigger single frames via ArtNET. Custom frames and shows can be played back from an integrated SD card (included in delivery) – even in stand-alone mode!
There are two different DMX modes:
(1) DJ Mode with the most used features for beginners. Only a few DMX channels are used for a quick and easy access to the most important adjustments directly at the laser system.
(2) Professional Mode with all DMX features especially for users with a DMX console. All adjustments can be triggered and allow for full control of the professional laser show.
The integrated ShowNET works as DAC (digital to analog converter) and enables ILDA streaming.



> More details

External ILDA Standard Control:

Ilda Connector
Analog ILDA

Optional control options (modification required!):

Optional control options require modifications to the general laser setup. Other operation modes or compatibilities may get lost.
Pangolin Logo
Quickshow
Pangolin Logo
Beyond



> More details

Guaranteed Power at aperture
2'000 mW
Power Red
500 mW / 638 nm
Power Green
500 mW / 520 nm
Power Blue
1'400 mW / 450 nm
Beam Specifications*
ca. 4 mm / 0.9 mrad
Scanner
40 kpps@8° ILDA
Max. Scan Angle
50°
Laser Source
Diode
Laser Class
4
Operation Modes
ILDA, DMX, LAN, ArtNet, ILDA streaming, integrated SD card, stand-alone, master-slave
Basic Patterns
over 120 (layers, tunnels, fences, waves, etc.)
Accessories
power cable, manual, interlock, key, full version Showeditor software license included
IP rating
IP4X
Power Supply
85 V - 250 V / AC, 50/60 Hz internal PSU
Power Consumption
45 W
Dimensions
210 x 190 x 145 mm
Weight
4 kg
EAN / MPN
7640144997540
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.



> More details
