Laserworld PL-6000G MK2

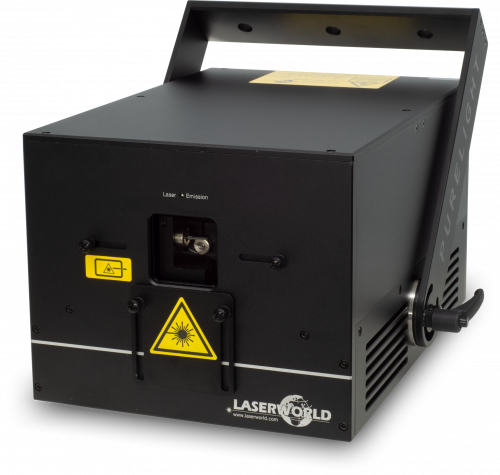

Laserworld PL 6000G Front Left
Powerful single green laser device of the Laserworld Purelight Series, controllable via all ILDA software, DMX / ArtNET or the integrated ShowNET network interface.
Full feature laser show software license included!
Incl. waterproof flightcase
  • 6'000 mW guaranteed power
  • Graphics capable - 35 [email protected]° ILDA
  • Max scan angle 50°
  • Single green laser with analog modulation
  • Sharp intense beams – ca. 6.0 mm beam diameter and low divergence of 1.0 mrad
  • Save safety settings direct to the laser and they apply in all modes
  • Link multiple units with linking Power, DMX and ILDA
  • Free computer control software – Showeditor - upgradable to Showcontroller
  • Multiple control modes - Auto, DMX, Artnet and ILDA
  • Incl. waterproof flightcase

ShowNET mainboard as standard:
  • Various control options: ILDA, Professional DMX and ArtNET (two modes), LAN (computer control, integrated DAC), Stand-Alone Operation, ILDA Streaming Receiver, Master-Slave
  • Create custom content, store it inside the laser and play it back in different modes
  • Free laser show control software included

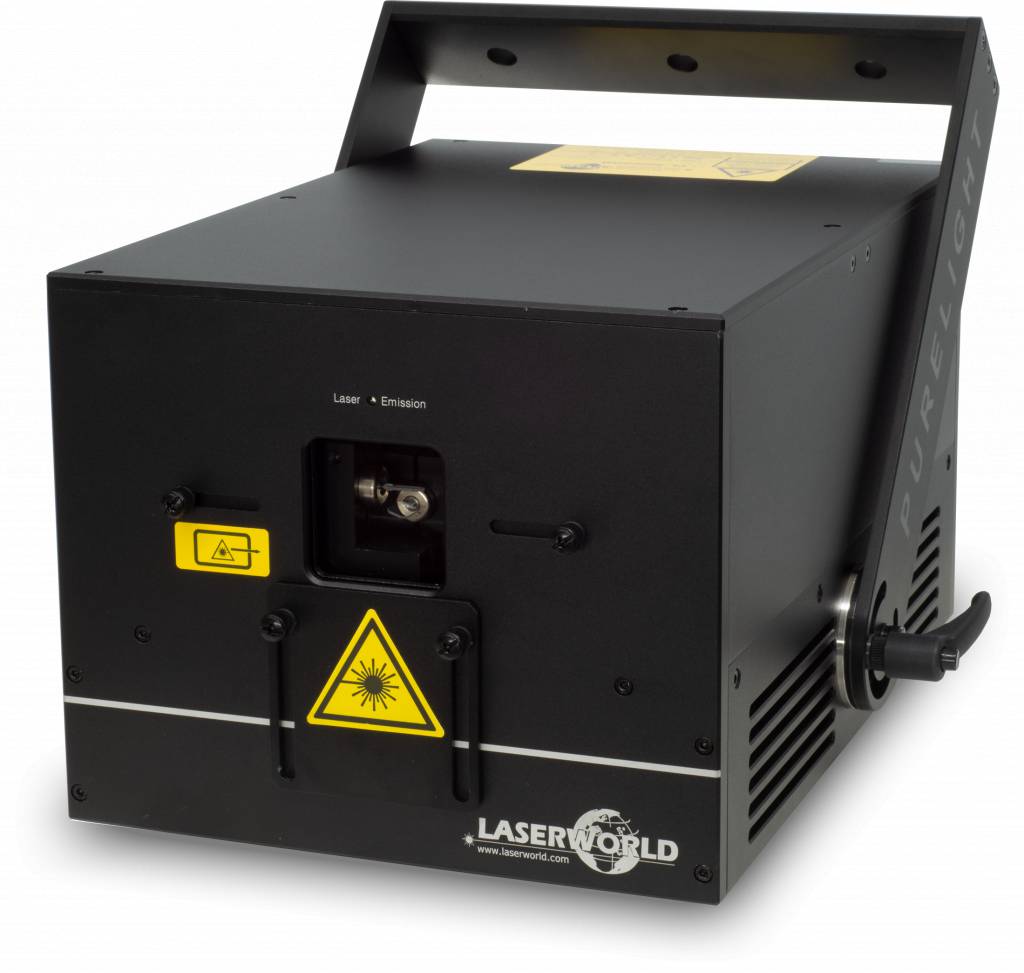

Laserworld PL 6000G Front Left
Laserworld PL 6000G Front

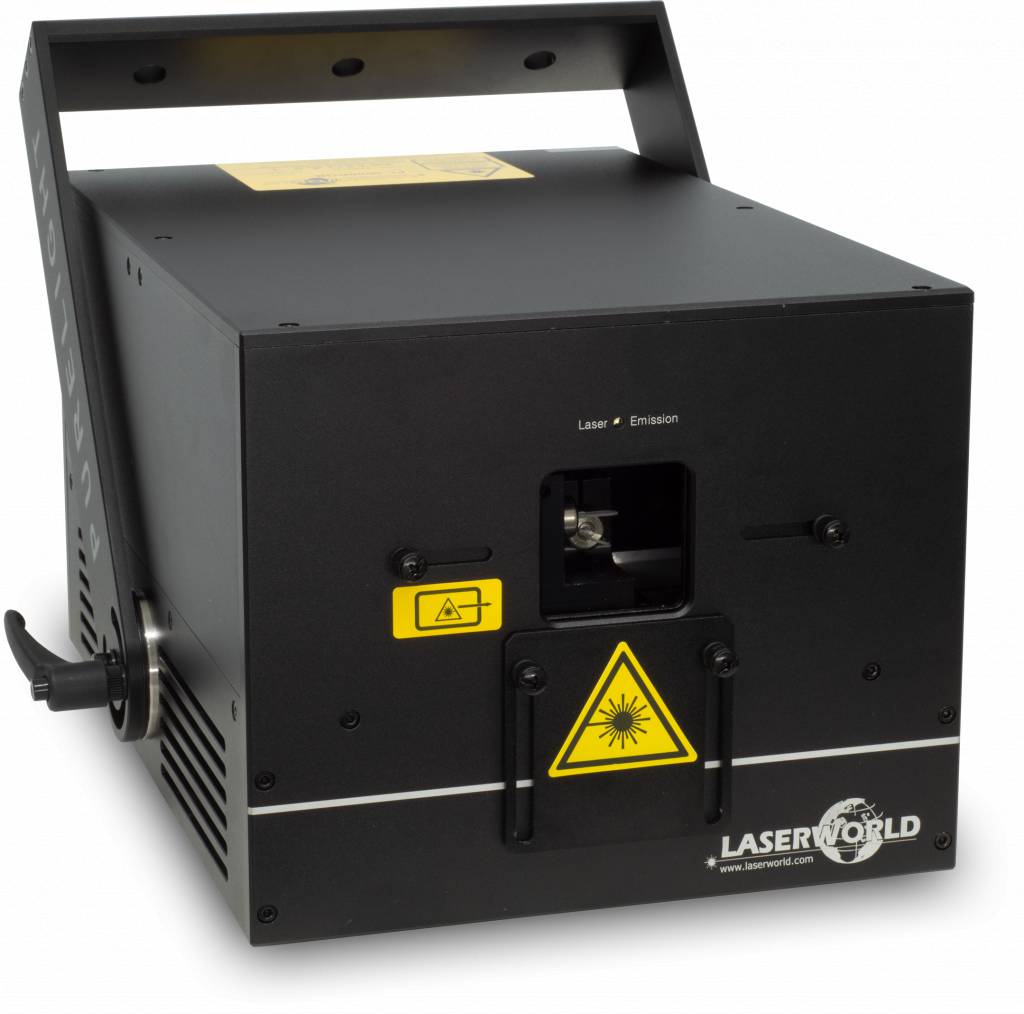

Laserworld PL 6000G Front Right

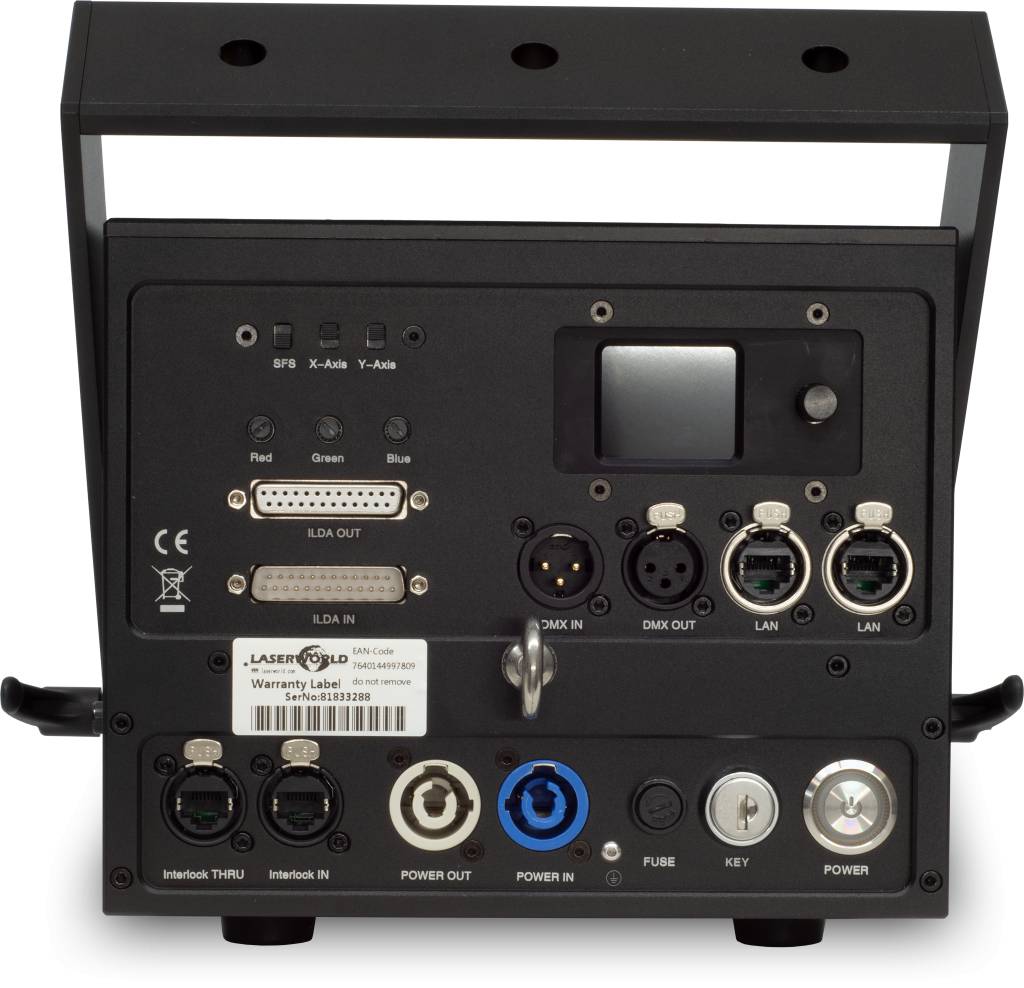

Laserworld PL 6000G Back

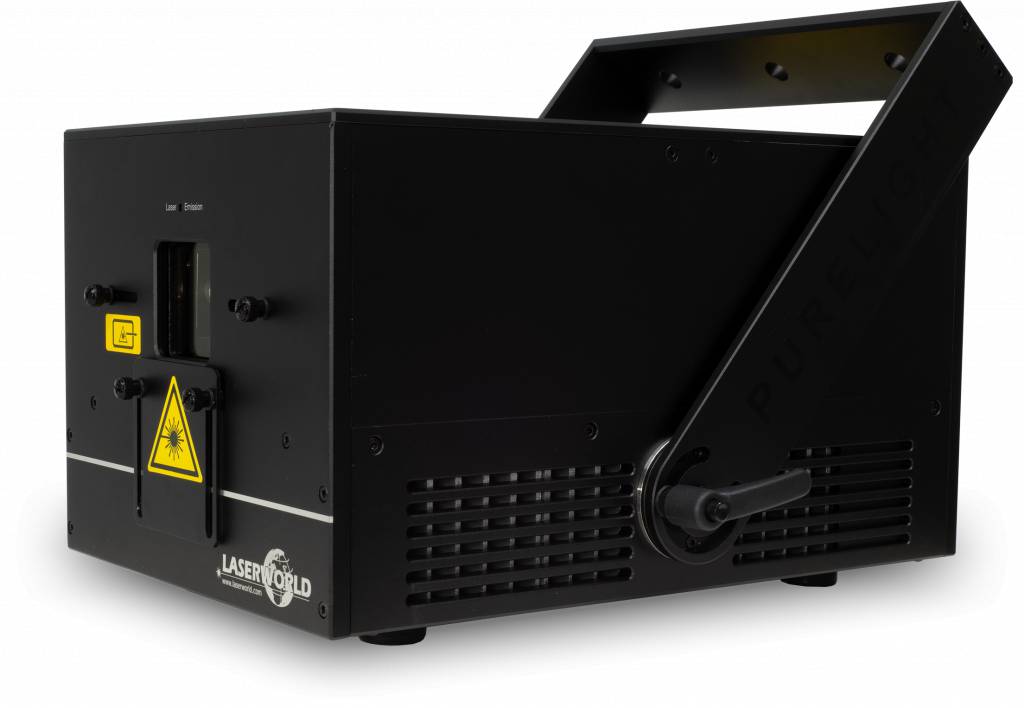

Laserworld PL 6000G Front Left Closeup

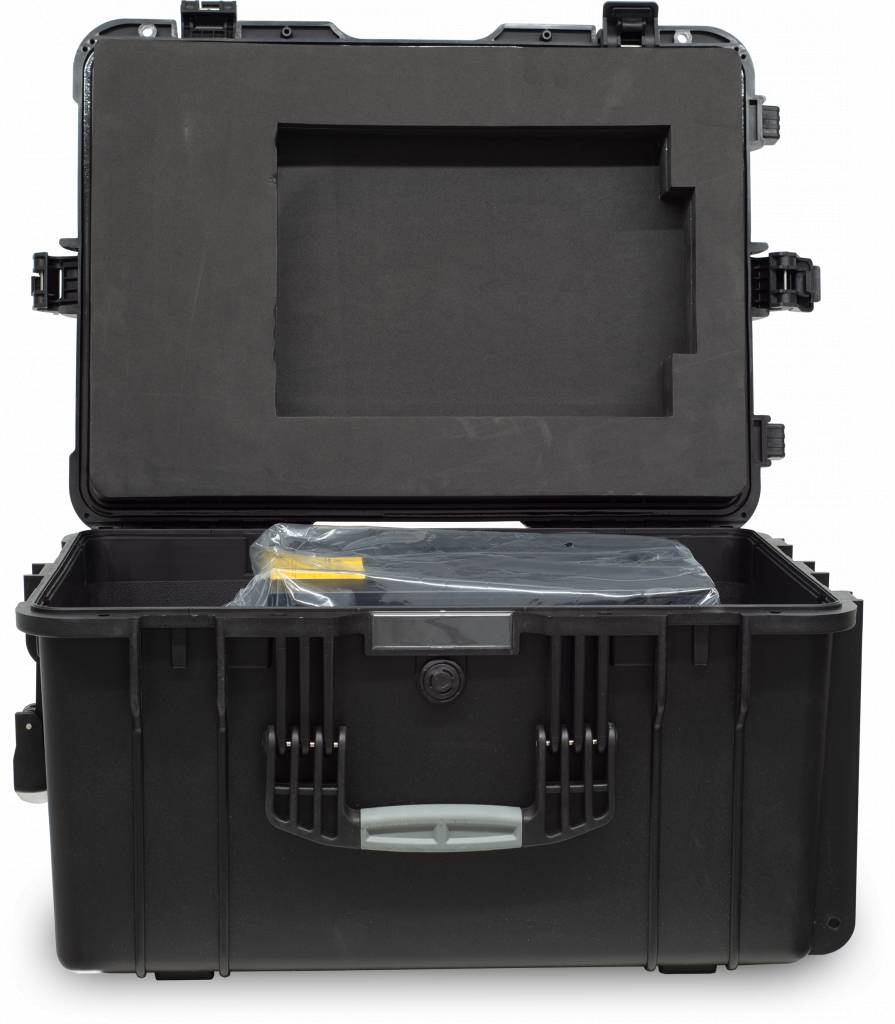

Laserworld PL 6000G Case Open Front
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
The laser can be controlled with a standard DMX controller or DMX software.
ArtNET modeArtNET Control mode
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
LAN connectionLAN MODE:
The laser can be controlled over LAN - this can be either direct software control, or ArtNET or similar (depending on the main board)
ILDA connectionILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.
ILDA StreamingILDA Streaming
The laser is equipped with the advanced ShowNET laser mainboard which brings a multitude of features to the laser and makes it an intelligent lighting device.
Free Showeditor laser software includedSHOWEDITOR INCLUDED:
The full version of the laser show control software Showeditor is included in delivery.
The Laserworld PL-6000G MK2 show laser light is completely equipped with powerful diode technology in 520nm.

The Laserworld PL-6000G MK2 units have a built-in network DAC for Showcontroller and Showeditor, but also can be controlled with any ILDA laser control software such as Pangolin Quickshow, Pangolin Beyond, LSX, Lasergraph DSP, etc. via external ILDA interface (e.g. FB3). They also have a built-in memory with pre-set patterns, that can be easily triggered through DMX, ArtNET or automatic mode.
The Laserworld PL-6000G MK2 comes with integrated ShowNET network interface and free laser show software. Details in the box below.

Advantages of the Laserworld PL-6000G MK2 laser light are:

  • a low-cost yet powerful solution for power demanding laser applications
  • great for large nightclubs, big stages, concerts or festivals
  • bright green with great linear fading behavior
  • ideal for long distance beam shows and basic graphics projections

The Laserworld PL-6000G MK2 has a beam diameter of about ca. 6.0 mm and beam divergence of only 1.0 mrad.
Guaranteed output power at aperture is 6'000 mW (520 nm, green).
Fast scanners work at a speed of 35 [email protected]° ILDA and can do a max. scan angle of 50°.

The complete projector is built with Sealed Housing Technology and is cooled through the external cooling fins (bottom part). Thus the maintenance effort is kept very low.

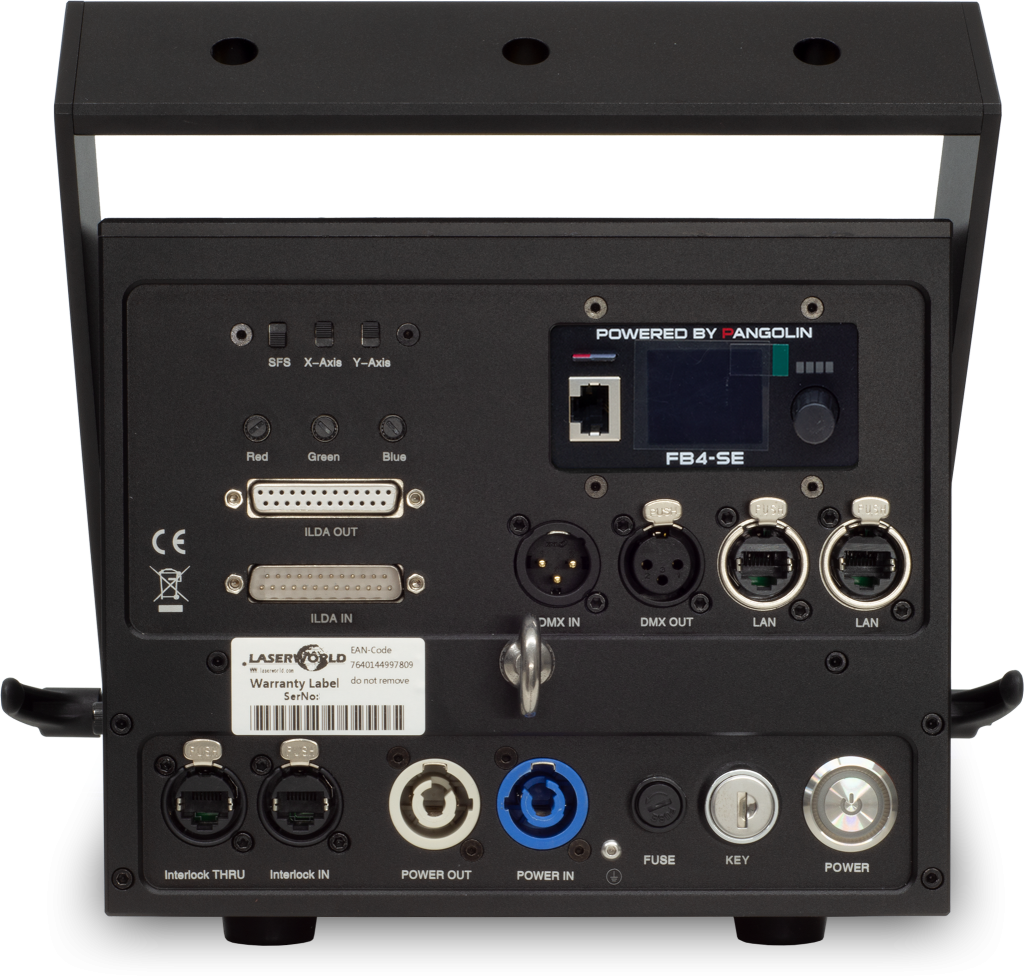

At the back of the unit there are trim pots for power intensity setting. The X- / Y-axis offset can also be set by switches. Additionally the Scan Safety can be set at the back side of the laser system.


+ Integrated ShowNET incl. free laser show software

The Laserworld PL-6000G MK2 features an integrated ShowNET network interface with free laser control software included!
Start with your own professional laser show thanks to the intuitive Showeditor laser show software which comes with every new Laserworld PL-6000G MK2 for free. The Showcontroller software is supported as well and can be purchased additionally.
The integrated ShowNET allows for direct input through ILDA and LAN. Besides DMX, it is possible to trigger single frames via ArtNet. You can play custom frames and shows from an integrated SD card (included in delivery) – even in stand-alone mode!
There are two different DMX modes:
(1) DJ Mode with the most used features for beginners. Only a few DMX channels are used for a quick and easy access to the most important adjustments directly at the laser system.
(2) Professional Mode with all DMX features especially for users with a DMX console. All adjustments can be triggered and allow for full control of the professional laser show.
The integrated ShowNET works as DAC (digital to analog converter) and enables ILDA streaming

Laserworld PL 6000G Side Detail
Laserworld PL 6000G Front Right Closeup Detail
Laserworld PL 6000G Side Top Detail

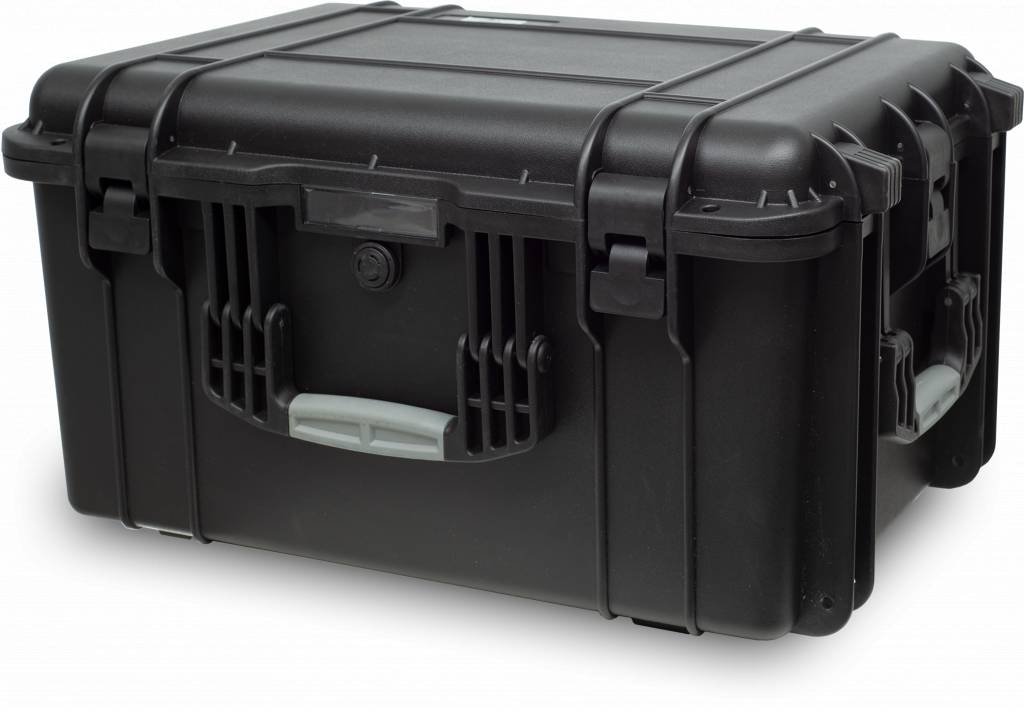

Laserworld PL 6000G Case Left Detail

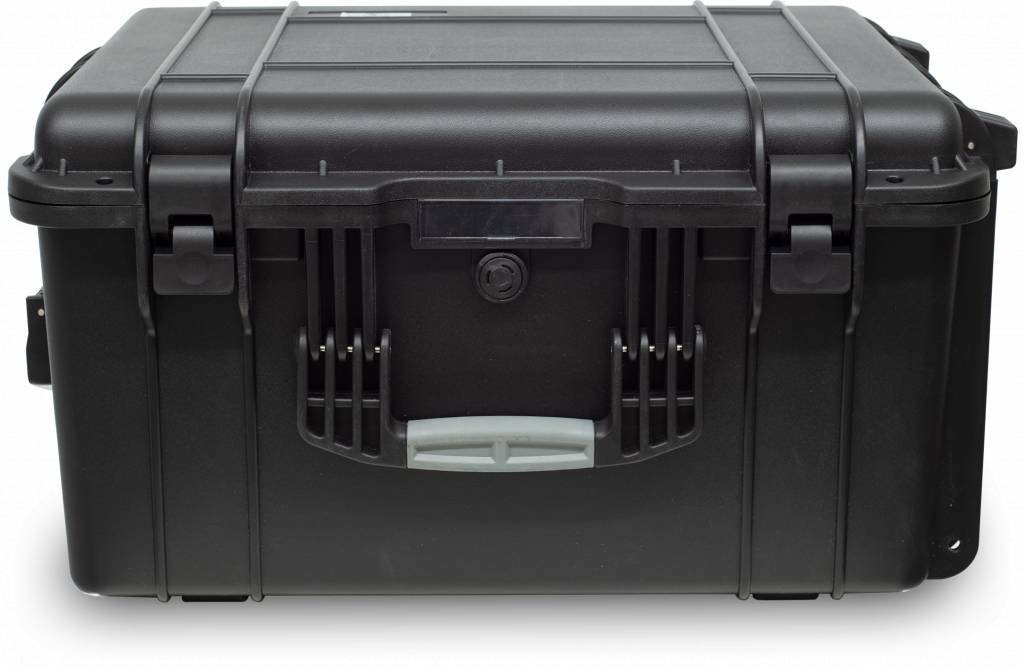

Laserworld PL 6000G Case Front Detail
Laserworld PL 6000G Case Right Detail

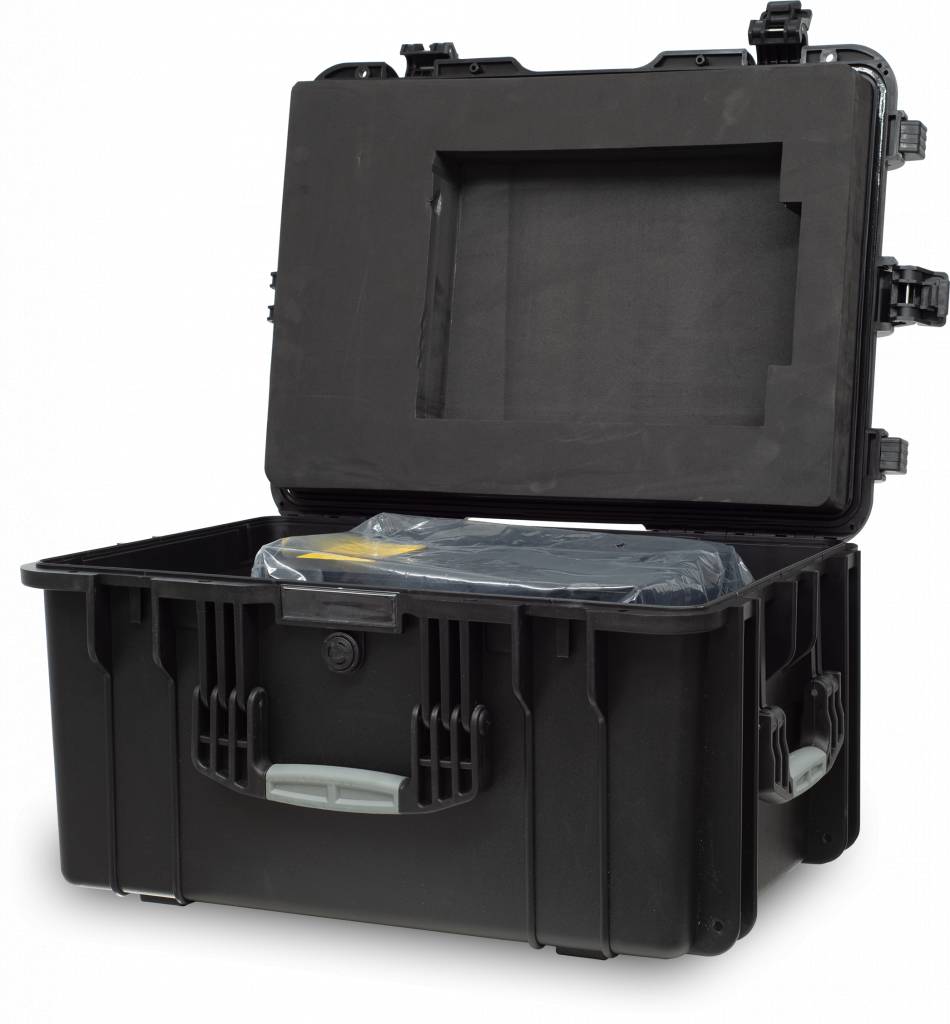

Laserworld PL 6000G Case Open Left Detail

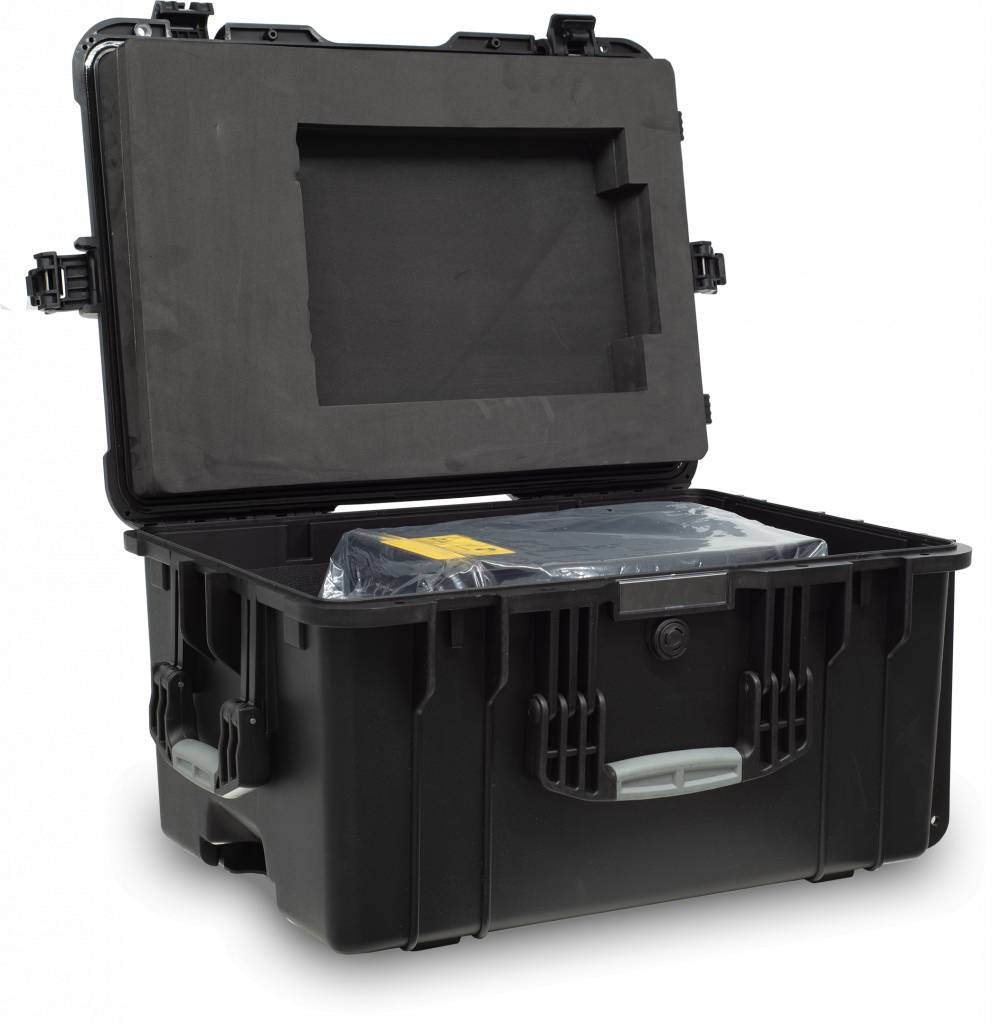

Laserworld PL 6000G Case Open Right Detail
Laserworld PL 6000G 007 Beam
Laserworld PL 6000G 008 Beam
Laserworld PL 6000G 006 Beam
Laserworld PL 6000G 004 Beam
Laserworld PL 6000G 003 Beam
Laserworld PL 6000G 009 Beam
Laserworld PL 6000G 005 Beam
Laserworld PL 6000G 010 Beam
Laserworld PL 6000G 014 Beam
Laserworld PL 6000G 015 Beam
Laserworld PL 6000G 013 Beam
Laserworld PL 6000G 012 Beam
Laserworld PL 6000G 011 Beam
Laserworld PL 6000G 002 Beam
Laserworld PL 6000G 001 Beam
Guaranteed Power at aperture
6'000 mW
Power Green
6'300 mW / 520 nm
Beam Specifications*
ca. 6.0 mm / 1.0 mrad
Max. Scan Angle
Laser Source
Laser Class
Operation Modes
ILDA, DMX, LAN, ArtNet, ILDA streaming, integrated SD card, stand-alone, master-slave
Basic Patterns
over 120 (layers, tunnels, fences, waves, etc.)
Incl. waterproof flightcase, key, power cable, manual, power cable, manual; full version Showeditor software license included
IP rating
Power Supply
85 V - 250 V / AC, 50/60 Hz
Power Consumption
540 W
320 x 220 x 180 mm
10.1 kg
*Due to Advanced Optical Correction technology used in our laser systems the optical power of each colour within installed laser module(s) may slightly differ from the specification of respective laser module(s). Divergence FWHM average depending on model.
