Laserworld CS-2000RGB FX MKII

CS 2000RGB Fl S
A powerful semi-professional pure diode laser, capable of intense standard laser effects like beams, waves and tunnels but also basic graphics all of which can combine with the 3 built in grating effects to become a real room filler. This laser has easy plug and play, sound-to-light and stand-alone modes, DMX control, so it can be controlled with the rest of your lighting, but also has an ILDA port for computer control. Perfect for medium-sized to large nightclub installs, indoor events and mobile DJs
  • 2 W pure diode RGB laser system
  • 3 additional grating effects: Line, Burst and Radial
  • DMX controllable, master-slave operation possible
  • Full diode projector - no DPSS anymore
  • Computer controllable via ILDA
  • Plug & play: Sound-to-light and stand-alone modes
  • Capable of basic graphics - 28kpps @ 8° ILDA scanners
  • Full color with analog modulation
  • Front panel laser beam masking plate
  • 360° mounting bracket
Laserworld CS 2000RGB 0013 Beam
Laserworld CS 2000RGB 0012 Beam
Laserworld CS 2000RGB 0014 Beam
Laserworld CS 2000RGB 0011 Beam
Laserworld CS 2000RGB 0016 Beam
Laserworld CS 2000RGB 0017 Beam
Laserworld CS 2000RGB 0009 Beam
Laserworld CS 2000RGB 0032 Beam
Laserworld CS 2000RGB 0031 Beam
Laserworld CS 2000RGB 0038 Beam
Laserworld CS 2000RGB 0033 Beam
Laserworld CS 2000RGB 0035 Beam
Laserworld CS 2000RGB 0030 Beam
Laserworld CS 2000RGB 0037 Beam
Laserworld CS 2000RGB 0036 Beam
Sound-to-light modeSOUND-TO-LIGHT MODE:
Let the beat of the music control the laser automatically
Stand-Alone modeSTAND-ALONE MODE:
The laser operates stand-alone and does not need and control. It plays back the content stored on the laser's mainboard.
DMX modeDMX MODE:
The laser can be controlled with a standard DMX controller or DMX software.
Master-Slave modeMASTER-SLAVE MODE:
One laser sends control commands, the other laser follows these. Works with Stand-Alone modes and Sound-to-Light modes.
ILDA connectionILDA MODE:
The laser can be controlled over standard ILDA, the analog control signal for laser control. External Digital-Analog-Converters (DACs) can be used.

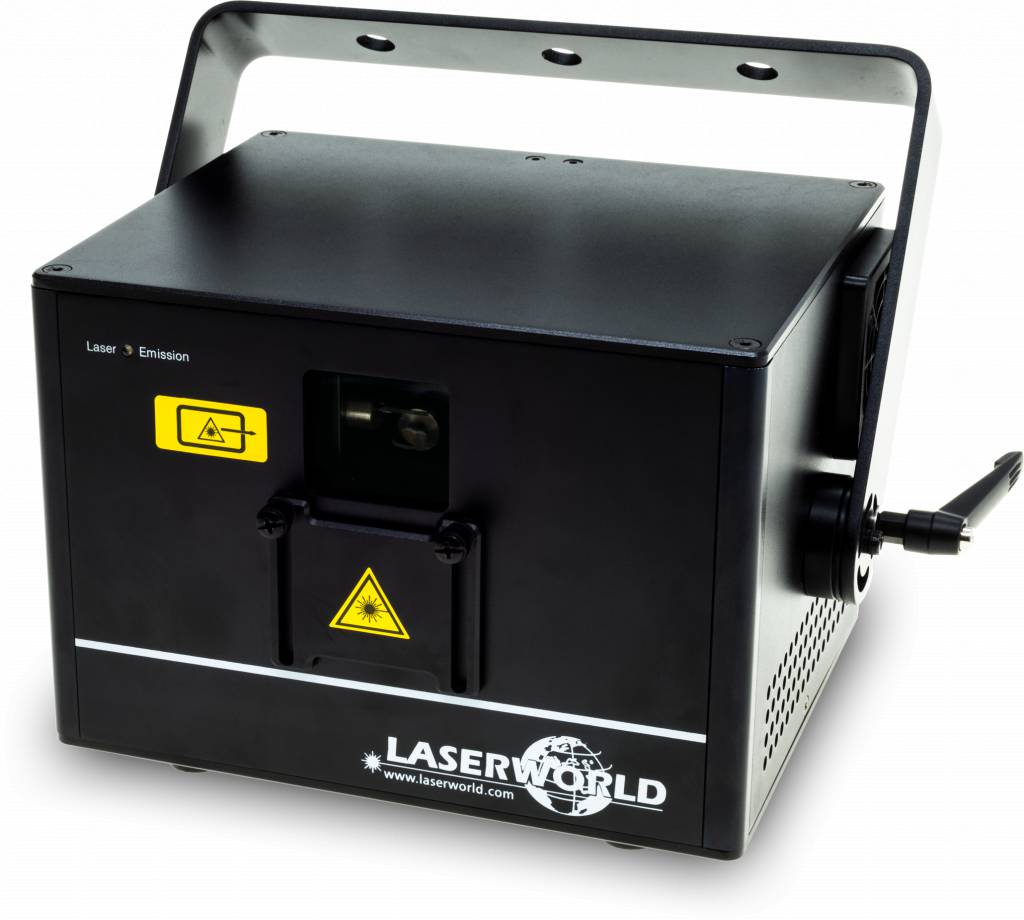

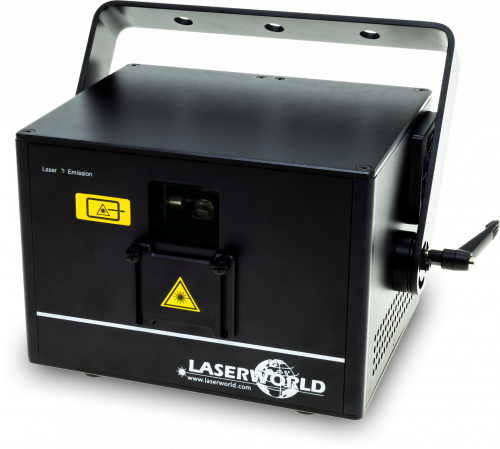

CS 2000RGB Fl S

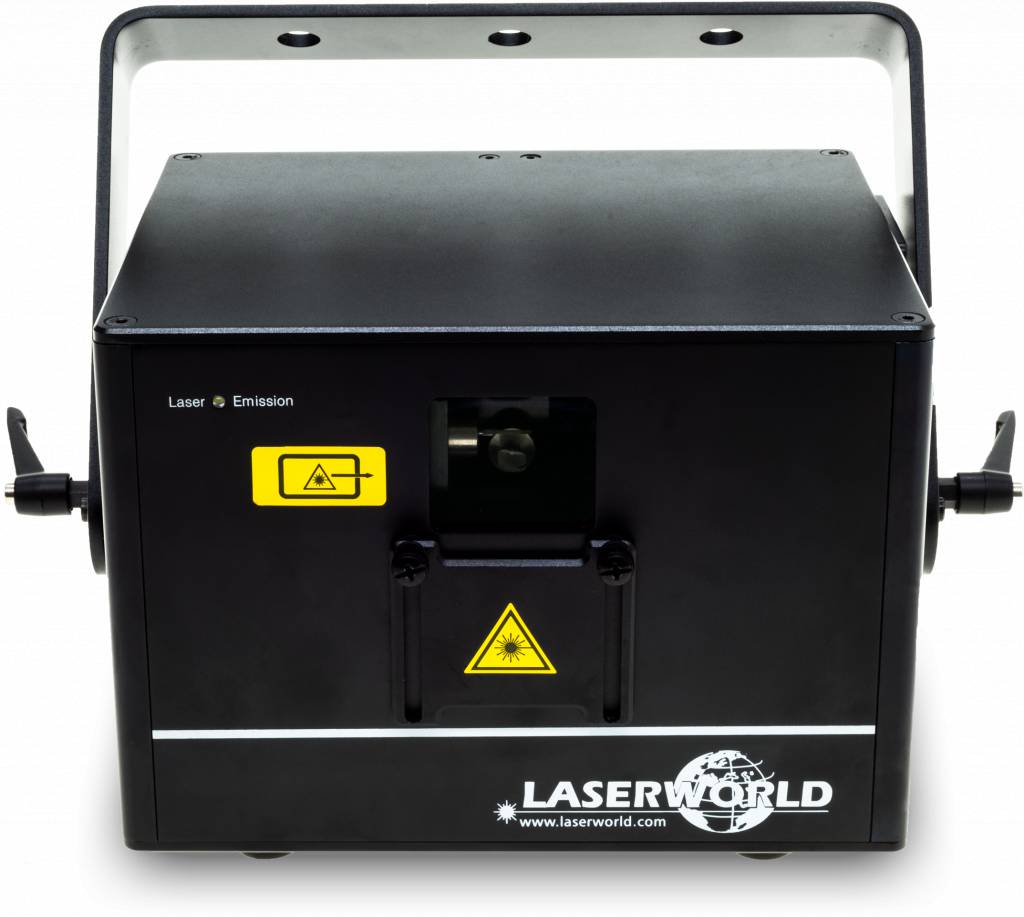

CS 2000RGB F S

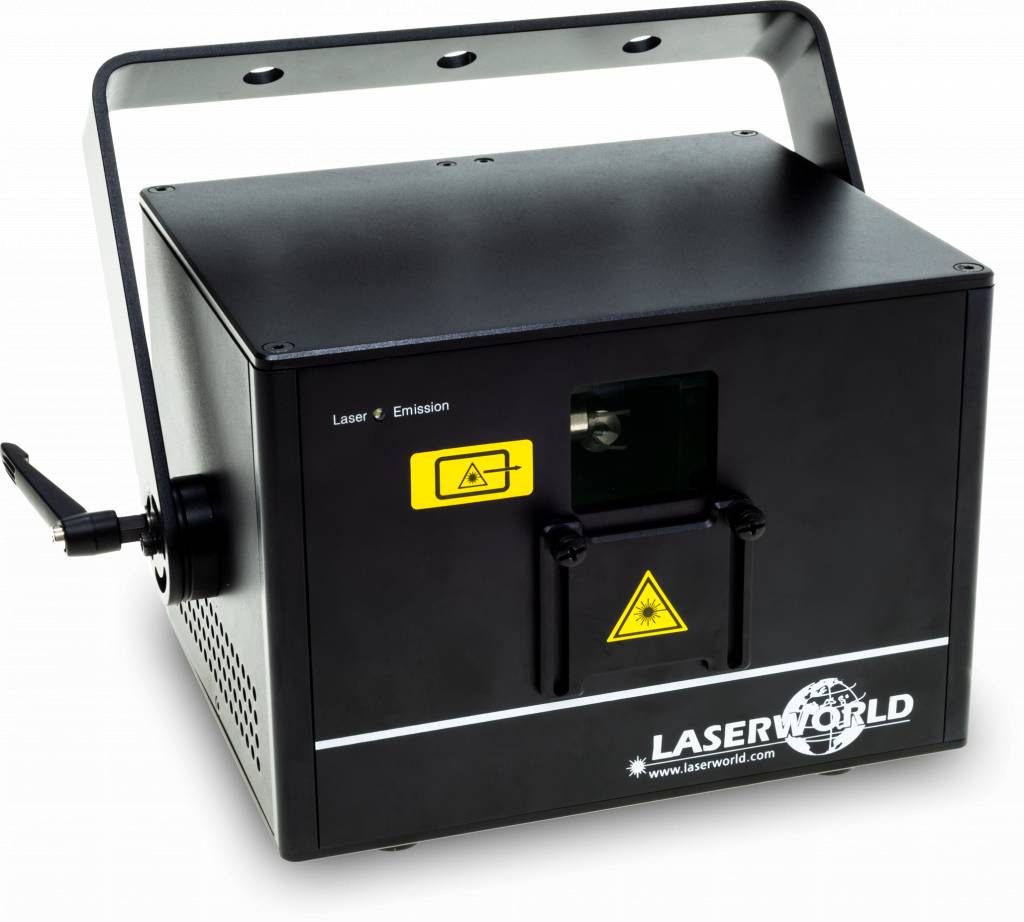

CS 2000RGB Fr S
CS 2000RGB B S
READ MORE PRODUCT DETAILS
The Laserworld CS-2000RGB FX MKII has three grating effects built in in addition to the graphics capable scanners: line grating, burst grating and radial grating.
Together with the ca. 130 (layers, tunnels, fences, waves, etc.) stored on the laser, these effects offer a variety of combinations for impressive illumination of medium-sized to large locations. The grating effects make the projected patterns appear as if they were displayed by many projectors at the same time. The resulting extensiveness allows for effects that could not be achieved in any other way.
But that's not everything the Laserworld CS-2000RGB FX MKII has to offer:

The Laserworld CS-2000RGB FX MKII is a pure diode, analog modulated, full color RGB laser system with a total output power of up to 2'000 mW and a guaranteed output power of 1'600 mW. The red laser source has an output power of 250 mW / 635 nm, the green of 250 mW / 520 nm and the royal-blue laser source has an output power of 1'100 mW / 450 nm. The diode laser sources ensure powerful laser beams. The projector has good beam specifications with a beam diameter of ca. 3 mm and beam divergence of 1.4 mrad. The galvo system has a scan speed of up to 28kpps @ 8° ILDA.

Pattern size can be set by two rotary buttons on the rear side of the housing. The sensitivity of the microphone can be adjusted via the integrated display.

Through DMX, in the stand-alone mode as well as in the sound-to-light mode about ca. 130 (layers, tunnels, fences, waves, etc.) can be projected in different colors and in various speed. If the stand-alone mode is active, the pre-programmed patterns run without assistance and in the sound-to-light mode, the laser system projects according to the sound.

Next to the modes mentioned above, this laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX cable to a main projector (master projector) project the same patterns like the master projector.

The Laserworld CS-2000RGB FX MKII is computer controllable through a professional ILDA interface. Thus own or pre-programmed lasershows, logos, texts or own graphics and animations can be shown in combination with a laser control software (e.g. Showeditor or Showcontroller).

There are safety features like a key switch, an interlock and an on-off switch.

The Laserworld CS-2000RGB FX MKII show laser projector comes with a compact housing, which is light weight and has a stable bracket. The 360° mounting bracket allows for different mounting positions: a hanging as well as a standing installation is possible - ideal for mobile DJs and temporary laser shows, but also for fixed installations at a truss or at the ceiling.

The Laserworld CS-2000RGB FX MKII is ideal for semi-professional applications and is perfectly suitable in medium sized to large clubs and discos as well as for mobile DJs, private use and in any other party location.

SEE DETAIL PICTURES
Laserworld CS 2000RGB 0013 Beam
Laserworld CS 2000RGB 0012 Beam
Laserworld CS 2000RGB 0014 Beam
Laserworld CS 2000RGB 0011 Beam
Laserworld CS 2000RGB 0016 Beam
Laserworld CS 2000RGB 0017 Beam
Laserworld CS 2000RGB 0009 Beam
Laserworld CS 2000RGB 0032 Beam
Laserworld CS 2000RGB 0031 Beam
Laserworld CS 2000RGB 0038 Beam
Laserworld CS 2000RGB 0033 Beam
Laserworld CS 2000RGB 0035 Beam
Laserworld CS 2000RGB 0030 Beam
Laserworld CS 2000RGB 0037 Beam
Laserworld CS 2000RGB 0036 Beam
Laserworld CS 2000RGB 0034 Beam
Laserworld CS 2000RGB 0008 Beam
Laserworld CS 2000RGB 0018 Beam
Laserworld CS 2000RGB 0007 Beam
Laserworld CS 2000RGB 0019 Beam
TECHNICAL DETAILS
Total Power
2'000 mW
Guaranteed Power
1'600 mW
Power Red
250 mW / 635 nm
Power Green
250 mW / 520 nm
Power Blue
1'100 mW / 450 nm
Beam Specifications
ca. 3 mm / 1.4 mrad
Scanner
28kpps @ 8° ILDA; galvo system
Max. Scan Angle
40°
Laser Source
Diode
Laser Class
4
Operation Modes
stand-alone, sound-to-light, DMX, ILDA, master-slave
Basic Patterns
ca. 130 (layers, tunnels, fences, waves, etc.)
Accessories
power cable, manual, interlock, key
Power Supply
85V - 250 V AC
Power Consumption
36 W
Dimensions
200 x 165 x 141 mm
Weight
3.1 kg
EAN / MPN
7640144997441
