Salt Mine Heilbronn 2012 - multi media installation

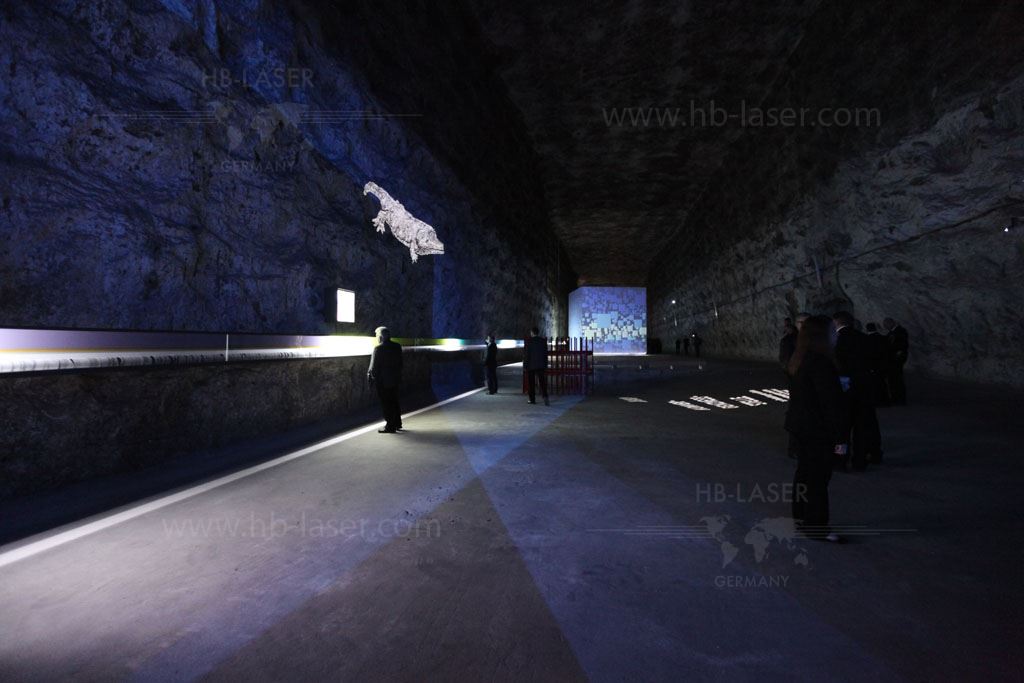

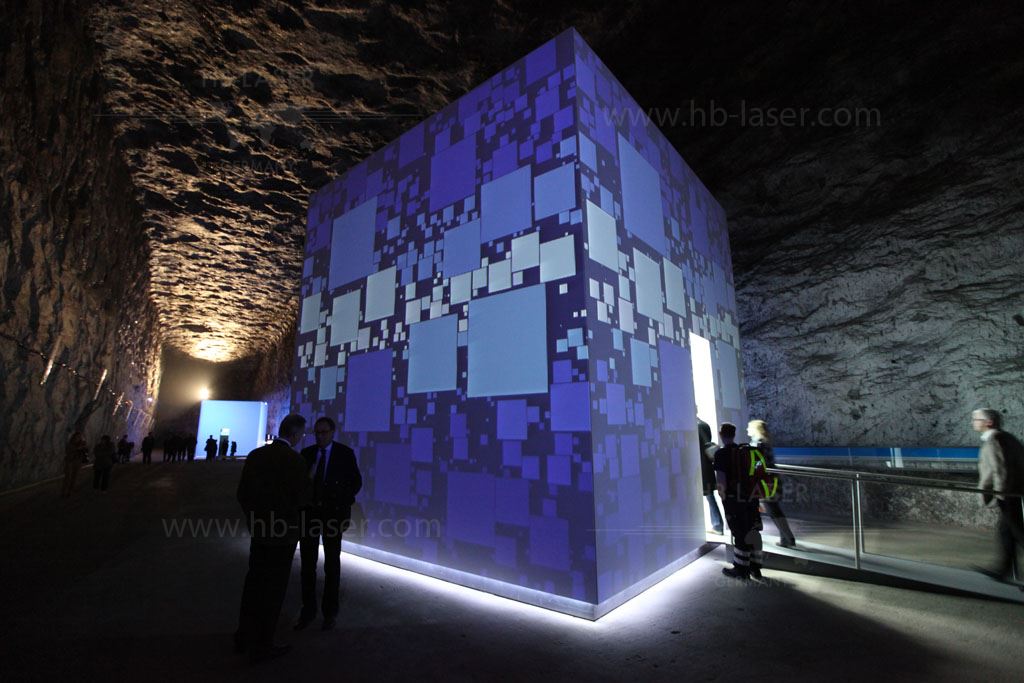

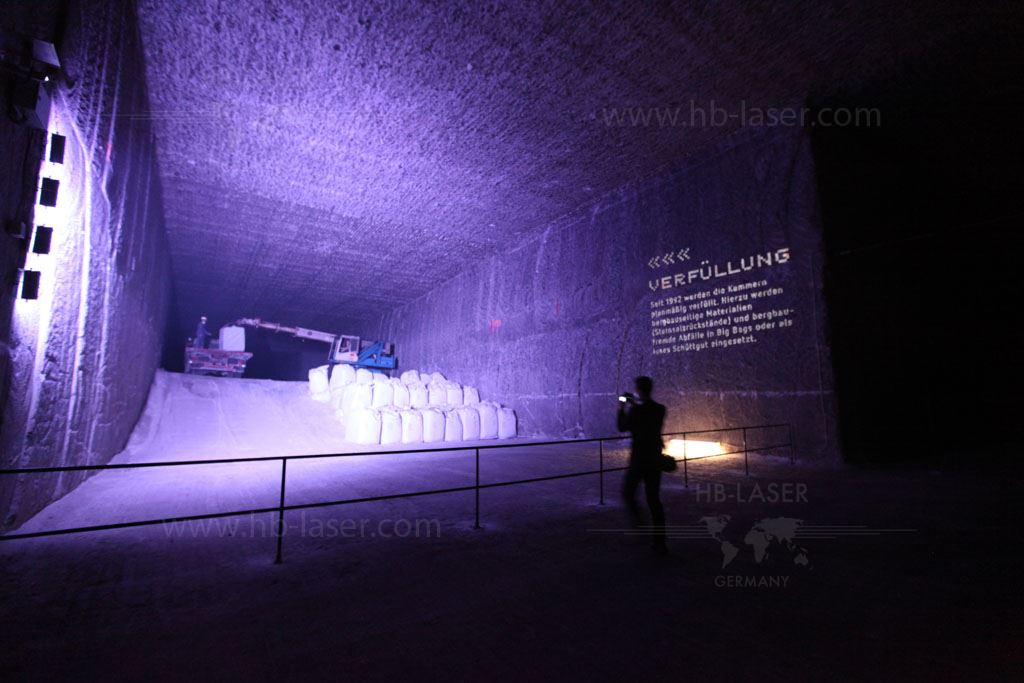

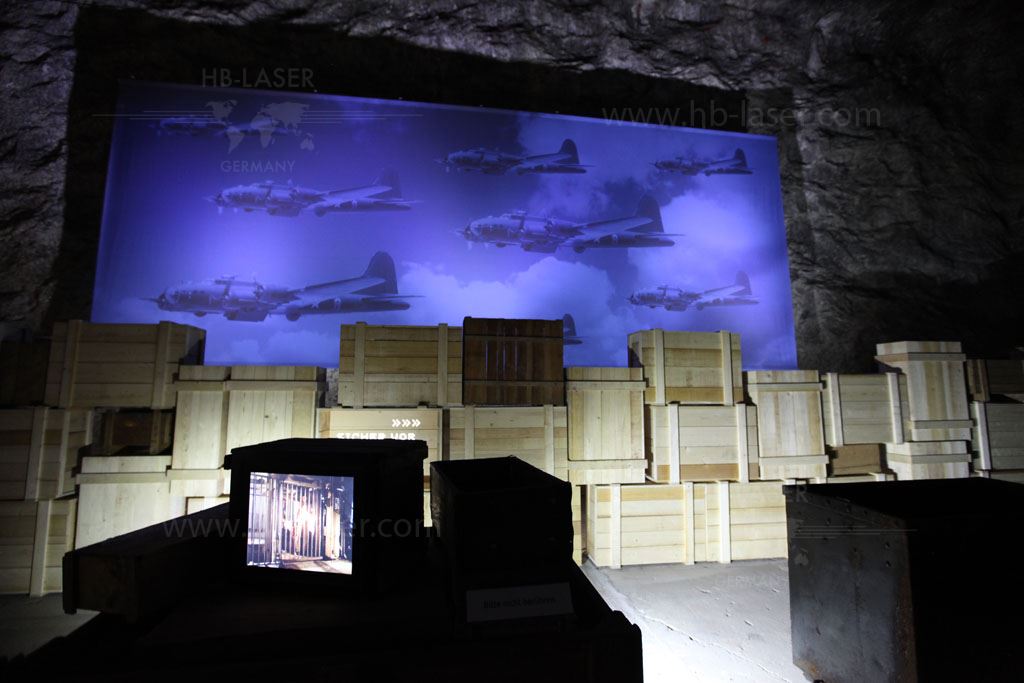

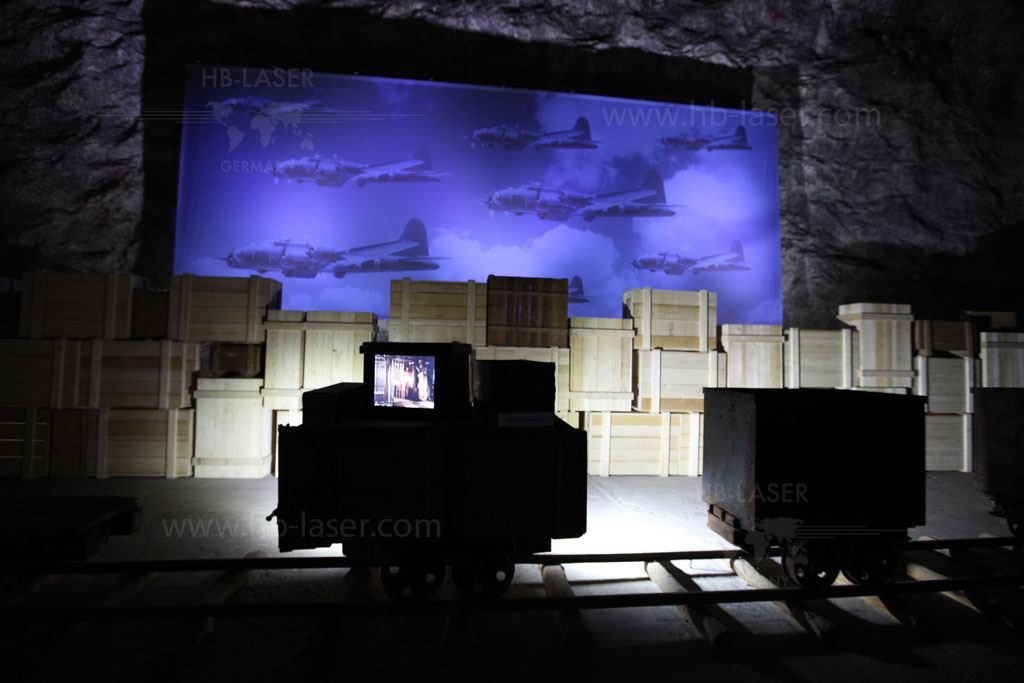

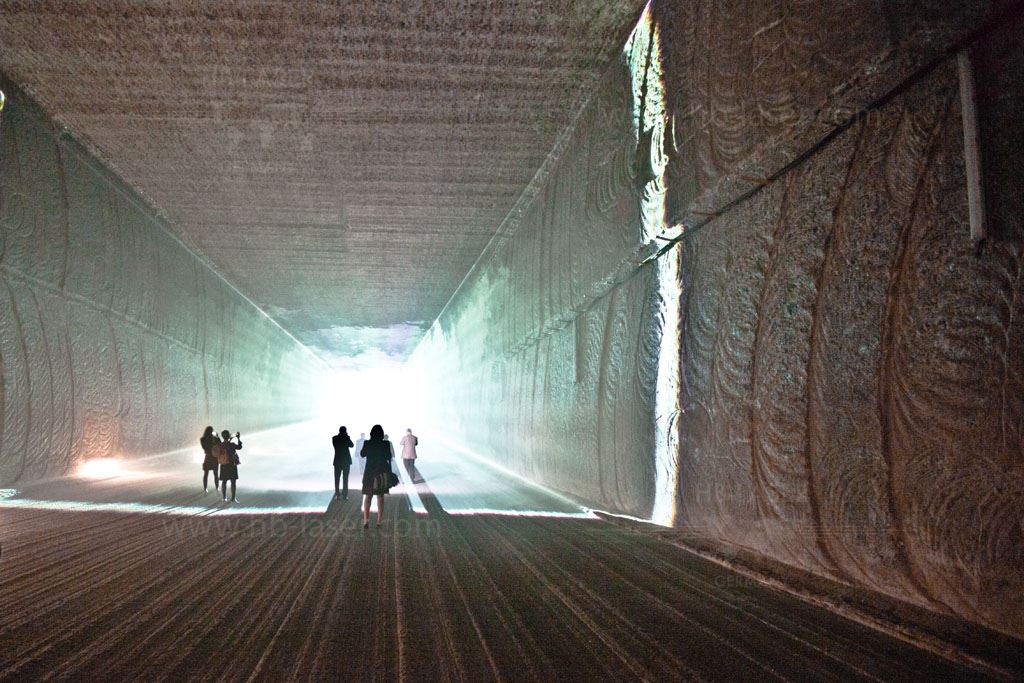

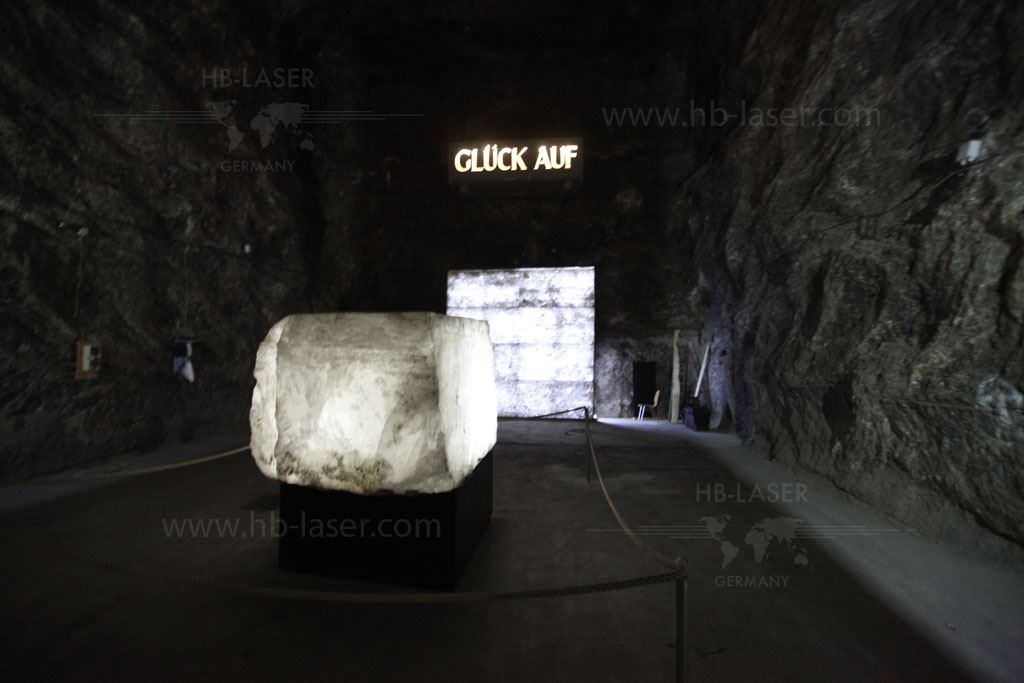

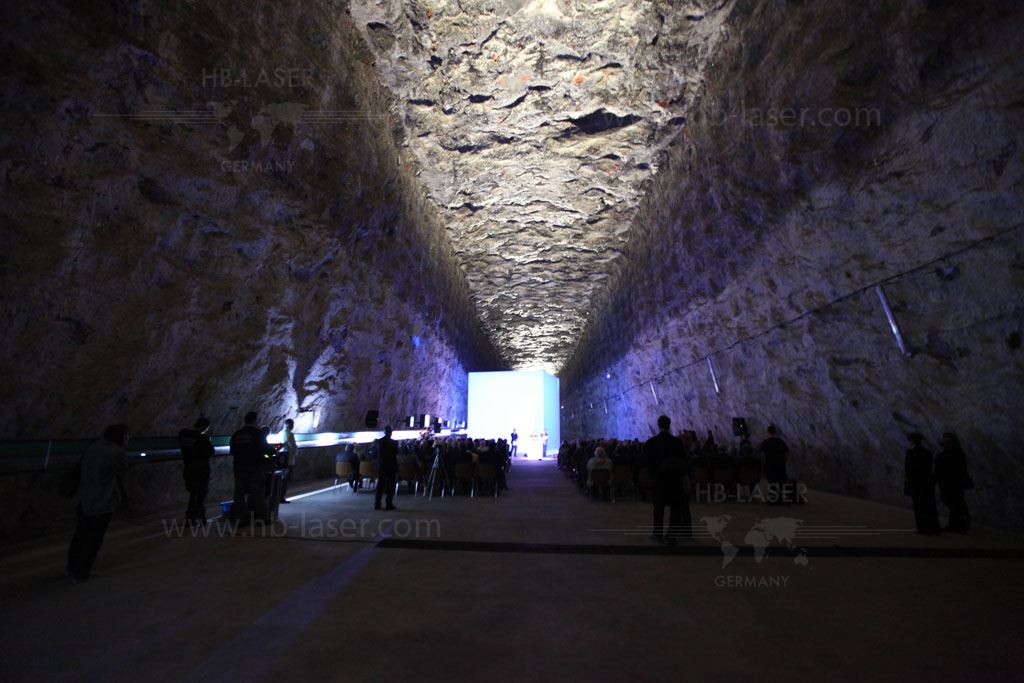

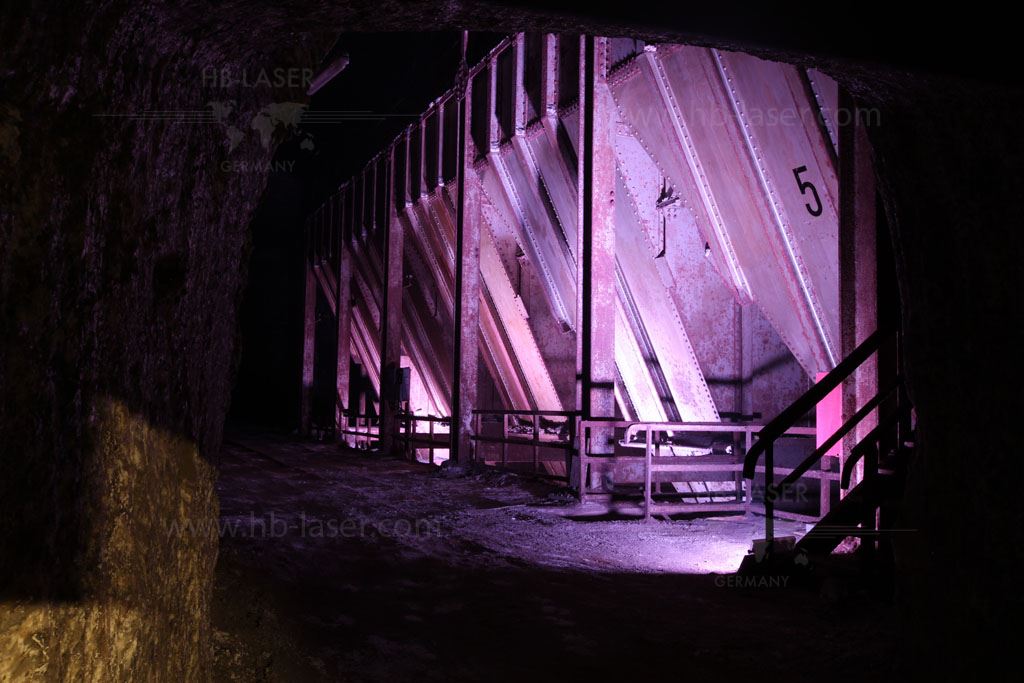

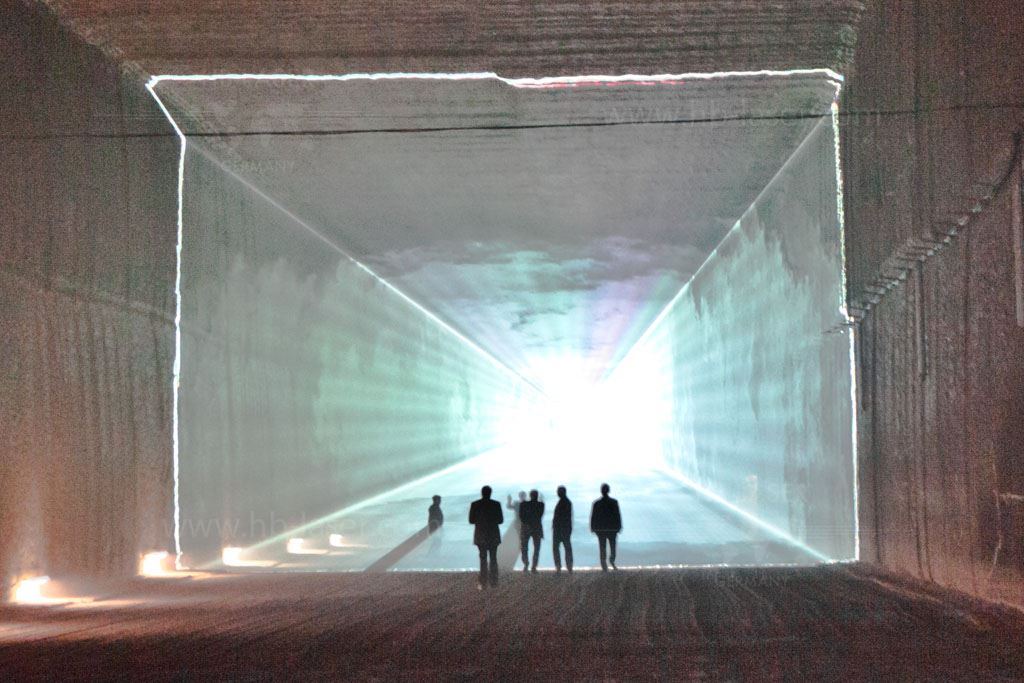

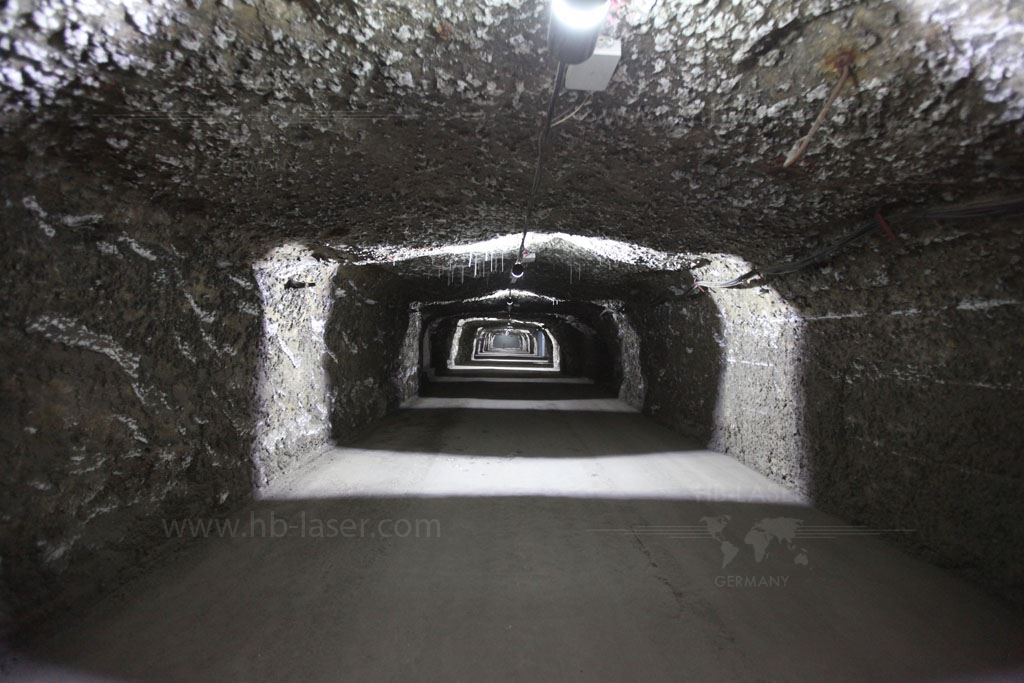

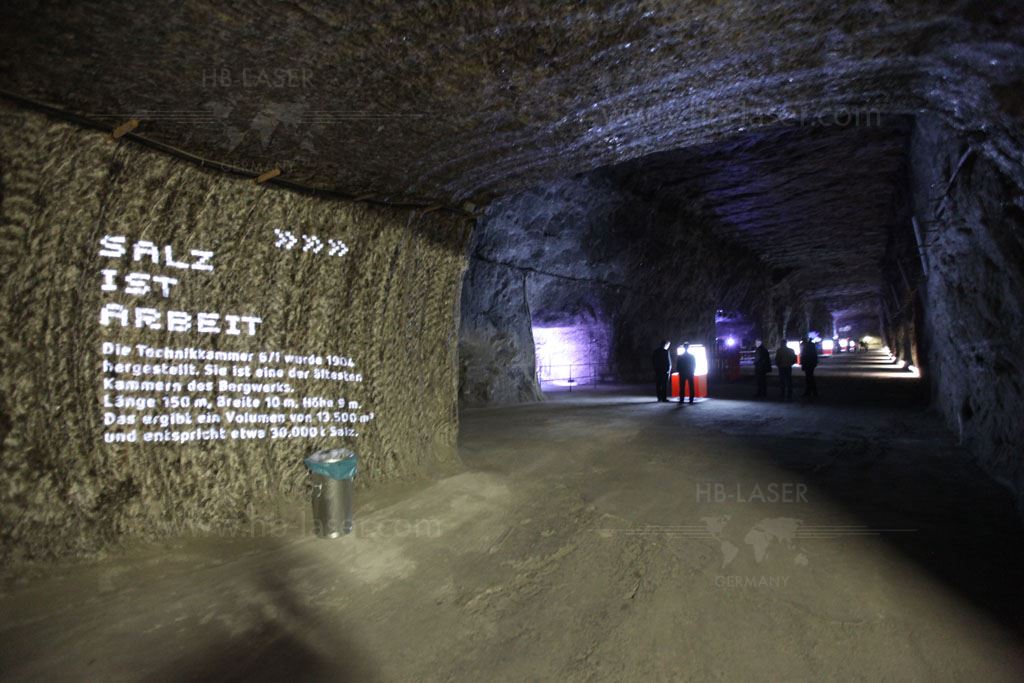

The operators of the salt mine Heilbronn charged HB-Laser with an entire multi media show installation in the mine including the special IT power installation and the power-transformers. Approximately 50 km of cable were installed on the subsurface round tour (2 km) with custom-made video, laser, light and multi media technology and content. Alongside the round tour there are several spots where the tour stops. Each spot was individually equipped with hundreds of LED`s, custom made light installations, designed by the light-artist „Joachim Fleischer“. Lasers and multiple video projectors with salt resistant IP housings were used for video mapping onto the surface of 6x6x6m cubes, wich were built into the mine's galleries. Inside these cubes there are information systems with touch-terminals, projections and interactive information systems. A detonation simulation as well as a large scale cinema with a 14x10 m screen and 6 KW sound-system were set up as well. At the end of the tour, the visitors enter an "infinite" 3D Laser tunnel.

This technology was installed to the Salt Mine in Heilbronn:

  • Complete power installation with 7 x 8 KW IT Transformers 500 V to 230 V and 14 electrical cabinets
  • Approximately 30 km of high power cables and 20 km of multimedia cables
  • 15 info terminals, monitors and touch-systems
  • Approx. 500 m LED strips
  • 4 x 3.000 ANSI-lumen video projectors
  • 1 x 5.000 ANSI-lumen HD-video projector
  • 1 x 15.000 ANSI-lumen video projector
  • 1 x 6 m² sound-floor
  • 2 x 3 KW PR-electronics sound systems
  • 30 x 50 W RGB LED / Div. LED flood lamps
  • 4 x LED profilers / 8 x 2 KW profilers
  • 18 x LED slit lamp special art construction
  • 4 x LED wall wash special art construction
  • 6 x 2 KW spot light special art construction
  • 1 x HB-Laser LightCube RGB 3.5W

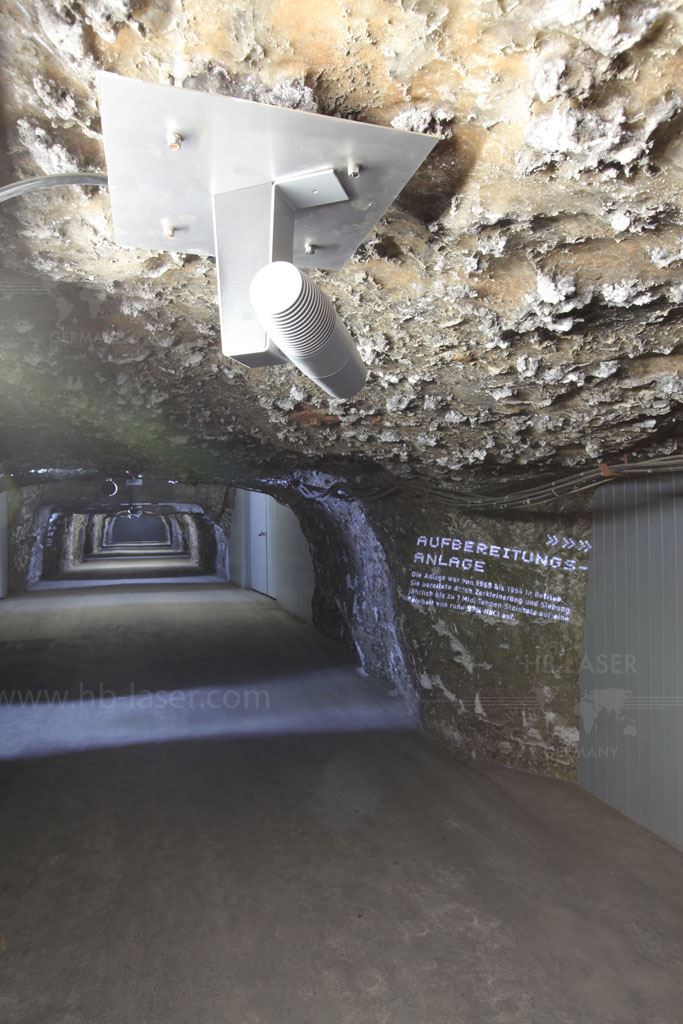

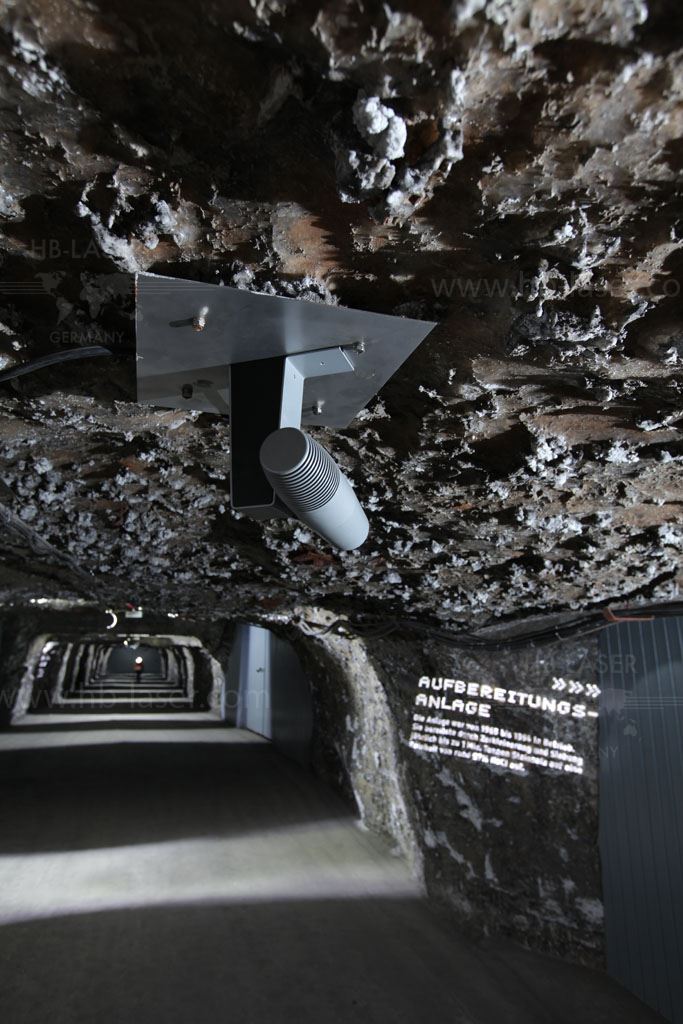

All technology is installed in custom-made IP rated salt resistant housings. Turn-key installation including show production according to the customers preferences.
